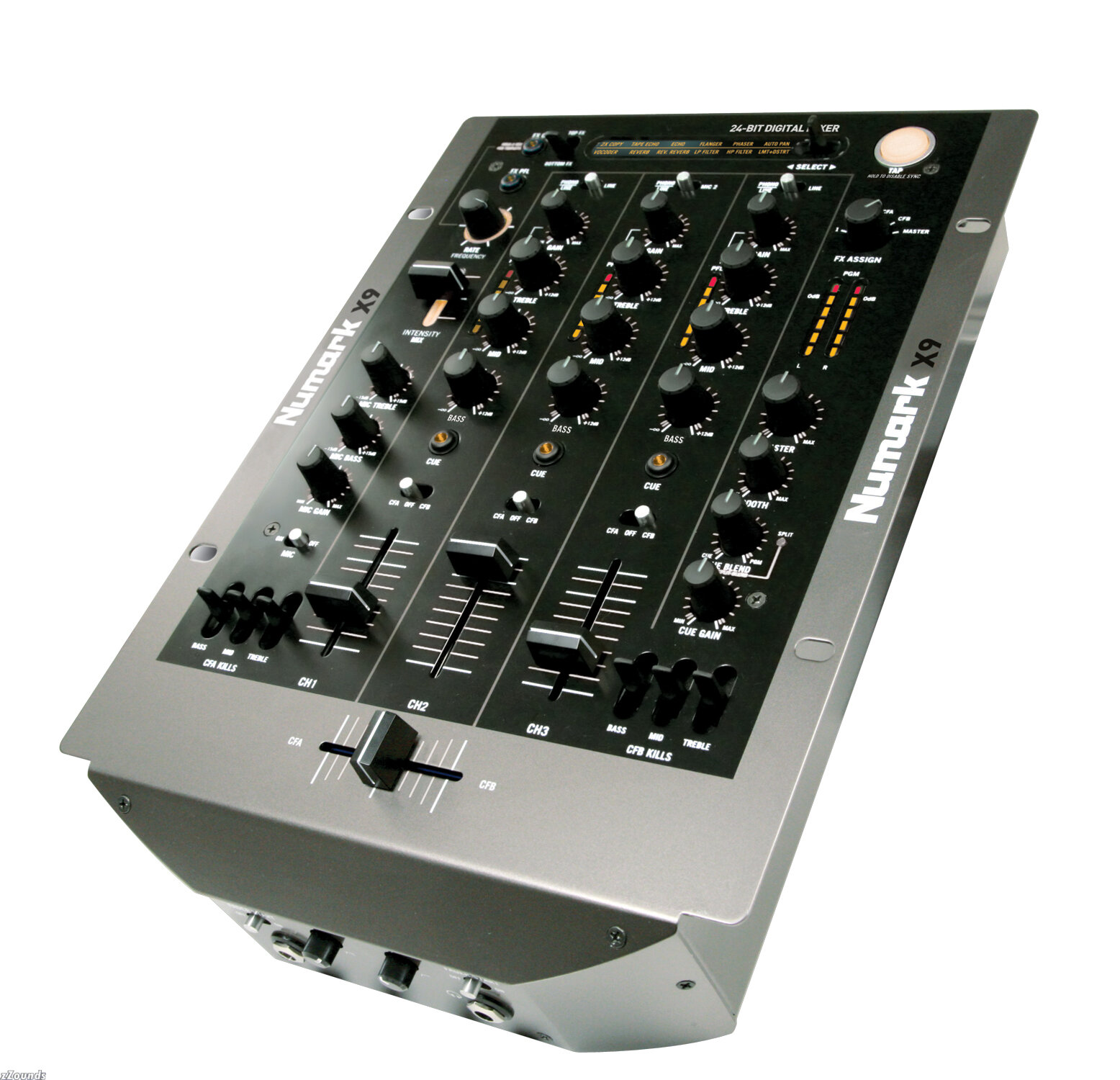

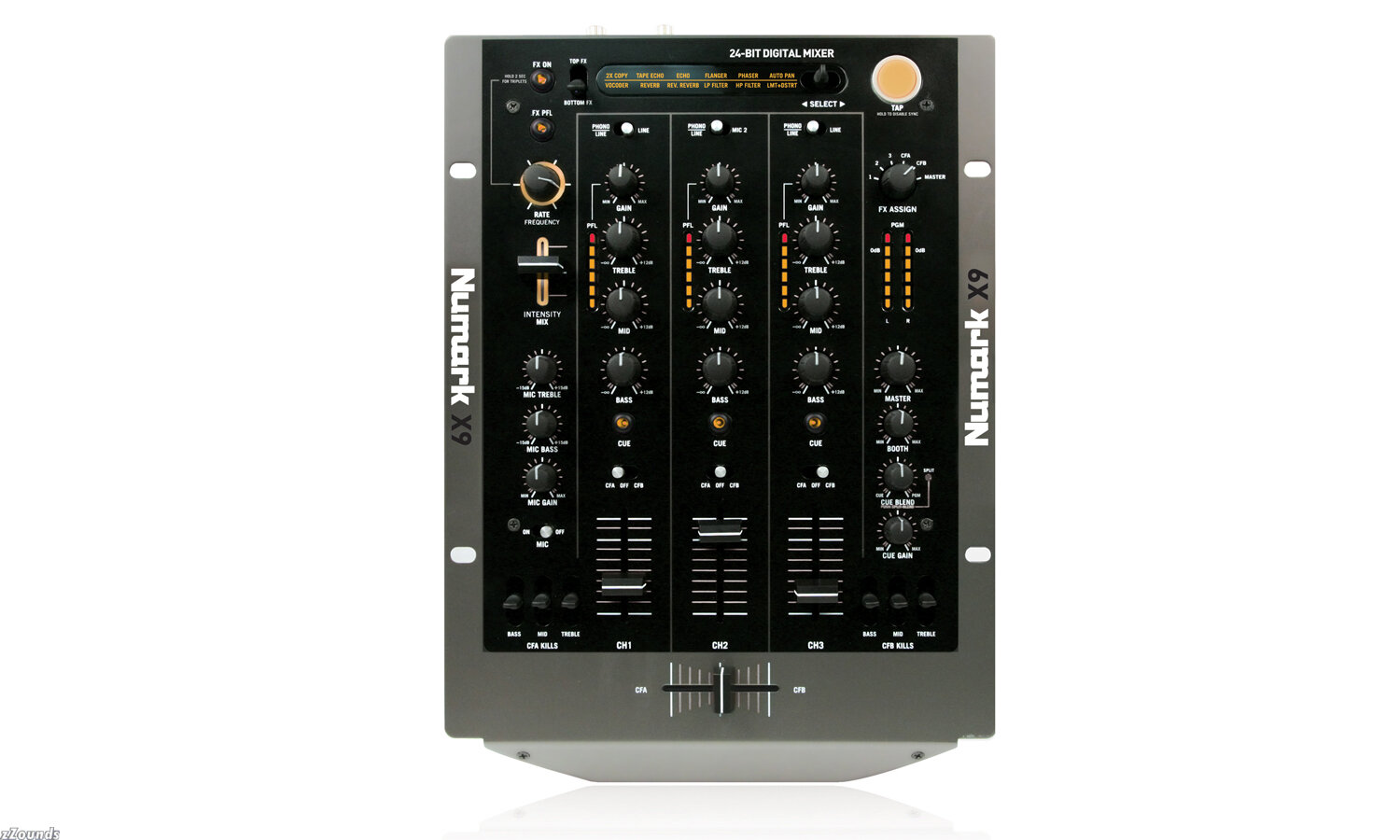

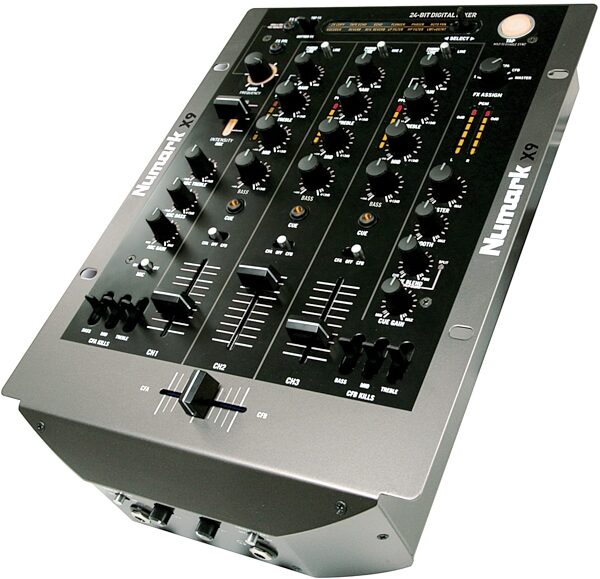

X9 is a three-channel digital scratch mixer with BEAT SYNC digital effects. For any DJ who values the fidelity and precision of their records, CDs, or digital files, X9 employs a 100%-digital signal path that incorporates technology from the music studio pros at Alesis.
This 24-bit mixer faithfully transmits every detail and nuance of your music adding zero distortion and zero noise. Each channel features three-band rotary EQ which cut ad finitum. Two sets of assignable, three-band Kill switches add further to the frequency manipulation controls.
Features
Three-channel digital, tabletop mixer
24-bit, no-noise, no-distortion digital mixing with Alesis technology
Digital effects interface with 12 BEAT SYNC effects with wet/dry control
Vocoder, Tape Echo, Echo, Flanger, Phaser, Filter, two type of Reverbs, and more
Inputs: three phono/line switchable (RCA), two line (RCA), two mic (1/4 in.)

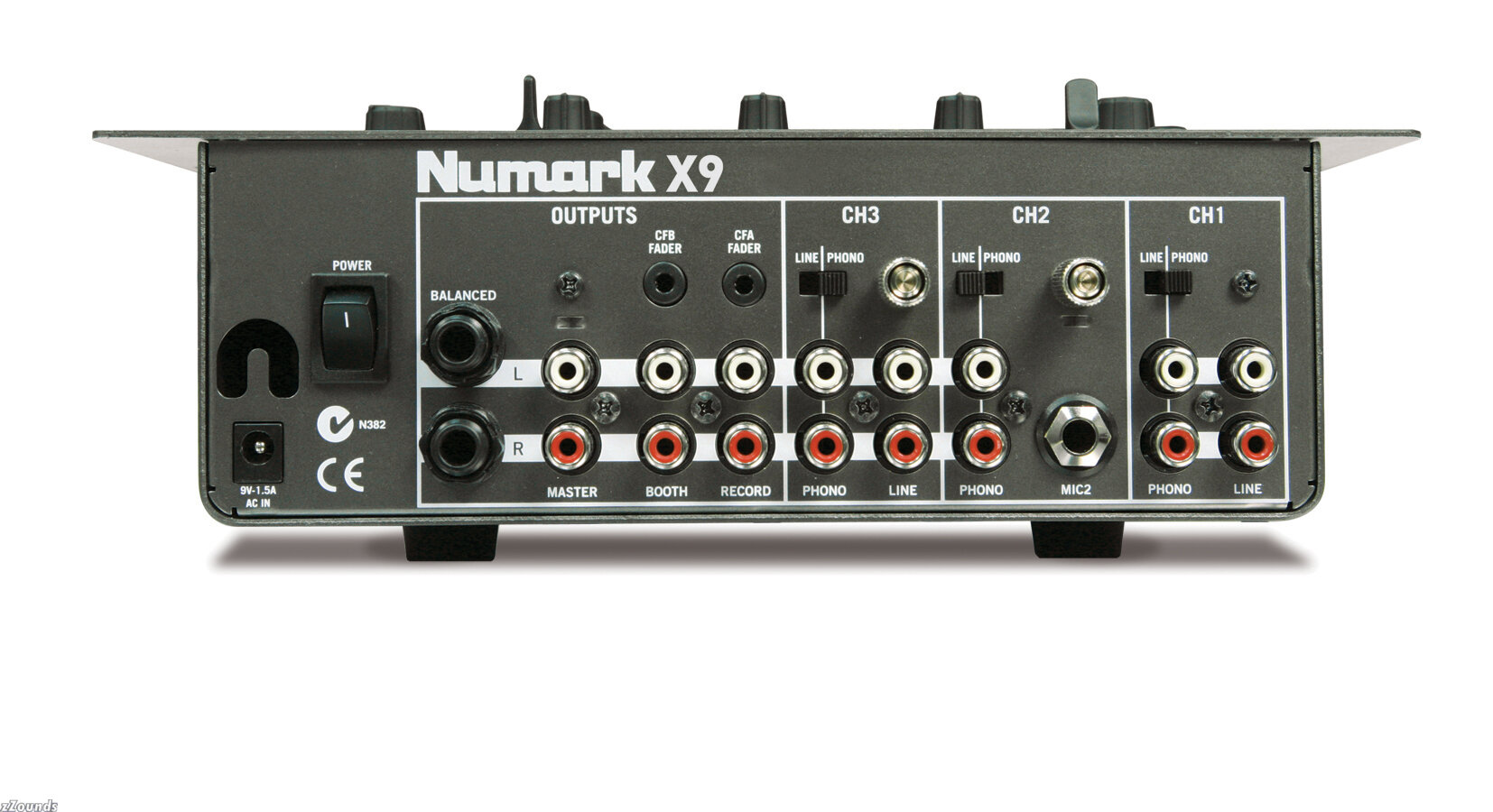

Outputs: Balanced (1/4 in., Master (RCA), Booth (RCA), Record (RCA), Headphone (1/4 in. stereo)
D-Type digital crossfader with reverse and continuously adjustable slope control
Microphone channel with gain, EQ, on/off switch, and aux input
Three-band rotary, to-inifity EQs, and gain on each channel
Dual three-band Kill switches
Mini-crossfader cueing
X9 kicks your mixes up a notch with twelve 24-bit advanced, assignable, digital BEAT SYNC effects: Vocoder, Tape Echo, Echo, Flanger, Phaser, Filter, two type of Reverbs, and more, all sync to the beat or your tap input.
X9 has a D-Type digital, replaceable, assignable crossfader with reverse and continuous slope-controls, as well as mini-crossfader cueing, and balanced 1/4-inch outs for professional, reliable connection. X9 has everything you need, all you want, and then some.
Technical Info
Audio Fidelity Specifications:
- SNR: >100dB @ 1kHz, full path, A-weighted
- Frequency Response: 10Hz-20kHz +/-0.5dB
- THD (Total Harmonic Distortion): <0.005%
- Full path: 22-22kHz
- Line: >97dB SNR, 0.005% THD+N unweighted
- Phono: >87dB SNR, 0.009% THD+N unweighted
Gain:
- Gain Range: Infinity - +10dB
EQ:
- Low Crossover: 140 Hz
- Upper Crossover: 3.2 kHz
- Gain Range: ()() - +12dB
- 24dB/Octave EQ Filters
Output:
- Balanced Output Impedance: 330 Ohms
Physical Specifications:
- Gross Weight: 5.58kg
- Net Weight: 4.3 kg
- Set size: 83 x 255 x 360mm
- Power: 15 Watts
