Novation NIO 2 4 USB Audio Interface with FX

The Novation nio 2 4 is offers a flexible 2 In / 4 Out USB mobile interface solution designed with the modern music maker in mind.

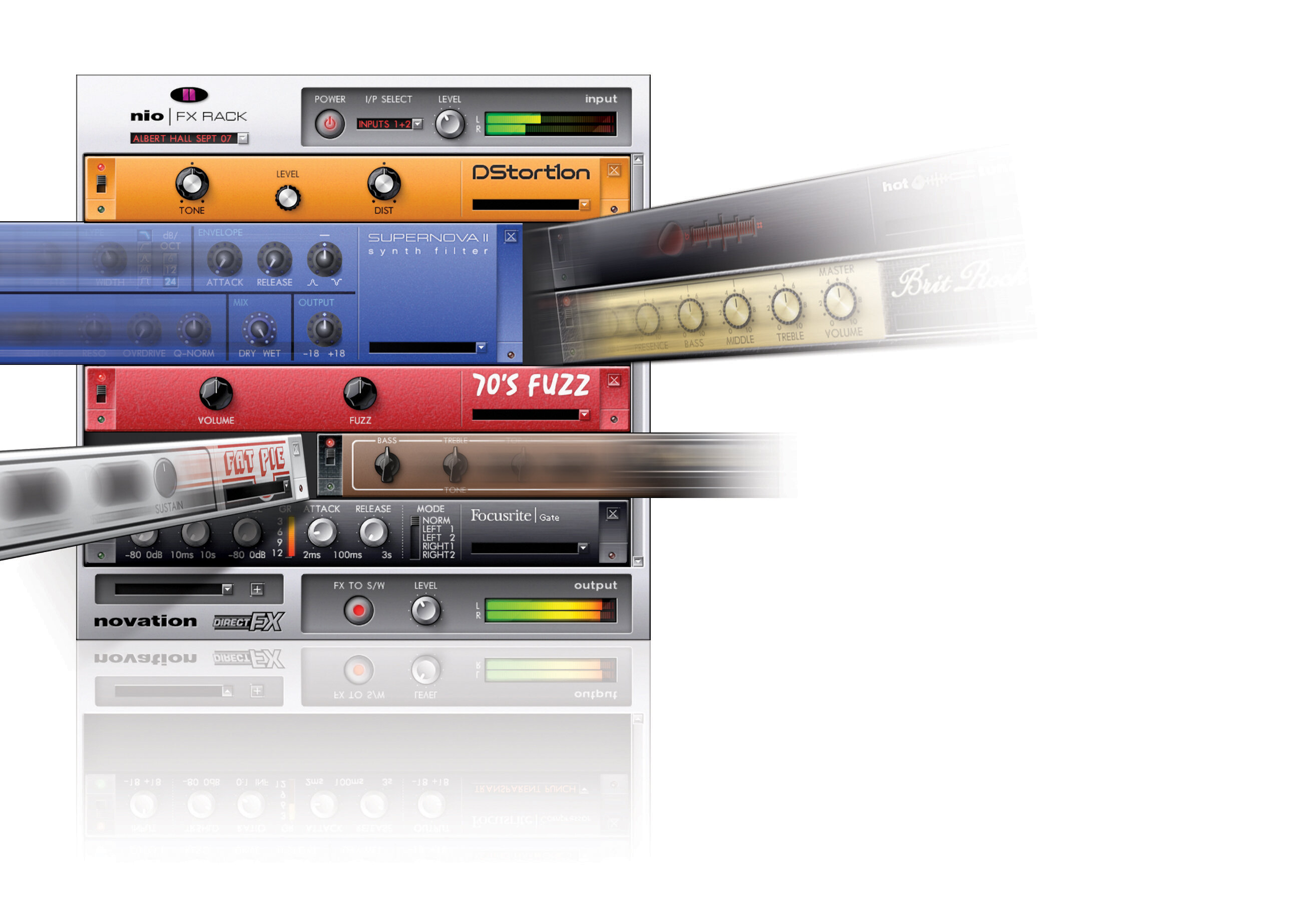

Novation’s Direct FX technology places a host of powerful FX at your fingertips (check specs for the full list). Direct FX technology’s ultra-low latency environment provides an unmatched freedom to create, allowing all of nio 2 4's effects to be used in real time. This same unique environment ensures rock solid and lightening fast performance

nio 2 4’s multi-effects engine includes superb guitar amp simulations, filters, delay, chorus, phaser, flanger, distortion, EQ, Reverb, Tremelo, and others too many to mention, many derived from the effect algorithms of Novation’s synth giants, past and present, most notably the Supernova II.

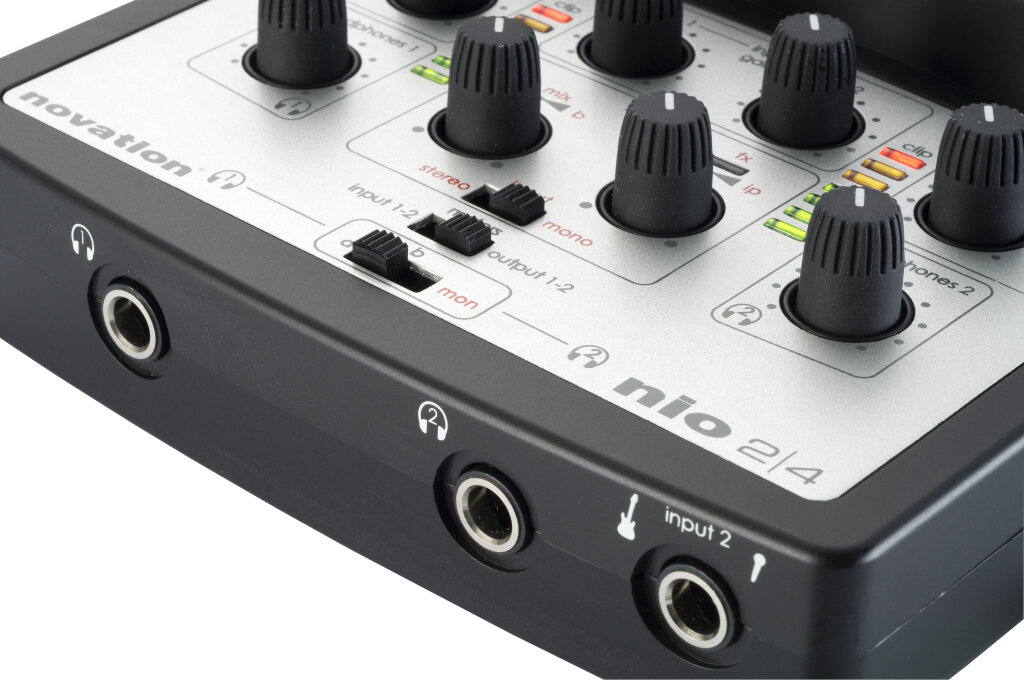

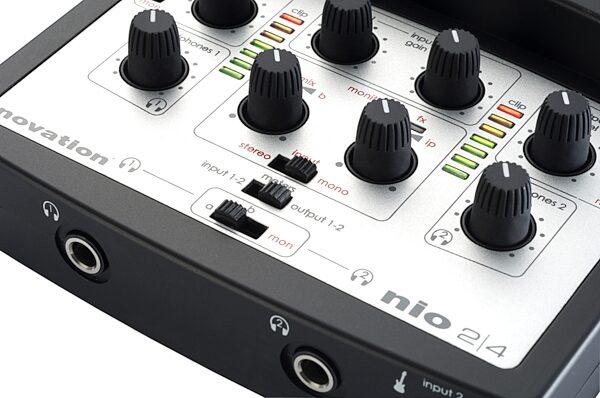

With robust rock-solid hardware, flexible software and powerful FX, nio 2 4 is the ideal interface solution for home recording, live performing and DJ’ing. With two headphone outputs, it’s also an ideal solution for the classroom environment.

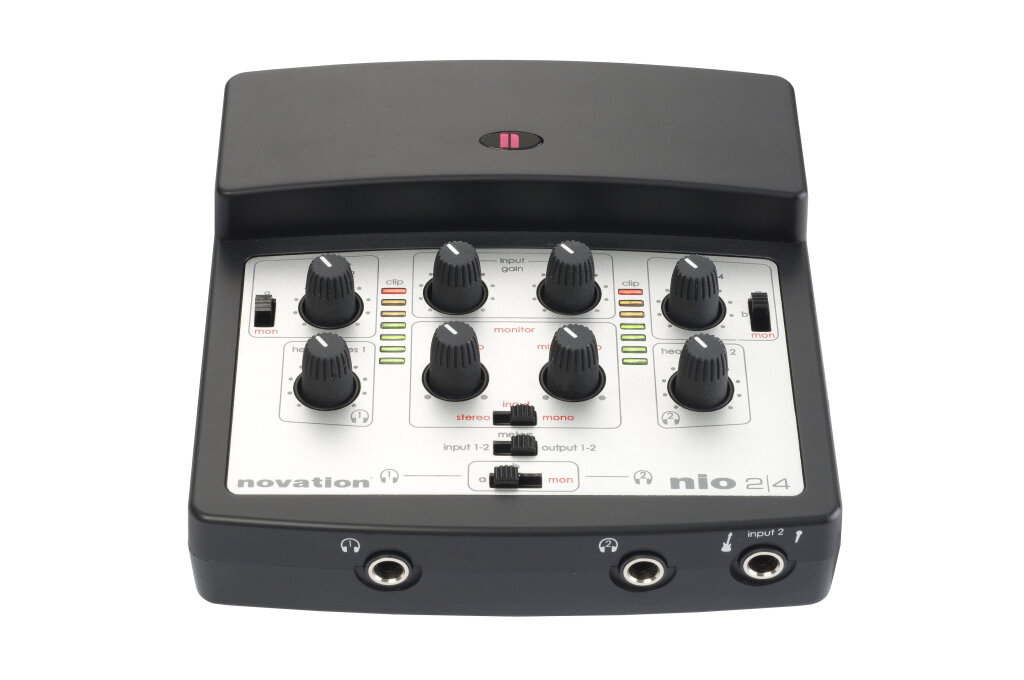

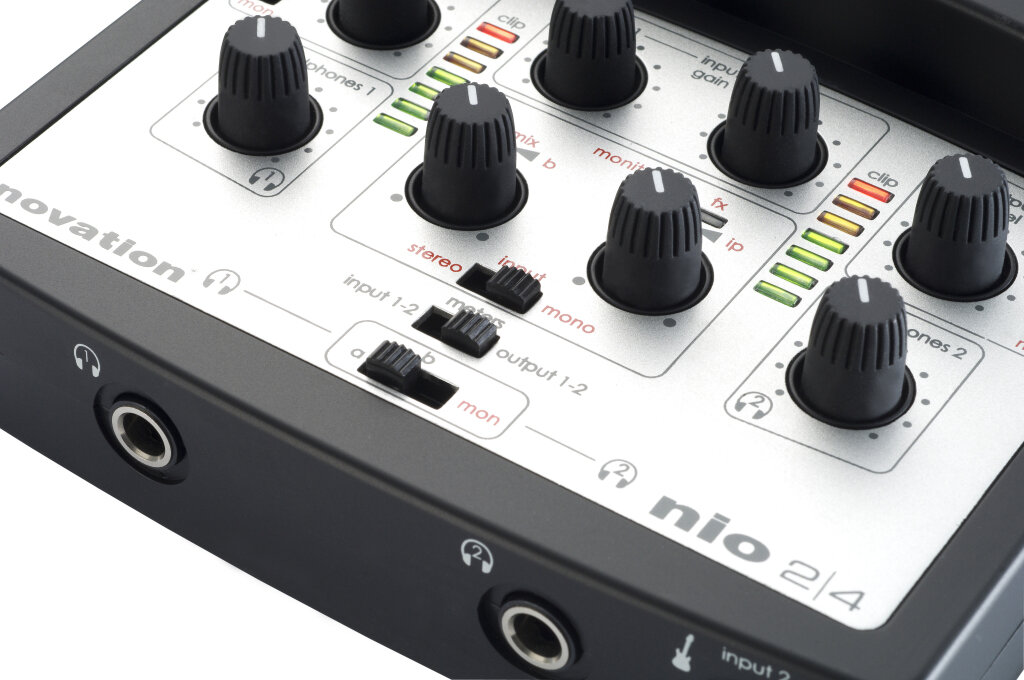

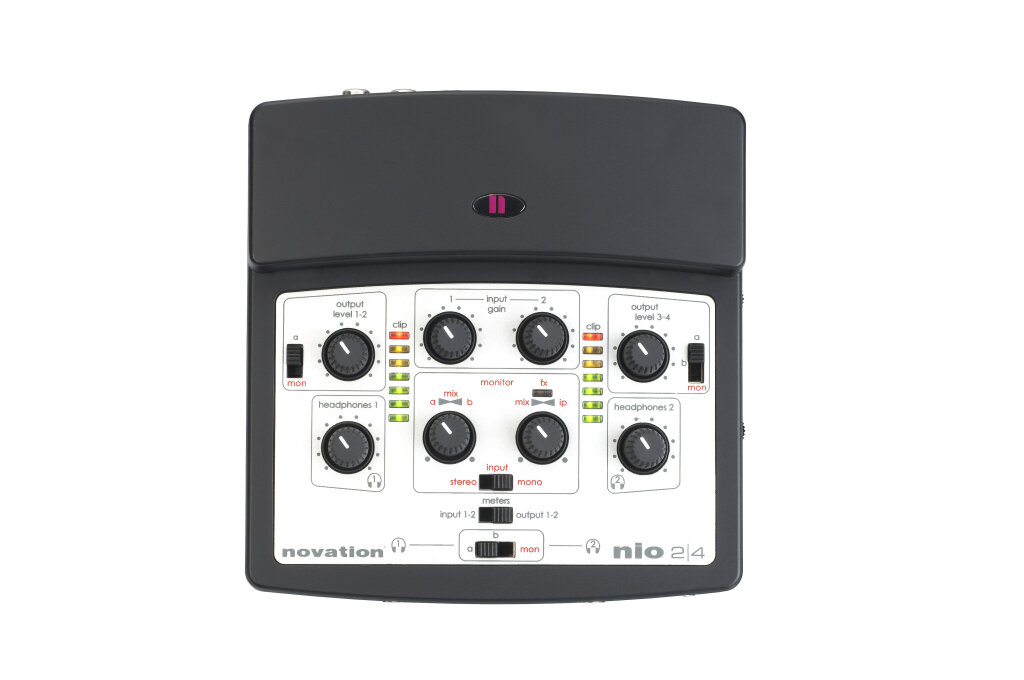

nio 2 4 provides a unique and truly flexible monitoring solution, with two dials close to hand and independent switching between three different monitor mixes. This, combined with four phono (RCA) outputs and flexible metering, make nio 2 4 the ideal solution for laptop DJs and live performers.

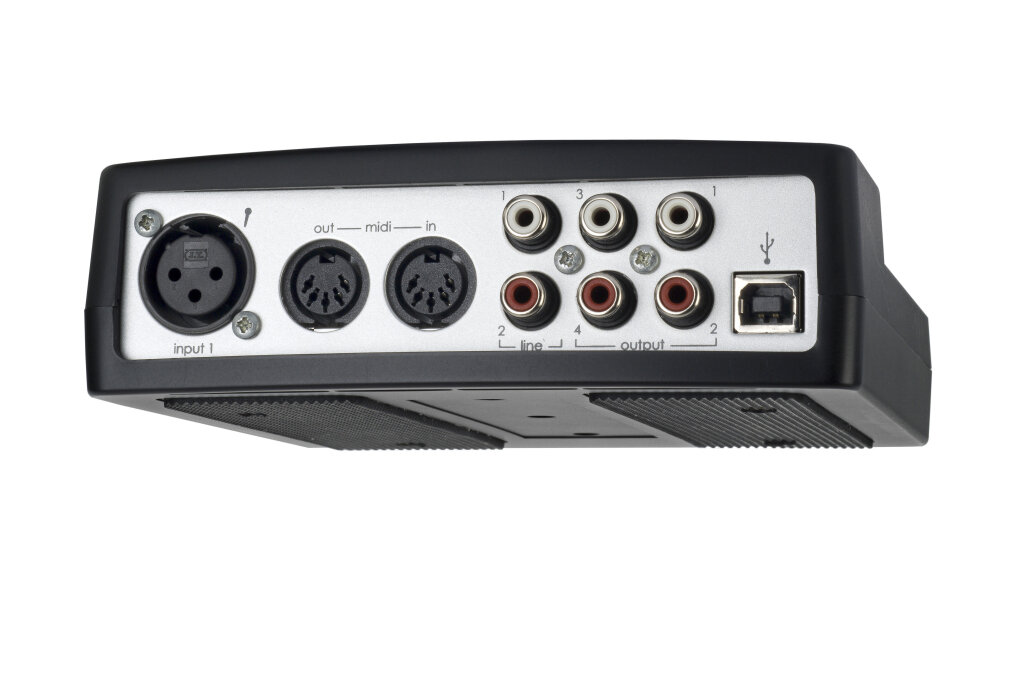

Two inputs are available for recording high quality audio into the DAW. Both an instrument jack and microphone XLR with phantom power are provided. As an alternative to these inputs, a pair of phono (RCA) inputs can be used to record a stereo signal, from a DJ Mixer, CD player or synthesizer for example.

Finally, nio 2 4 provides MIDI i/o and is also class compliant with both Mac OS X CoreAudio and PC, connecting via USB and bus powering with each.

Technical Info

Audio Interfacing

Inputs:
1 XLR (with phantom power)
1 TS Jack

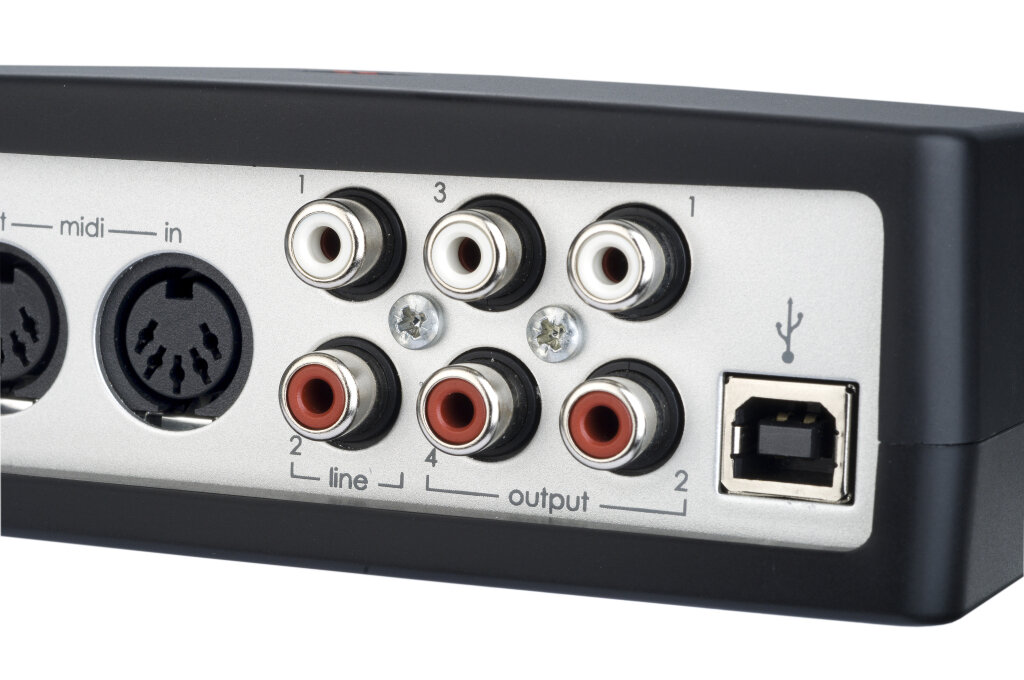

2 RCA Phonos

Outputs:
4 RCA Phono
1 stereo Headphones Jack

Other interfacing
Data ports: 1 x USB 1.1

System requirements
Operating system: Mac OSX 10.2.4 or greater or Windows XP

Computer spec: Apple G3/400 GHz or Pentium 600 MHz or better

Interfacing: USB 1.1 compatible USB connector

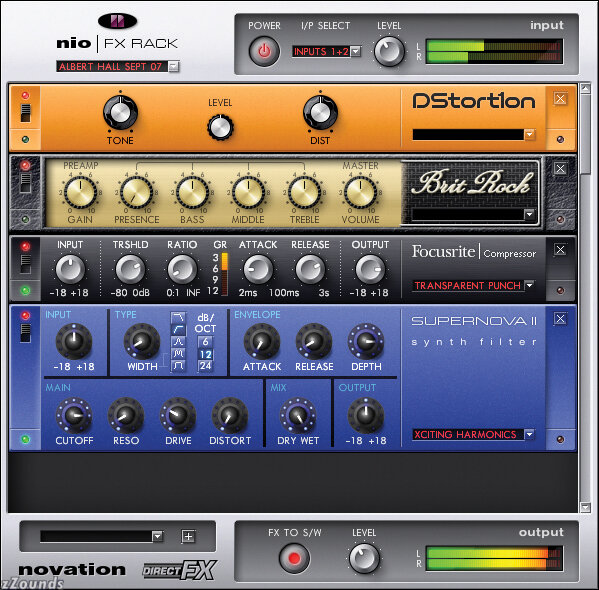

Nio 2 4’s Direct FX include:

Focusrite signal processing:

Gate

Compressor

EQ

Reverb

Novation FX

Super Nova II Filter (low-, high- and band-pass)

Super Nova II Delay

Super Nova II Chorus

Super Nova II Phaser

Overloud Guitar-based FX:

Pedals:
Green Screamer – Based on the Ibanez Tube Screamer

Fat Pie – Based on the Electro Harmonix Big Muff

DStortion – Based on the Boss DS-1 Distortion Pedal

70’s Fuzz – Based on the Dunlop Fuzz Face

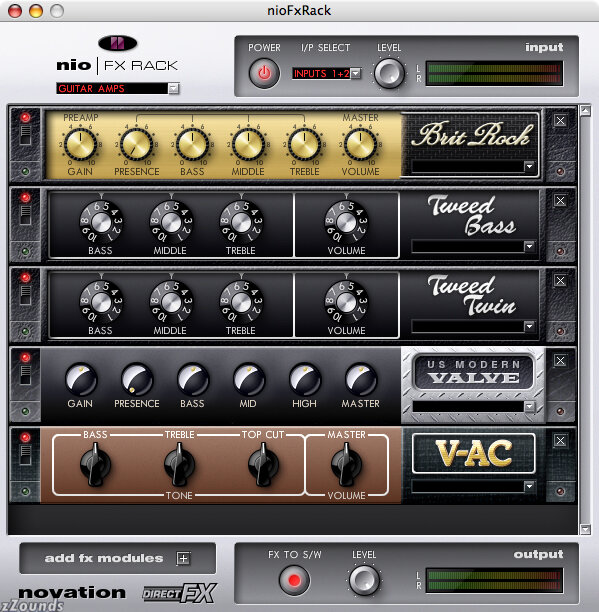

Amps:
FOX – Based on the Vox AC30 (with orig cab)

Tweed Twin – Based on the Fender Twin (with orig cab)

Brit Rock – Based on the Marshall JCM900 (with orig cab)

Dual Rectifier – Based on MESA Boogie Rectifier(with orig cab)

Tweed Bass – Based on the Fender Bassman (with orig cab)

*Important Information: All product names used in this page are trademarks of the respective owner, and are in no way associated or affiliated with Novation DMS Ltd or Over Loud Audio Tools, a brand of Almateq SRL. These trademarks of other manufacturers are only used to identify the products of those manufacturers, the sonic behaviour of which was studied during Overloud Audio Tool's analog modeling development.
