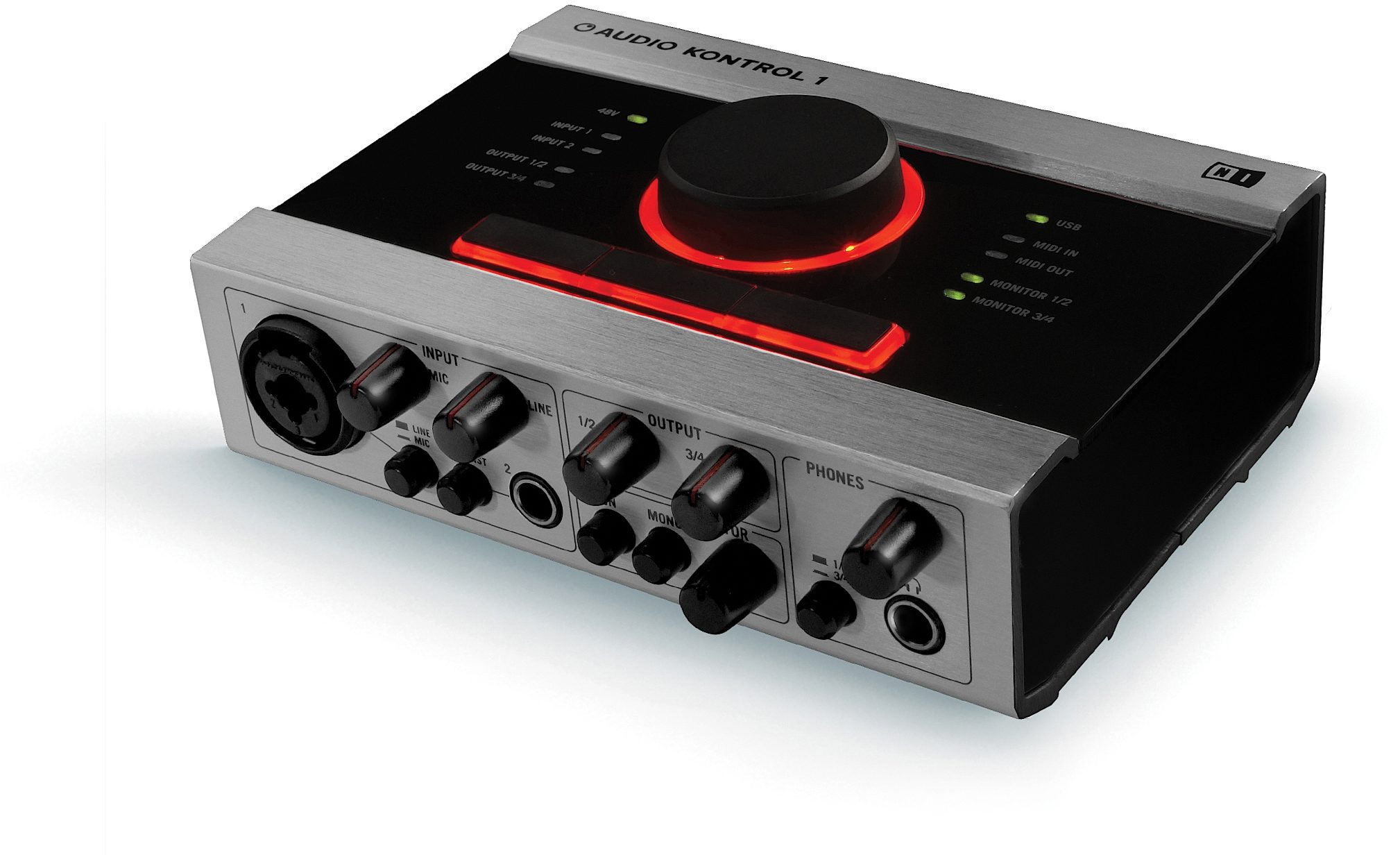

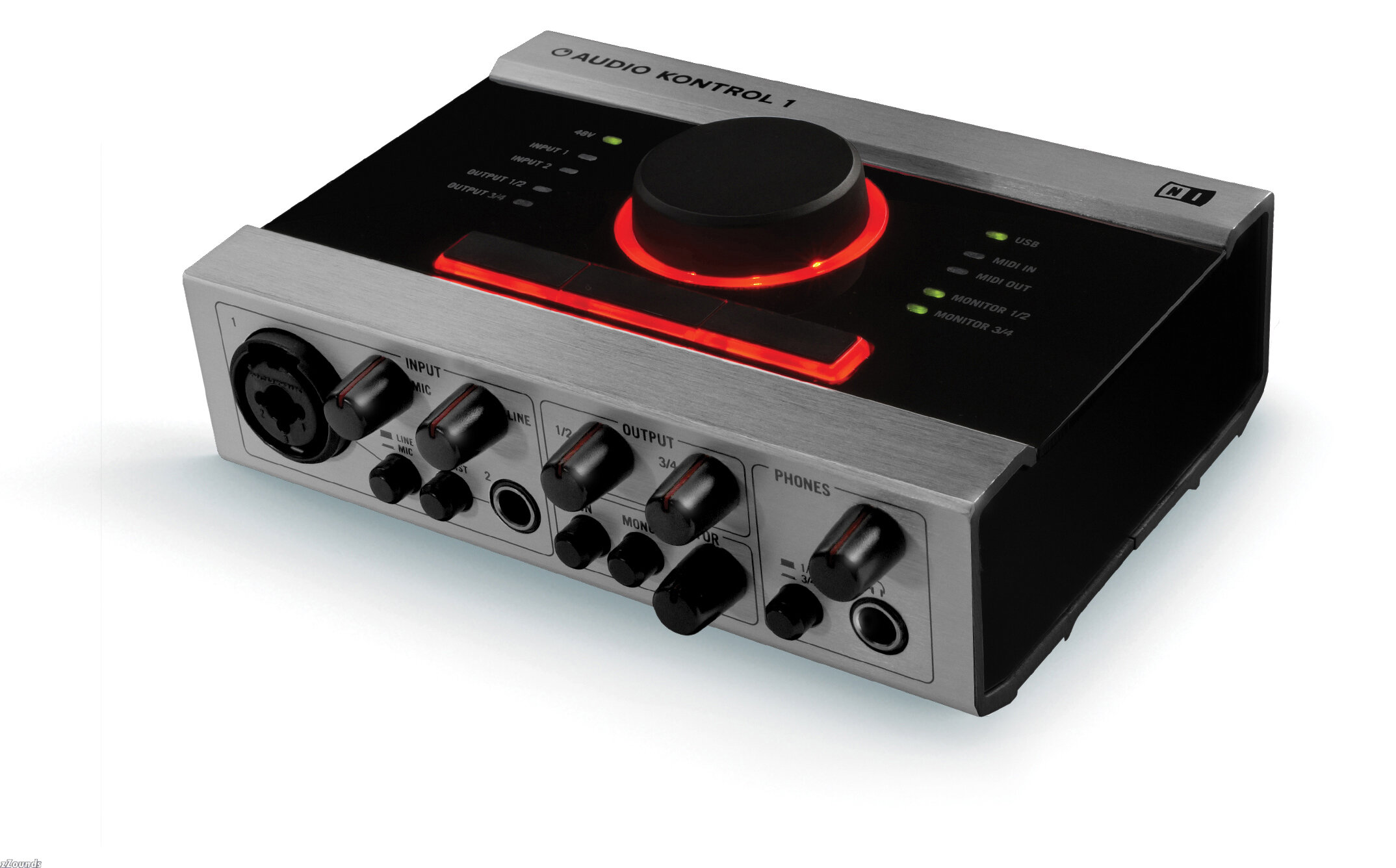

The new Audio Kontrol 1 is a high-end audio interface. Offering crystal-clear 192 kHz, 24 bit-quality, it is far more than just a sound card. Freely assignable buttons and controller knob combined with advanced MIDI and key command functionality grant full control of software applications -- setup files for popular programs ensure it's hassle-free. Audio Kontrol 1 merges innovation and quality and does so with an ear for practicality.
Universal Appeal
Audio Kontrol 1's adaptability makes it the perfect audio interface for musicians, producers and DJs. Versatile connection configurations, included controller assignment preset files as well as the full versions of Xpress Keyboards, Guitar Combos and Traktor 3 LE guarantee its universal appeal.
Features:
High-quality, portable audio interface with sturdy aluminium casing
24-bit / 192 KHz quality, high end Cirrus Logic A/D, D/A converters and 103 dB-A SNR

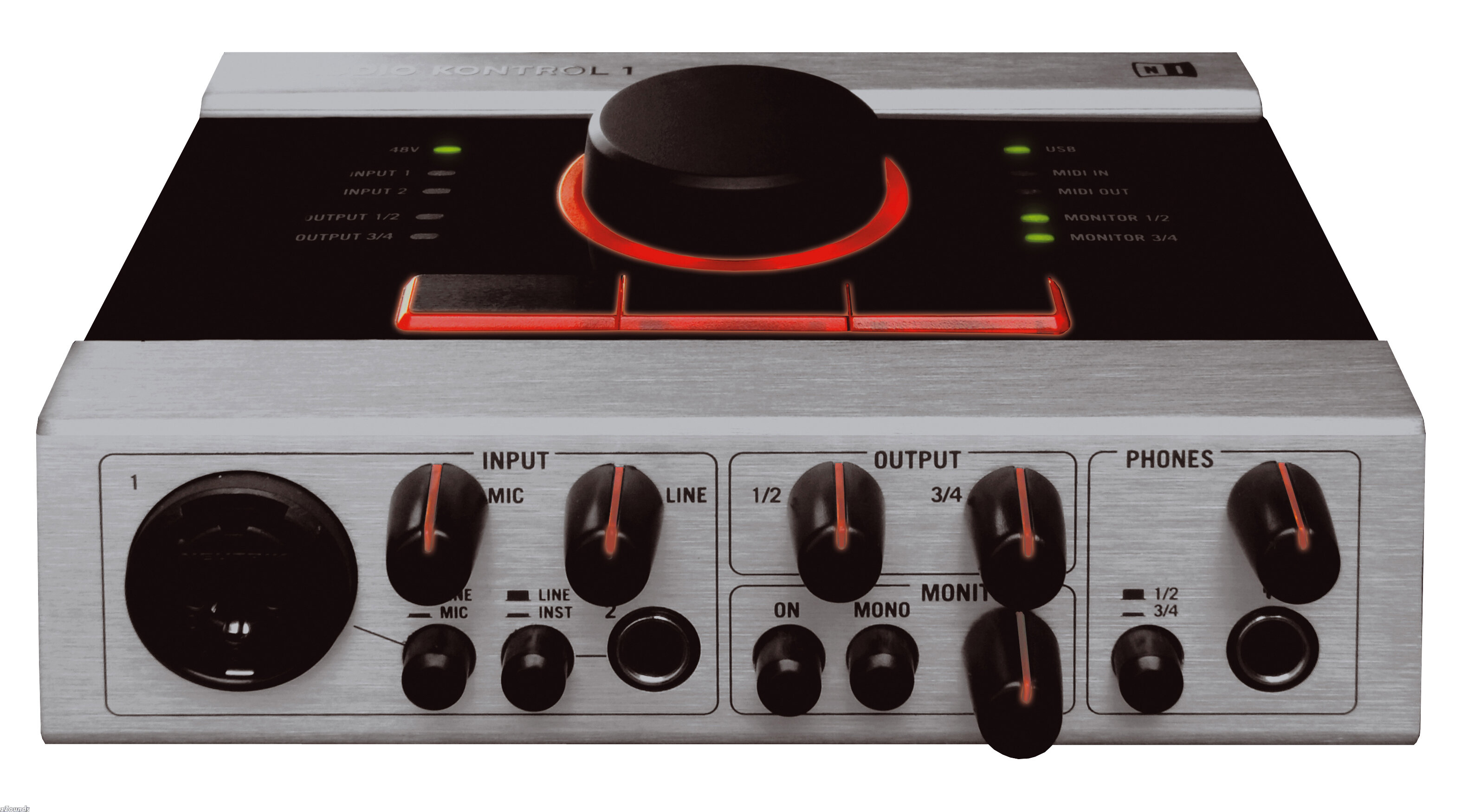

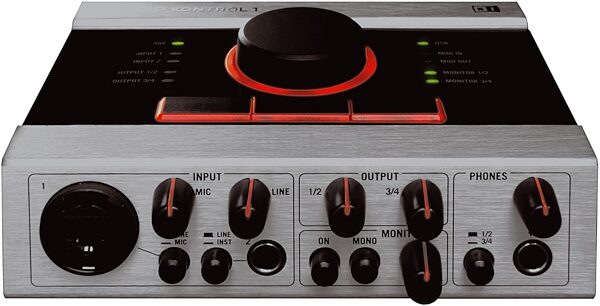

2 balanced inputs: 1 line/mic (XLR/1/4 in. TRS Neutrik, phantom power supplied) and 1 line/HiZ (TRS); individual gain controls with acitvity and clip LEDs

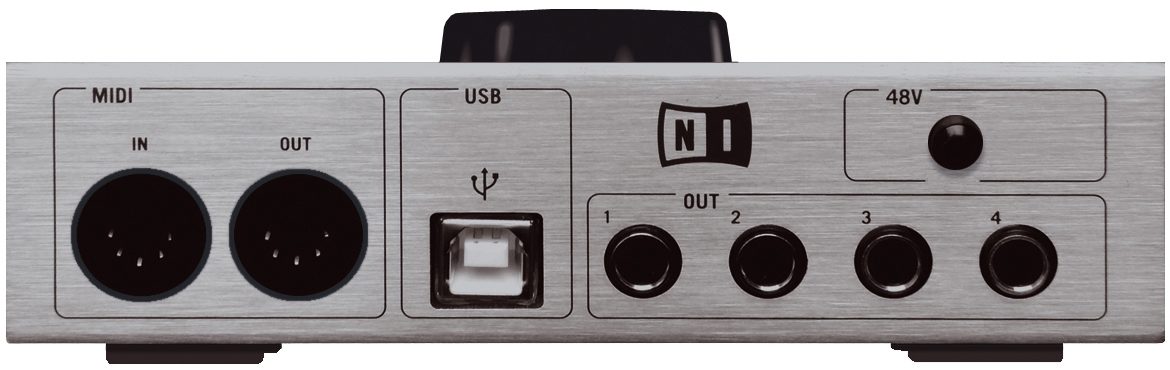

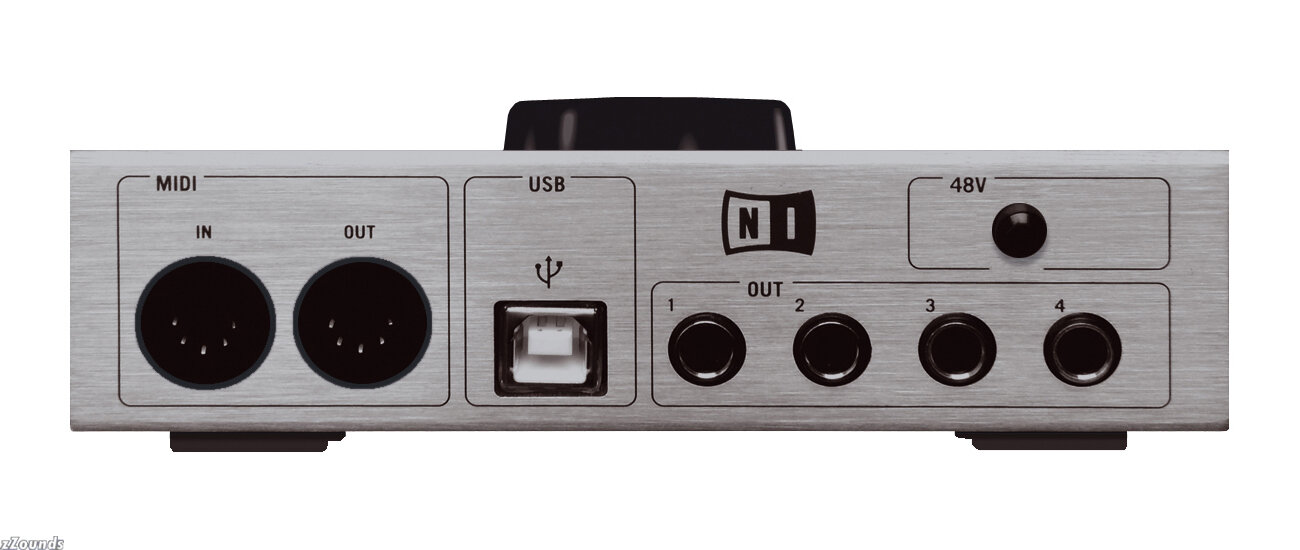

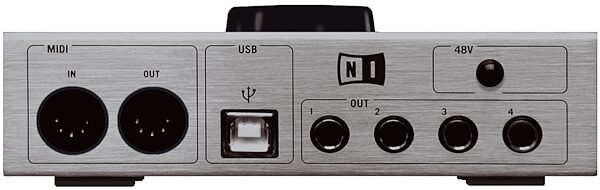

4 balanced outputs (1/4 in. TRS ) with 2 stereo level controls
Headphone output with A/B source switching and level control
Direct monitoring with mono switch and mix control
Low latency ASIO/Core Audio driver
USB 2 bus powered, MIDI I/O
3 freely-assignable buttons and 1 controller knob. MIDI and key commands support for control of professional audio software and other media applications such as iTunes, Winamp or Final Cut Pro
Includes full versions of Traktor 3 LE, Guitar Combos and Xpress Keyboards
Technical Info
Import and Compatibility
ASIO, Core Audio, DirectSound
System Requirements
Mac OSX 10.4.x, G4 1.4 GHz, 512 MB RAM
Win XP, Pentium / Athlon 1.4 GHz, 512 MB RAM
Windows systems must have Service Pack 2 installed.
USB 2.0 Interface
*Guitar Combos and Traktor 3 LE require registration/activation.
Compact, high-quality USB 2.0 interface with up to 24-bit, 192kHz resolution! XLR/TRS mic/line and TRS line/instrument inputs; 4 TRS outputs with 2 stereo level controls. Assignable controller knob and 3 assignable buttons. Direct monitoring with mono switch and mix control. MIDI I/O. Includes Traktor 3 LE, Guitar Combos, and Xpress Keyboards for Mac and PC.
