Nady Encore Duet Dual Lavalier Wireless System

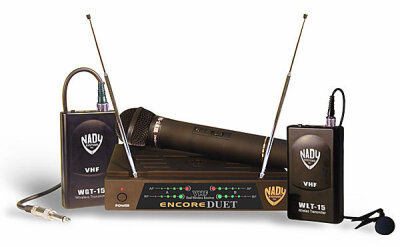

Does NOT include handheld or guitar transmitter shown. System Includes: Encore Duet Receiver, 2 - WLT-15 Bodypack Transmitters, 2 - Omnidirectional Lavalier Microphones.
Because this item is used at your mouth or ear, it cannot be returned once opened due to health reasons. details
Description
Docs
From Our Catalog
News
The Encore Duet is a VHF wireless system with dual-channel receiver for use with 2 transmitters simultaneously.

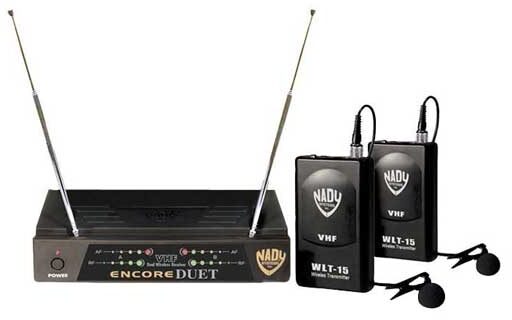

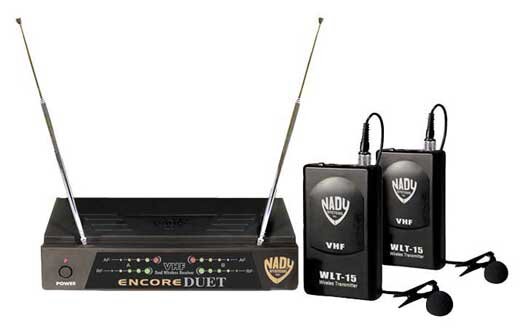

System Includes: Encore Duet Receiver, 2 - WLT-15 Bodypack Transmitters, 2 - Omnidirectional Lavalier Microphones, 1/4 in. cables.
Features
Loaded with top professional operating features
Available on selected frequencies in the VHF high-band (171-216 MHz) for interference-free, long-range performance
Half-rack receiver design with retractable front panel antenna(s)
RF and AF 5-LED displays for monitoring incoming signal strength and audio level
Balanced XLR and unbalanced adjustable 1/4 in. jack outputs (Encore Duet: Dual XLR and single mixed 1/4 in. outputs)
Unique snap-out panel locking tabs for single receiver or dual receiver (side-by-side) optional rack mounting
Nady's proprietary DigiTRU Diversity digital processing circuitry to eliminate dropouts and maximize operating range (Encore II)
Noiseless transmitter ON/OFF switching
Receiver
Half-rack dual receiver design (Channel A and Channel B) with retractable front panel dual antennas
Dual RF and AF 5 LED displays for monitoring incoming signal strength and audio level on both channels
Dual balanced XLR and unbalanced adjustable 1/4 in. jack outputs
Dual mute (squelch) adjust controls
Externally powered by AC/DC power adapter
Unique snap-out panel locking tabs for single receiver or double receiver (side-by-side) optional rack mounting
WLT-15 Bodypack Transmitters
Lavalier microphone (WLT-15) bodypack transmitter
OFF/STANDBY/ON switch allows convenient audio muting with the transmitter "ON"
Low battery LED indicator flashes once for unit "ON"; lights steady for low battery alert
Locking 3.5 mm mini-jack provides secure connection for removable microphone or instrument cable
Easily accessible input level adjust control for optimum sound
Encore Duet Overall System Performance
Frequency Response: 25-20,000 Hz, +/-3dB
Dynamic Range: 120dB
Total Harmonic Distortion: <0.3%
RF Carrier Frequency Range: 2 channels between 169-216 MHz
Frequency Stability: +/-0.005%,crystal controlled
Modulation: FM (F3E),+/-20KHz max.
Operating Range: Up to 250 ft.typical (depending on site conditions);up to 500+feet optimum line-of-sight
Transmitter
Audio Inputs: 3.5mm mono locking jack for connecting to omni or unidirectional lavalier mic or unidirectional head worn mic,with phantom power
Controls: OFF/STANDBY/ON switch,input level adjust
LED Indicator:
Unit "ON"(single flash)
Low Battery Alert (steady)
RF Power Out: 50mW (Max.allowed by FCC)
Harmonic & Spurious Emissions: >?40dB
Battery: 9V Alkaline
Battery Life: Up to 15 hours
Dimensions: 4.1 in. x 2.4 in. x 0.8 in. (10.4 X 6.1 X 2.0 cm)
Weight (w/o battery): 3.6 oz (101 g)
System Includes: Encore Duet Receiver, 2 - WLT-15 Bodypack Transmitters, 2 - Omnidirectional Lavalier Microphones, 1/4 in. cables.
Features
Loaded with top professional operating features
Available on selected frequencies in the VHF high-band (171-216 MHz) for interference-free, long-range performance
Half-rack receiver design with retractable front panel antenna(s)
RF and AF 5-LED displays for monitoring incoming signal strength and audio level
Balanced XLR and unbalanced adjustable 1/4 in. jack outputs (Encore Duet: Dual XLR and single mixed 1/4 in. outputs)
Unique snap-out panel locking tabs for single receiver or dual receiver (side-by-side) optional rack mounting
Nady's proprietary DigiTRU Diversity digital processing circuitry to eliminate dropouts and maximize operating range (Encore II)
Noiseless transmitter ON/OFF switching
Receiver
Half-rack dual receiver design (Channel A and Channel B) with retractable front panel dual antennas
Dual RF and AF 5 LED displays for monitoring incoming signal strength and audio level on both channels
Dual balanced XLR and unbalanced adjustable 1/4 in. jack outputs
Dual mute (squelch) adjust controls
Externally powered by AC/DC power adapter
Unique snap-out panel locking tabs for single receiver or double receiver (side-by-side) optional rack mounting
WLT-15 Bodypack Transmitters
Lavalier microphone (WLT-15) bodypack transmitter
OFF/STANDBY/ON switch allows convenient audio muting with the transmitter "ON"
Low battery LED indicator flashes once for unit "ON"; lights steady for low battery alert
Locking 3.5 mm mini-jack provides secure connection for removable microphone or instrument cable
Easily accessible input level adjust control for optimum sound
Technical Info
System Includes: Encore Duet Receiver, 2 - WLT-15 Bodypack Transmitters, 2 - Lavalier Microphones.Encore Duet Overall System Performance
Frequency Response: 25-20,000 Hz, +/-3dB
Dynamic Range: 120dB
Total Harmonic Distortion: <0.3%
RF Carrier Frequency Range: 2 channels between 169-216 MHz
Frequency Stability: +/-0.005%,crystal controlled
Modulation: FM (F3E),+/-20KHz max.
Operating Range: Up to 250 ft.typical (depending on site conditions);up to 500+feet optimum line-of-sight
Transmitter
Audio Inputs: 3.5mm mono locking jack for connecting to omni or unidirectional lavalier mic or unidirectional head worn mic,with phantom power
Controls: OFF/STANDBY/ON switch,input level adjust
LED Indicator:
Unit "ON"(single flash)
Low Battery Alert (steady)
RF Power Out: 50mW (Max.allowed by FCC)
Harmonic & Spurious Emissions: >?40dB
Battery: 9V Alkaline
Battery Life: Up to 15 hours
Dimensions: 4.1 in. x 2.4 in. x 0.8 in. (10.4 X 6.1 X 2.0 cm)
Weight (w/o battery): 3.6 oz (101 g)
Debate, anyone? This system has you covered with two lavalier mics for hands-free use.
11/16
New stock arrives at zZounds, Blemished, will ship immediately.
What Our Customers Say About zZounds
"Super fast shipping. My son is thrilled!" - customer on November 14, 2009
Call
800.ZZOUNDS (996.8637)
and mention priority code: 7W8WM81
Item: NDYEDLT
Choose a model below and select "Add to Cart"
related accessories
from $9.95
Nady Encore Duet Dual Lavalier Wireless System Reviews
3 out of 10
zZounds has verified that this customer bought this product from us.
"You get what you pay for"
Feature:
The aforementioned lack of frequency changability. The LED display for the audio signal (plus clipping) and the RF strengths are good. It would be nice if a switch was available that would alow me to mute (shut off) one channel independently from the receiver. There is a volume dial on the back, but that is not effective for routine muting. Muting can only be done via the preamp or the analog/computer interfaces.
Value:
The dual mic Nady Encore Duet system is one of the least expensive systems I found. However you get what you pay for.
Sound:
Overall the audio quality is mediocre for general use. RF interference causes static and dropped signals, plus the inability to change channels when needed reduces the quality considerably. The only tunability is the ability to adjust the squelch on each mic channel. Also when only one mic is in use the channel 1&2 combined instrument cable output from the receiver is useless (the unused and thus "off" mic channel introduces over-riding static). Thus in situations when only one mic (channel) is used the single channel XlR outputs are the only useful outlets.
Overall:
I've only had it a few weeks and am considering returning it in exchange for something better.
The aforementioned lack of frequency changability. The LED display for the audio signal (plus clipping) and the RF strengths are good. It would be nice if a switch was available that would alow me to mute (shut off) one channel independently from the receiver. There is a volume dial on the back, but that is not effective for routine muting. Muting can only be done via the preamp or the analog/computer interfaces.
Value:
The dual mic Nady Encore Duet system is one of the least expensive systems I found. However you get what you pay for.
Sound:
Overall the audio quality is mediocre for general use. RF interference causes static and dropped signals, plus the inability to change channels when needed reduces the quality considerably. The only tunability is the ability to adjust the squelch on each mic channel. Also when only one mic is in use the channel 1&2 combined instrument cable output from the receiver is useless (the unused and thus "off" mic channel introduces over-riding static). Thus in situations when only one mic (channel) is used the single channel XlR outputs are the only useful outlets.
Overall:
I've only had it a few weeks and am considering returning it in exchange for something better.
Submitted: 06/05/2006
Style of Music: Spoken
3 out of 10
"Cheap plastic sound."
Feature:
No control over the frequency. The "squelch" simply mutes the sound not the static.
Quality:
They feel cheap and lightweight plastic.
Value:
Poor quality and cheap. I guess you get what you pay for.
Sound:
The sound/tone quality is poor. The static was unbelievable and I had to send them back to the factory for replacment. The mics came back with NEW mics but the same receiver that I sent in for replacement.
Ease of Use:
Not hard to use but not very functional also.
Support:
I had to call and chew out someone at the factory to get them to REPLACE the ENTIRE unit. Still waiting over 3 weeks.
No control over the frequency. The "squelch" simply mutes the sound not the static.
Quality:
They feel cheap and lightweight plastic.
Value:
Poor quality and cheap. I guess you get what you pay for.
Sound:
The sound/tone quality is poor. The static was unbelievable and I had to send them back to the factory for replacment. The mics came back with NEW mics but the same receiver that I sent in for replacement.
Ease of Use:
Not hard to use but not very functional also.
Support:
I had to call and chew out someone at the factory to get them to REPLACE the ENTIRE unit. Still waiting over 3 weeks.
Submitted: 06/07/2008
Style of Music: Rock
