This product is no longer available at zZounds.
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

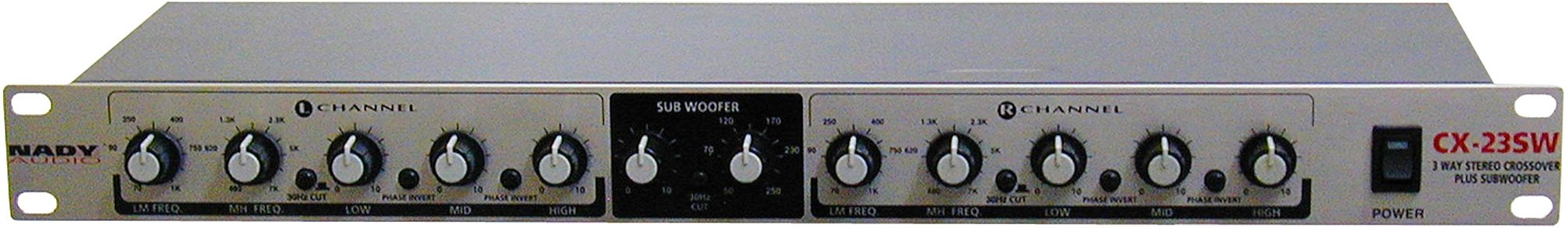

Nady CX23SW 3-Way Stereo Plus Subwoofer Crossover
Single rack space.
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
Description
Docs
Crossovers provide precise frequency dividing for multi-amplified speaker applications, and are valuable tools in many professional live sound uses. The CX-23SW offers 3-way active LOW/MID/HIGH outputs for each stereo channel and a mono subwoofer output. It is simple to set up and operate and is the perfect choice for basic multi-amps, multi-speaker stereo installations.
Features
Single rack space (1U)
Shielded internal power supply with AC voltage select switch (~115V/60Hz or ~230V/50Hz)
Phase inversion switches
Low-cut subsonic filters for low frequency driver protection
Servo-balanced XLR inputs
Superior performance with transparent audio
Stereo 3 ways + Subwoofer
Crossover Frequencies
Subwoofer<: 50 - 250Hz
LM: 70 - 1000Hz
MH: 480 - 7000Hz
Filter Type (Slope)
2nd order, 12dB/Octave
Inputs
Outputs
Type: Balanced XLR
Impedance: 220 Ohms
Low Cut Filters
30Hz/ - 3dB, 12dB/Octave
Frequency Response
25Hz - 25KHz +/-1dB
Total Harmonic Distortion (THD) + Noise
< 0.05%
S/N Ratio
> 80 dB
Fuse
0.5 A/ 250V, 5x20mm glass type
Dimensions
19 x 1.73 x 5.9 in. (483 x 44 x 150mm)
Weight
4.4 lbs. (2.2 kg)
Note: For improvement purposes, specifications and design subject to change without prior notice.
Features
Single rack space (1U)
Shielded internal power supply with AC voltage select switch (~115V/60Hz or ~230V/50Hz)
Phase inversion switches
Low-cut subsonic filters for low frequency driver protection
Servo-balanced XLR inputs
Superior performance with transparent audio
Technical Info
Crossover TypeStereo 3 ways + Subwoofer
Crossover Frequencies
Subwoofer<: 50 - 250Hz
LM: 70 - 1000Hz
MH: 480 - 7000Hz
Filter Type (Slope)
2nd order, 12dB/Octave
Inputs
Outputs
Type: Balanced XLR
Impedance: 220 Ohms
Low Cut Filters
30Hz/ - 3dB, 12dB/Octave
Frequency Response
25Hz - 25KHz +/-1dB
Total Harmonic Distortion (THD) + Noise
< 0.05%
S/N Ratio
> 80 dB
Fuse
0.5 A/ 250V, 5x20mm glass type
Dimensions
19 x 1.73 x 5.9 in. (483 x 44 x 150mm)
Weight
4.4 lbs. (2.2 kg)
Note: For improvement purposes, specifications and design subject to change without prior notice.
What Our Customers Say About zZounds
"A GREAT experience! Due to an address snafu, I received an email from zZounds the day after ordering. My call to Customer Service was quick and pleasant, and everything got settled straight away." - customer on November 20, 2009
Nady CX23SW 3-Way Stereo Plus Subwoofer Crossover Reviews
10 out of 10
"Some of Nady's products are really junk. I guess that is true of many companies. But Nady's new rack gear is really good. You ca"
Feature:
It has all the features needed.
Quality:
Could have better knobs and quality pots.
Value:
Where are you going to get more for your money? Most crossovers cost double what this one does
Desirability:
If it broke I'd buy it again.
Sound:
Quiet and doesn't color the sound in any way.
Support:
They are great if you call them. They don't seem too concerned with email though.
It has all the features needed.
Quality:
Could have better knobs and quality pots.
Value:
Where are you going to get more for your money? Most crossovers cost double what this one does
Desirability:
If it broke I'd buy it again.
Sound:
Quiet and doesn't color the sound in any way.
Support:
They are great if you call them. They don't seem too concerned with email though.
Submitted: 06/07/2005
