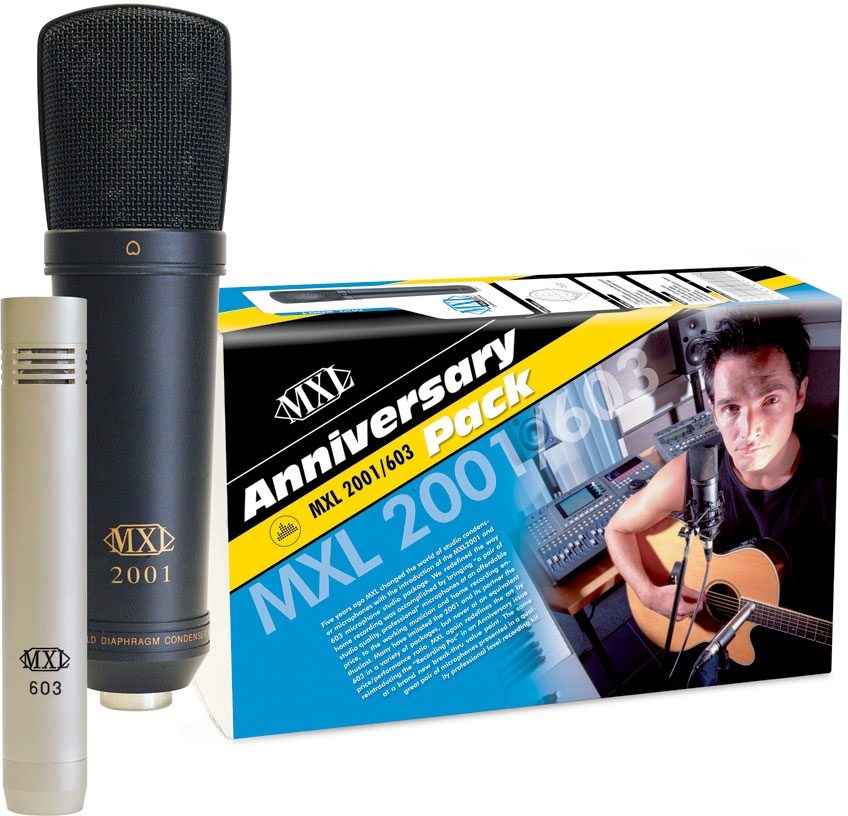

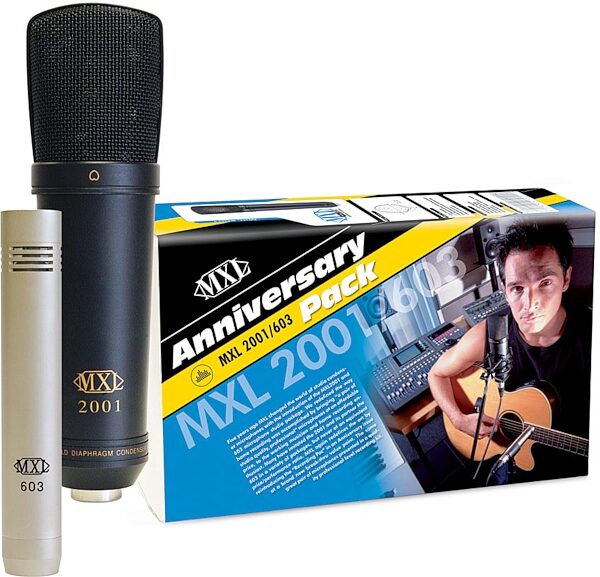

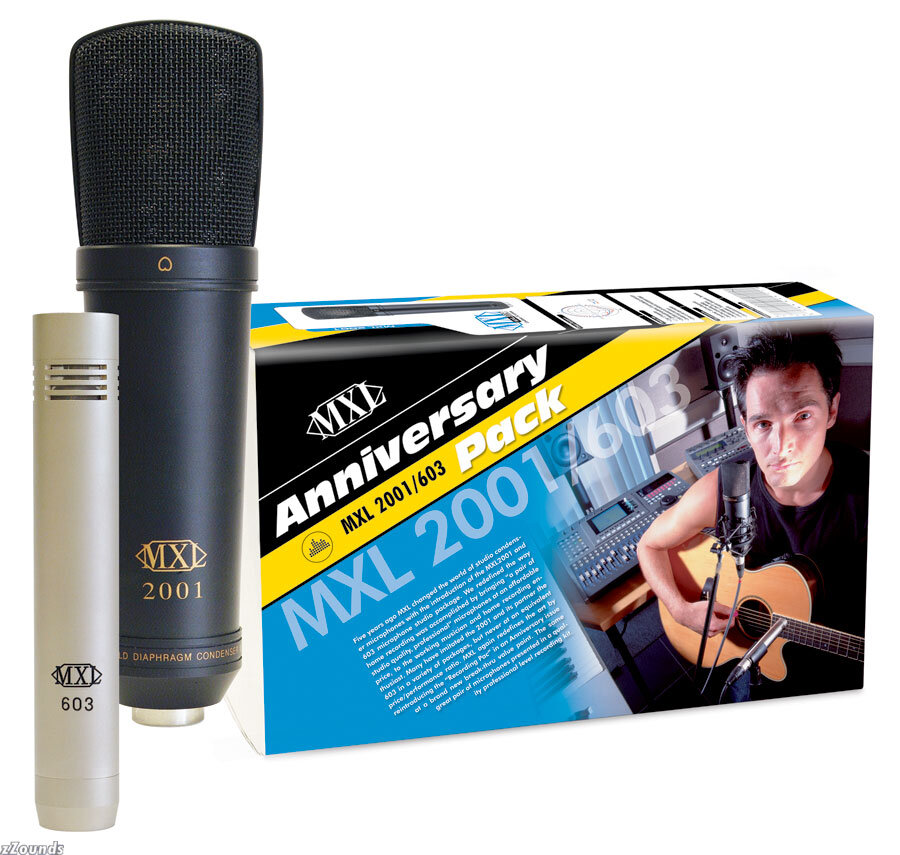

Marshall Electronics MXL Anniversary Microphone Pack

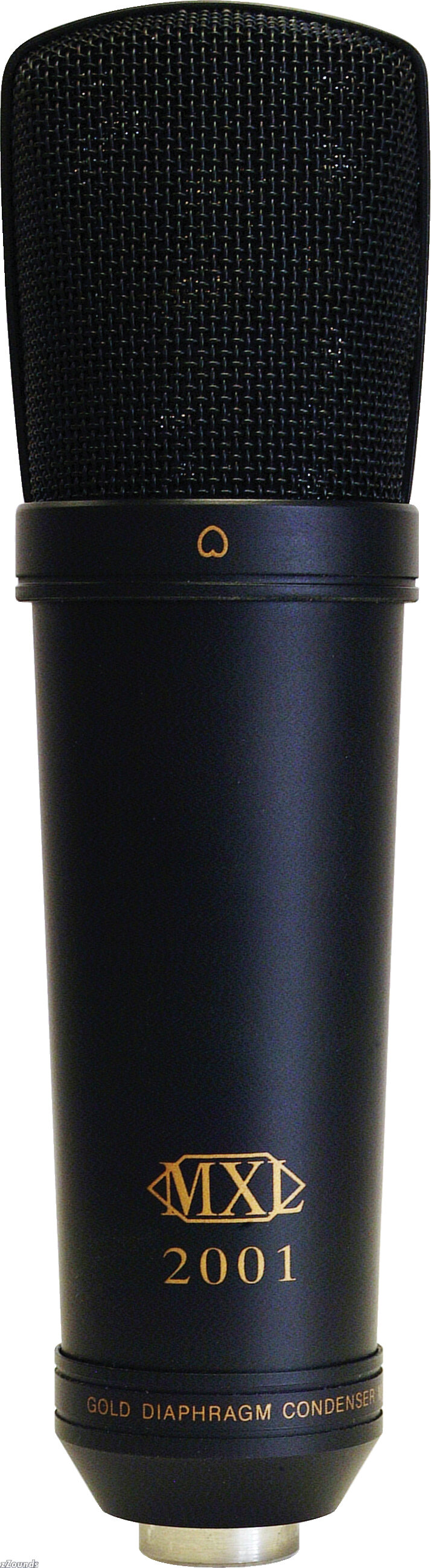

The MXL 2001 altered the conception of large diaphragm condenser microphones. Finally, an affordable, good sounding condenser is available for the performing musician or home studio. Commercial studios have also benefited from MXL's innovation. They are now using the MXL 2001-P in very demanding applications, without the fear of ruining an expensive, classic condenser mic. Its 1-inch gold-sputtered diaphragm has been specially designed to stay out in front of the mix making it perfect for vocal recording, drum kit and guitar cabinet miking, as well as general room miking. The MXL2001-P has a high quality FET preamp and its output is transformer balanced. A screw-on stand adapter is included.

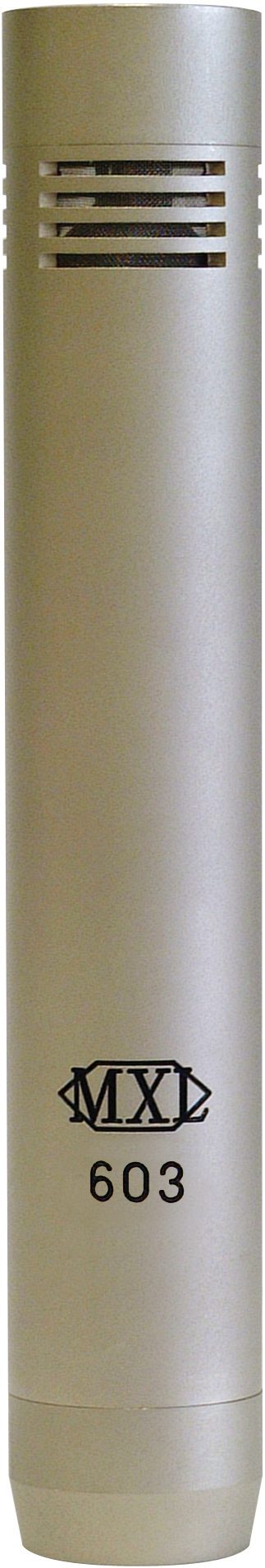

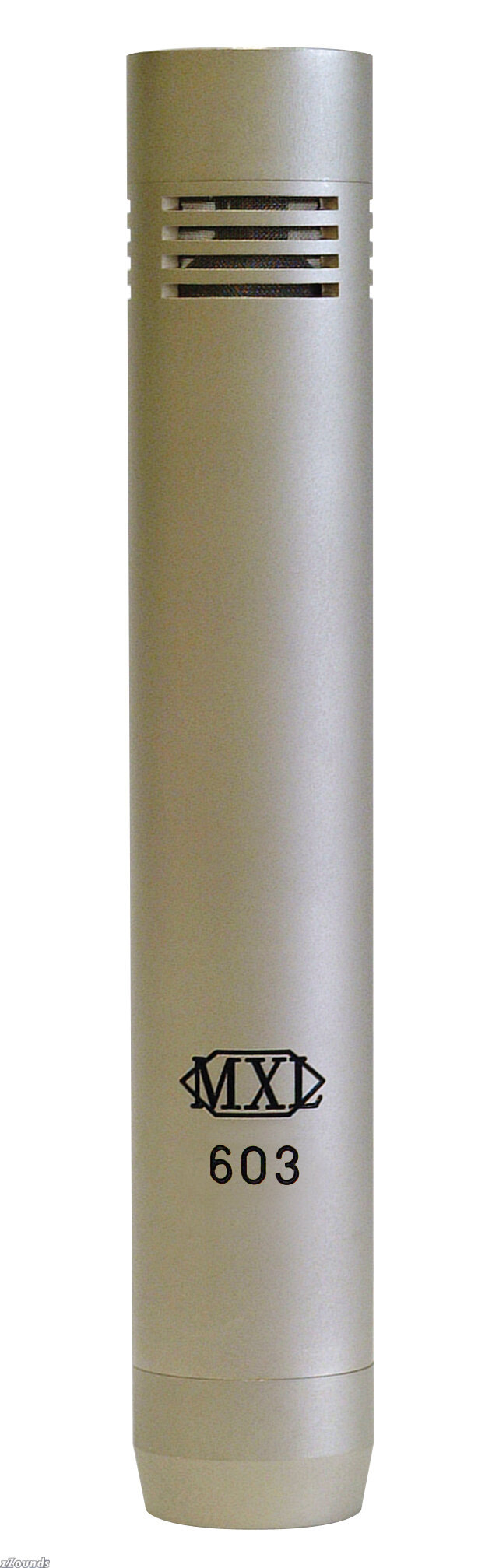

The MXL 603S is the latest in a series of Condenser Instrument Microphones from MXL. It shares the characteristics of European and Japanese imports at a fraction of their price. Its transformerless design provides a solid bottom and an extremely open top end sound. The 603S is internally wired with World-renowned Mogami Cable for sonic integrity. The 603S is very well suited for most instrument miking applications and is very rugged for use on the road. The MXL603S is supplied with mic clip and zippered carrying case.

MXL 2001 Features

1 in. Large Capsule Condenser

Gold-sputtered, 6 micron, low distortion diaphragm

FET preamp with balanced transformer output

Durable heavy duty brass enclosure

Supplied with screw-on mic stand adapter

MXL 603 Features

20 mm. 6-micron, gold diaphragm

Intended for drum, ambient and orchestral miking

Slim line metal enclosure

nternally wired with Mogami Cable

Supplied with mic clip and carrying case

Classic silver finish

Technical Info

MXL 2001 Specifications

Type: Condenser pressure gradient mic with large 25mm diaphragm capsule

Frequency Range: 30Hz-20kHz

Polar Pattern: Cardioid

Sensitivity: 15mV/Pa

Impedance: 200 ohms

S/N Ratio: 80dB (Ref. 1Pa A-weighted)

Equivalent Noise Level: 18dB(A weighted IEC 268-4)

Max SPL for 0.5% THD: 130dB Power Requirements: Phantom Power 48V ±4V

Current Consumption: <3.0mA

Size: 50mm × 190mm

Weight: 470g

Finish: Black Metal

MXL 603 Specifications

Type: Condenser pressure gradient mic with 20mm diaphragm capsule

requency Range: 20Hz-25kHz

Polar Pattern: Subcardioid (Wide Cardioid)

Impedance: 200 ohms

Equivalent Noise Level: 17dB(A weighted IEC 268-4)

Max SPL for 0.5% THD: 137dB

Power Requirements: Phantom Power 48V ±4V

Current Consumption: <3.0mA

Size: 48mm × 195mm

Weight: 128g

Finish: Silver Metal
