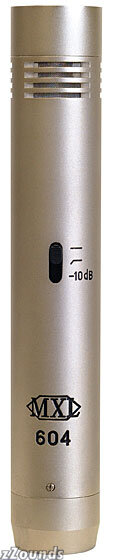

The MXL 604 is the latest in quality instrument microphones. Using transformer-less FET circuitry and a 20mm gold diaphragm capsule design, The 604 delivers the dynamic range required in the most demanding instrument miking applications. It features; -10dB switchable attenuation; selectable low-frequency roll-off; and an interchangeable omni-directional capsule making the the 604 perfect for acoustic guitar, ambient and overhead drum miking. The 604 exhibits low noise characteristics with a wide dynamic range.
Features
10 db pad w/switch
Selectable roll-off filter and 10 db pad
Technical Info
Type: Condenser pressure gradient mic with large 20 mm diaphragm
Frequency range: 30Hz-20kHz
Polar pattern: cardioid
Sensitivity: 15mV/Pa
Impedance: 150W
S/N ratio: 77dB (Ref. 1Pa A-weighted)
Equivalent noise level: 17dB (A weighted IEC 268-4)
Max SPL for 0.5% THD: 137dB
Power requirements: phantom power 48V +/- 4V
Size: 22mm × 133mm
Weight: 0.3lb
Metal finish: silver
