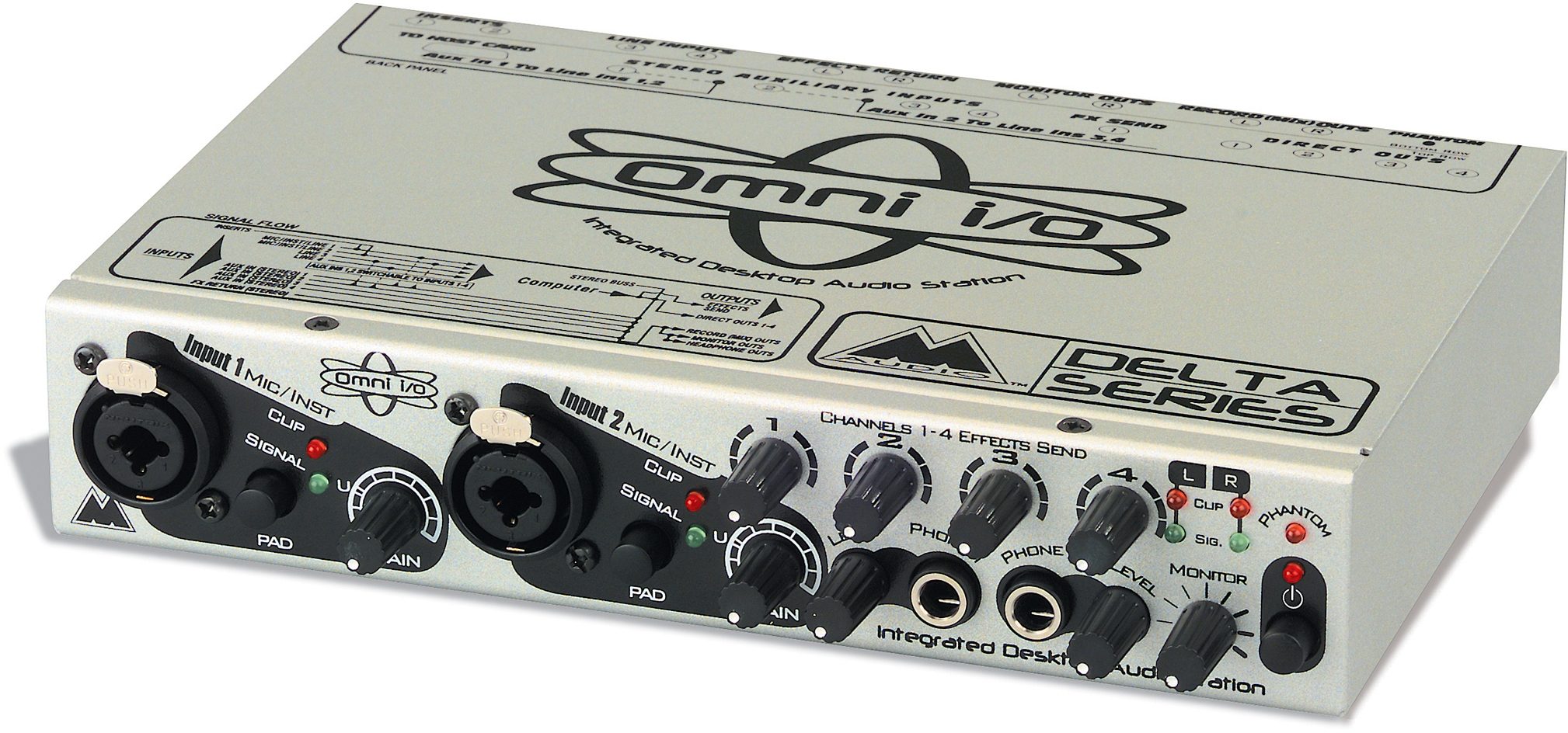

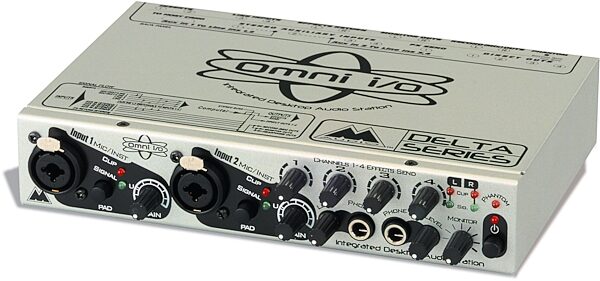

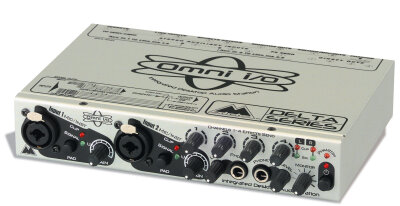

MAudio Omni I/O Preamp/Mixer

Manufacturer's Description for MAudio Omni I/O Preamp/Mixer

A Unique and Powerful Songwriting/Production Tool
The Omni I/O is a record/playback "front end" that interfaces with the Delta 44, Delta 66, and USB Audiosport Quattro digital audio interfaces. The Omni creates a system capable of adapting to many studio scenarios and providing multiple solutions, all within one desktop environment. More than simply adding mic preamps to an audio interface, the Omni I/O emulates a "split console" mixer design, making possible virtually any routing scenario. The unit contains everything needed to record mics, guitars, and keyboards, as well as monitor playback, listen on headphones, add effects, and mixdown.

Streamline the Recording Process
The Omni/Delta system resolves some of the most common problems and inconveniences with computer-based recording. In addition to eliminating the need to reconfigure between record and playback, the Omni I/O integrates seamlessly with all of today's music production tools, streamlining the typical desktop studio.

USB, Anyone
Just plug the Omni I/O into the USB Audiosport Quattro and you're ready to go. The Quattro gives you the same audio quality you would expect from any Delta audio card, but over USB, which means no PCI card installation and plug and play convenience.

Features
2 Mic/Inst and 2 line level balanced/unbalanced analog inputs to the Delta 44 or Delta 66 soundcard

2 Mic/Inst inputs equipped with XLR phantom power, insert I/O jacks, individual gain controls, gain reduction "pad" switch, and signal/clip indicator LEDs

Low impedance mic inputs provide 66dB of gain and utilize M Audio's critically acclaimed DMP2 pre-amp technology. They are switchable to hi-impedance instrument inputs with 46dB of gain, ideal for electric/acoustic guitars

The Omni Mic/Inst pre-amp has a frequency response of 10Hz to 200kHz, low THD of .0009%, with a dynamic range of 130dB

Stereo effect return

Mixing Section (all balanced/unbalanced on TRS jacks)

4 Delta outputs can simultaneously be used as independent balanced/unbalanced direct outs for use as additional effects sends, alternate mix output, or feeds to a secondary mixer

4 stereo aux inputs for MIDI devices

Stereo Aux inputs 1 and 2 can be muted in the mixer and re-routed to the Delta line inputs for easy audio recording of MIDI instruments or other auxiliary inputs

Mix out for recording to a mix deck

Control room outs with independent level control for monitoring

2 headphone outputs with individual level controls

1 mono effect send per channel

L/R output signal/clip LEDs zZounds is an authorized dealer of M-Audio products.
