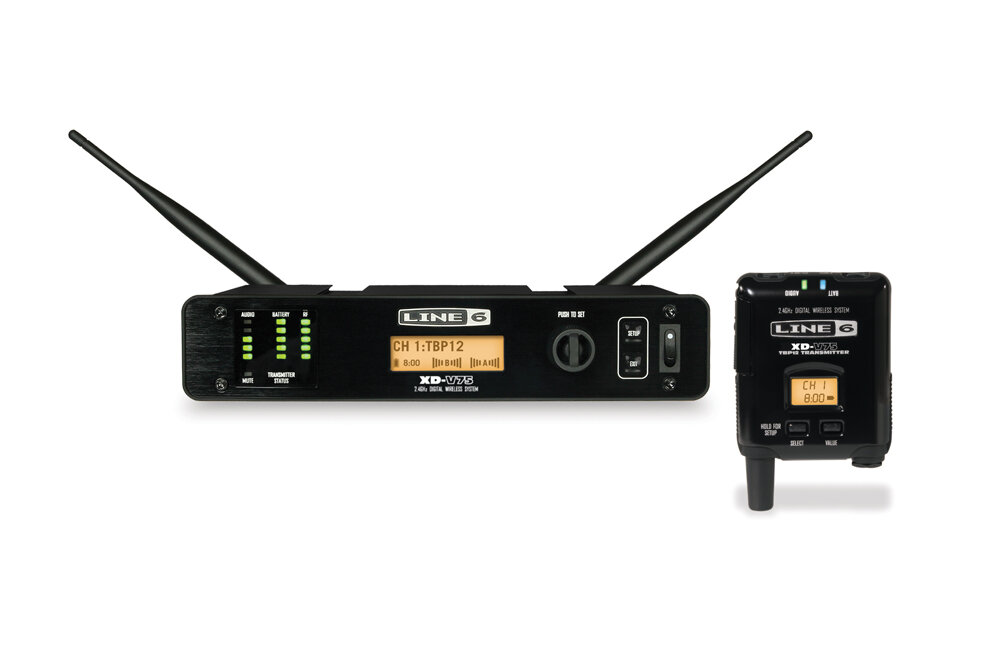

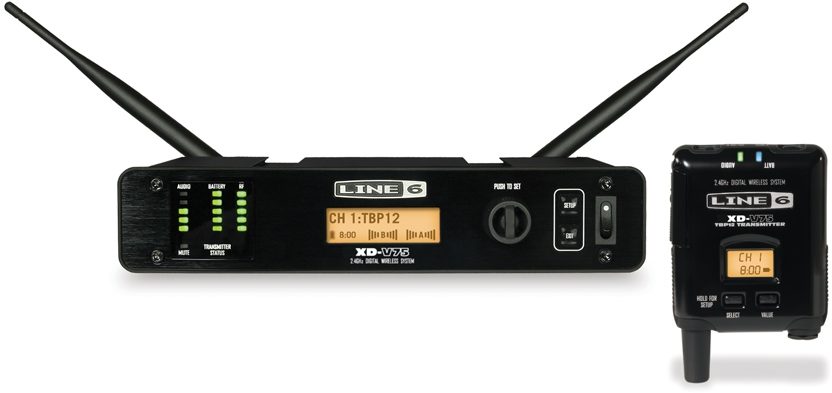

Product DescriptionPure 24-bit uncompressed sound for active performers. The XD-V75TR from Line 6 sets the standard in wireless bodypack systems for active musicians, performers, and presenters. Offering spectacular audio quality, XD-V75TR systems feature exclusive EQ filter modeling technology combined with a proven 4th-generation digital wireless platform, the most mature in the industry. With 14 channels of 24-bit, 10Hz-20kHz, compander-free performance, the XD-V75TR provides unmatched full-range audio clarity and license-free operation worldwide.
Maximize audio clarity with built-in EQ filter models. XD-V75TR gives you the flexibility to choose from six vocal and three instrument EQ filter model types, enabling you to optimize the sound of the system for your voice/instrument and deliver your performance with maximum clarity and impact in every environment. Using the selector button on the transmitter bodypack, you can easily audition and choose from the available EQ filter models.
Superior sound, professional performanceThe signal from XD-V75TR is so clear and strong that it actually sounds like you are using a wired instrument or microphone, but with all of the advantages of wireless. Unlike traditional analog wireless systems, the XD-V75TR does not use signal companding, so the full 120dB dynamic range is available at all times.
2.4GHz band operation, license freeEnsuring peace of mind and the most reliable performance, the XD-V75TR operates in the 2.4GHz band, free from interference due to TV broadcast, white space devices, and cell phone towers.
Exclusive Digital Channel Lock (DCL) technology provides encoded digital transmission protecting every nuance of your vocal performance. DCL distinguishes XD-V75 digital audio from any other 3rd-party signal including WiFi, guaranteeing signal integrity across the entire 300-foot (100-meter) range.
Confused by wireless license fees? No need to worry, XD-V75 systems are fully FCC compliant and operate license free worldwide. Using a Line 6 digital wireless product eliminates those complications.

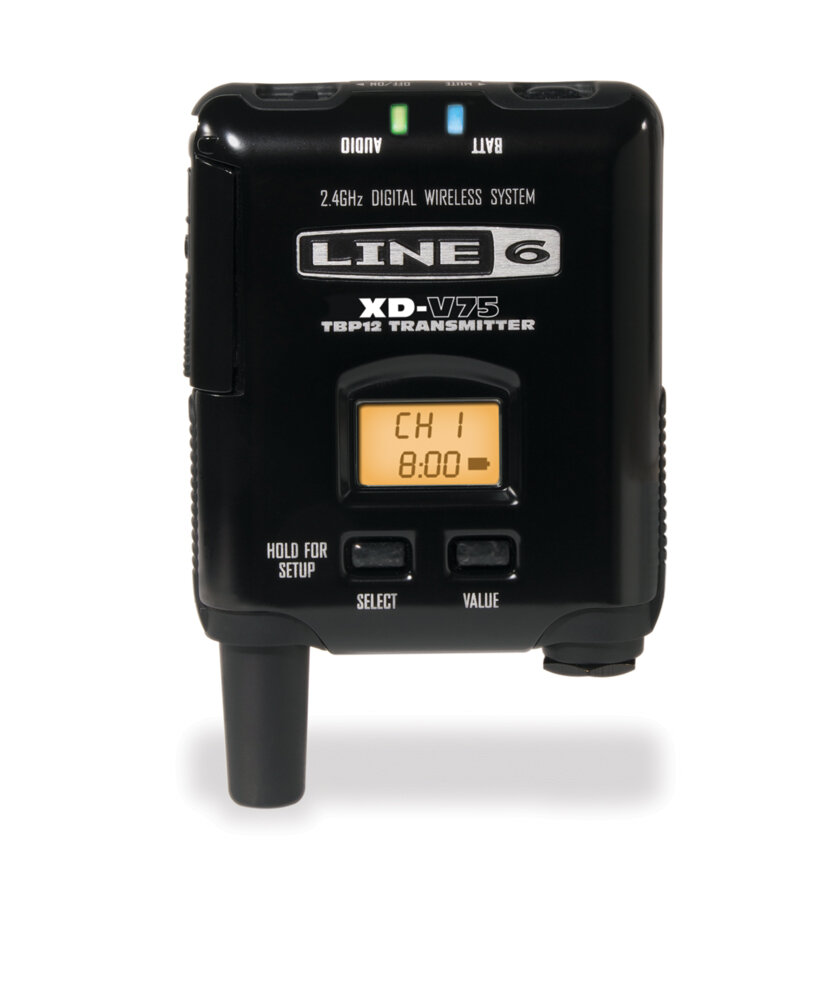

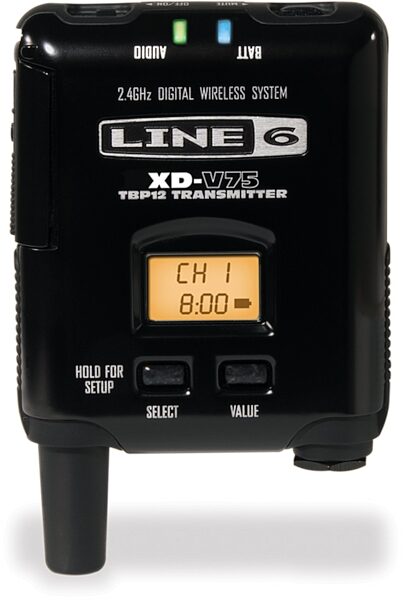

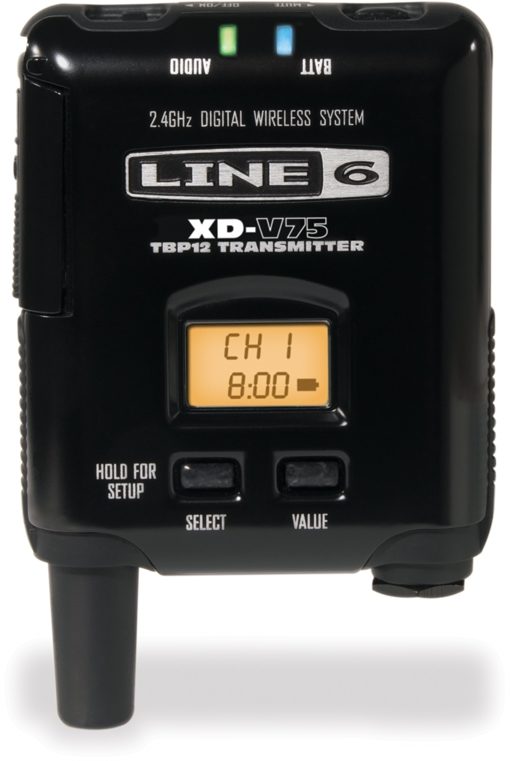

One-touch SetupSimply choose a channel on the transmitter and receiver and they lock together automatically -- job done. For more complex installations, channel scanning is provided for advanced RF management. Battery life can be monitored on easy-to-read meters on both the bodypack transmitter and receiver.

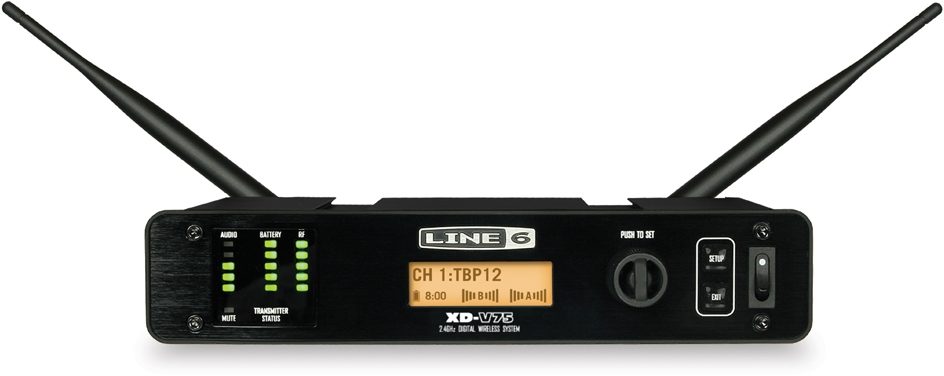

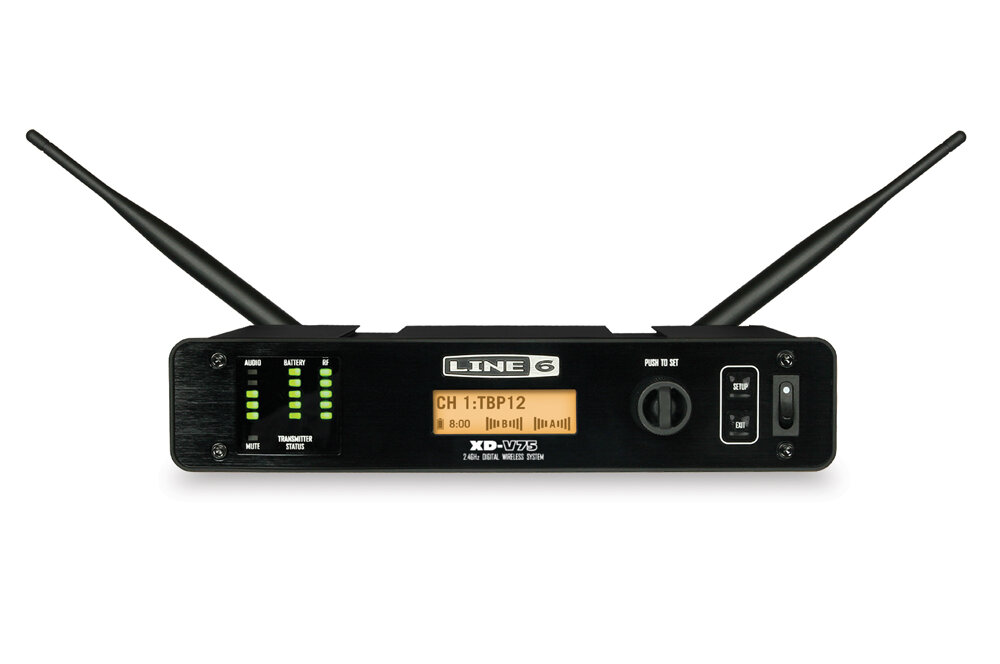

Full complement of advanced professional featuresThe XD-V75TR includes a full complement of advanced professional features including signal encryption, dynamic filters, gain control, channel scanning and more to handle the most complex applications. Built for rock-solid performance night after night, the XD-V75TR receiver is housed in a robust aluminum chassis. The 1/2U receiver includes rack ears, antenna relocation accessories and rackmounting hardware.

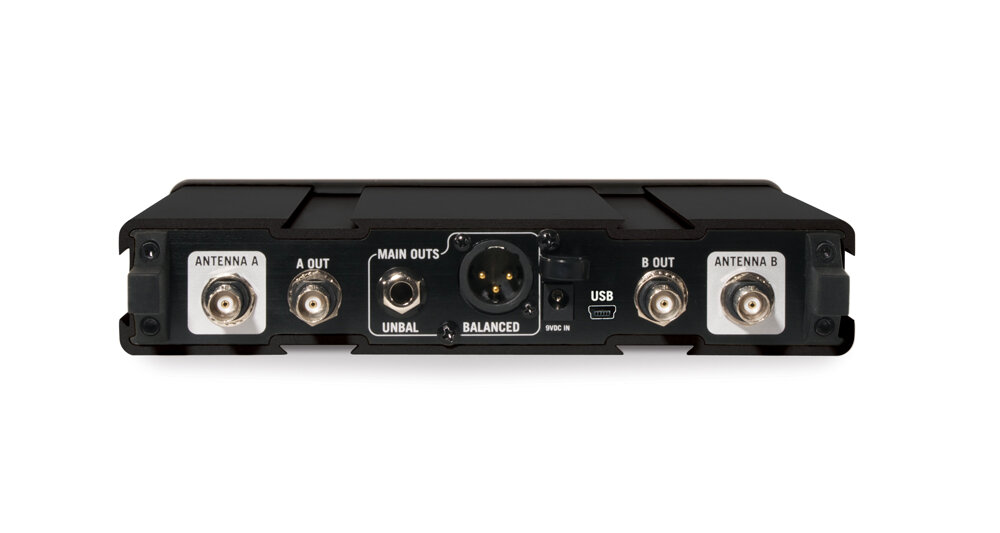

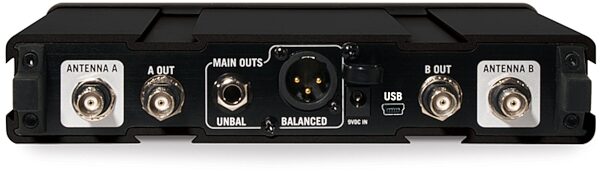

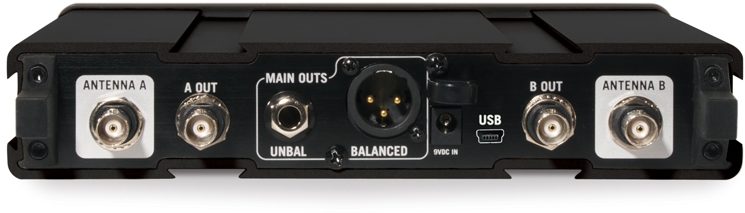

Multiple receivers interlock easily to create multi-channel rack systems, and powered BNC antenna inputs allow daisy-chaining multiple units to a single antenna array. The large backlit LCD display gives access to all system options and controls. For complete flexibility, XD-V75 handheld, lavalier, headset and instrument components can be mixed and matched as required.
Features:- Professional digital wireless bodypack system for active performers and presenters
- License-free operation worldwide
- Exclusive Line 6 EQ filter modeling technology optimizes the system to your voice or instrument choose from nine distinct EQ filter model types (6 optimized for vocals, 3 for instruments).
- Accurate and precise vocal reproduction with full-range 10 Hz-20 kHz (- 2.5 dB) AF frequency response, wide 120 dB dynamic range (A weighted), superior transient response, and 24-bit digital conversion
- Standard TA4 mini-XLR input
- Proven 4th-generation digital wireless technology surpasses analog wireless systems in wireless reliability and sound quality
- One-touch setup
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones
NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
zZounds is an authorized dealer of Line 6 products.
Instrument cable is not included.
Add an optional 1/4" to TA4F cable to connect this bodypack to your instrument's 1/4" output. Bodypack has standard TA4F mini-XLR input.
- Frequency Band: 2.4GHz ISM Band
- Compatible Channels: 14
- True Diversity: Yes
- Frequency Diversity: Yes (2 Frequencies per channel)
- Compander-Free Design: Yes
- Frequency Response THD %: 10 Hz (-0.5 dB) - 20kHz (-2.5 dB), 0.03% typical
- System Latency: < 2.9 ms (audio input to output)
- Operating Temp Range: 1 - 50 degrees C
- Weight, Dimensions, and Manufacturer Part Numbers
- Blemished, (2.4GHz)
Manufacturer Part Number (MPN):
- Warehouse Resealed, (2.4GHz)
Manufacturer Part Number (MPN):
If you have additional warranty questions, please contact the manufacturer at 818-575-3600
