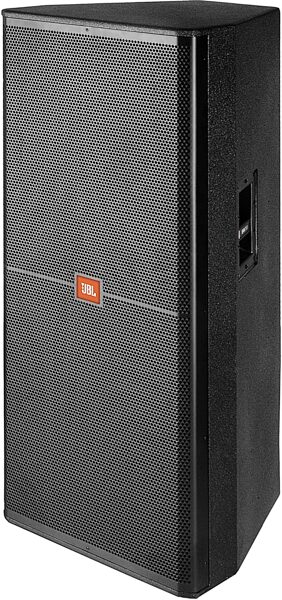

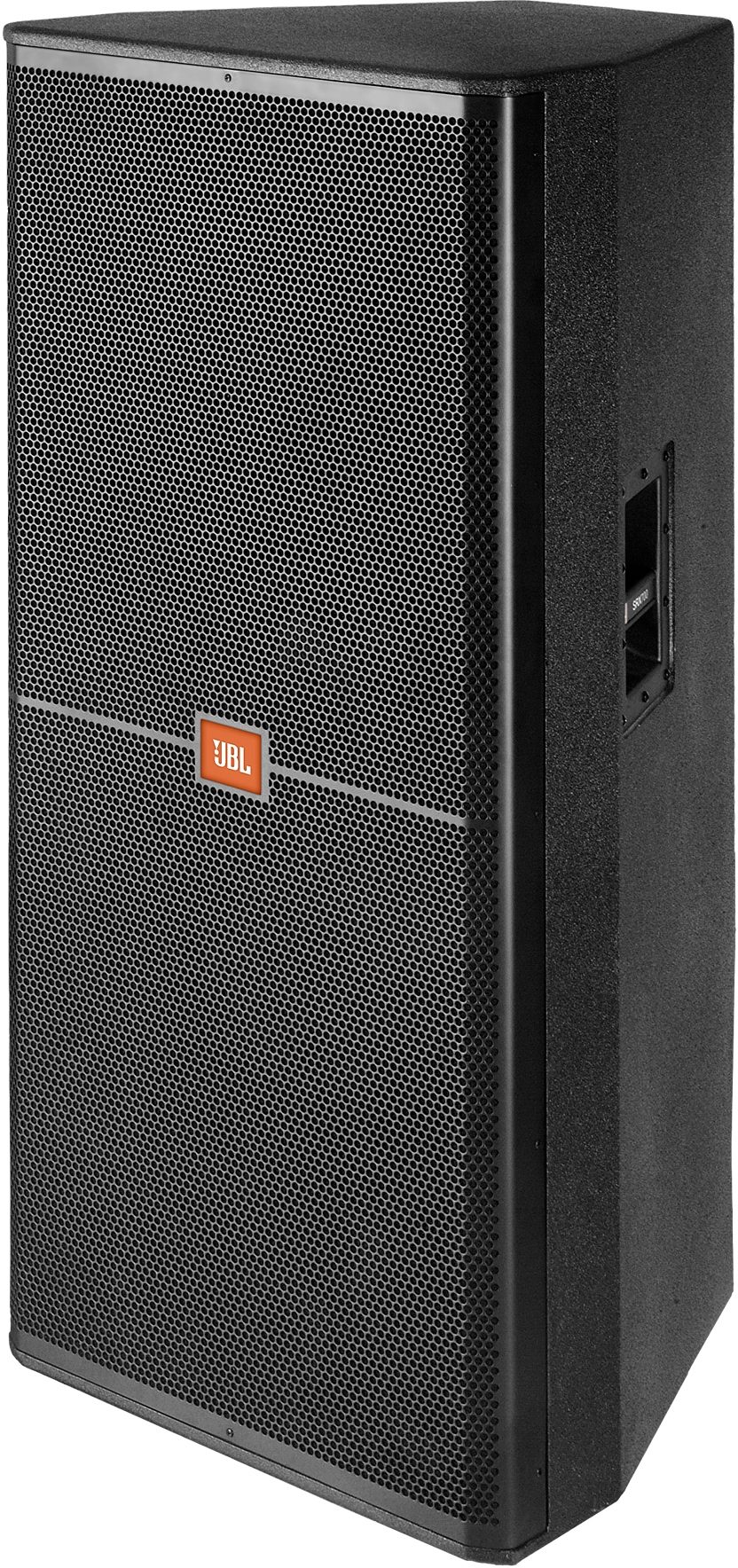

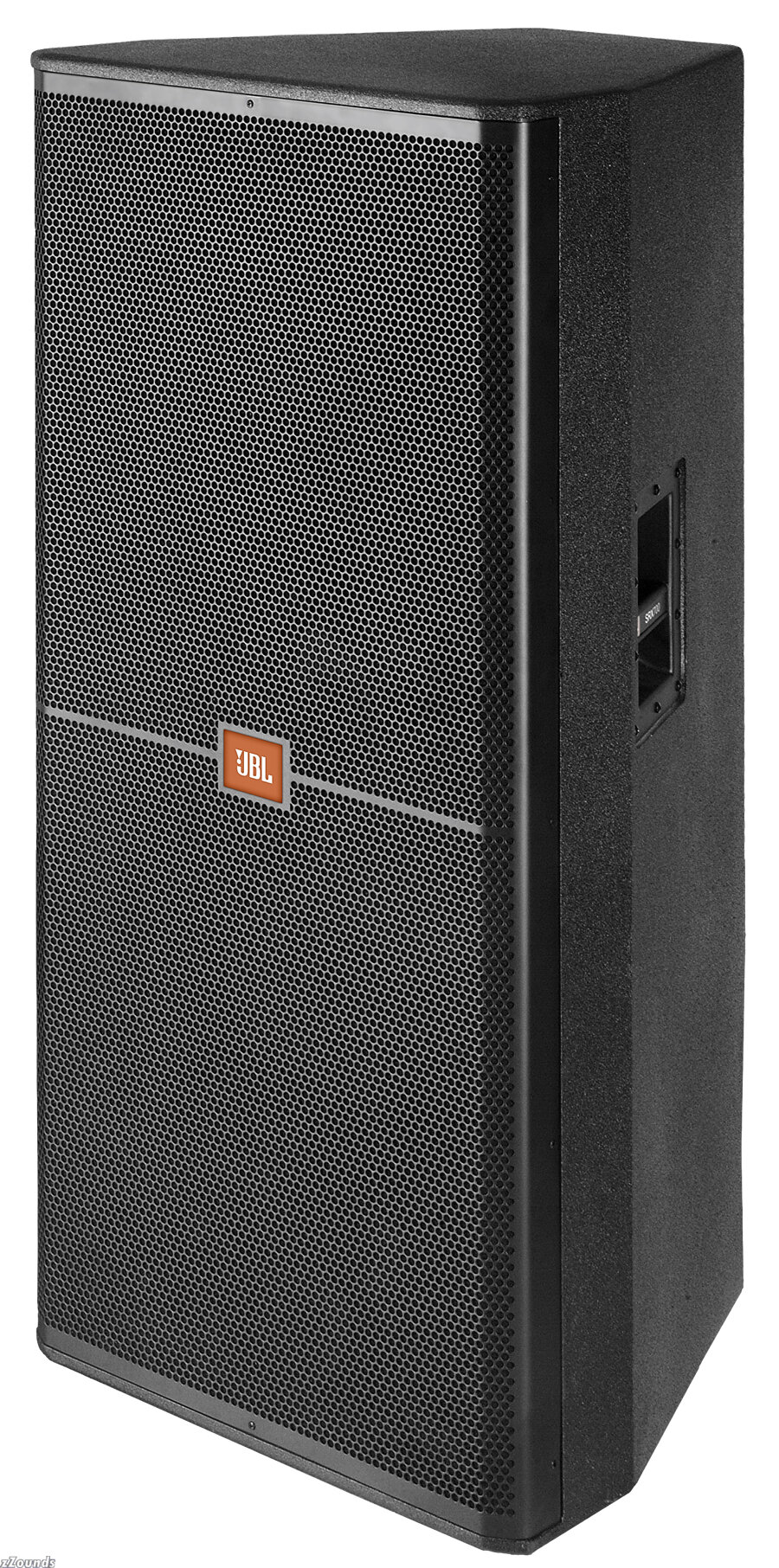

JBL SRX725 2-Way Loudspeaker (1200 Watts, 2x15 in.)

For the ultimate in performance and simplicity, a pair of SRX725 speakers, and a single, high-power amplifier delivers superb high-level music and powerful bass. Or add SRX728S dual 18-inch subwoofers for truly impressive low-end. A pair of JBL 2265H Differential Drive drivers handles an amazing 1200 watts of continuous power. The 2451 4-inch compression driver, respected worldwide as one of the finest high powered drivers made, provides smooth, clear mids and highs. Despite this performance, the SRX725 weighs only 100 lbs (45 kg).

Technical Info

Frequency Range (-10 dB): 37 Hz – 20 kHz

Frequency Response (±3 dB): 53 Hz – 20 kHz

Coverage Pattern: 75° x 50° nominal

Crossover Modes: Bi-amp / passive, externally switchable

Crossover Frequency: 1.2 kHz

Power Rating (Continuous1; Program; Peak):
- Passive: 1200 Watts; 2400 Watts; 4800 Watts
- Bi-amp LF: 1200 Watts; 2400 Watts; 4800 Watts
- Bi-amp HF: 75 Watts; 150 Watts; 300 Watts

Maximum SPL2: 136 dB SPL peak

System Sensitivity (1w @ 1m): 99 dB SPL (passive mode)

LF Driver: 2 x JBL 2265H 380 mm (15 in) Differential Drive woofer with neodymium magnet and dual voice-coils

HF Driver: 1 x JBL 2452H 102 mm (4 in) voice-coil, neodymium-magnet compression driver

Nominal Impedance:
- Passive: 4 ohms
- Bi-amp LF: 4 ohms
- Bi-amp HF: 8 ohms

Active Tunings: dbx DriveRack, all models. Settings available at www.jblpro.com

Enclosure: Trapezoidal, 15 mm, 11-ply birch plywood

Suspension / Mounting: 5 x suspension points, M10

Transport: 2 x steel handles

Finish: Black DuraFlex finish

Grille:
- Powder coated, black, 16-gauge perforated steel with acoustically transparent charcoal foam backing.
- Removable JBL badge and punched JBL logo.

Input Connectors: Neutrik Speakon NL-4 (x2)

Dimensions (H x W x D): 48 in x 21.3 in x 20 in (1219 mm x 541 mm x 508 mm)

Net Weight: 96 lbs. (43 kg)

Go big! Dual 15" drivers and 4" HF driver for full range and powerful sound! Crystal clear mids and highs, and 2400 watts of power handling.
