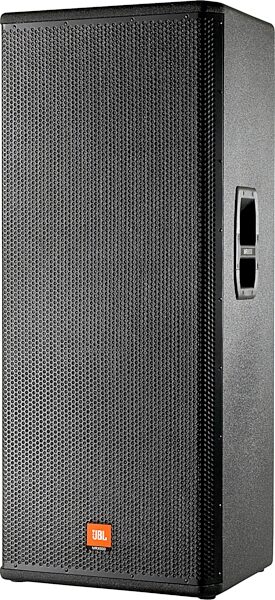

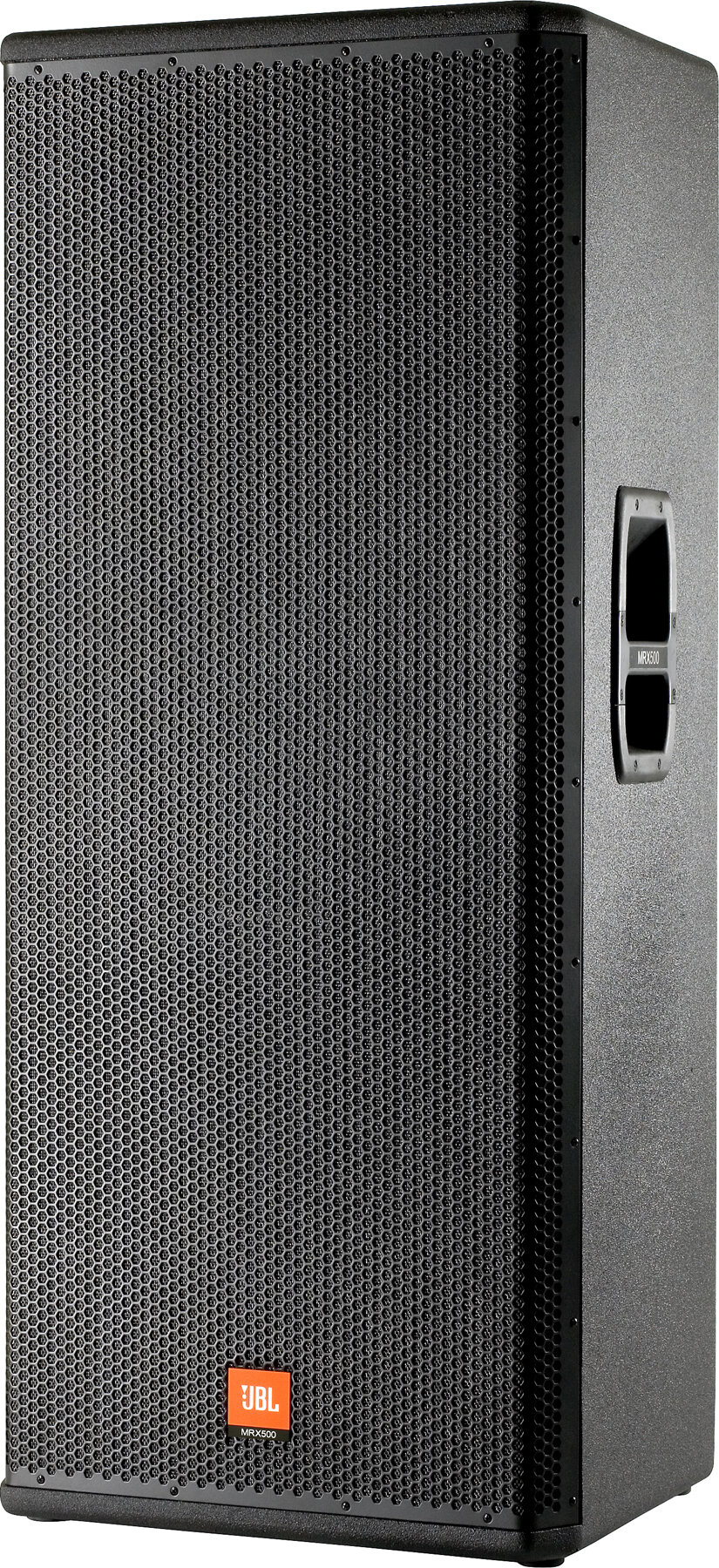

JBL MRX525 2-Way Loudspeaker (800 Watts, 2x15 in.)

JBL MRX525
The MRX525 is a portable, dual fifteen-inch, two-way speaker system designed specifically for live performance stage monitoring applications.

The MRX525 is an excellent choice when the application calls for high performance and simplicity. A pair of MRX525s and a single, high-power amplifier is a complete sound system capable of reinforcing bass and kick drum or playing high-level music in clubs and other venues. The MRX525 is comprised of two 380 mm (15 in) 265H Differential Drive woofers with combined power handling of 800 watts (continuous). For the high frequencies, 2408H 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver is mounted to a 70-degree x 70-degree horn. The 70-degree coverage angle of the MRX525 is wide enough to provide coverage of an audience when used one-per-side yet narrow enough to allow splaying of multiple enclosures without excessive coverage overlap. The enclosure is constructed of quality plywood and coated in JBL's rugged DuraFlex finish. The attractive CNC-machined, 16-gauge steel grille wraps around the sides of the enclosure. The grilles are internally lined with an acoustically transparent screen to provide additional driver protection and give a very professional appearance.

Constantly pushing the threshold for better, more useful products for the working musician and DJ, JBL Professional once again hits the target with the all-new MRX500 Series Loudspeaker System. Compact, lightweight, truly portable, the MRX500 is the ultimate PA system for musicians and DJ's who need fully professional sound and performance within a budget.

Features
Lightweight and high-power

Dual 15 in. Differential Drive woofers for high-power capacity and extended LF performance

1.5 in. annular polymer diaphragm compression driver

70-degree x 70-degree coverage

Heavy Duty 16 gauge protective screen backed steel grille

Tough DuraFlex enclosure finish

Applications
Live sound reinforcement for vocals and musical instruments

High-level music playback

Technical Info

Frequency Range: 40 Hz - 20 kHz

Frequency Response: 57 Hz - 20 kHz

Sensitivity: 100 dB SPL

Nominal Impedance: 4 ohms

Power Capacity (Continuous / Program / Peak): 800 W / 1600 W / 3200 W

Rated Maximum SPL: 129 dB SPL Continuous (135 dB SPL Peak)

Coverage Pattern:: 70-degree x 70-degree nominal

Dimensions (H x W x D): 1240 mm x 535 mm x 460 mm; (48.75 in x 21.0 in x 18.0 in)

Weight: 38.2 kg ( 84 lbs.)

High Frequency Driver: 1 x JBL 2408H 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver

Low Frequency Driver: 2 x JBL 265H 380 mm (15 in) Differential Drive woofer

High-power enclosure with deep bass extension! Dual 15" woofers and 1.5" HF horn. Broad 40Hz-20kHz frequency range. Handles 800 watts at 4 ohms.
