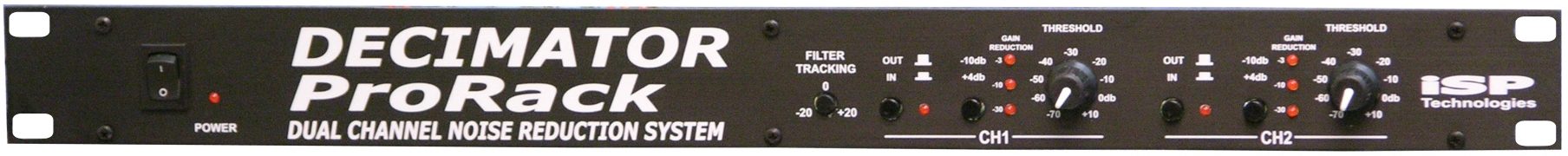

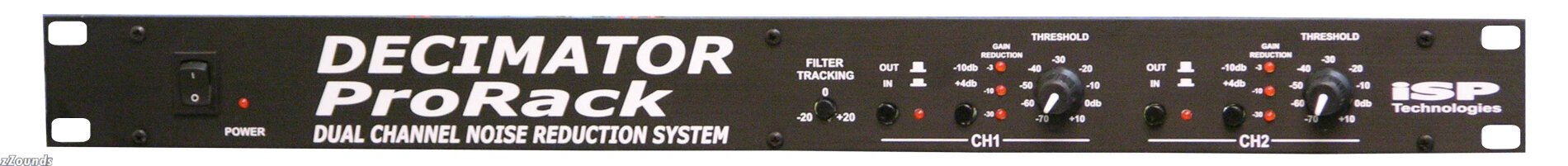

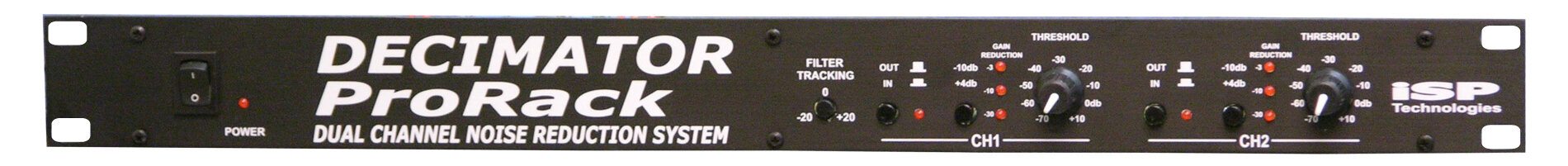

ISP Technologies Decimator ProRack Noise Reduction

ISP Technologies presents the latest generation in high performance Noise Reduction technology, the Decimator Pro Rack Dual Channel Noise Reduction System. From the original inventors of the HUSH noise reduction comes the latest, most advanced, patent pending, state of the art technology in real time noise reduction.

The Decimator offers a revolutionary breakthrough in Noise Reduction processing with an unparalleled level of performance. The HUSH system, as well as all other noise reduction systems suffers from one major problem inherent in their design: The system cannot be immediately responsive to both very short-term staccato notes and long slowly decaying signals. The typical downward expander noise reduction system suffers from a dead zone in the release response characteristic, which causes a compromise in tracking both fast decaying notes and long sustained notes.

The Decimator design offers a novel approach to tracking the envelope of the input signal called Time Vector Processing. Due to this novel approach in controlling the expander, the Decimator system will instantly respond to short staccato notes and, at the same time, will provide a very slow ripple free control of long sustained notes. This means that the Decimator noise reduction system is the most transparent and highest performance noise reduction system available.

The Decimator Pro Rack uses both Dynamic filtering and low-level downward expansion. A Time Vector Processing circuit controls the release response of both the downward expander and dynamic filter. The input of the Decimator Pro Rack is TRS

Technical Info

Input Impedance: 20K ohms

Maximum Input Level: +20dbu

Effective Noise Reduction: greater than 60db

Dynamic Range: greater than 118db

Total Harmonic Distortion: .05% typical

Power consumption: 680mA @9VAC

Release response: Program dependant based on Time Vector Processing

Dimensions (HxWxD): 1.75 x 19 x 7 in.
