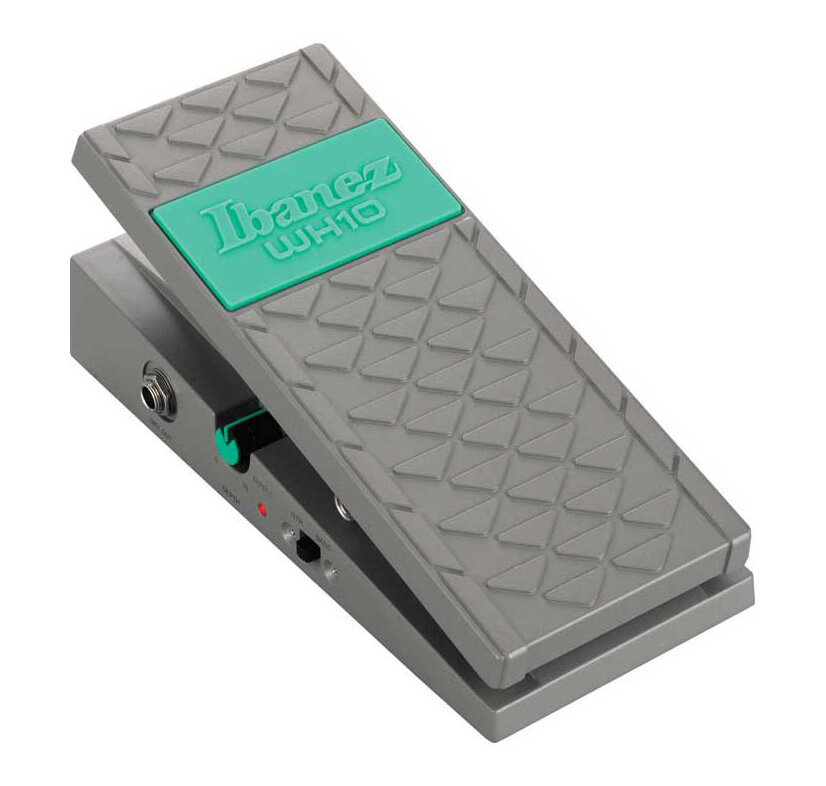

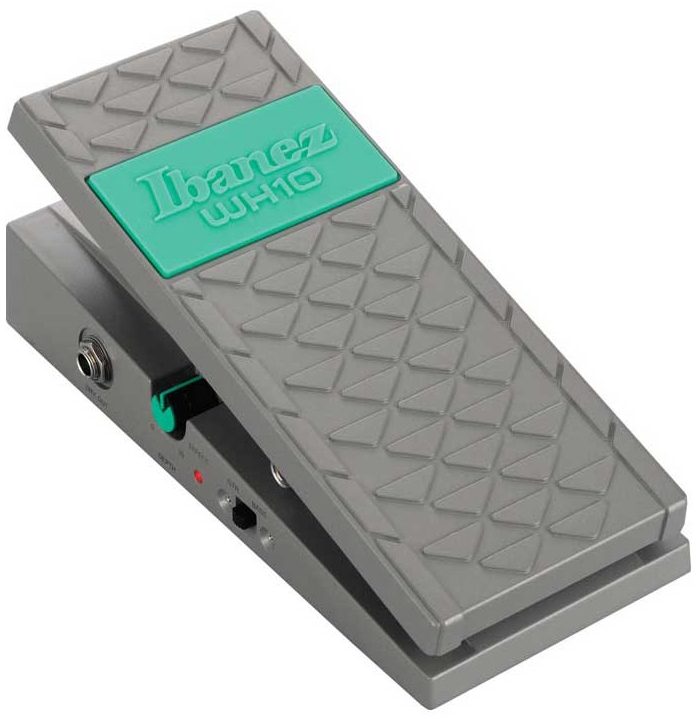

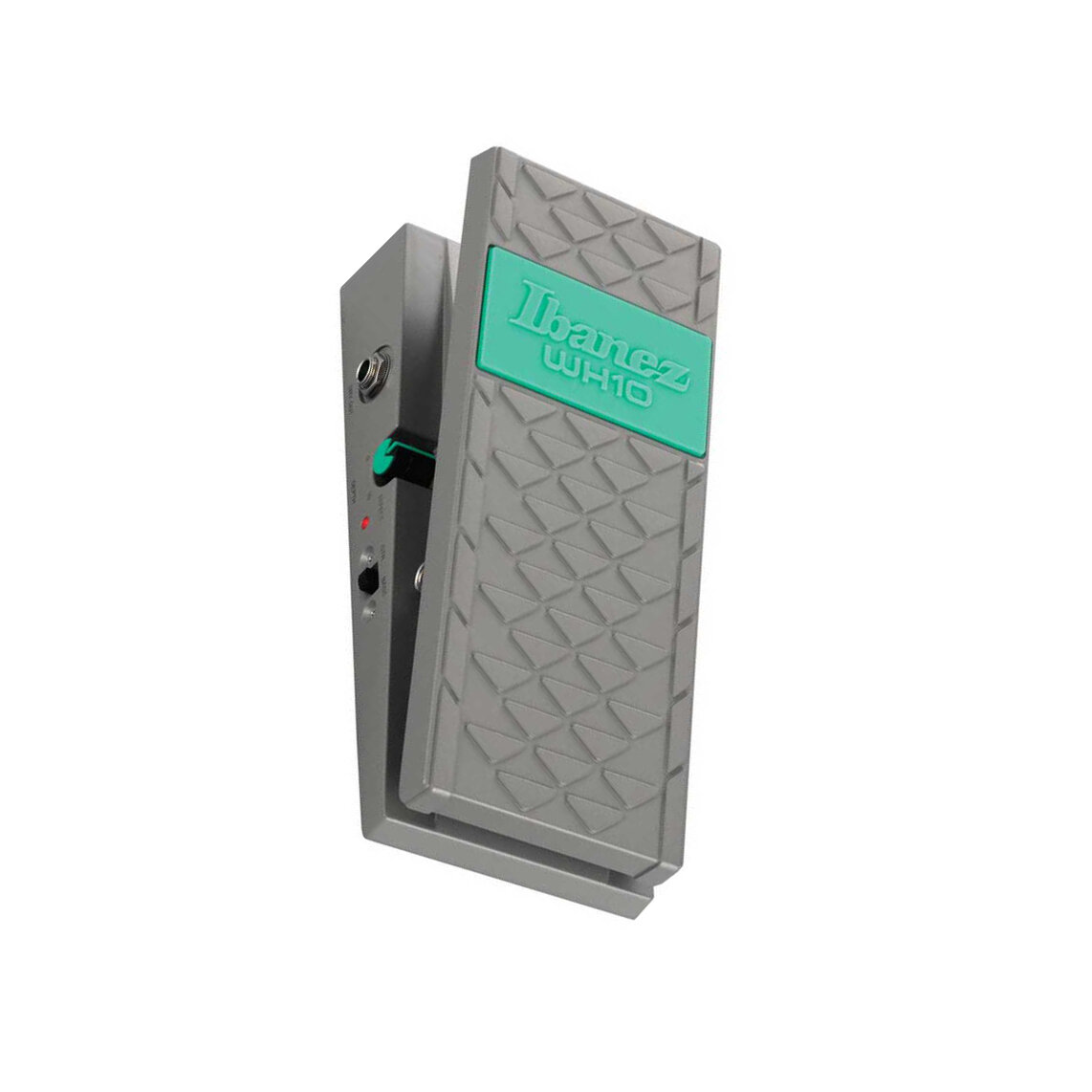

Ibanez WH10V2 Classic Wah Pedal

Ibanez WH10V2 Classic Wah Pedal; A hit from the 80's is back, better than ever!
Updated and upgraded, at first touch you will notice that the WH10 Reissue is stronger since its inclosed in a die-cast case unlike the original plastic one that caused misery for hard stomping musicians.

The WH10V2 features the same multiple feedback opamp circuit as the original, a feature rarely found in today’s wah pedals. It also has a depth knob to control to level of the wah effect and a dry out for mixing a dry signal with the wah sound. The WH10V2 has a unique tone character setting it apart from all traditional wah pedals, as well as some modern tweaks so your sound keeps changing with the times.

Features
- Multiple feedback opamp circuit

- Dry Out Output

- Depth Controls from +6 to +20dB

- Range Switch allows selection of Guitar or Bass frequencies

- Powered by 9V battery or Optional AC109 power supply

- Die-cast case

Since the point of having a classic wah pedal is to squeeze every ounce of expression out of a screaming solo or rhythm part, it's easy to see why the original WH10 was a hit when it was first released in the ‘80s. Now it’s back and even better.

Technical Info

Specifications
Depth Knob: +6 to +20dB

Range Switch:
- Guitar: 350Hz - 2.2kHz
- Bass: 175Hz - 1.1kHz

Input Impedance: 500Kohms

Output Impedance: 1Kohm

Maximum output level: +4 dBv

Power Supply:
- One 9V battery
- Optional Ibanez AC109 power supply

Dimensions (WxHxD): 3.5 x 2.2-3.3 x 7.9 inches (89 x 55-84 x 200 mm)
