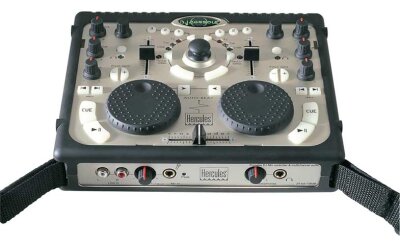

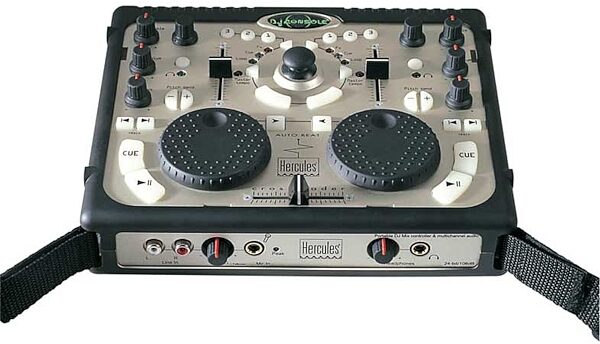

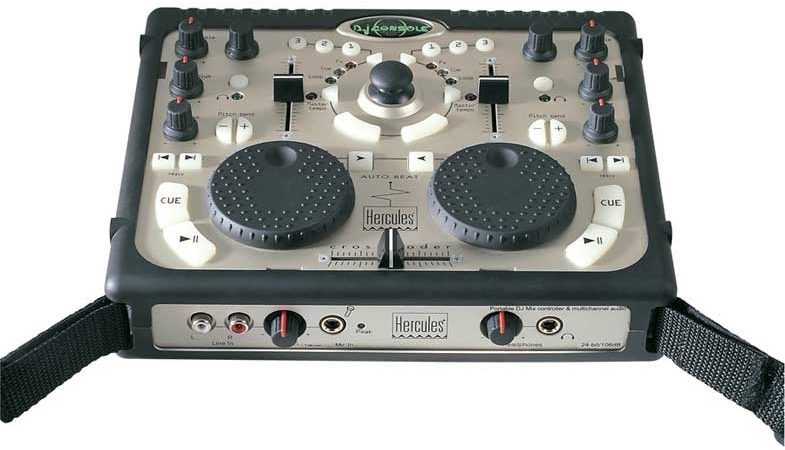

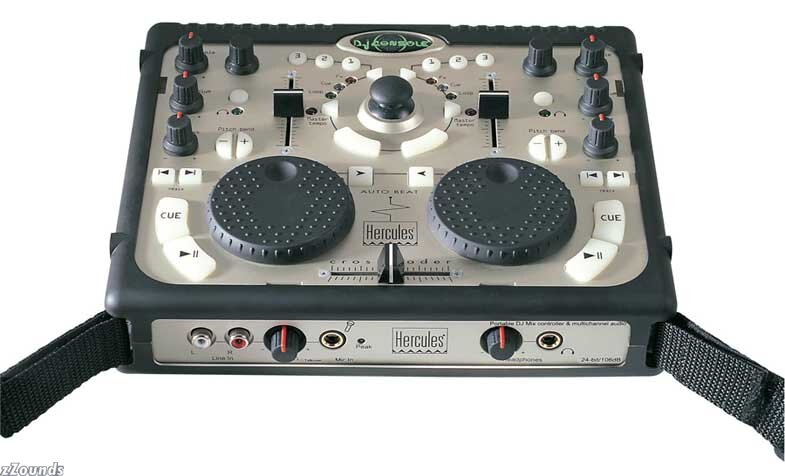

Front Panel:Input Stereo Line In: 2 RCA input plugs
Gain/talkover button for microphone input control
1/4 in. (6.35mm) stereo microphone input plug
OutputHeadphone volume control
1/4 in. (6.35mm) pre-amplified stereo headphone output plug

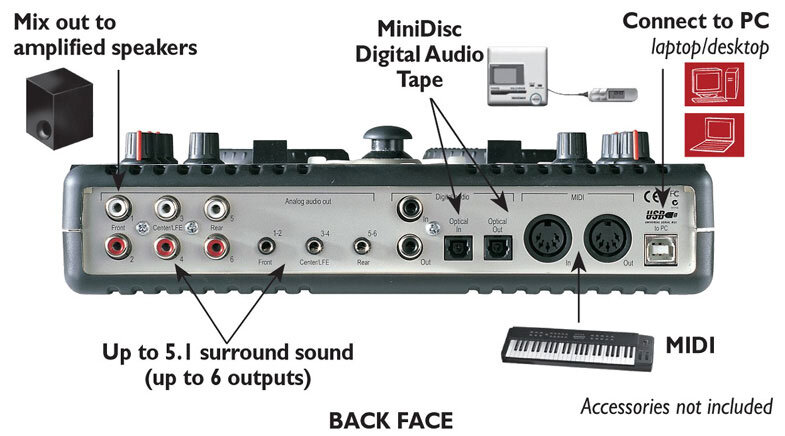

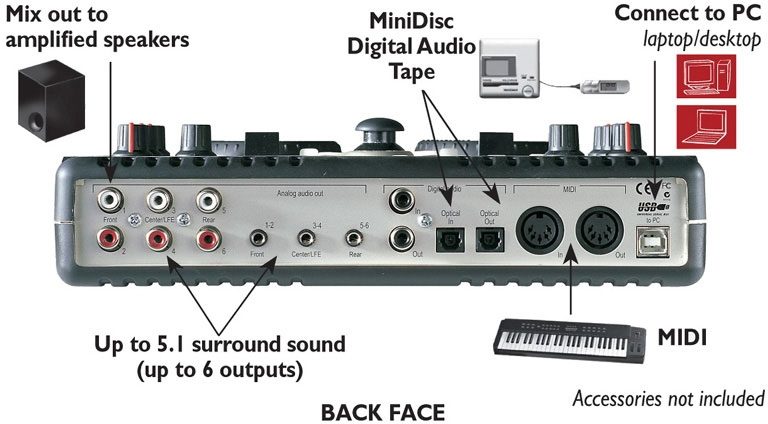

Rear Panel:Analog Audio Output 6 RCA output plugs for 5.1-channel audio
3 x 1/8 in. (3.5mm) stereo output plugs
Digital Audio Coaxial Input and Output plugs
Optical Input and Output plugs
MIDI Din 5-pin MIDI In and MIDI Out plugs

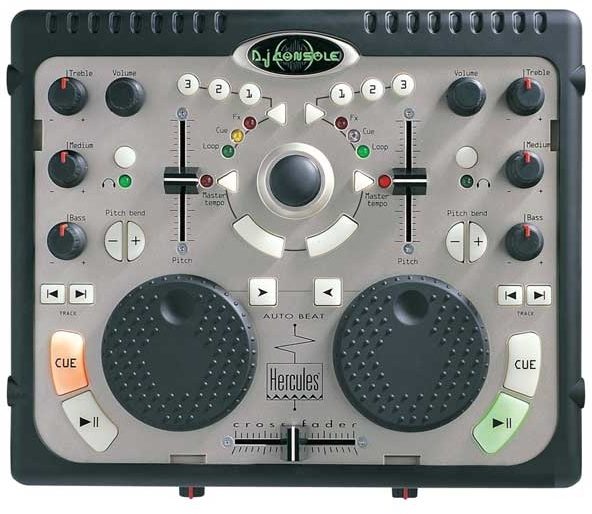

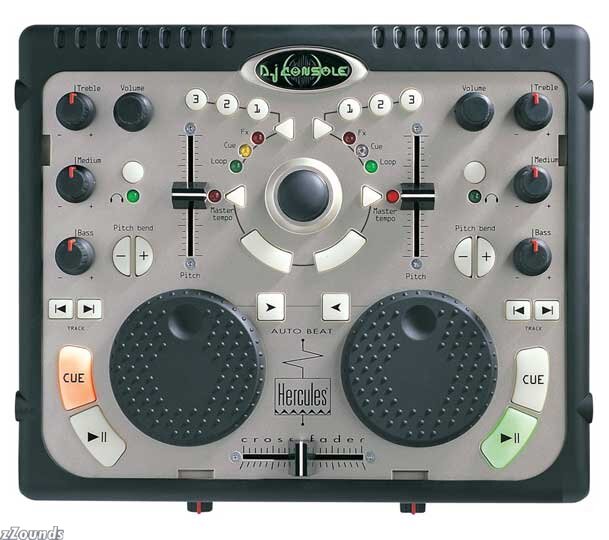

USB Plug Top Panel: 2 vinyl-style decks
8 knobs
3 sliders
28 soft phosphorescent buttons
1 mini-stick
16 LEDs
Audio Specifications: 6-channel audio sampling in 16-bit/48KHz mode
24-bit 102dB ADC, 24-bit 106dB DAC
Optical and coaxial S/PDIF digital In & Out (up to 24-bit)
Compatibility: USB USB 1.1 (USB Full-Speed) required
Compatible with USB 2.0 (USB High-Speed)
Due to the need for a full USB power supply, a dedicated USB root hub is recommended
2m USB cable included
AudioMicrosoft® DirectSound® compatible
ASIO 2.0 drivers included
General MIDI compatible
