Galaxy Audio CMC200 Checkmate Calibrator For SPL Meters

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
Galaxy Audio CMC200 Checkmate Calibrator For SPL Meters, Main
Galaxy Audio CMC200 Checkmate Calibrator For SPL Meters, Main
Galaxy Audio CMC200 Checkmate Calibrator For SPL Meters, Main Galaxy Audio CMC200 Checkmate Calibrator For SPL Meters, Main

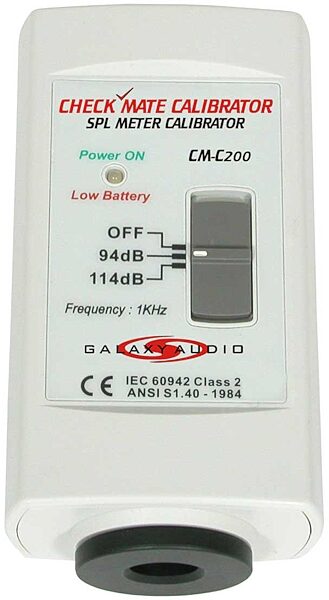

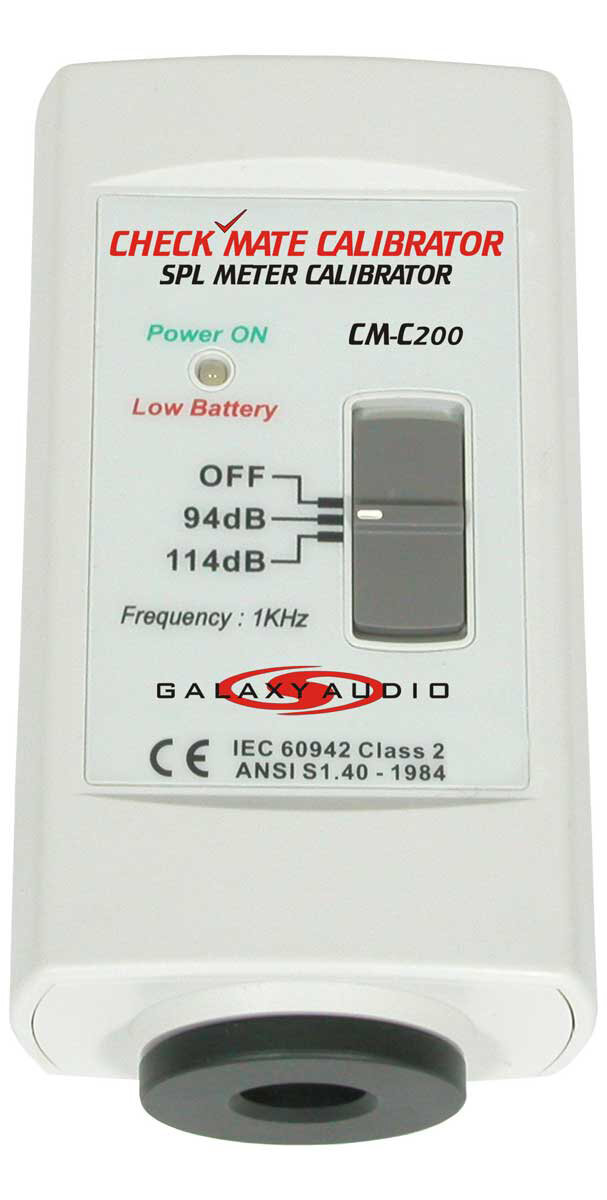

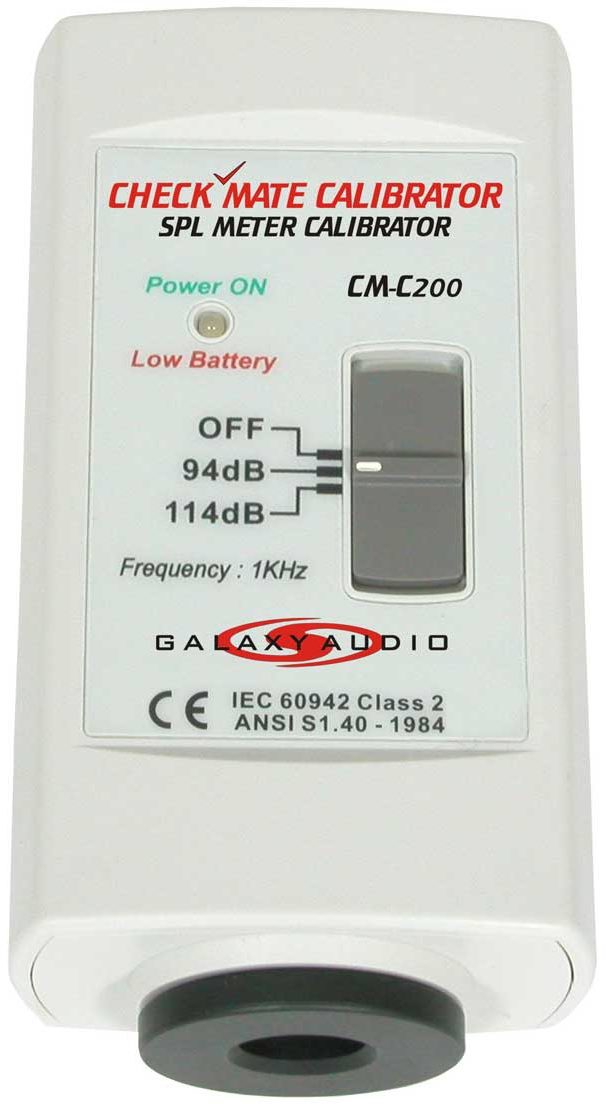

Got a CheckMate SPL meter? The CMC200 calibrator generates 1 kHz tones at 94 dB or 114 dB -- perfect for calibrating SPL meters with a 1/2" or 1" microphone.

The Galaxy CMC200 Check Mate calibrator is designed to calibrate SPL Meters with a microphone diameter of 1/2 inch and 1 inch. The CMC200 will work with any of the CheckMate SPL Meters and many other brands. The CMC200 has a test tone at 1kHz at both 94dB and 114dB. The package includes a protective carry case, battery, and manual.

Features:

- Conforms to IEC 60942 2003 Class 2
- ANSI S1.40-1984
- Calibration levels of 94dB and 114dB at 1kHz
- Fits 1 and 1/2 inch diameter microphones
- Weight: approx .41 lbs (186.4g) (including battery)
- Accurate and simple to use

Output Sound - Pressure Levels :
114dB and 94dB re 20 uPa under
reference conditions.

Output Frequency : 1000Hz +/- 4%

Total Harmonic Distortion: < 3%

Accuracy of Sound-Pressure Level: Under
stated reference environment conditions +/- 0.5dB

Power: One 9V battery 006P or IEC 6F22 or NEDA 1604

Dimensions: (L) 4.62 x (W) 2.47 x (H) 1.72 Inches

Weight : Approx. .41lbs (186.4g) (include battery)

Accessories : Instruction manual, carrying case, 9V battery, 1/2 inch

For support or warranty questions, please contact the manufacturer:
Phone: 800-369-7768 x101
Email: service@galaxyaudio.com
