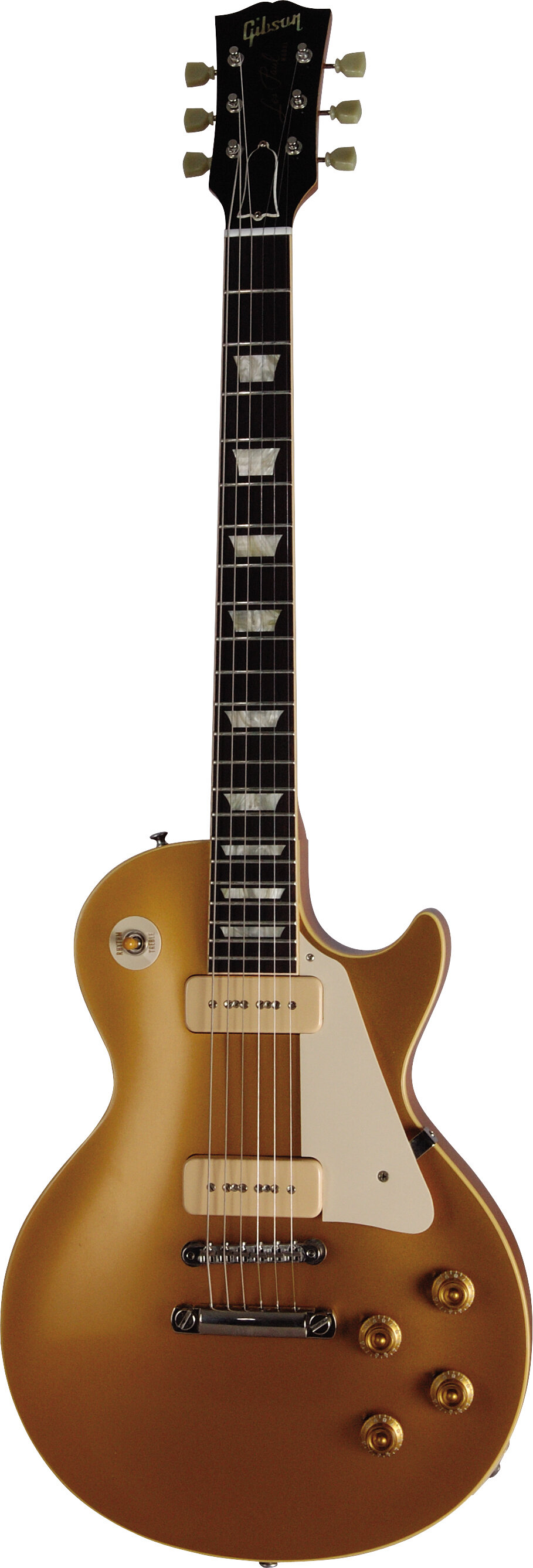

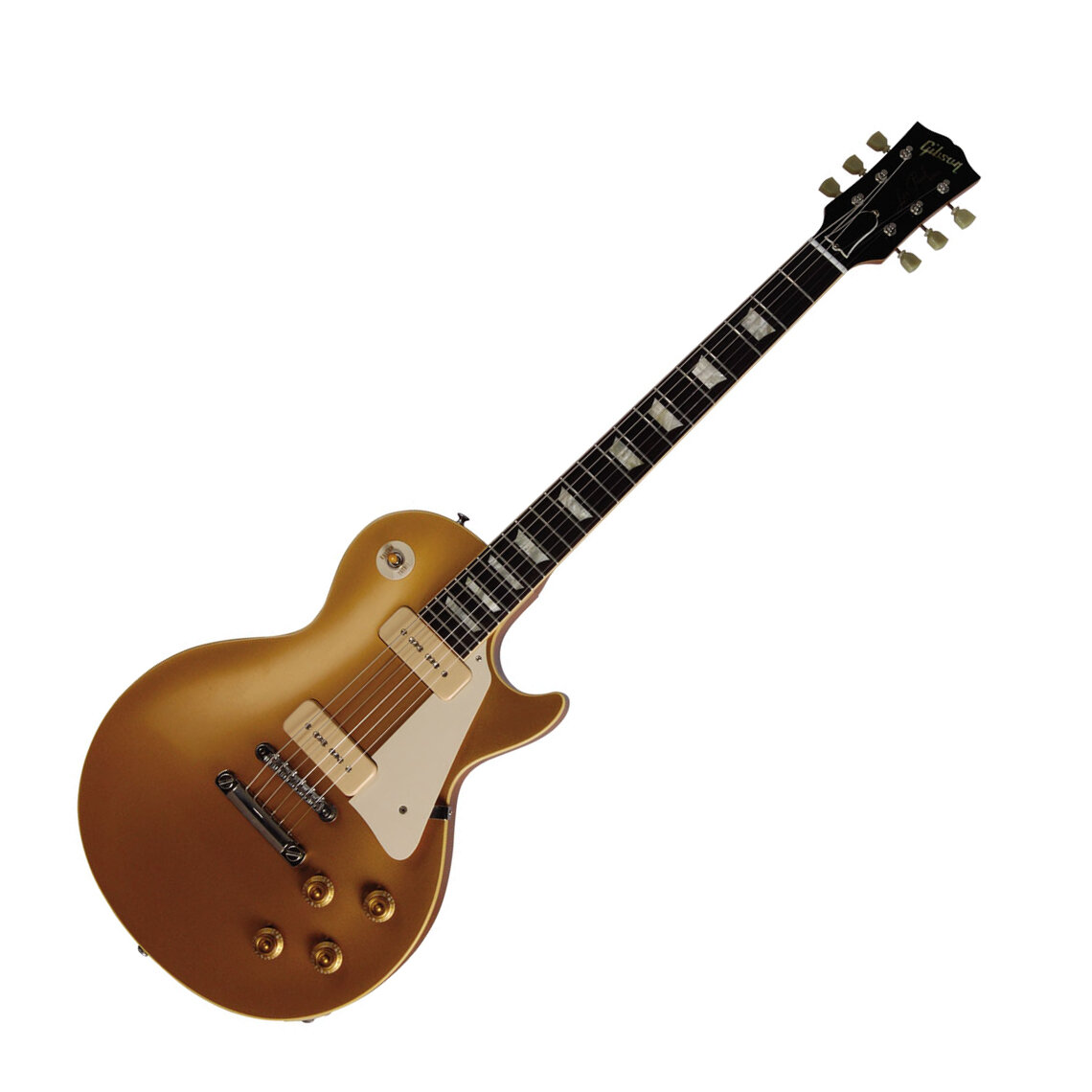

Ted McCarty's Tune-o-Matic bridge (also known as the ABR-1) started to appear on higher-end Gibson guitars as early as 1954. The ABR-1 was added to the Les Paul Model in 1956 and, with individual saddles to adjust each string's length as well as thumbwheels to adjust the overall height of the bridge, represented a quantum leap forward in intonation and a marked improvement in tone and sustain. Now part of Gibson's proprietary new Vintage Original Spec series -- the next step in the journey toward perfection.
Technical Info

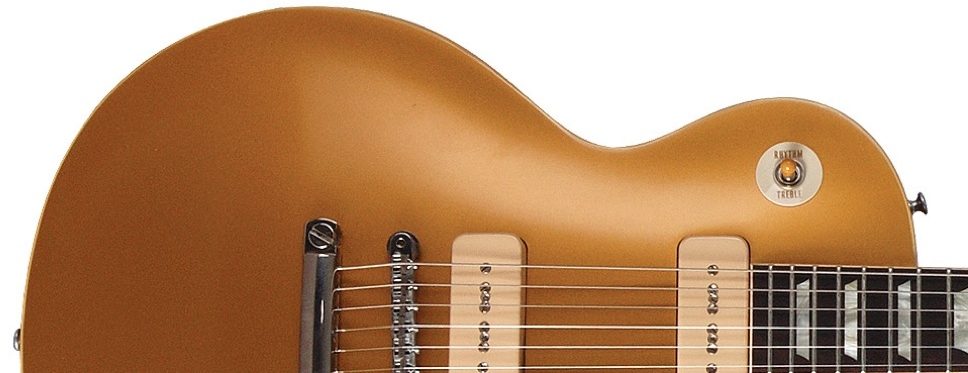

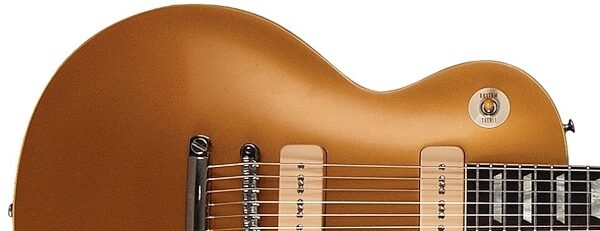

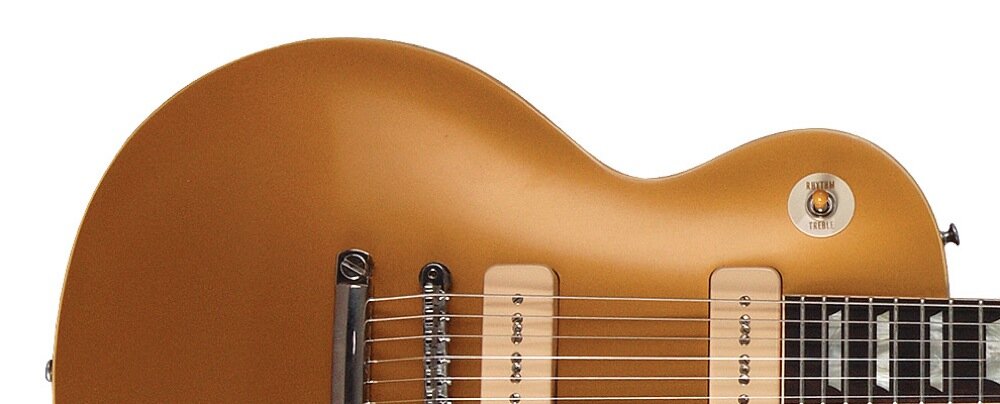

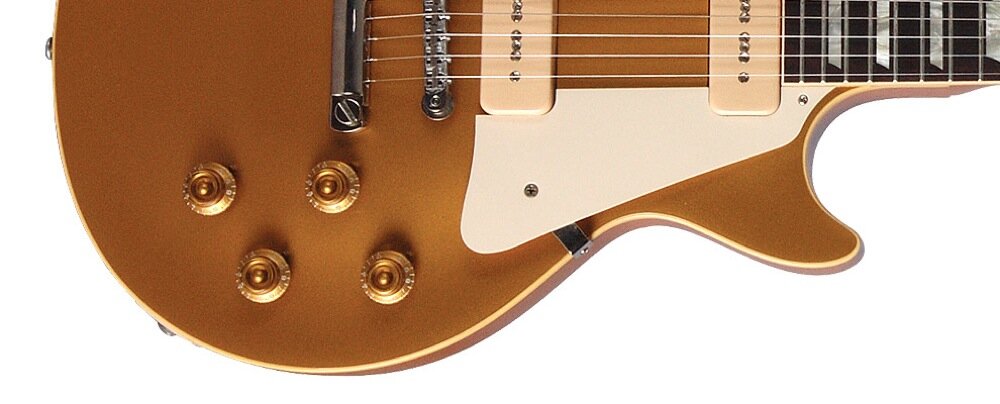

Body & Hardware:
Carved maple top
Solid, non-weight relieved mahogany back
Single-ply cream binding on top
Thin toggleswitch washer & jackplate
Antique Gold finish
Nickel hardware
ABR-1 bridge, lightweight aluminum stopbar tailpiece

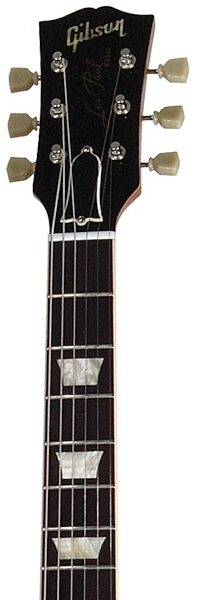

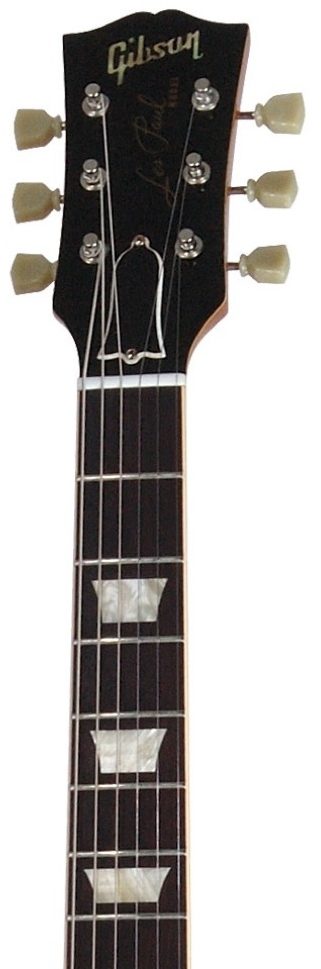

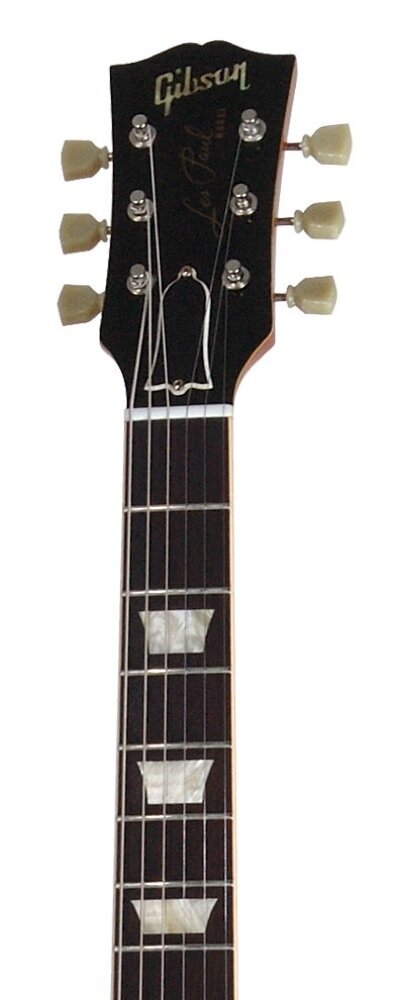

Neck & Headstock
1-piece mahogany neck w/ long neck tenon
22-fret rosewood fingerboard
Acrylic trapezoid inlays (accurate shape and color)
Single-ply cream binding
Early '50s rounded neck profile
24-3/4 in. scale length, 1-11/16 in. nut width
Holly headstock veneer
Vintage tulip tuners

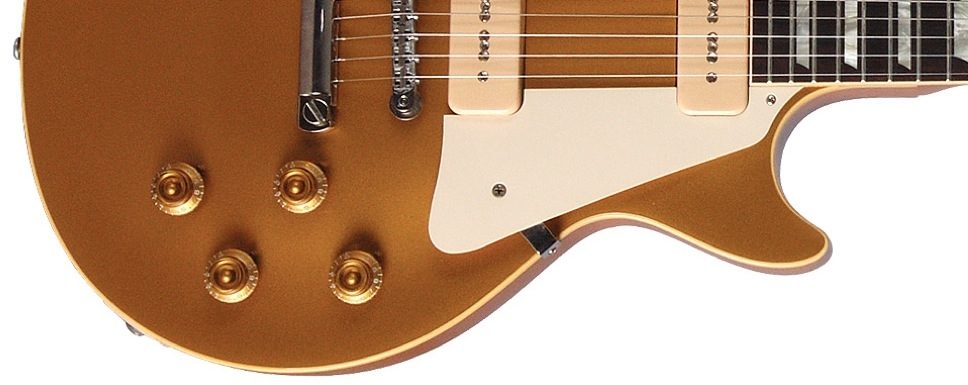

Electronics & Strings
P-90 single coil pickups
CTS pots and bumble bee capacitors
2 volume, 2 tone, 3-way selector switch
Vintage Reissue .010 strings
Includes Custom Shop case, certificate of authenticity, and custom care kit.
