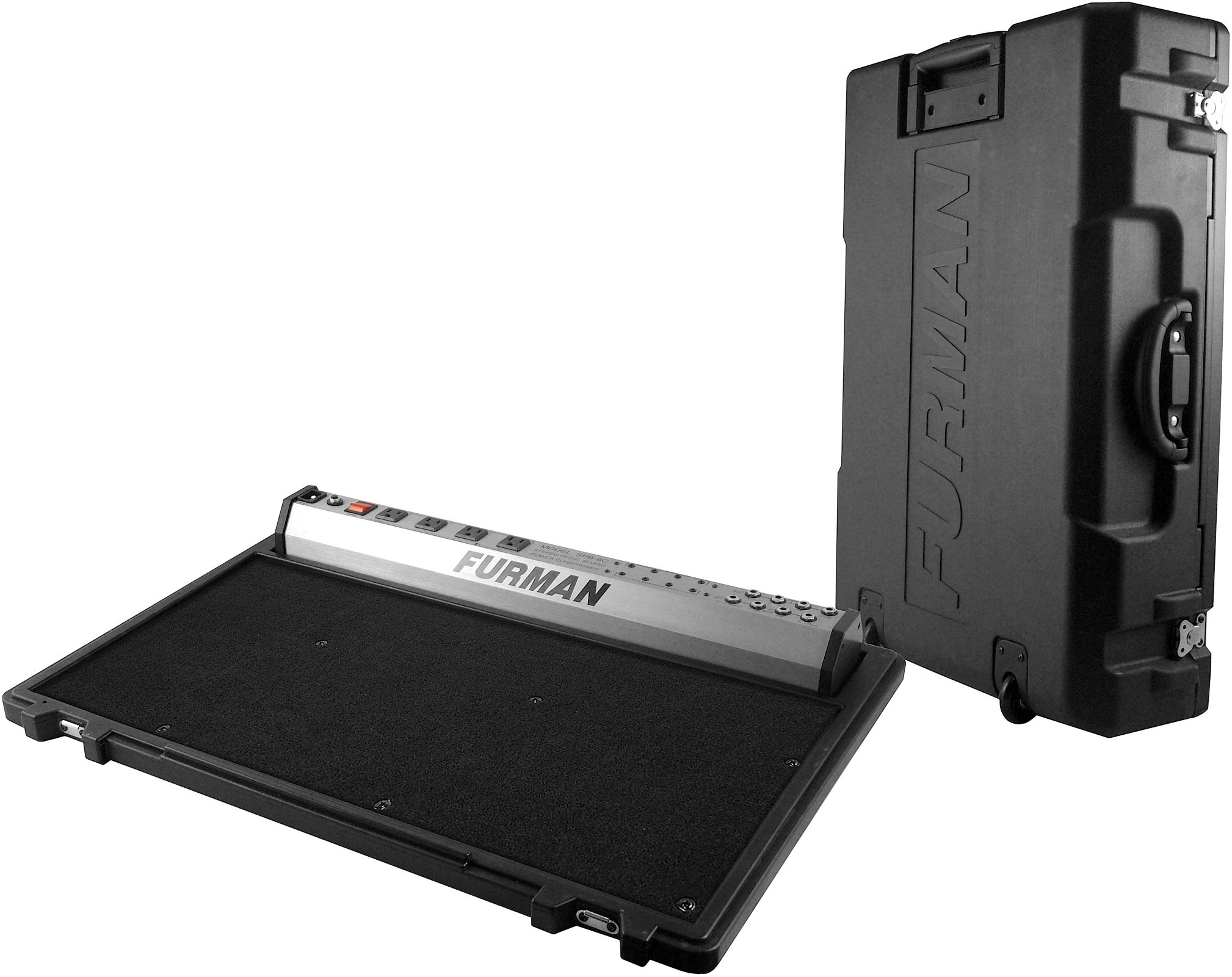

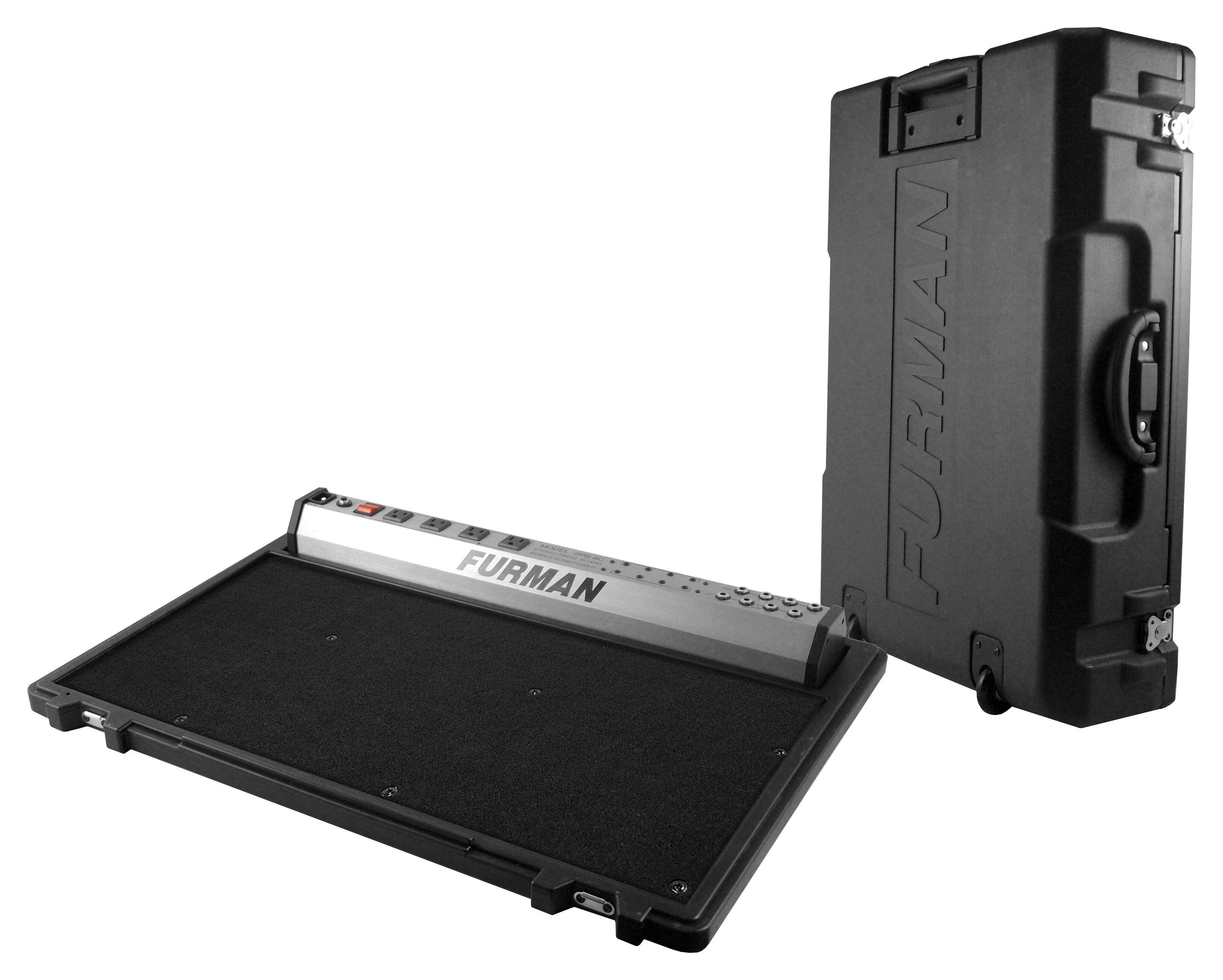

Furman SPB8C Stereo Pedalboard with Power Conditioner and Case

Often imitated, the original Furman SPB-8 was the first stereo pedal board on the market. Now Furman is proud to offer its successor, the SPB-8C. Featuring a new hardshell case, more outlets, improved jacks, and a streamlined look, the SPB-8C improves on the innovative design that made the original pedal board so popular.

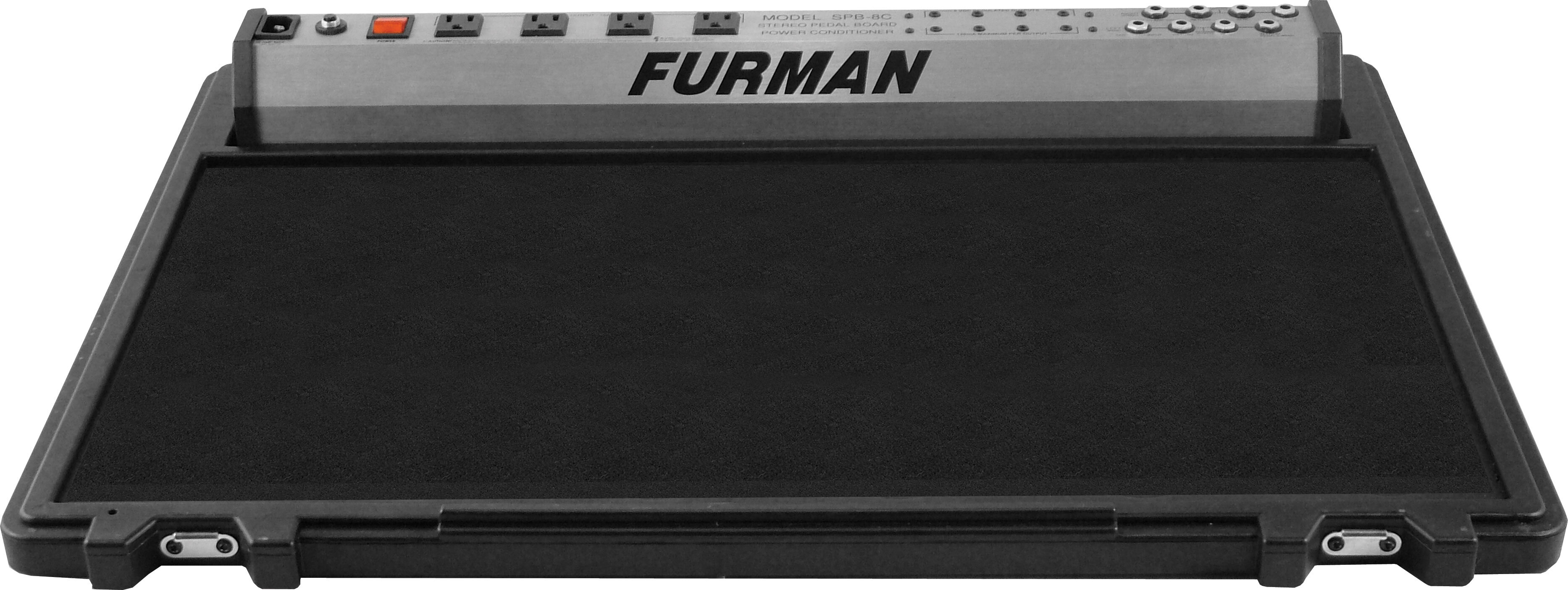

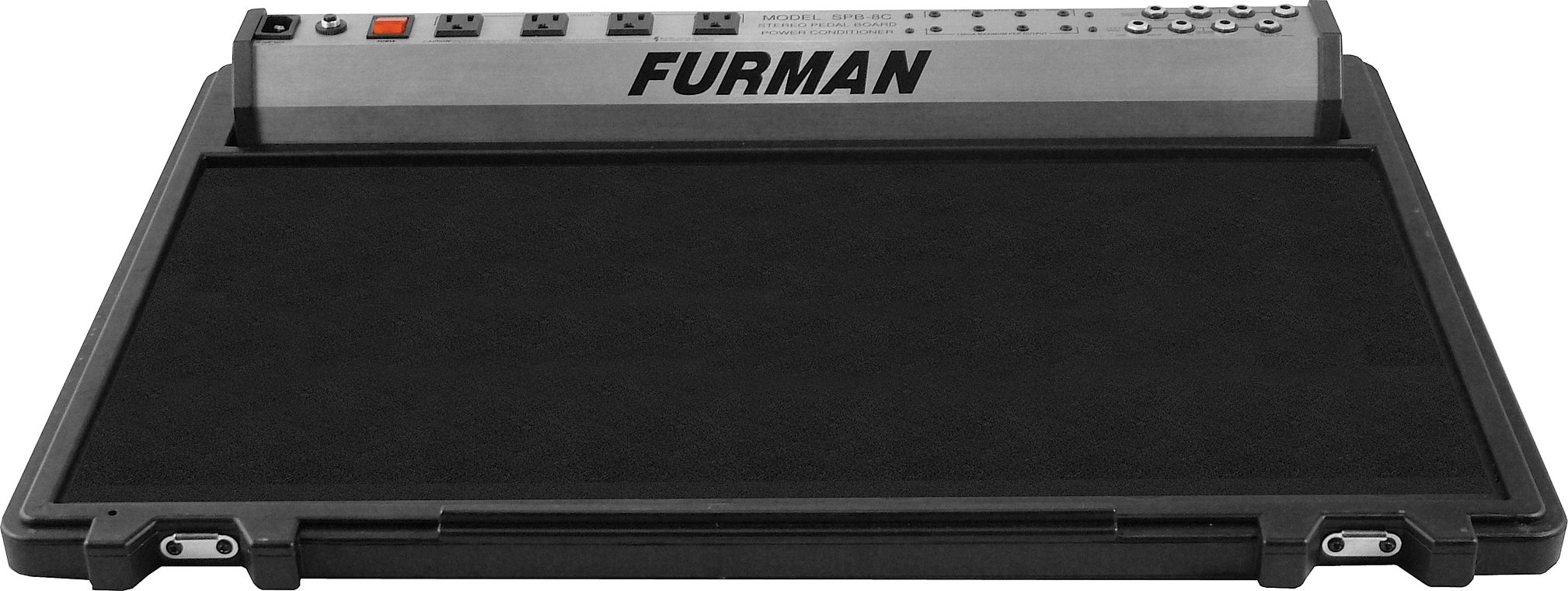

Pedal Board
The SPB-8C pedal board features a heavy duty metal construction that will handle the most forceful stomps you can offer, as well as stand up to the rigors of the road.

At the heart of the SPB-8C pedal board is a light yet rugged polycarbonate platform in combination with an extruded aluminum chassis and an ample 13.75 x 26.75 in. Velcro sheet. This durable construction ensures secure, non-slip performance of your effects boxes and pedals.

The SPB-C’s stereo patch bay contains eight 1/4 in. switching phone jacks featuring sturdy metal bushings, connected in two stereo loops. This allows a single guitar or instrument input to feed multiple mono and stereo effects boxes, send and return from remote effects, and feed up to two amplifiers simultaneously. From modest to highly complex patching demands, the SPB-8C allows nearly unlimited set-up flexibility.

Powering your pedals, amps and other gear, the SPB-8C offers two levels of surge and short circuit protection, as well as Furman's standard level of RFI/EMI filtering. Furman's SPB-8C is quiet, powering DC pedals without hum, due to the high quality toroid transformer employed. Each DC output is rated at 120 mA, as well as being individually protected against shorts, guaranteeing that if one pedal goes out, the rest will continue to function. Further, these DC outputs are individually isolated, eliminating noisy ground loops. The SPB-8C also includes four AC outlets, spaced widely enough to accommodate bulky 'wall wart' transformers.

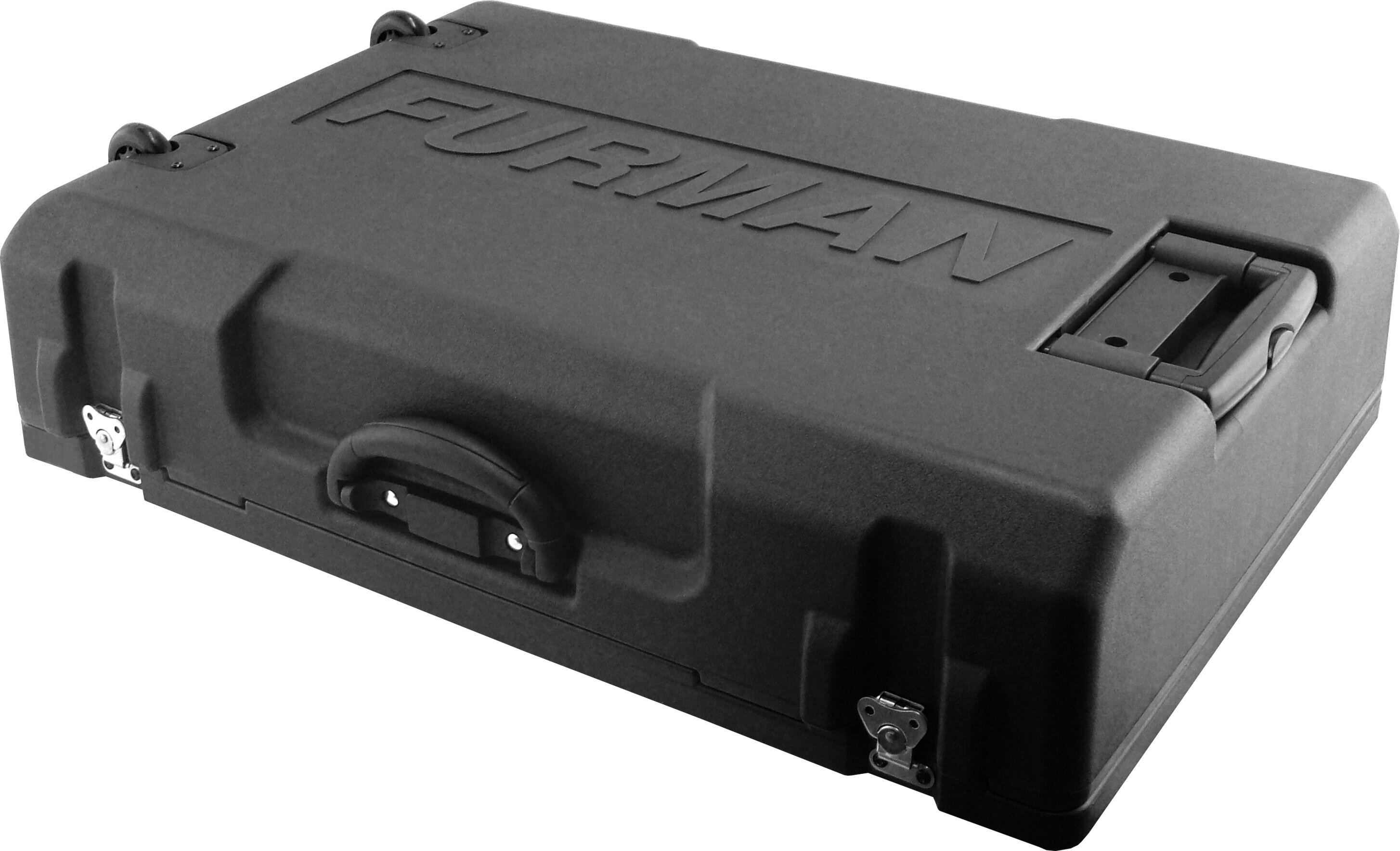

Hardshell Case
The Furman SPB-8’s nylon gig bag has been replaced with a new, durable polyethylene hardshell case. Built to cater to the demands of the working professional, the case is large enough to accommodate the pedal board and all attached effects, allowing the musician to keep all pedals and stompboxes patched and connected from gig to gig. A retractable handle and inline skate wheels allow for easy transport, while heavy duty latches ensure the case will remain securely closed when not in use.

Includes:
SPB-8C stereo pedal board

Durable hardshell case

Removable AC cord

Ten (10) 9VDC power cords

Strip of Velcro (4 ft. x 24 ft., to attach pedals to board)

Owner's manual

Pedal Board Features
Solid, non-slip base with room for many stompbox/effects pedals

Pedal effects attach securely to 13.75 in. x 26.75 in. Velcro pad

Stereo effects return, effects loop, and amplifier outputs

Eight individually isolated, regulated and protected 9VDC outlets, with power cords included

Four widely spaced 120 VAC, 15A outlets allow enough room for “wall warts”, with master power switch

9VDC power jacks and all signal jacks are insulated and isolated, eliminating noisy ground loops

Furman’s standard level of spike/surge suppression and EMI/RFI filtering assures clean power

Toroidal transformer for ultra low-noise performance

Rugged construction to withstand years of on-stage use and abuse

Extra long (9 foot) removable AC cord

Case Features
Durable hardshell case built to withstand the rigors of road travel and gigging

Retractable, luggage style handle slides into lid of case

Inline skate wheels

Heavy-duty latches

Accommodates pedal board with effects attached, letting you leave everything patched together as you like it

Technical Info

Dimensions:
Pedal board (H x W x D): 3 x 28.5 x 20.125 in.
Case (H x W x D): 3 x 28.5 x 20.125 in.

Weight:
Pedal board: 8 lbs.
Case (w/ board): 18 lbs.

Warranty: Limited three year warranty covering defect in materials and workmanship.

Safety Agency Listing: ETL / CETL

15A Outlets
Voltage: 120 VAC

Current Rating: 15 Amps total AC outlets, 1800W

Spike Protection: Line to Neutral

Spike Clamping Voltage: Initial turn-on at 200 Volts; TVSS rating of 400 Volts peak at 500 Amps

Response Time: 1 nanosecond

Maximum Surge Current: 6,500 Amps

Maximum Spike Energy: 80 Joules

Noise Attenuation: Transverse Mode - greater than 20 dB 800 kHz to 10 MHz

9 VDC Power Supply
Current Rating: 120 mA per outlet, 1A maximum combined current for all outlets

Protection: Eight (8) discrete re-settable fuses

Trip Time: 1 amp fault, 0.2 second trip time

Patch Cords:
Eight (8) 3.5mm phone plug (tip hot) to P250L 2.mm x 5mm plug (tip hot)
One (1) 3.5mm phone plug (tip hot) to 3.5mm phone plug (tip hot)
One (1) 3.5mm phone plug (tip hot) to 9 Volt battery clip (non-perforated, tip hot)

Effects transport, pedalboard and power supply and conditioner in one unit. Treat your effects to reliable Furman power and they'll love you forever. Comes with ten 9VDC power cords and supports stereo effects setups. Polyethylene hardshell case snaps over the metal board for transport, and even has built-in dolly wheels and an extending handle.
