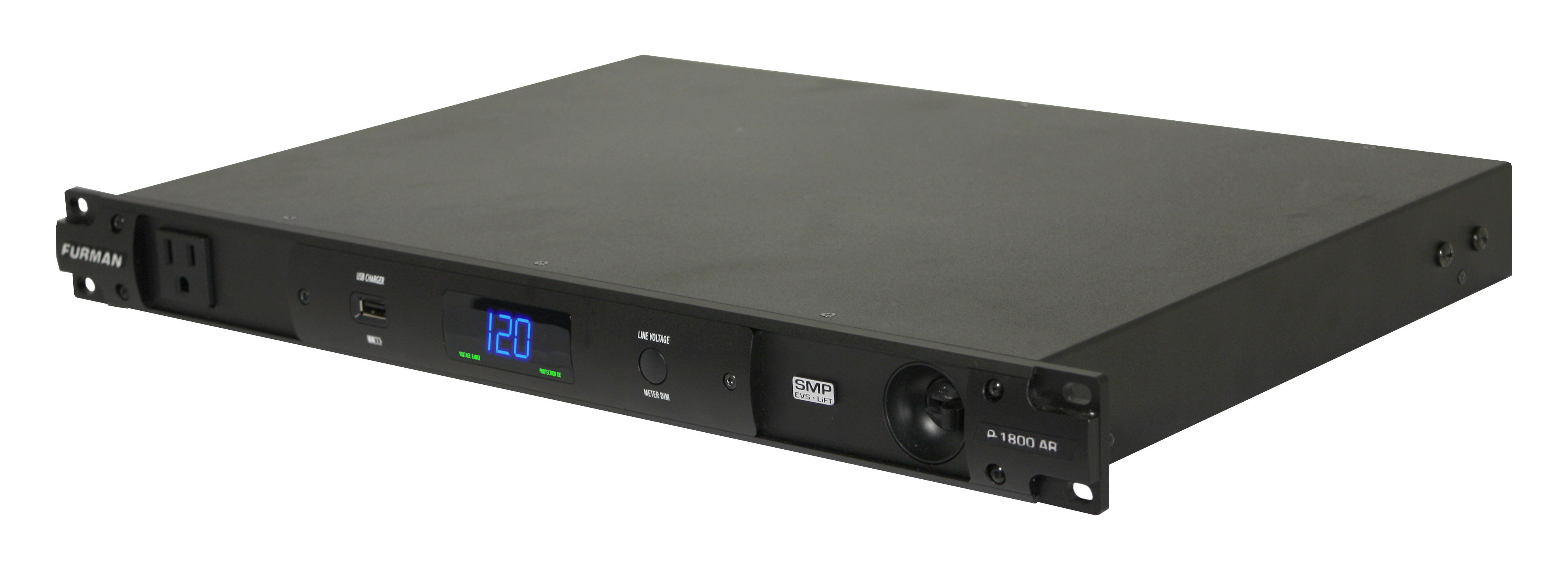

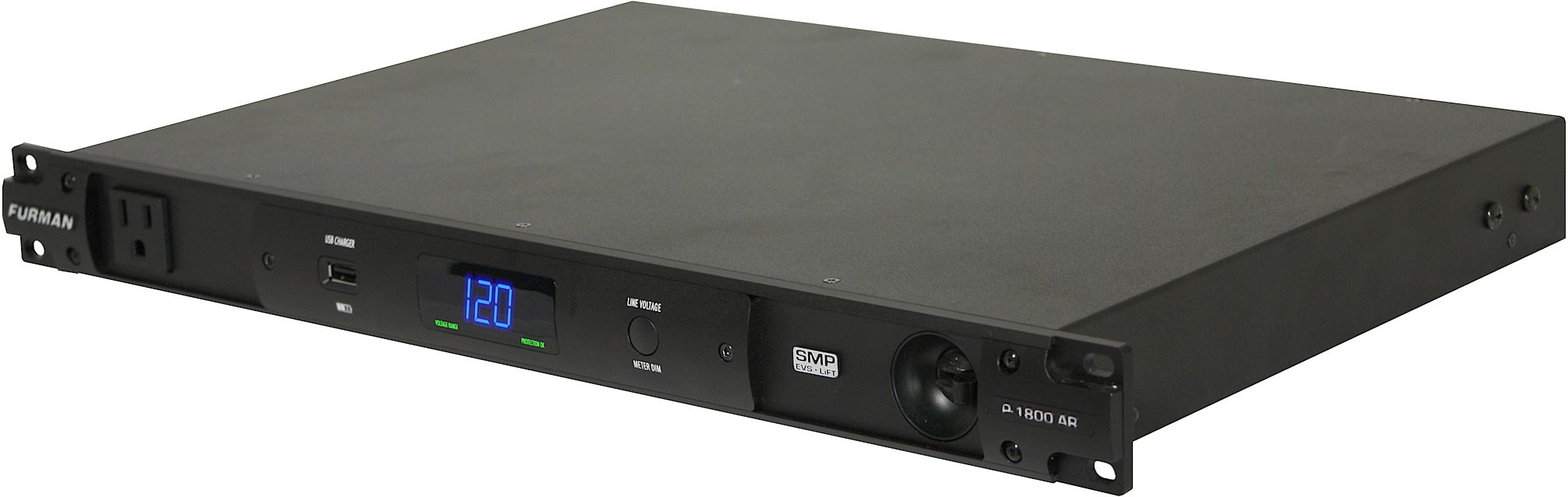

Furman P1800 AR Voltage Regulator
The 15 Amp P-1800 AR delivers a stable 120 volts of AC power to protect equipment from problems caused by AC line voltage irregularities such as sags, brownouts, or overvoltages - all of which can cause sensitive electronic equipment to malfunction or sustain damage. The P-1800 AR accepts input voltages over a wide AC voltage range and transforms it to a constant output of 120V, +/- 5V. Voltages beyond that range may also be converted to usable levels, depending on the range variance.
Additionally, the P-1800 AR is a full-featured power conditioner that filters and purifies AC power, reducing line noise and ensuring optimum performance. Not only will your equipment perform better with Furman's Linear Filtering Technology (LiFT), but it will also be fully protected by the exclusive Series Multi-Stage Protection (SMP), and Extreme Voltage Shutdown (EVS). This circuitry provides the highest level of power protection available.
Get an overview of the Furman P1800 AR 15-amp Voltage Regulator Power Conditioner in this video demo:
Surge Protection - Furman's exclusive SMP technology provides the highest level of surge & spike protection available.
Noise Filtration - LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
Voltage Protection - Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
Diagnostic Lights - LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
True RMS Voltage Regulation - True RMS Voltage Regulation delivers a stable 120 volts of AC power to protect equipment from problems caused by AC lne voltage irregularities.
USB Charger - Front panel USB convenience outlets allows you to charge most media devices or power a USB lamp.

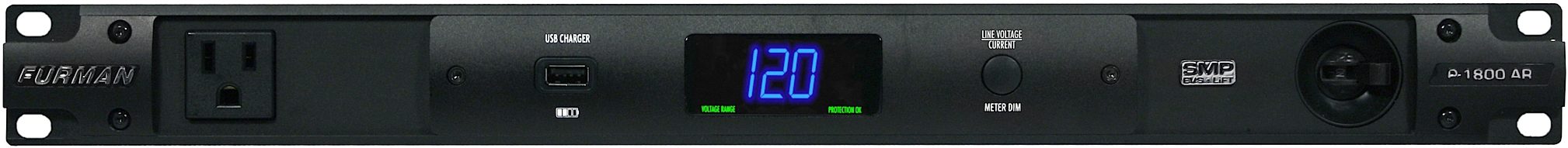

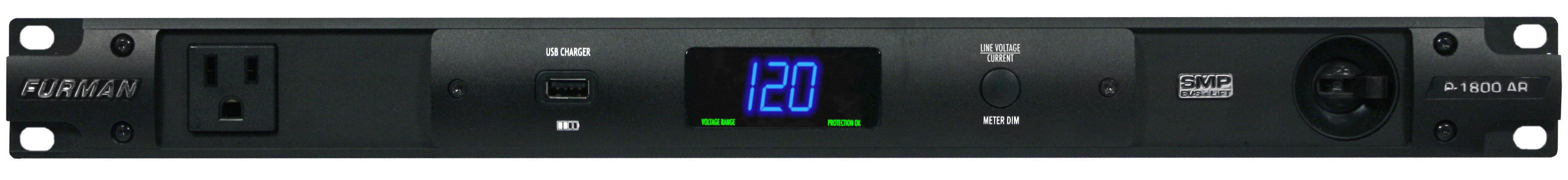

Voltmeter / Ammeter - Large digital voltmeter / ammeter, with discrete dimmer button, displays line votlage and true RMS current draw.
Isolated Banks - Isolated outlet banks minimize inter-component interference and noise contamination.
Wall Wart Spacing - Three widely spaced outlets accommodate bulky AC power transformers.
15 AMP Rating - 15 Amp rating featuring a high inrush magnetic circuit breaker for added protection.

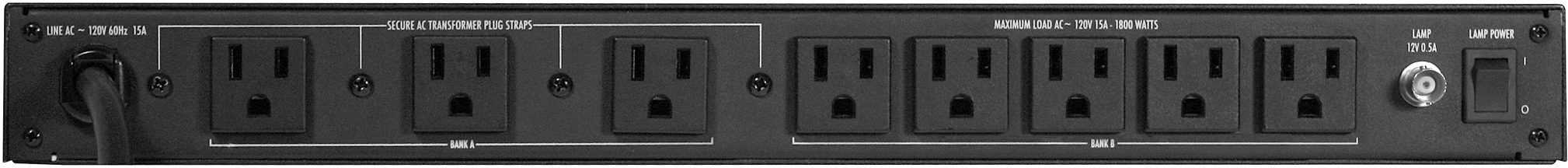

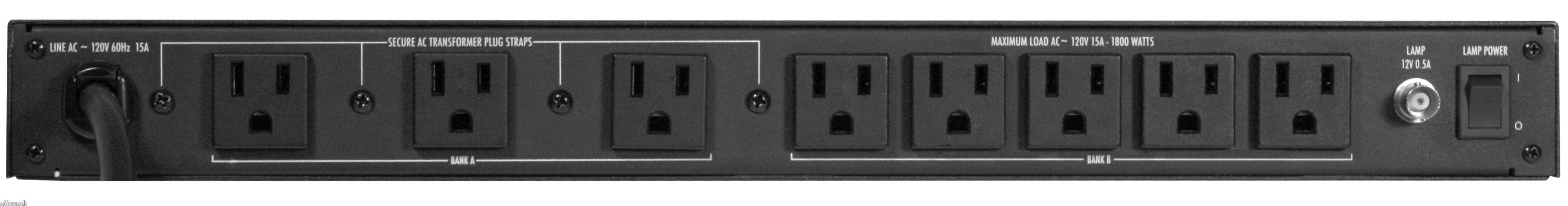

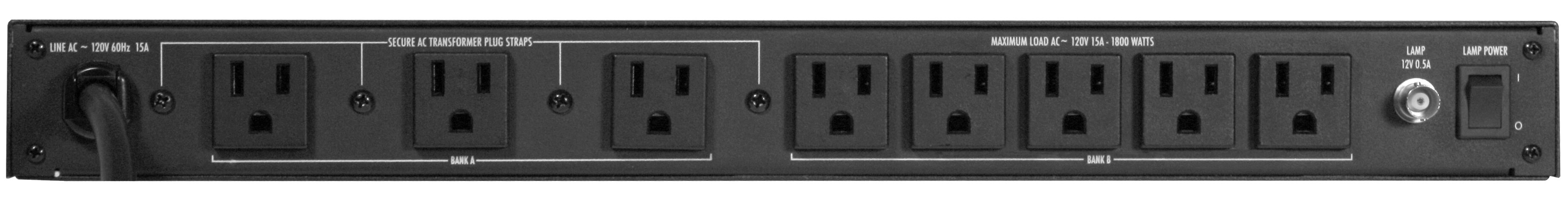

Nine Total Outlets - Nine total outlets (8 rear panel outlets and one front panel convenience outlet).
BNC Lamp Connector - Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.
zZounds is an authorized dealer of Furman products.
Maximum Current: 15 amps @ 124 Volts
Line Cord: Captive 3/14 AWG, 10 ft. black cord with NEMA 15 plug
BNC Socket w/Switch: 12VAC 500MA maxx (lamp not included)
Operating Voltage: 90 to 139 VAC
Over-Voltage Shutdown: 140 VAC Nominal
Approximate Input Voltage Capture Range: 97 to 137 VAC
Spike Protection Mode: Line to neutral, zero ground leakage
Spike Clamping Voltage: 188 VAC peak @ 3,000 Amps
Response Time: 1 nanosecond
Maximum Surge Current: 6,500 Amps
Noise Attenuation: 10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz
Dimensions (WxDxH): 19 x 12 x 1.75"
Weight: 15 lbs.
Power Consumption: 5 watts
