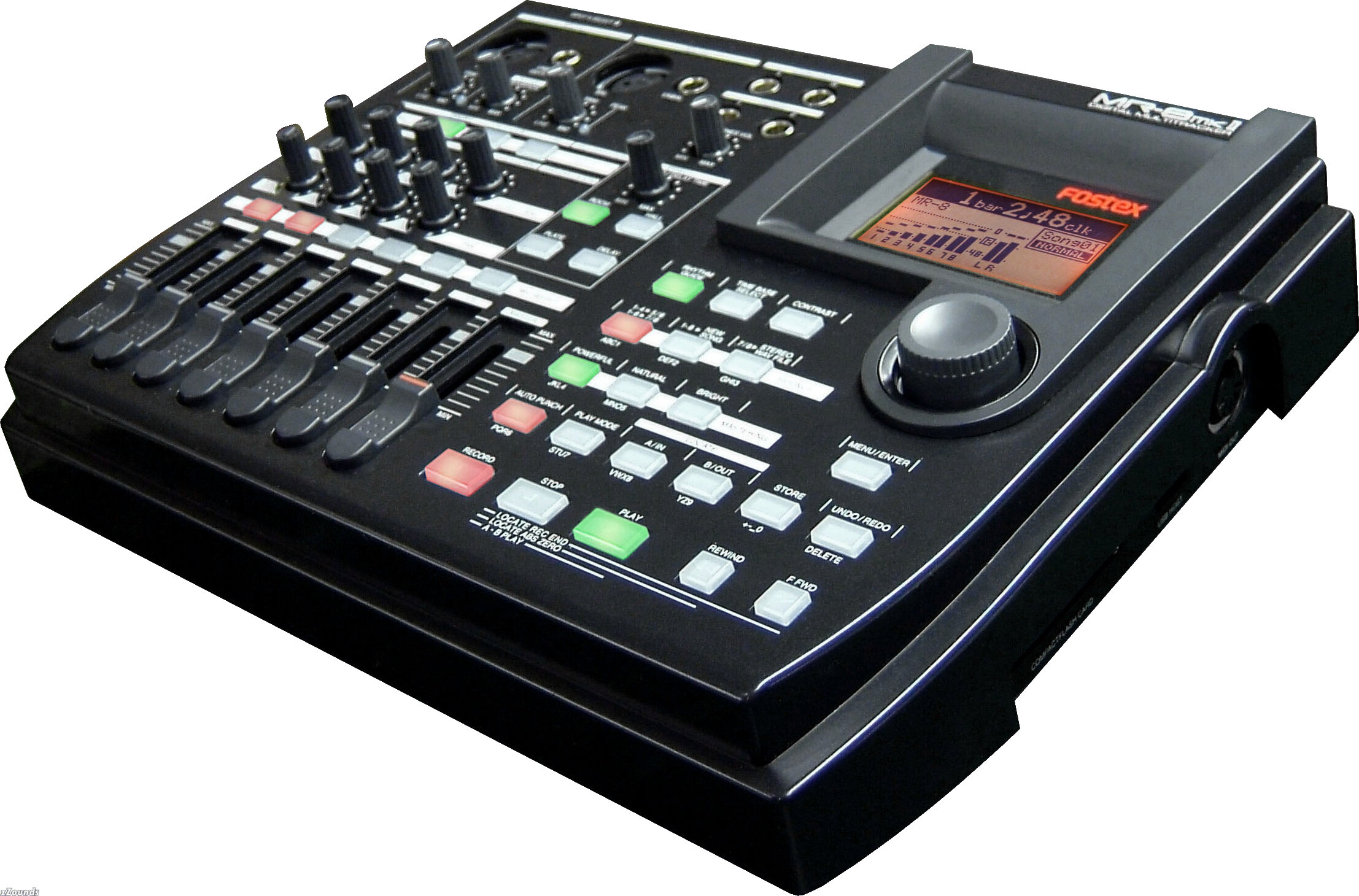

Fostex MR8 MKII 8-Track Digital Recorder

No longer available at zZounds
8 tracks of recording and playback using CompactFlash cards. 2 track simultaneous recording.

The ultimate record-anywhere multitrack.
Capture inspiration whenever and wherever you are.
The new MR-8 Mk II is the easiest to use digital multitrack ever. If you can operate a tape recorder, you'll be recording and multitracking within minutes of opening the box.

By putting all the major controls and functions right there on the top panel instead of buried in a confusing menu system, the MR-8 Mk II, unlike some other recorders, actually aids you in capturing your musical ideas. In addition there's great sounding built-in digital effects, guitar amp and mic simulators, handy mix-down effects, plus the ability to hook up to a PC for data editing, and backing up your songs.
You create. Fostex records.

New for the Mk II is the USB host feature which allows for the easy connection of an 'off-the-shelf' CD-R burner via USB. Making CD masters has never been more simple.

Recording time
Recording time in normal mode (16bit/44.1kHz) is approx. 25 track-minutes on the supplied 128MB CF card and 50 track-minutes on a 256MB card. Extended mode (16bit/22.05kHz) doubles the recording time. Note that recording time varies depending on recorded source, punch in/out, undo/redo status, etc.

Features
8 tracks of recording and playback using CompactFlash cards

2 track simultaneous recording

Superb in-built digital effects inc Mic and Amp simulations

USB Host function for CD burning with 'off-the-shelf' CD burner

2 mic inputs with +48V Phantom Power

Details
8-track recording onto CompactFlash read more Card.

High quality sound recording and playback with uncompressed linear 16-bit/44.1 kHz digital audio (normal mode) with 2 track simultaneous recording and 8 track playback.

LP Mode (16-bit/22.05 kHz) doubles the recording time.

Physical knobs and buttons for intuitive operations. A new dial knob for menu selection.

Newly added +48V Phantom Power on all two Mic Inputs for wider choice of microphones.

USB Host function ready for CD burning on an off-the-shelf external CD-R drive.

Improved 132 x 64 dot-matrix LCD and self illuminating keys visually show the current status.

Improved built-in digital effects including Reverb, Delay as well as Guitar Amp and Microphone simulations

Black colored top panel design

Analog guitar distortion with the dedicated knob on Input A.

Full-track (8-track) bouncing to a "New Song (track 7/8) for PC transfer and CD burning.

Mastering effects for stereo buss.

USB port for stereo WAV file transfer to and from PC

AC and Battery (6 x AA alkaline cells) operation. Approx. 4 hours maximum operation time with batteries. Includes AC adapter.

Built-in microphone for handy song memo.

Two headphones outputs.

Free "WAV Manager" software available for multiple mono files transfer to and from PC
read less

Recording / Playback
Recording medium CompactFlash

Recording time approx. 6 minutes (8-track on 256MB CF) normal mode

Recording format FAT16

Sampling frequency 44.1 kHz (Normal Mode), 22.05 kHz (LP Mode)

Quantization 16-bit linear (non-compression)

A/D converter 24-bit Delta-Sigma

D/A converter 24-bit Delta-Sigma

No. of recording track 8 tracks maximum

No. of simultaneous rec. 2 tracks

Recording/reproduction frequency 20 Hz - 20 kHz (Normal Mode)

Dynamic range 87dB or more (typical) (Normal Mode)

T.H.D. 0.05% or less (typical) (Normal Mode)

Inputs / Outputs
Analog in (input A/B)

Connector XLR-3-31 type (Pin2:hot) and 6mm TRS phone

Input level -48dBV (MIC) - +4dBV (LINE)

Input impedance 1.5k ohm or more 400k ohm or more (GUITAR on INPUT A)

Phantom power P48V (on/off selectable)

Stereo out (L, R)

Connector 6mm stereo phone

Output level -10dBV (unbalance)

Load impedance 10k ohm or more

Headphones (phone 1, 2)

Connector 2 x 6mm stereo phone

Max. output 30mW or more (at 32 ohm)

Load impedance 16 ohm or more

MIDI out

Connector DIN 5 pin

Format MIDI standard

Foot switch

Connector 6mm phone

Level TTL level

USB 2.0 HI-SPEED

Connector B type

USB 1.1

Connector A type

General
Dimensions 286(W) x 220(D) x 65(H) mm

Weight approx. approx. 1.6kgs

Power requirement DC12V, 400mA

For support or warranty questions, please contact the manufacturer:
Phone: 800-994-4984

Reviewers gave this product an overall rating of 4.5 out of 5 stars. (61 ratings)
Submitted June 1, 2006 by a customer from vt.edu

"Great value for a highly capable recorder!"

Overall: 4.5 out of 5 stars
(see rating details)
Verified Customer zZounds has verified that this reviewer made a purchase from us.
I bought this mainly as a scratchpad to record ideas, but I may end up using this for demos, due to the simplicity of use. It will be great for location recording, then dumping the files to my computer for mixing and

Sound
Sound is comparable to most other 44.1kHz, 16-bit recorders, nothing too special. The mic preamps have limited gain however (haven't tried the phantom power yet) and I would put them a little below the level of something like the Mackie 1202VLZ I used to have. If you are recording acoustic guitars with a dynamic mic, you have to turn the gain nearly all the way up to get reasonable signal levels, which adds to the noise. The headphone amps sound okay and get plently loud without distorting. Internal effects sound okay (only if they are used sparingly), and can be used for input monitoring without printing them to the track. The sound starts to shine when the MR-8 is fed by an external preamp. I use my Gordon Model 5, which kills the internal preamps, and the unit pretty much records the sound that you give it. In this situation, professional-quality results can be achieved.

Features
My main gripe is the lack of any type of effects loop and no EQ. The only solution I have found to this so far is to pan a channel to one side, send the signal to the unbalanced output and effects unit, then record the incoming signal to a different channel. This works fine, but makes it impossible to monitor read more the effects with headphones before recording, since the dry signal is always on one side. Fostex could have solved this by having an option to send a channel's signal to the output but not to the headphones. I guess the headphones and output are on the same circuit, though. As far as the lack of EQ, I'm not sure what Fostex was thinking on this one. In most cases, it is simply not possible to get a good production unless some type of corrective EQ is added. If they just had a simple effects loop, I would be alright with the exclusion of the EQ, but they make it extremely tough (but possible) on you to add EQ, unless you export the files to your computer. Since I bought the unit to get around computer mixing, this lowers their score a little bit. 2-channels is obviously not enough to record a full-featured demo, since drums need more than 2 channels. Therefore, I recommend doing drum tracks on your computer, then importing them to the MR-8 with the .wav manager provided by Fostex. Other than that, 2 tracks is really all you need. Just forget doing a quality live-band recording, unless you are feeding off of another mixer's output. The battery capability is awesome, and allows for easy concert-taping and location recording. Metronome button on the front is a nice addition over the previous version. The operating system is intuitive and responds fairly fast to commands. The 3 mastering effects they provide are a complete joke!

Ease of Use
If you have any idea of what you are doing, you will be recording within a few minutes of opening the box. In my opinion, this is one of the major selling points of the unit. I have more expensive, much higher-quality equipment, but will likely use this more since it is so simple.

Quality
Buttons seem a little bit fragile. I haven't had it that long, but I am predicting the buttons will be the first thing to go. Seems a little bit cheaply made, but should work fine as long as it's taken care of. Hopefully, if any of the buttons break, it is one of the 3 mastering effect buttons, since those will never be used again.

Manufacturer Support
n/a

The Wow Factor
Looks a lot better than the red one. Easily small enough to fit this, some batteries, and a couple of mics inside of a backpack, then you are carrying a functional recording studio.

Musical Background:
Long-time Hobbyist

Musical Style:
Acoustic, Rock, Alternative, Country, some Jazz
read less
91 of 93 people (98%) people found this review helpful. Did you?
