Fender American Deluxe Telecaster (Maple, with Case)

The new American Deluxe Telecaster guitar is a top-of-the-line American-made instrument for the player seeking an alder body with more modern appointments.

This guitar has a modern C-shaped maple neck with a satin polyurethane finish, and is available with a maple fingerboard featuring abalone inlays and 22 medium jumbo frets. Other features include a pair of Samarium Cobalt Noiseless Tele pickups, a modern chrome stainless steel Tele bridge with chrome-plated solid brass saddles, and the S-1 switching system.

Technical Info

Series: American Deluxe Series

Colors:

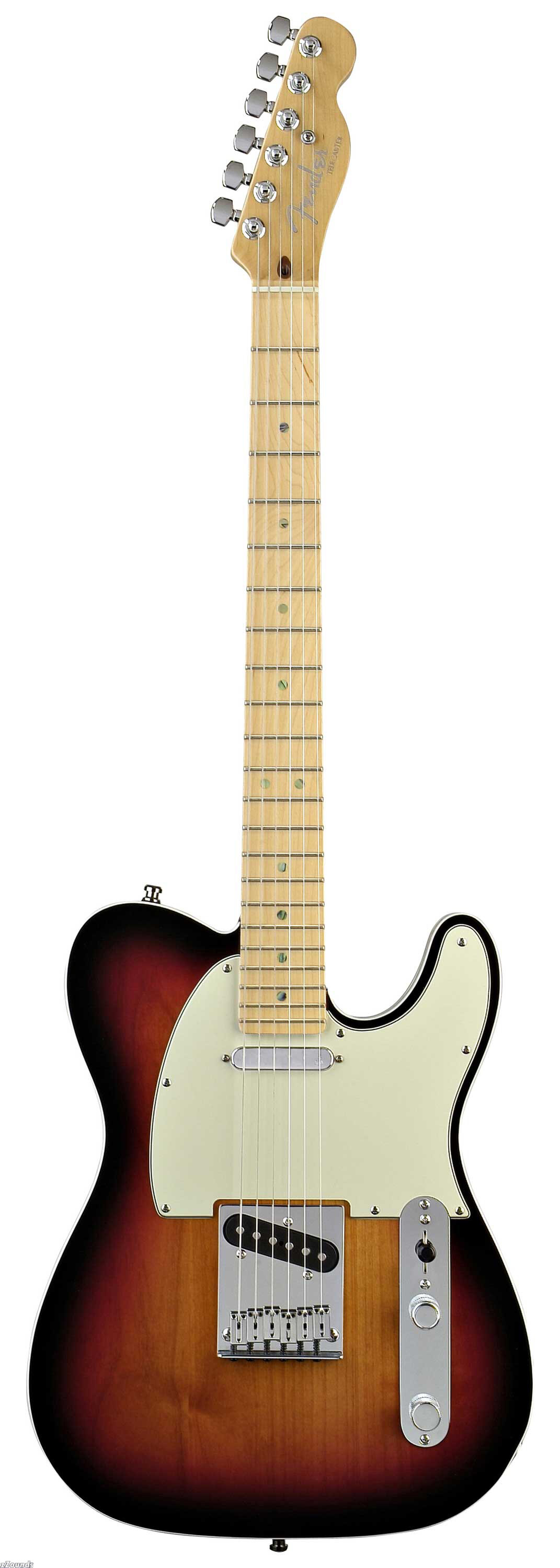

- (700) 3-Color Sunburst,
- (723) Olympic Pearl,

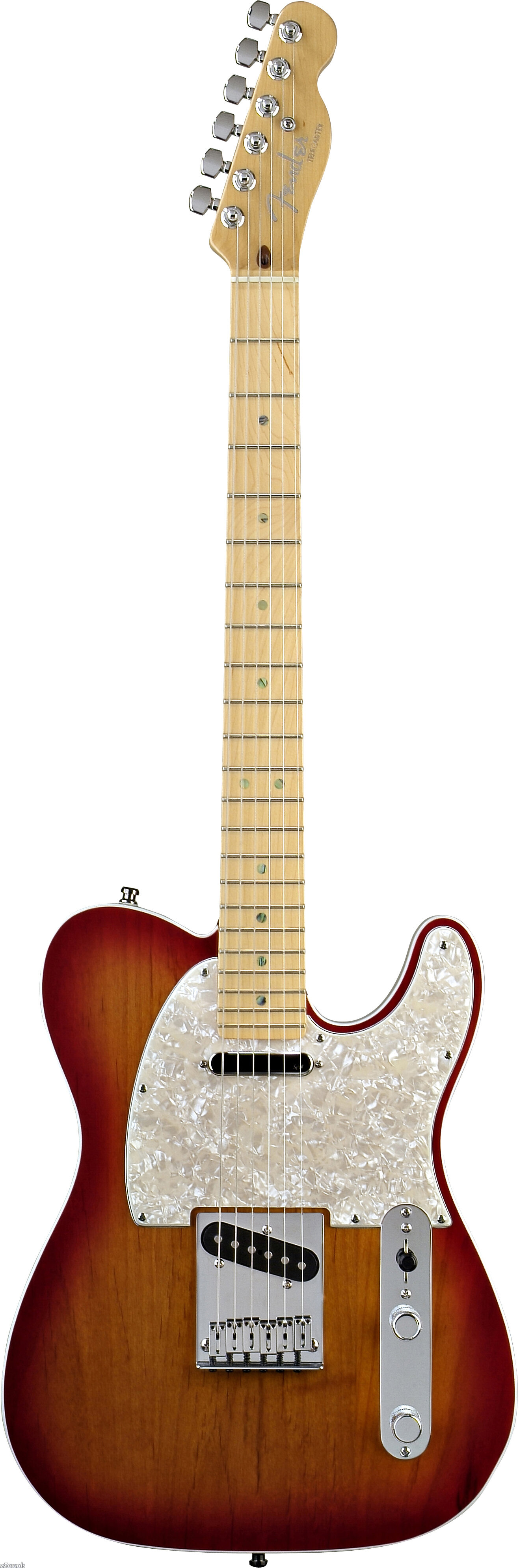

- (731) Aged Cherry Burst,

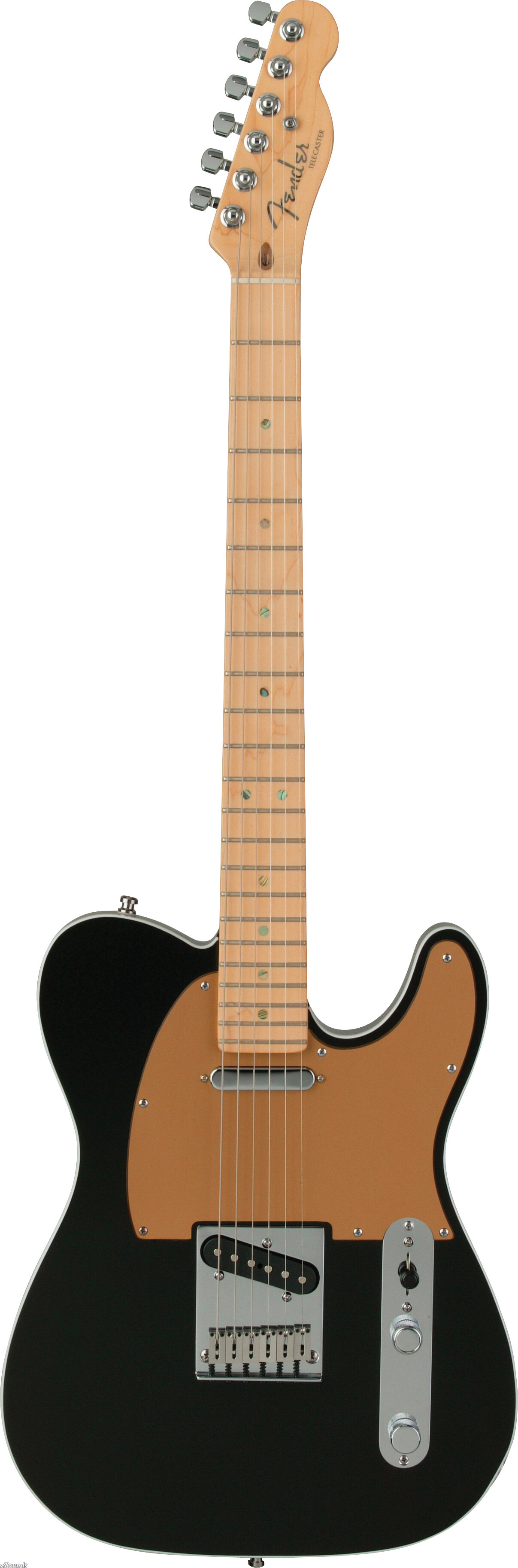

- (764) Montego Black, (Polyurethane Finish)

Body: Premium Alder

Neck: Maple, Modern “C” Shape, (Satin Polyurethane Finish)

Fingerboard: Maple (p/n 010-1602), 9.5 in. Radius (241mm)

No. of Frets: 22 Medium Jumbo Frets

Pickups: 2 Samarium Cobalt Noiseless Tele Pickups (Neck and Bridge)

Controls: Master Volume (with S-1 Switch), Master No-Load Tone Control

Pickup Switching: 3-Position Blade and 2-Position Push/Push S-1:
S-1 Switch Up:
- Position 1. Bridge Pickup
- Position 2. Bridge Pickup in Parallel with Neck Pickup
- Position 3. Neck Pickup

S-1 Switch Down:
- Position 1. Bridge Pickup
- Position 2. Bridge Pickup in Series with Neck Pickup
- Position 3. Neck Pickup

Bridge: American Tele with 6 Chromed Brass Saddles

Machine Heads: Fender/Schaller Deluxe Staggered Cast/Sealed Tuning Machines

Hardware: Chrome

Pickguard:
- 3-Ply Mint Green on (700),
- 4-Ply Brown Shell on (723),
- 4-Ply Aged White Pearloid on (731), (782),
- 1-Ply Beveled Gold Vinyl on (764)

Scale Length: 25.5 in. (648 mm)

Width at Nut: 1.6875 in. (43 mm)

Unique Features:
- Knurled Chrome Knobs,
- Abalone Dot Position Inlays,
- Top of Body Bound with Tortoise Shell Binding,
- Contoured Back,
- Highly Detailed Fret and Nut Work

Strings: Fender Super 250L, Nickel Plated Steel,
Gauges: (.009, .011, .016, .024, .032, .042), p/n 073-0250-003

Accessories:
- Standard Molded Case,
- Cable,
- Strap,
- Straplocks

Case: Standard Molded Case
