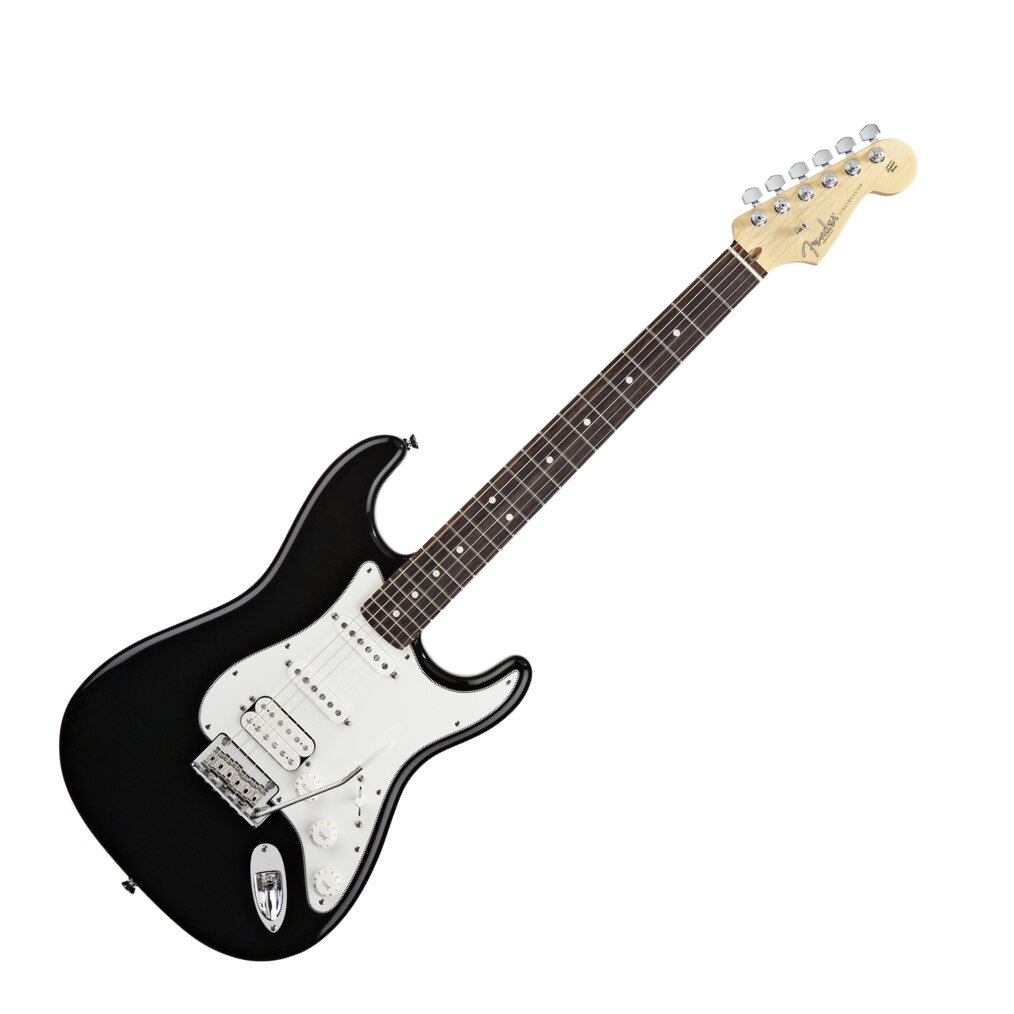

Fender American Standard Stratocaster HSS Electric Guitar (Rosewood, With Case)

Among the new American Standard Stratocaster guitars, the HSS model is definitely the hot rod of the bunch, with more output and warmth from its Tex Mex single-coil pickups and Diamondback humbucking pickup. The S-1 switch is removed to keep it simple, but don’t worry—Fender kept key features such as the hand-rolled fingerboard edges and staggered tuning machines, and we added several new features, including:

- A new bridge with improved bent-steel saddles and a copper-infused high-mass block for increased resonance and sustain.

- A new neck treatment—tinted for a richer presentation, with the maple or rosewood fingerboard buffed to a high gloss. The back of the neck still has that silky satin finish.

- A thinner finish undercoat that lets the body breathe and improves resonance.

- A new Fender-exclusive SKB molded case.

- Two beautiful new finish options, Sienna Sunburst and Blizzard Pearl.

Technical Info

Body:
- Alder on:
(700) 3-Color Sunburst,
(706) Black,
(755) Blizzard Pearl,
- Ash on:
(747) Sienna Sunburst

Neck: Maple, Modern “C” Shape, (Gloss Headstock Face with Satin Urethane Finish on Back of Neck)

Fingerboard: Rosewood (p/n 011-0100) or Maple (p/n 011-0102), 9.5 in. Radius (241mm)

No. of Frets: 22 Medium Jumbo Frets

Pickups: 2 Custom-Staggered Tex-Mex Single-Coil Strat Pickups (Neck and Middle),
1 Fender Diamondback Humbucking Pickup (Bridge)

Controls: Master Volume, Tone 1. (Neck and Middle Pickups), Tone 2. (Bridge Pickup and Bridge/Middle Pickup Combination)

Pickup Switching - 5-Position Blade:
- Position 1. Full Bridge Humbucking Pickup with Coils in Series (Lead Tone Control);
- Position 2. Middle Pickup and Inside Coil of Bridge Humbucking Pickup in Parallel (Lead Tone Control);
- Position 3. Middle Pickup (Lead Tone Control)
- Position 4. Neck and Middle Pickup in Parallel (Lead and Rhythm Tone Controls)
- Position 5. Neck Pickup (Rhythm Tone Control)

Bridge: 2-Point Synchronized Tremolo with New American Standard Bent Steel Saddles

Machine Heads: Fender Deluxe Staggered Cast/Sealed Tuning Machines

Hardware: Chrome

Pickguard: 3-Ply Parchment

Scale Length: 25.5 in. (648 mm)

Width at Nut: 1.685 in. (42.8 mm)

Unique Features:
- New Bent Steel Saddles with Elongated String Slots
- Copper Infused High Mass 100% Metal Bridge Block
- Thinner Undercoat Finish for Improved Body Resonance
- Tinted Neck
- Maple Fingerboard Neck: Satin Finish on Back, Gloss Finish on Front
- Rosewood Fingerboard Neck: Satin Finish on Back, Gloss Finish on Headstock Front with Buffed Fingerboard
- 4-Bolt Neck Attachment with Micro-Tilt Adjustment
- Bi-Flex Truss Rod System
- Parchment Knobs and Pickup Covers
- Rolled Fretboard Edges
- Staggered Tuning Keys
- H/S/H Pickup Routing
- New Molded Fender/SKB Case with TSA Locks, Glass Reinforced Nylon Trigger Latches, and Form Fitted Plush Interior

Strings: Fender Standard Tension Bullet ST3250L, Nickel Plated Steel, (.009 to .042), p/n 073-3250-203

Accessories: Fender/SKB Case, Cable, Strap, Polishing Cloth

Case: High-Tech, Molded Rectangular SKB Case

Introduced: 1/2008
