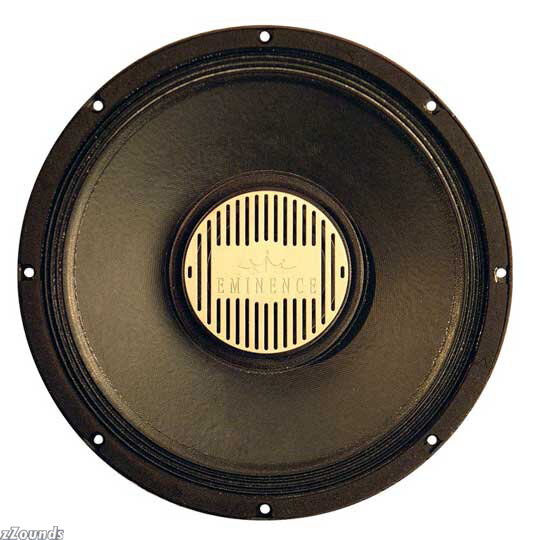

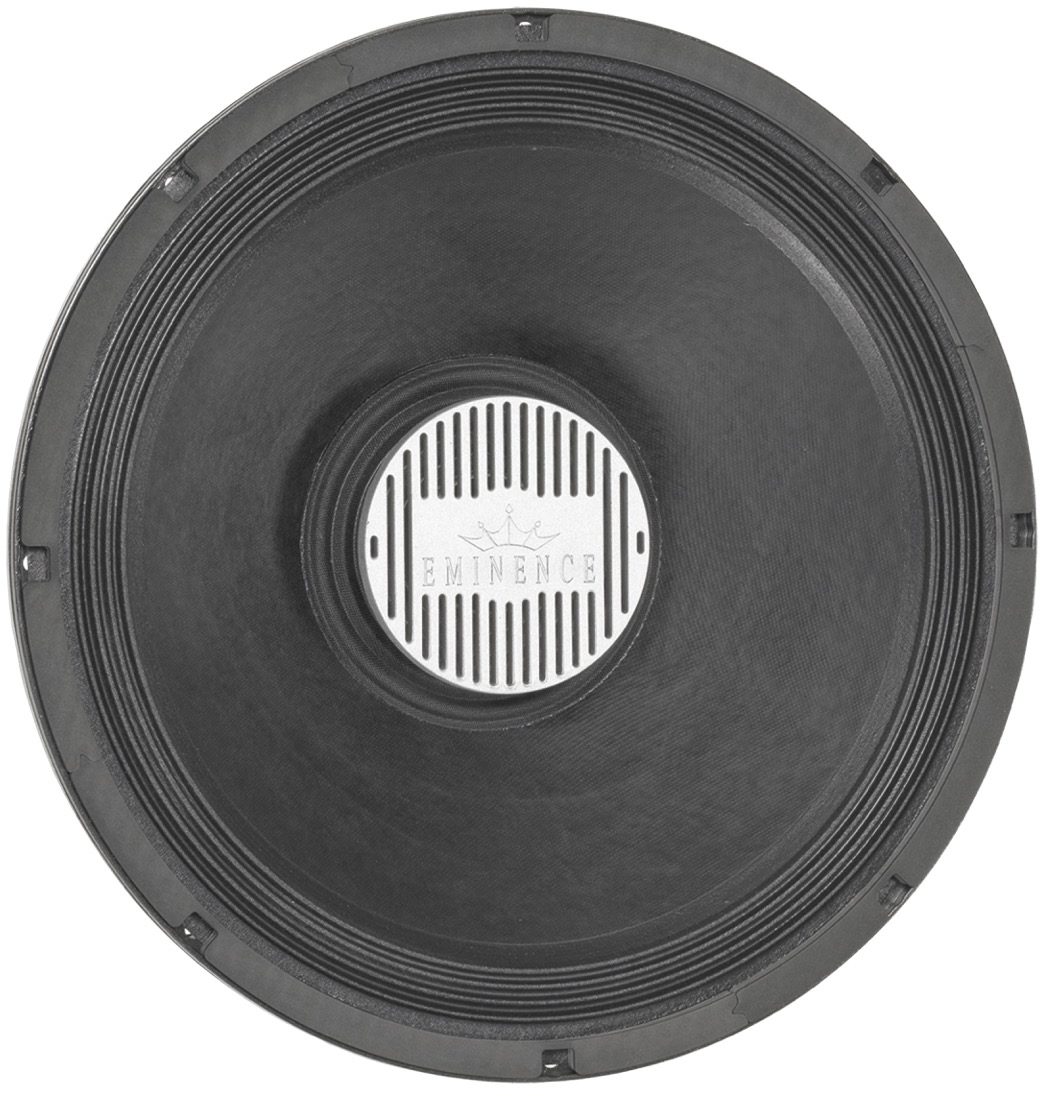

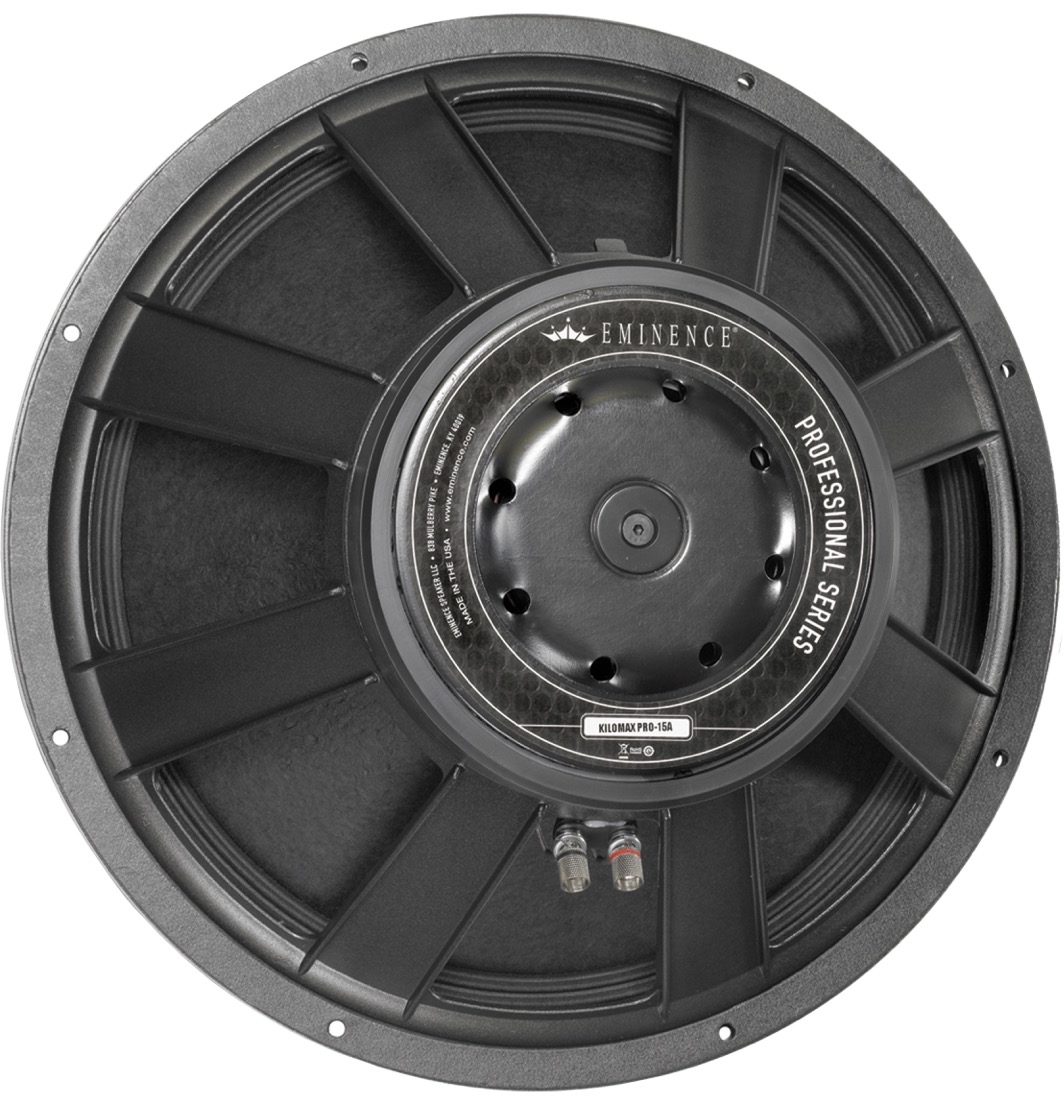

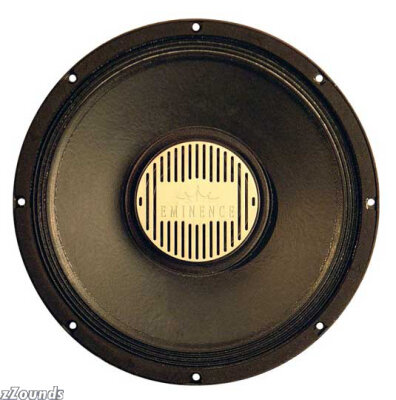

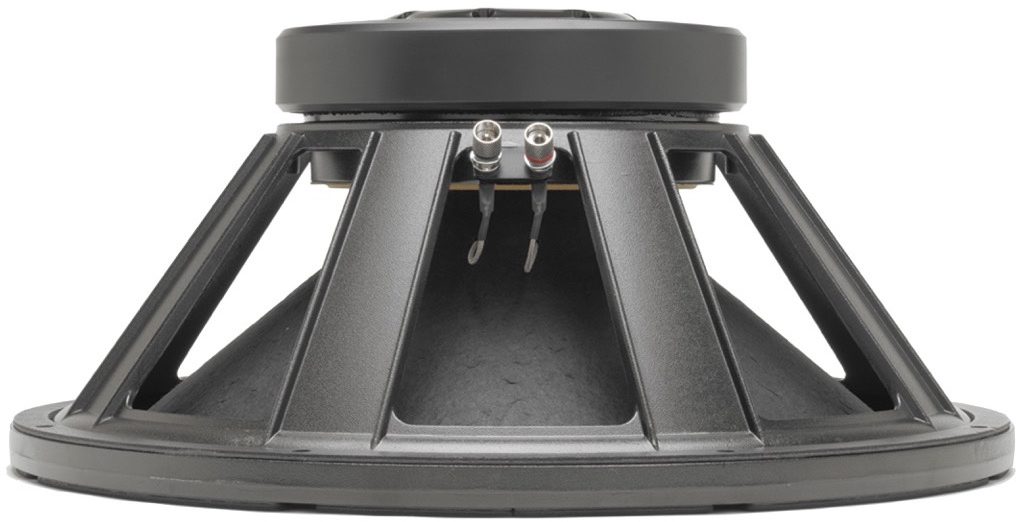

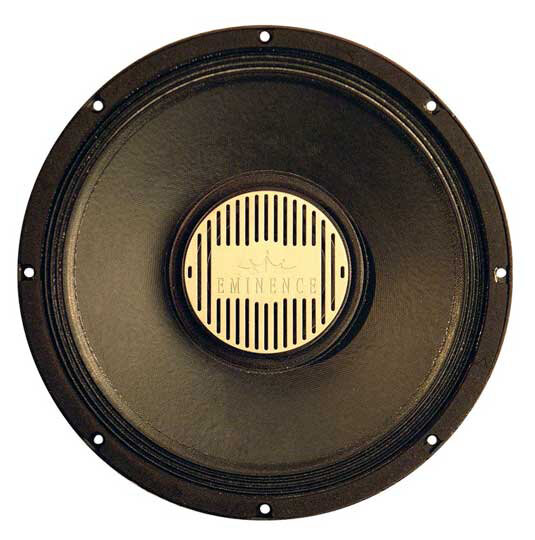

Eminence Kilomax 15 Bass Speaker
Designed for high power applications in main PA systems and sub-woofers, there is nothing that shakes the house like a KILOMAX. A massive 109 oz. cast frame magnet structure, double spider suspension, and integrated front loaded heat sink all combine to pound out whatever you pound in. The Kilomax 15 is the 15 inch version of the Kilomax speaker, great for classic 1x15 and 2x15 setups. The Kilomax 15 has great low end with punchy definition.
Take an in-depth tour of the Eminence speaker factory:
Kapton coil former
Die-cast aluminum basket
Polyamide-imide coated copper voice coil
Paper cone/cloth cone edge
Kilomax alloy heatsink
zZounds is an authorized dealer of Eminence products.
Nominal Basket Diameter: 15 in., 381mm
Impedance: 8 ohms
Power Rating: 1250W rms
Music Program: 2500W
Usable Frequency Range: 35Hz - 1.5kHz
Average Sensitivity 1W @ 1m: 99dB
Magnet Weight: 109 oz.
Gap Height: 0.375 in., 9.52mm
Voice Coil Diameter: 4 in., 101.6mm
Overall Diameter: 15.21 in., 386.4mm
Baffle Hole Diameter: 14.0 in., 355.5mm
Front Sealing Gasket: fitted as standard
Rear Sealing Gasket: fitted as standard
Fixing Holes Diameter: 0.275 in., 7mm
Fixing Hole B.C.D.: 14.56 in., 369.9mm
Depth: 6.42 in., 163mm
Shipping Weight: 28 lbs, 12.7 kg
Resonant Frequency: 41Hz
Impedance (RE): 4.97 ohms
Coil Inductance (Le): 1.78mH
Electromagnetic Q (Qes): 0.40
Mechanical Q (Qms): 8.80
Total Q (Qts): 0.39
Compliance Equivalent Volume (Vas): 154.5 liters, 5.46 cu. ft.
Peak Diaphragm Displacement Volume (Vd): 680cc
Mechanical Compliance of suspension (Cms): 0.15mm/N
BL Product (BL): 17.7 T-M
Diaphragm Mass inc. Airload (Mms): 98 grams
Equiv. Resistance of mechanical suspension loss (Rms): 2.91N*sec/M
Efficiency Bandwidth Product (EBP): 102
Voice Coil Overhang (Xmax): 7.9mm
Surface Area of Cone (Sd): 856.3cm2
Impedance at Resonance (Zmax): 113 ohmsImportant NoteWatts:
The guaranteed long term power rating throughout the usable frequency range of the speaker.
(Translation: the speaker will operate continuously at any frequency within the speakers specified frequency range when driven at this power. The "Watts" rating is similar to RMS, but is really more indicative of long term thermal capability.) Music Program:
The speaker will safely and reliably handle the varying frequencies of musical content at this power rating. The "Music Program" rating is more indicative of what you can expect in the real world with the speaker operating within the appropriate enclosure reproducing music or vocal audio program.
- Weight, Dimensions, and Manufacturer Part Numbers
Manufacturer Part Number (MPN):
