Edirol UA1D SPDIF Digital Audio to USB

Edirol UA1D SPDIF Digital Audio to USB

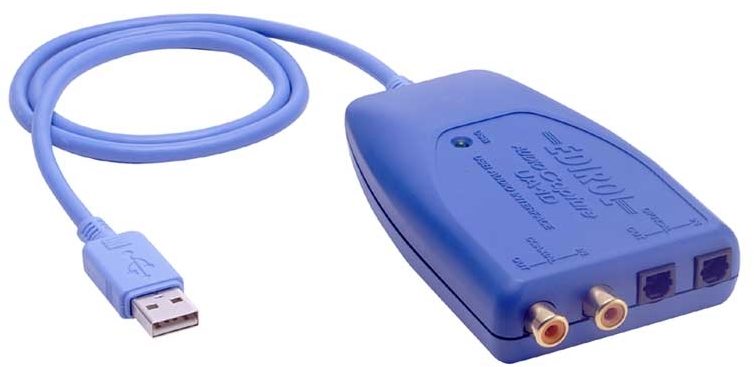

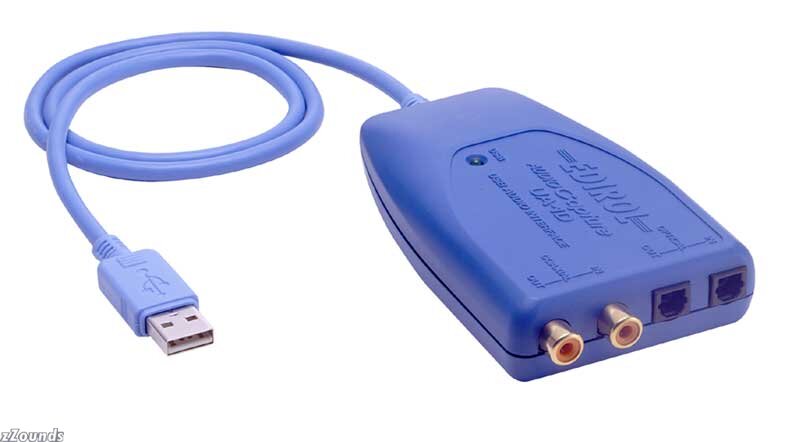

The UA-1D is the simplest way to add S/PDIF connections to your computer. S/PDIF (Sony/Philips Digital Interface) is a standard audio transfer file format. An S/PDIF connection is used to transfer audio from one file to another without the conversion to and from an analog format, which could degrade the signal quality. And now it's available as an add-on to your USB equipped laptop or desktop computer. The UA-1D is equipped with both optical and coaxial digital connections, providing you with the ability to connect any device that conforms to the S/PDIF standard, including component CD recorders, minidisk players/recorders, digital home receivers, DAT, etc. The UA-1D is also packaged with WinDVD so you can send Dolby Digital or DTS encoded audio to your home theater system.

Technical Info

Features & Specifications

Number of Audio Record/Playback channels:

Record: 1 stereo 32/44.1/48kHz

Playback: 1 stereo 48 kHz

Signal Processing PC interface: 16 bit Interface

USB (USB Type B)

Optical Digital Input (x1)

Coaxial Digital Input (x1)

Optical Digital Output (x1)

Coaxial Digital Output (x1)

Power Supply Supplied from the computer

Current Draw 120mA

Dimensions 65(W)x 112(D)x 24(H) mm

Weight 110 g/ 4 oz

System Requirements

Macintosh

OS: MacOS 9.0.4 or later. MacOS X. Computer: Apple Macintosh series with on-board USB
CPU/Clock: PowerPC G3/300 MHz or higher
Memory (RAM): 96MB or more
(Application memory 32 MB or more)
Hard Disk: 120 MB or more
Display/Colors: 800x600 or higher

Windows

OS: Microsoft Windows 98/98SE/ME/2000/XP
Computer: Windows compatible computer with a USB connector*
CPU/Clock: Pentium II processor 233MHz or higher (Win98/SE/ME)
Pentium II processor 400MHz or higher (Win2000)
Memory (RAM): 64MB or more
Hard Disk: 120 MB or more
Display/Colors: 800x600 or higher/65,536 colors (16 bit High Color) or more.

* Must have a compatible USB host controller.
