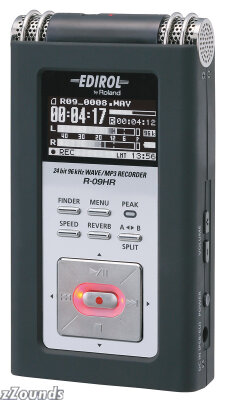

High-Resolution Recording...the “R-Series” Revolution. The R09HR is a professional, high-definition recorder that travels light and performs like a heavyweight. With crystal-clear 24/96 fidelity, the R09HR is the new flagship of EDIROL’s award-winning R-series recorders.
Features
24-bit/96kHz linear PCM high-resolution, low-noise recording
Newly developed Isolated Adaptive Recording Circuit (I.A.R.C.)
High-grade, high-sensitivity stereo condenser microphone built in
Records to SD or SDHC memory card (Up to 32 GB)
Compact, hand-held body for convenient portable use
Wide view-ability on large OLED (Organic Light-Emitting Diode) display
Preview speaker built in
Wireless remote controller included
High-speed file transfer via USB 2.0 connection to computer
Cakewalk “pyro Audio Creator LE” wave-editing software included
24bit/96kHz linear PCM + I.A.R.C. (Isolated Adaptive Recording Circuit)
Experience precise audio reproduction, and clarity with a wider dynamic range when using the higher bit and sample rates that the R09HR offers. The R09HR supports up to 24bit/96kHz linear PCM recording, which has over twice the digital audio resolution of a standard audio CD. I.A.R.C. is a newly developed, dedicated analog circuit optimized for recording with the R09HR's onboard A/D converter. Electrolytic capacitors provide stable, reliable power with an independent power source for the analog circuitry, and another power source for the digital circuit board, thus eliminating DC interference between components in the R09HR. The I.A.R.C. also contributes to high quality, low noise MP3 recording with the R09HR.

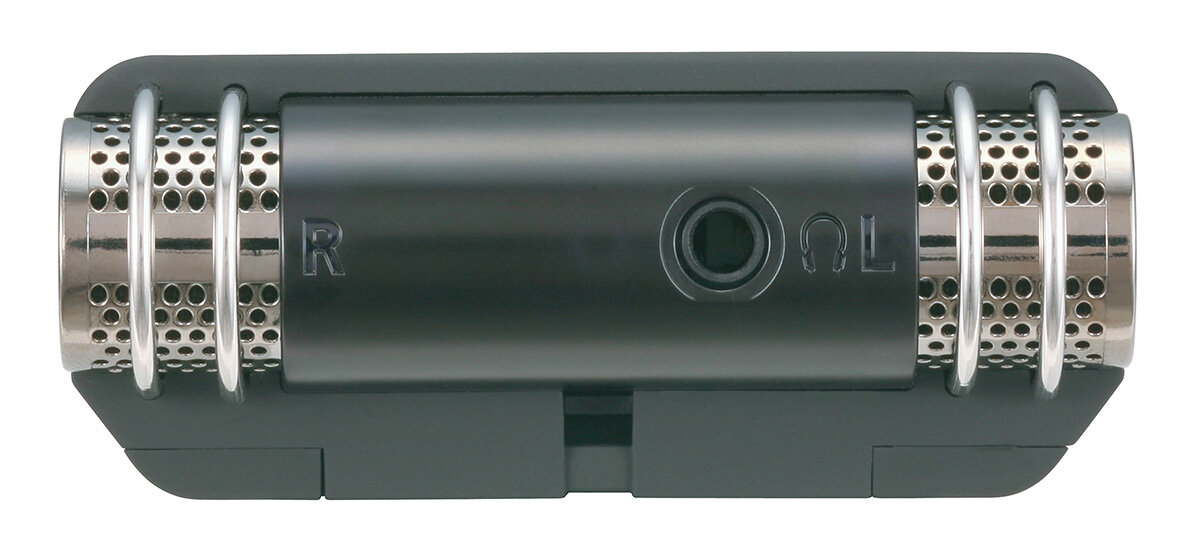

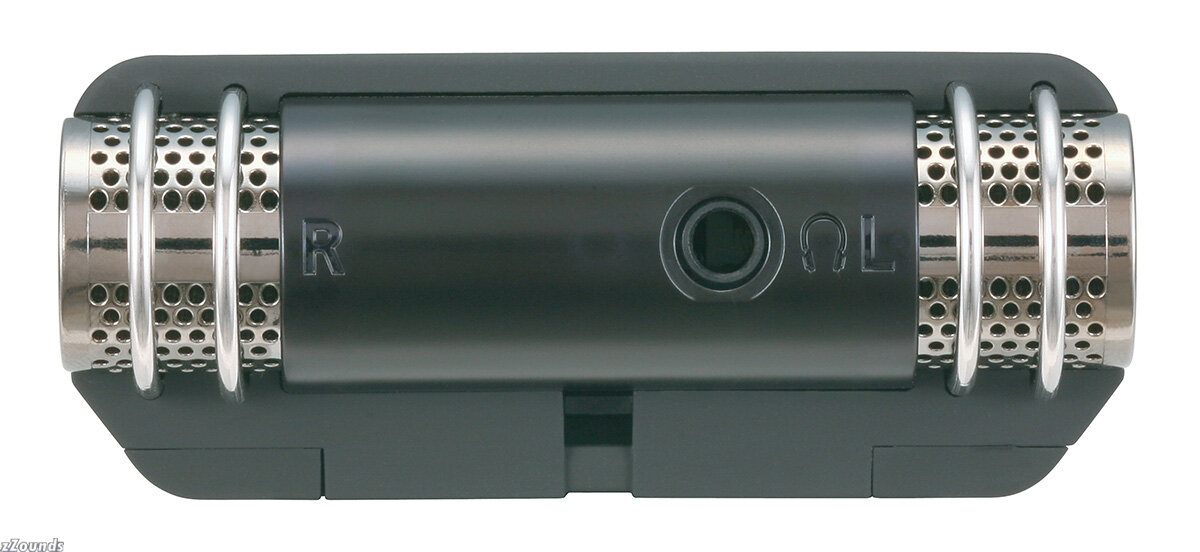

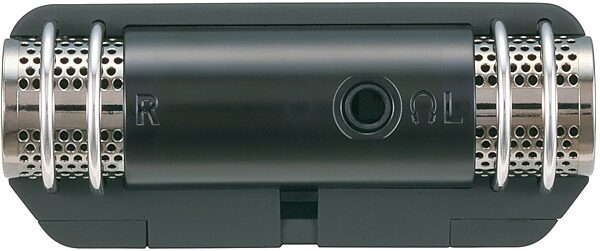

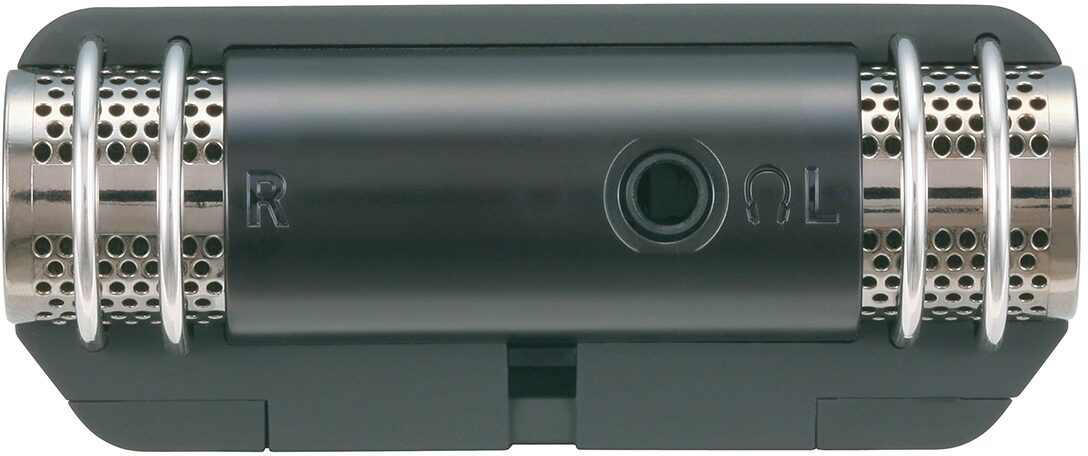

Professional-grade, high-sensitivity stereo condenser microphone built in
When recording with the R09HR, there's no extra gear to buy or cables to connect. A professional quality stereo microphone is built right into the unit, complete with a dedicated analog input control, mono/stereo selector, low-cut filter, limiter/AGC (Auto Gain Control), and a gain boost. The onboard electret condenser microphone elements are very compact, ultra-sensitive, and placed to capture three-dimensional sound naturally and accurately. To further avoid possible noise interference from internal components, the microphone housing is separated from the main circuit board…another sign of quality design from EDIROL (For use an external microphone, the R09HR offers a 1/8” stereo mic input).

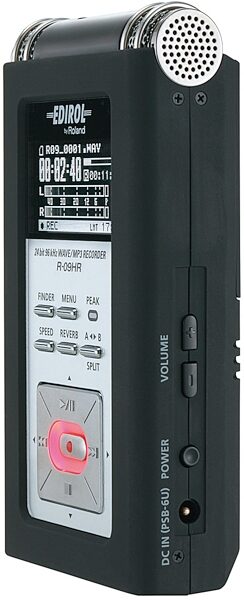

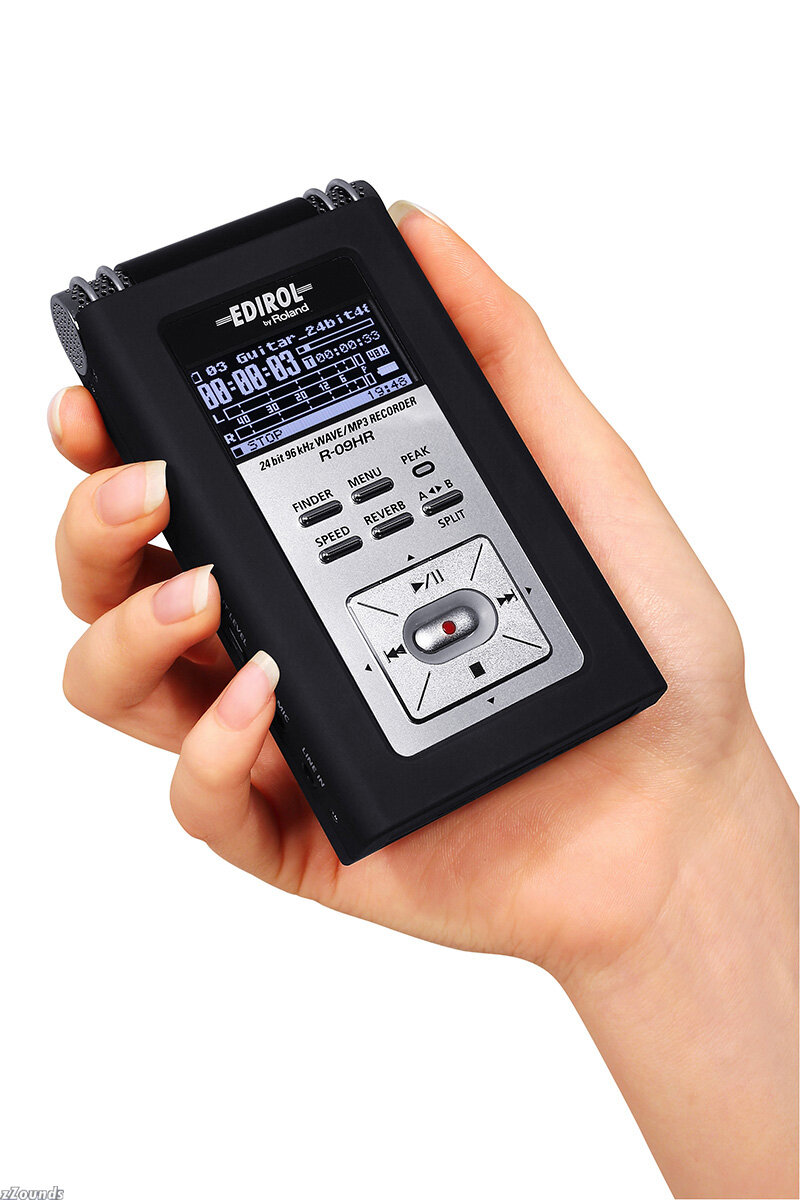

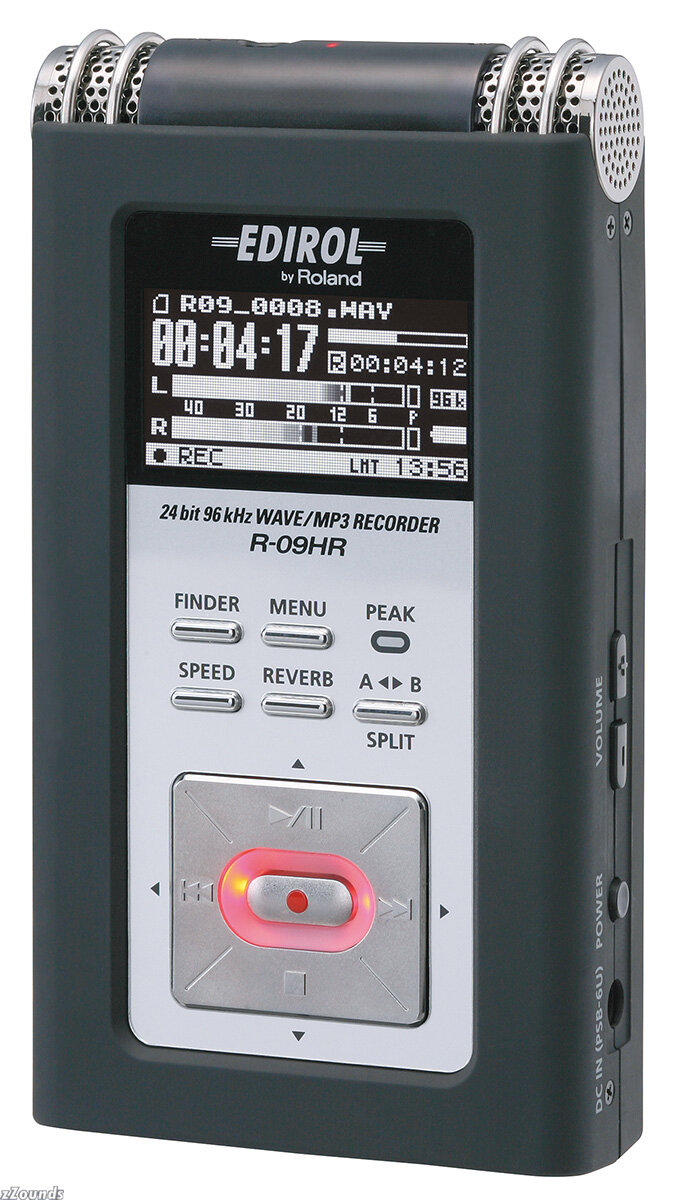

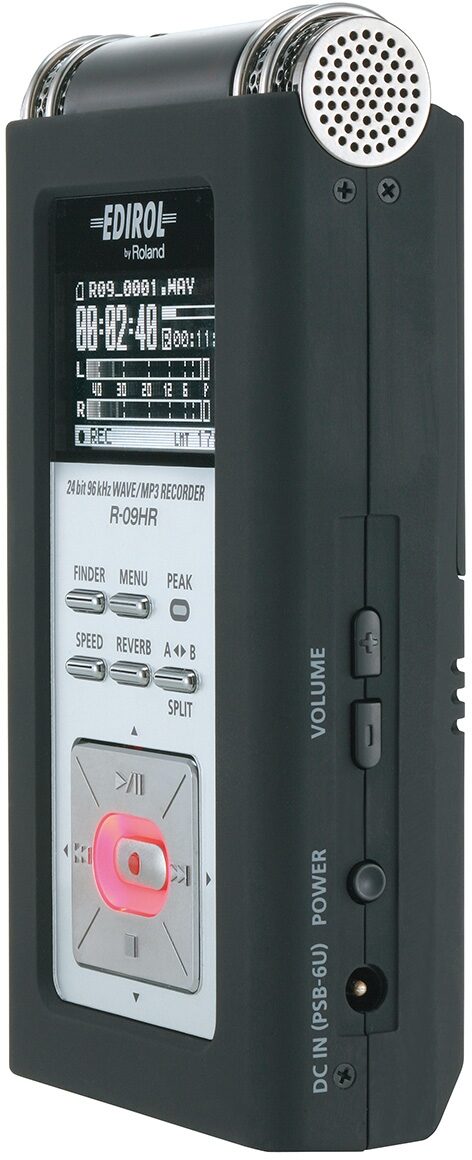

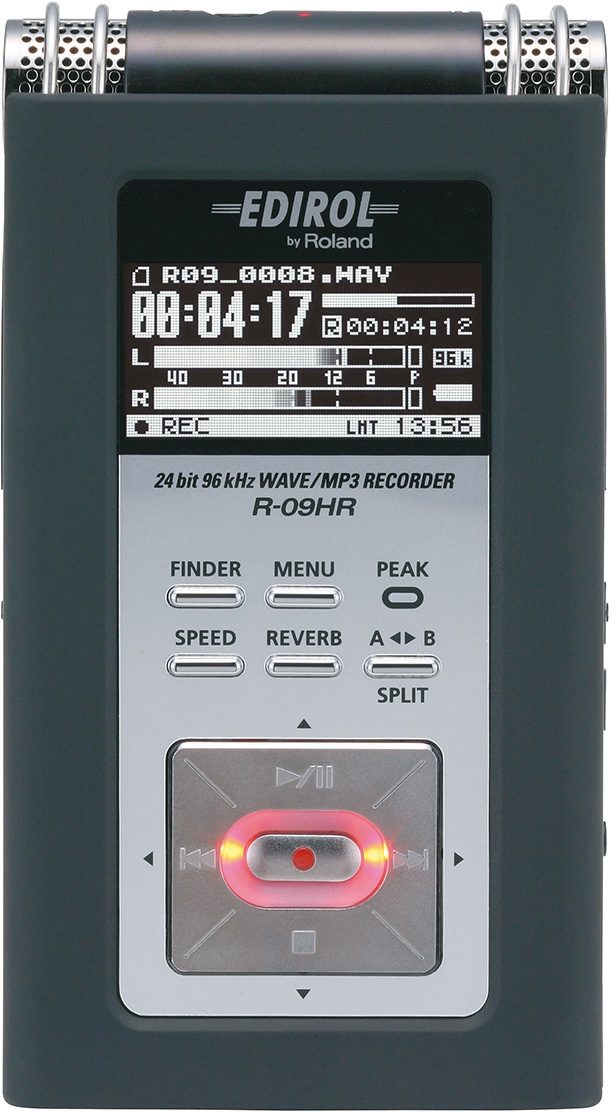

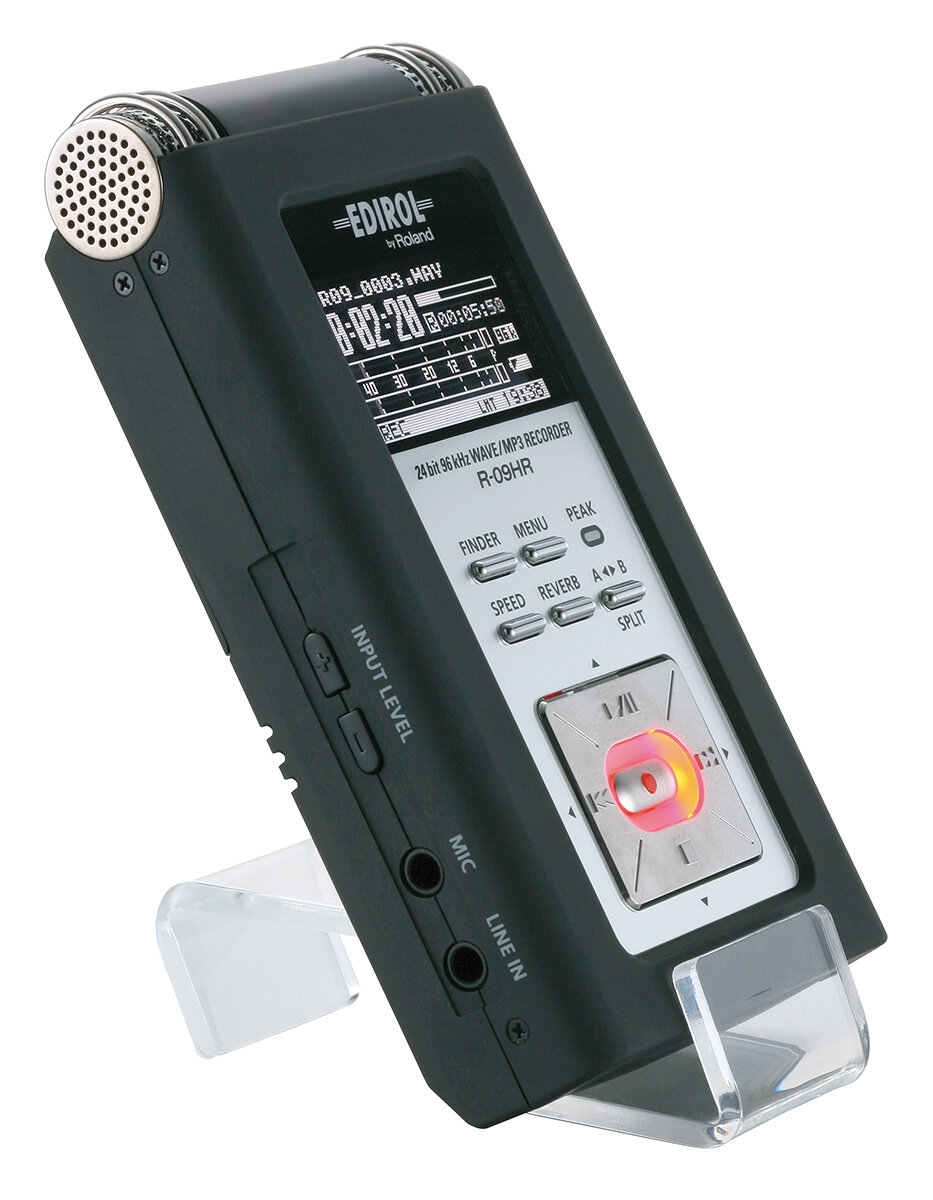

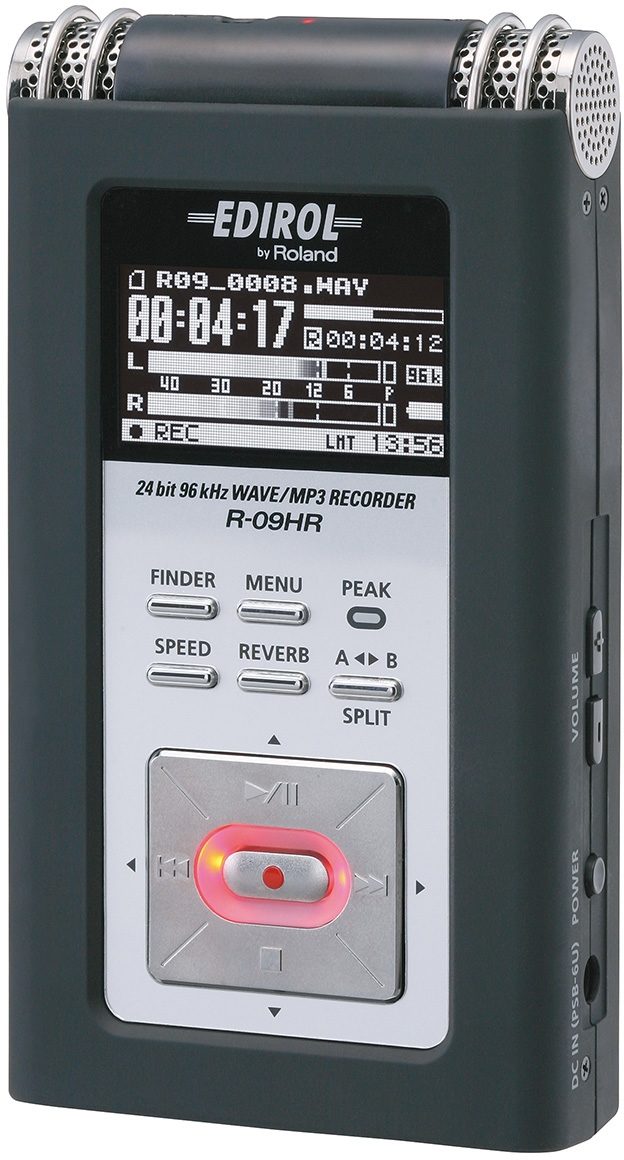

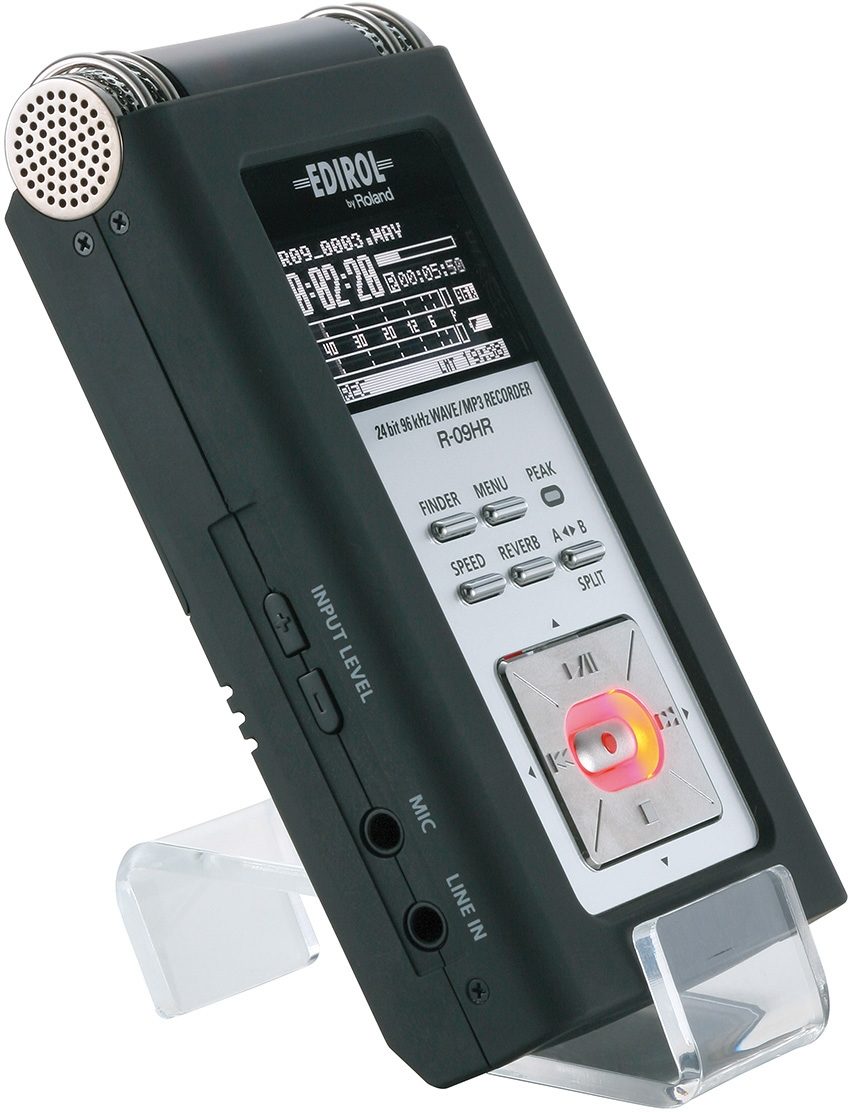

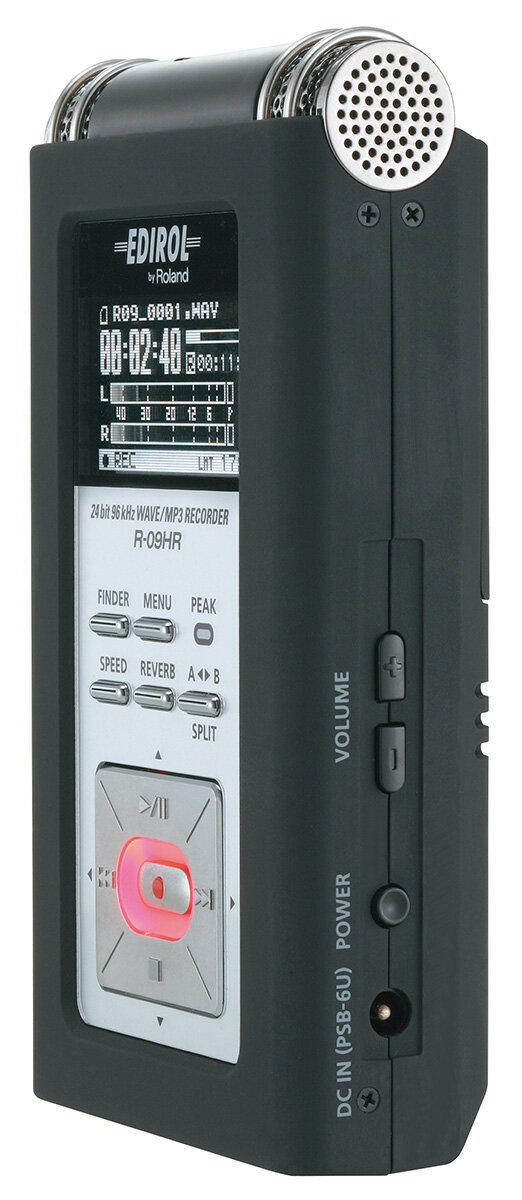

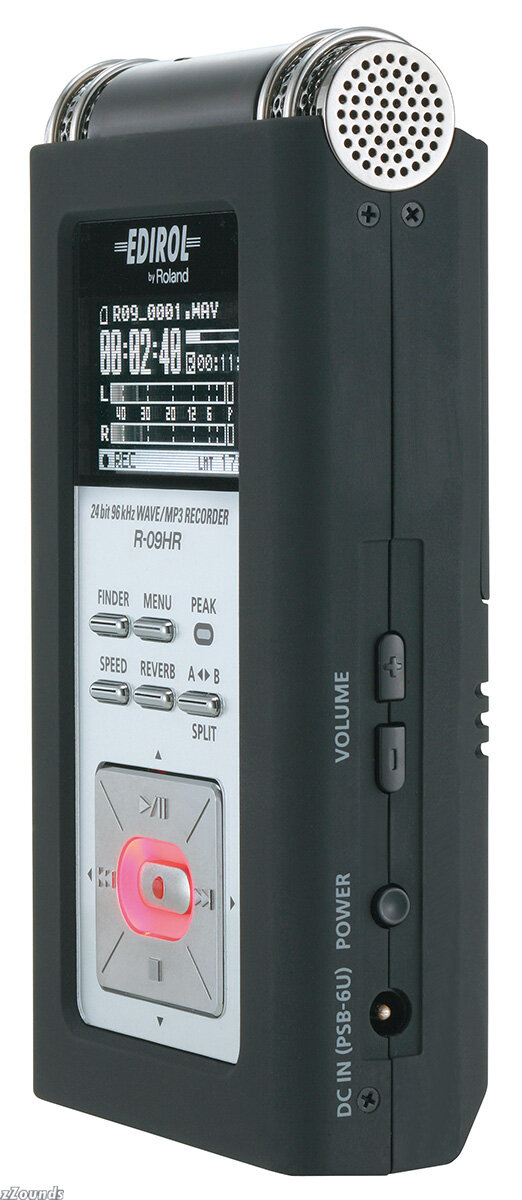

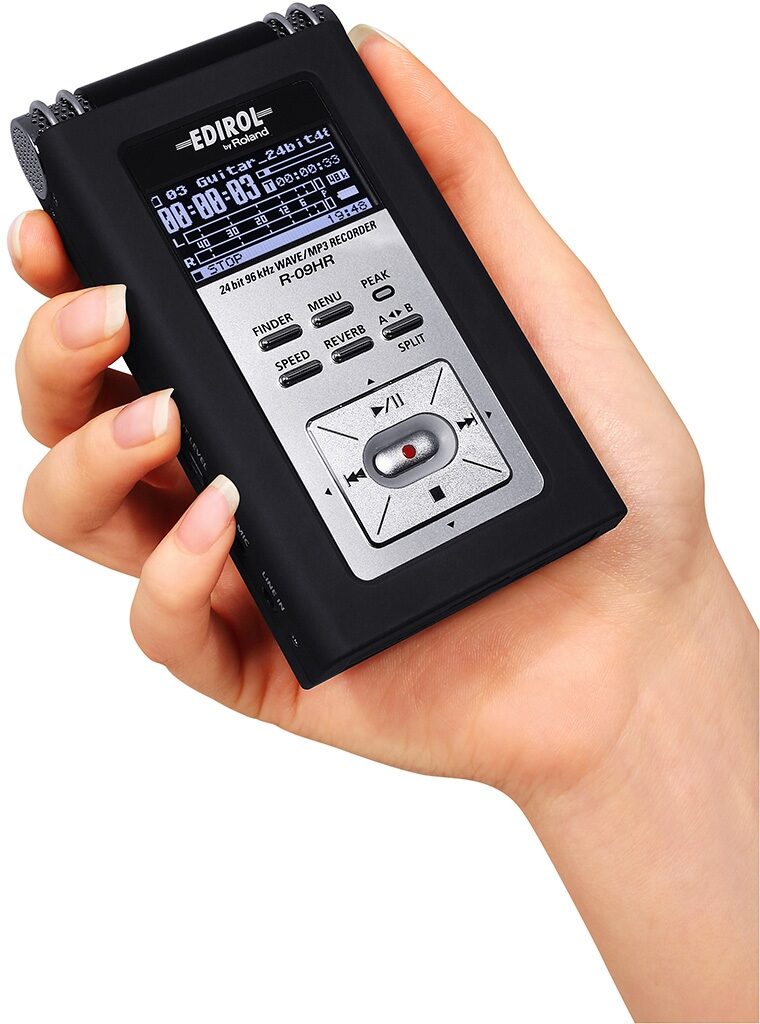

Compact, hand-held body allows for convenient portable use

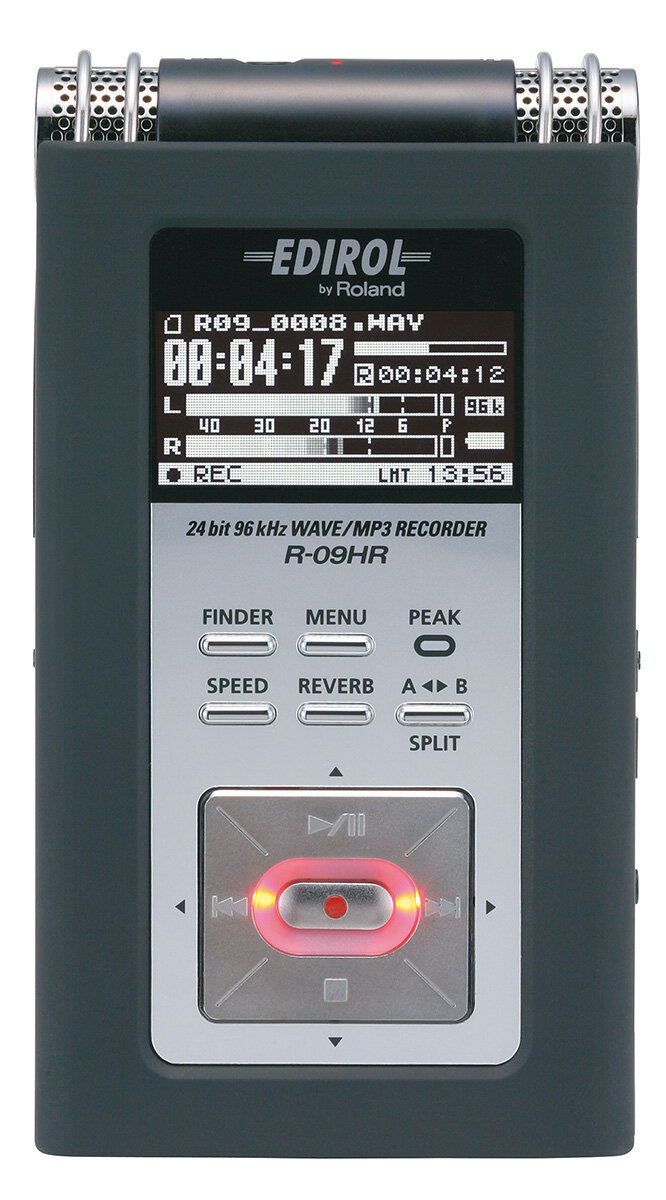

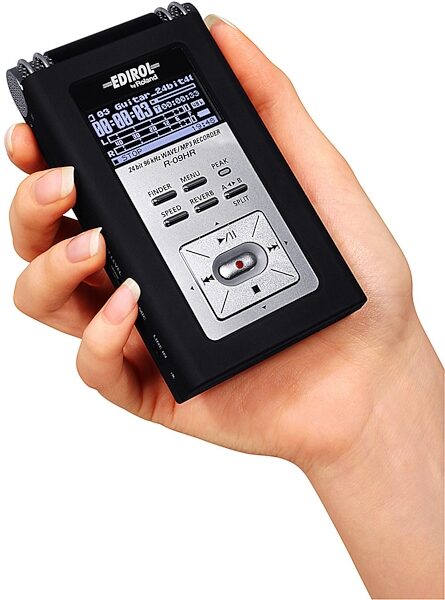

Small enough to fit in a shirt pocket, the R09HR has a new tactile feel that is easy to grip. It also has a user-friendly graphic display for ultra easy operation. The large 1.5” OLED (Organic Light-Emitting Diode) display provides wide view-ability, at-a-glance level meters, peak indicators, and additional recording information on the screen.

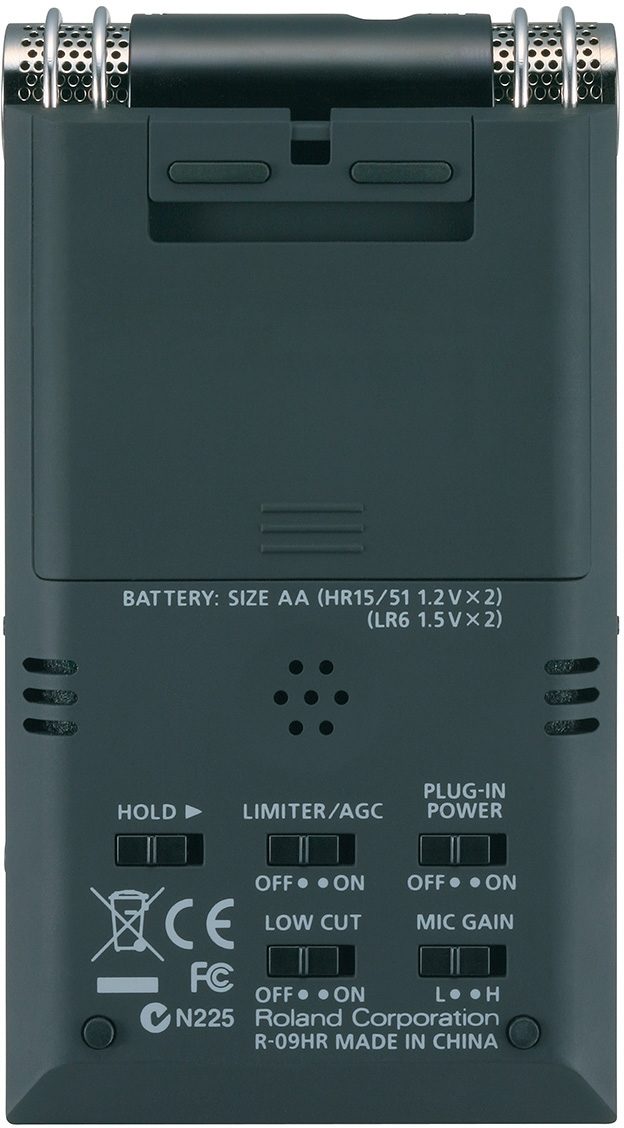

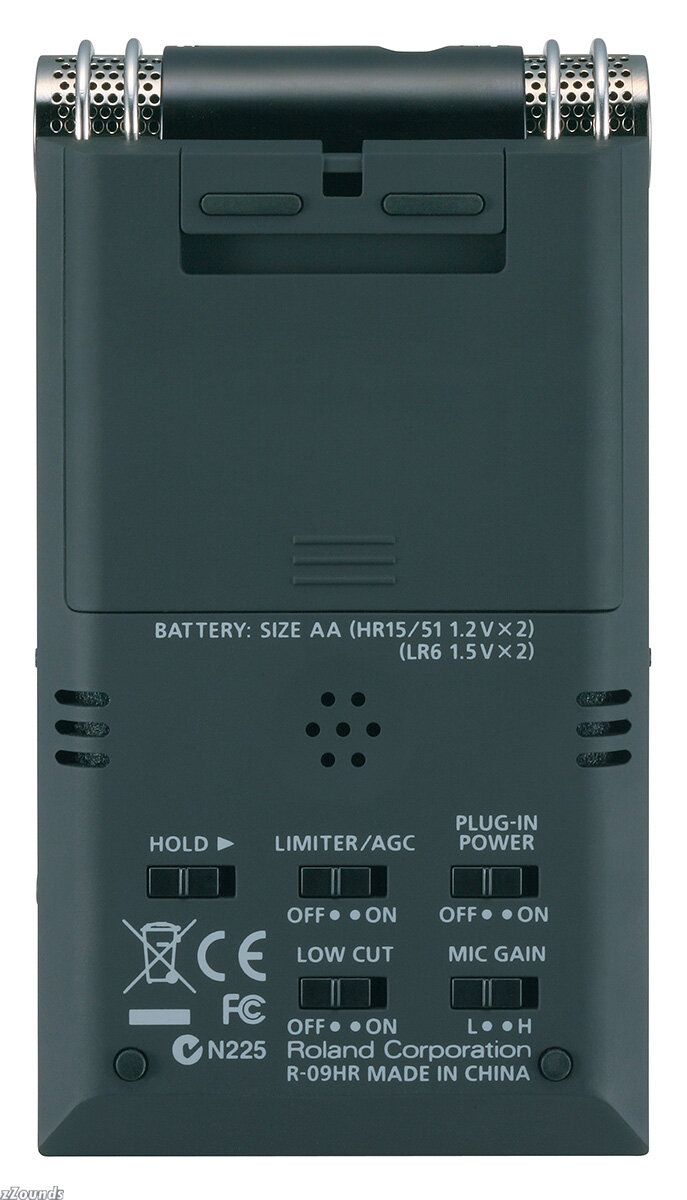

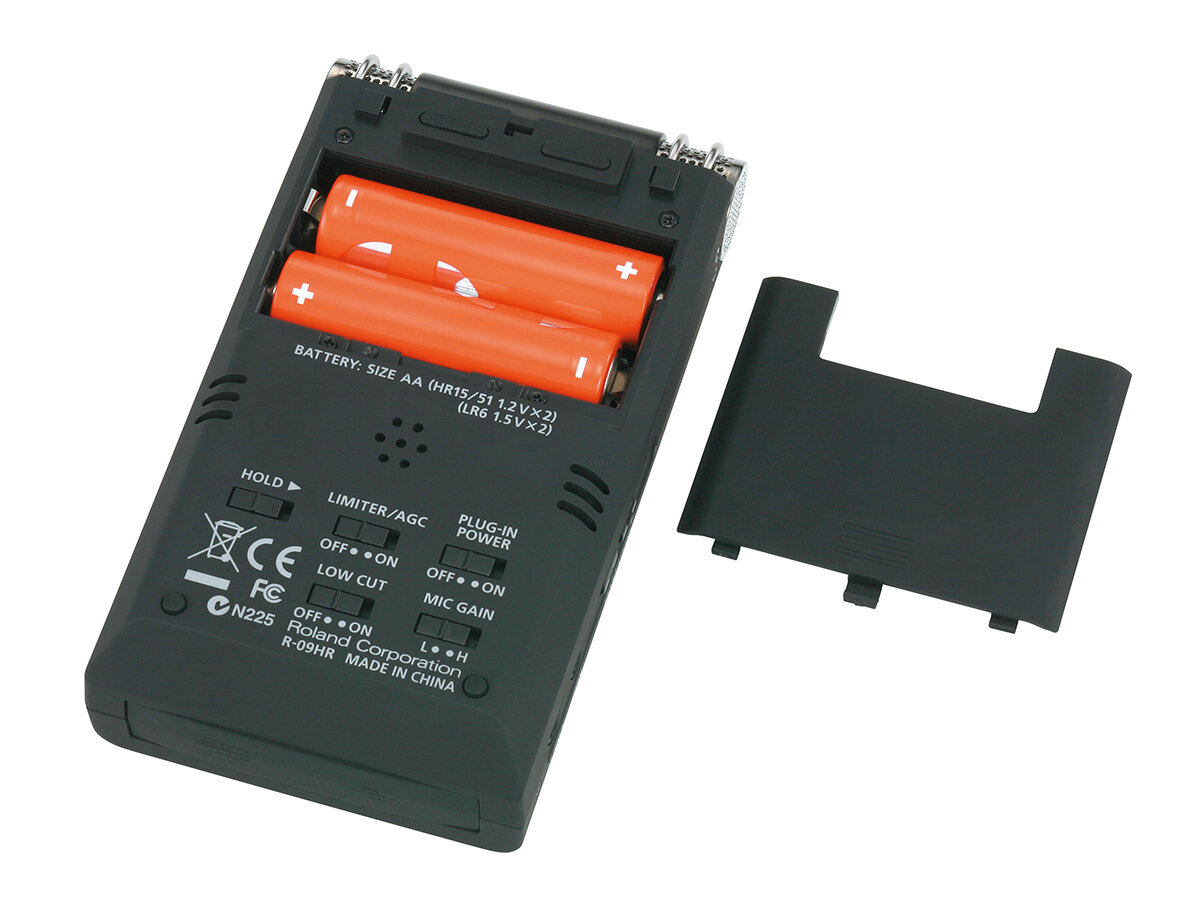

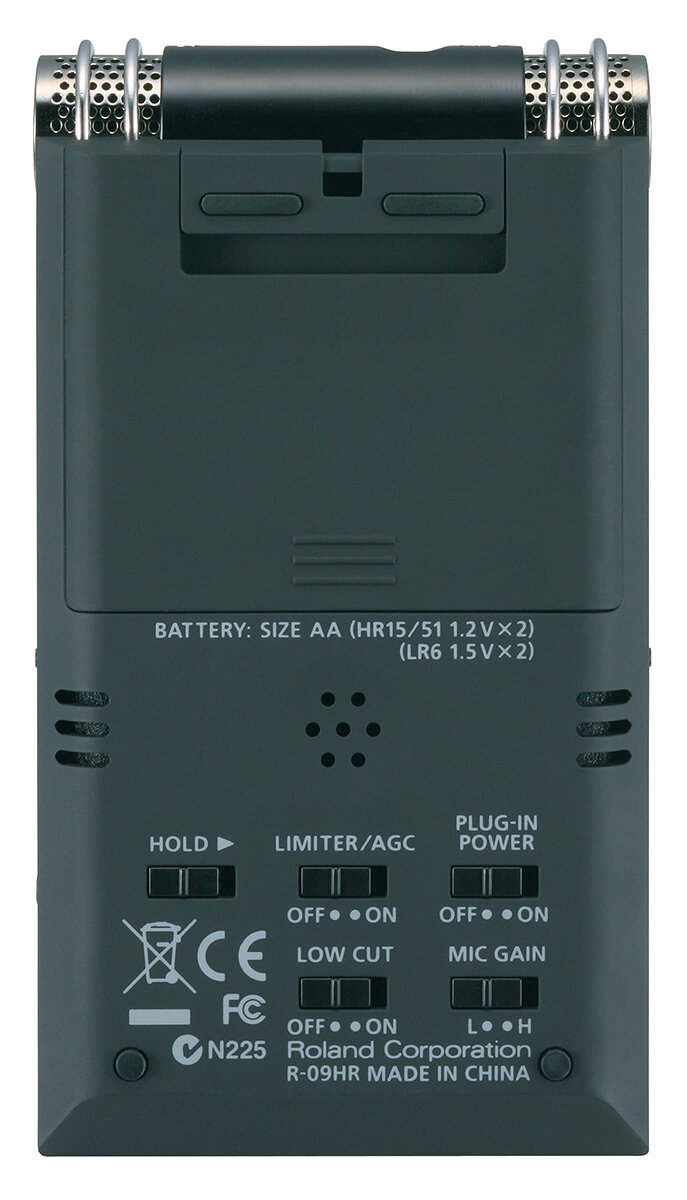

Preview Monitor (Small Speaker) built in
Without headphones, you can easily check out the recorded sounds right after the recording, thanks to the preview monitor on rear panel.

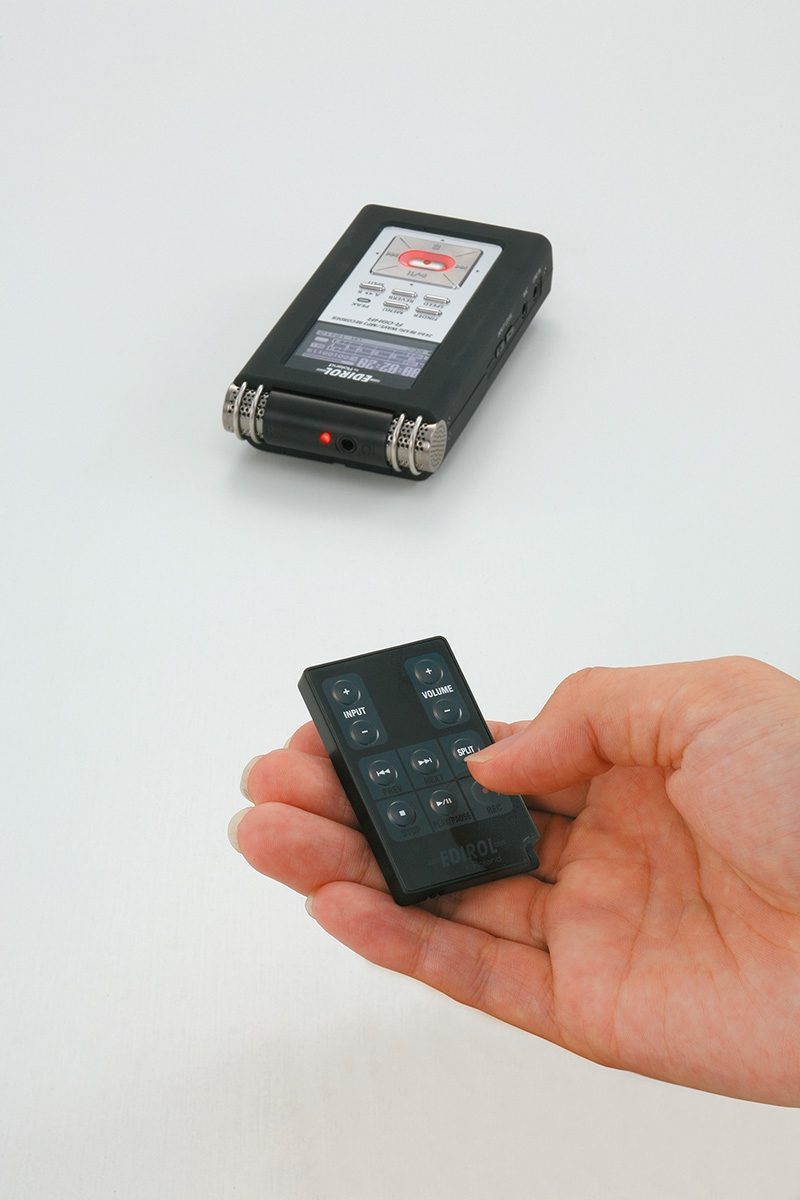

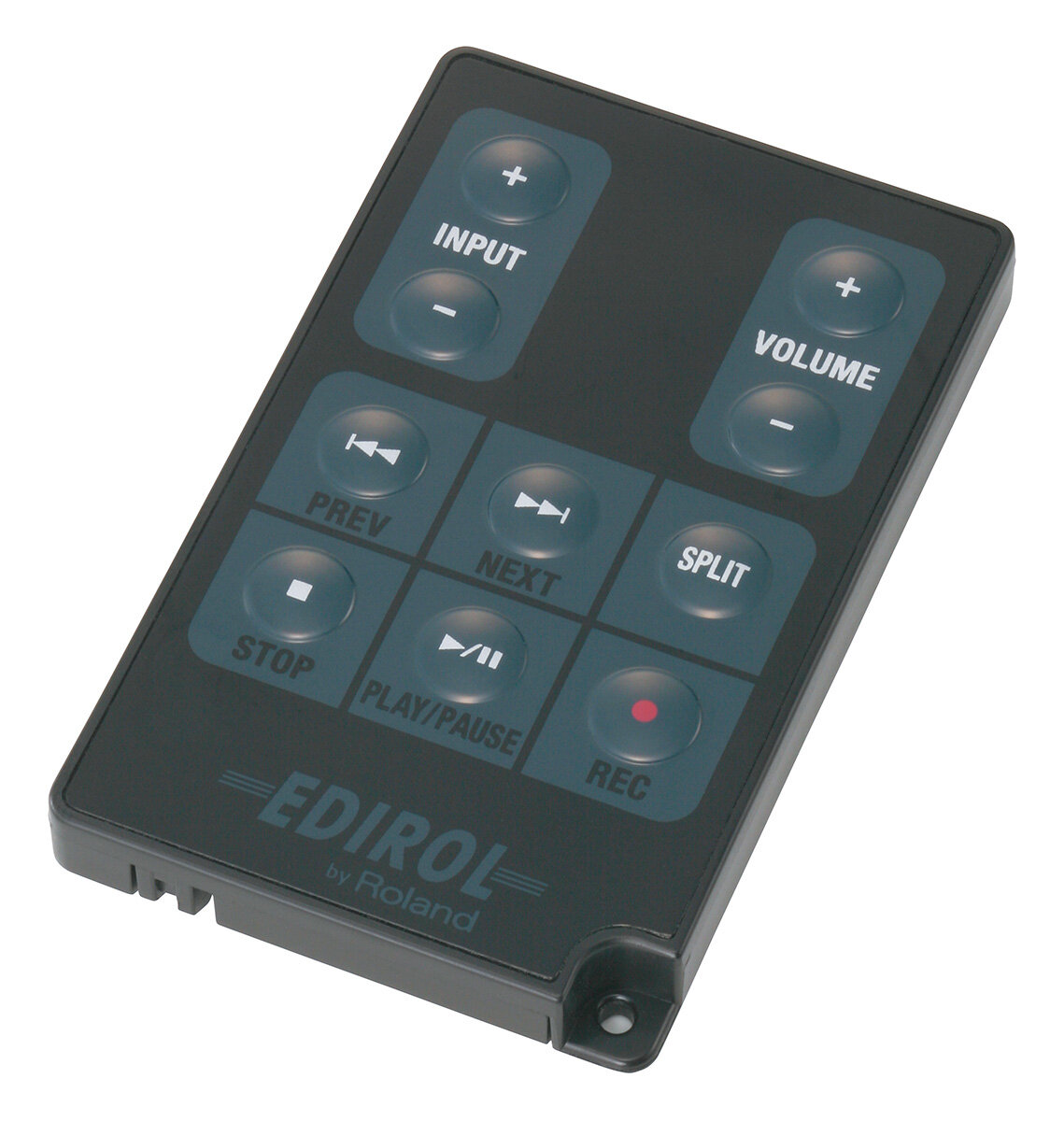

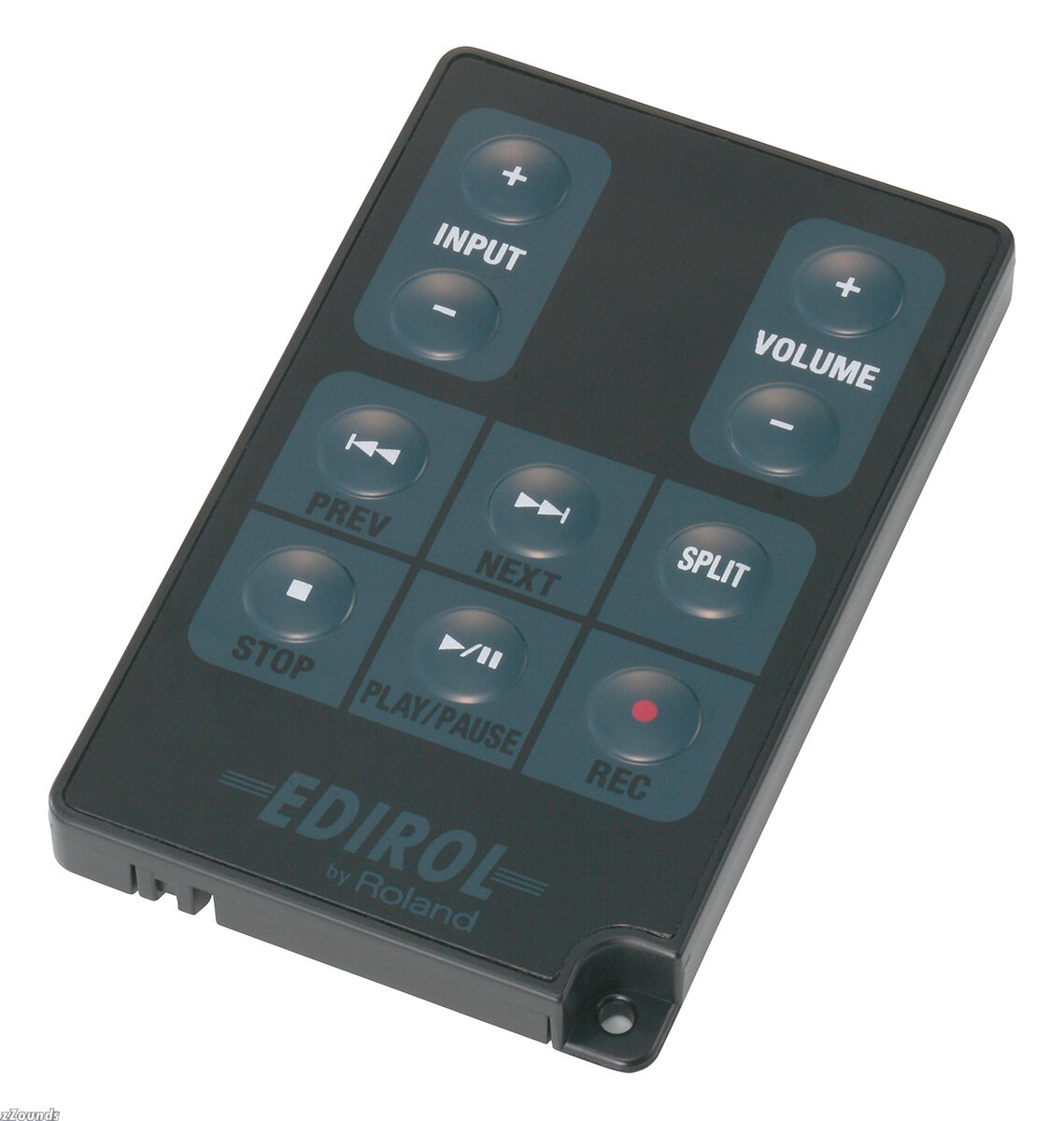

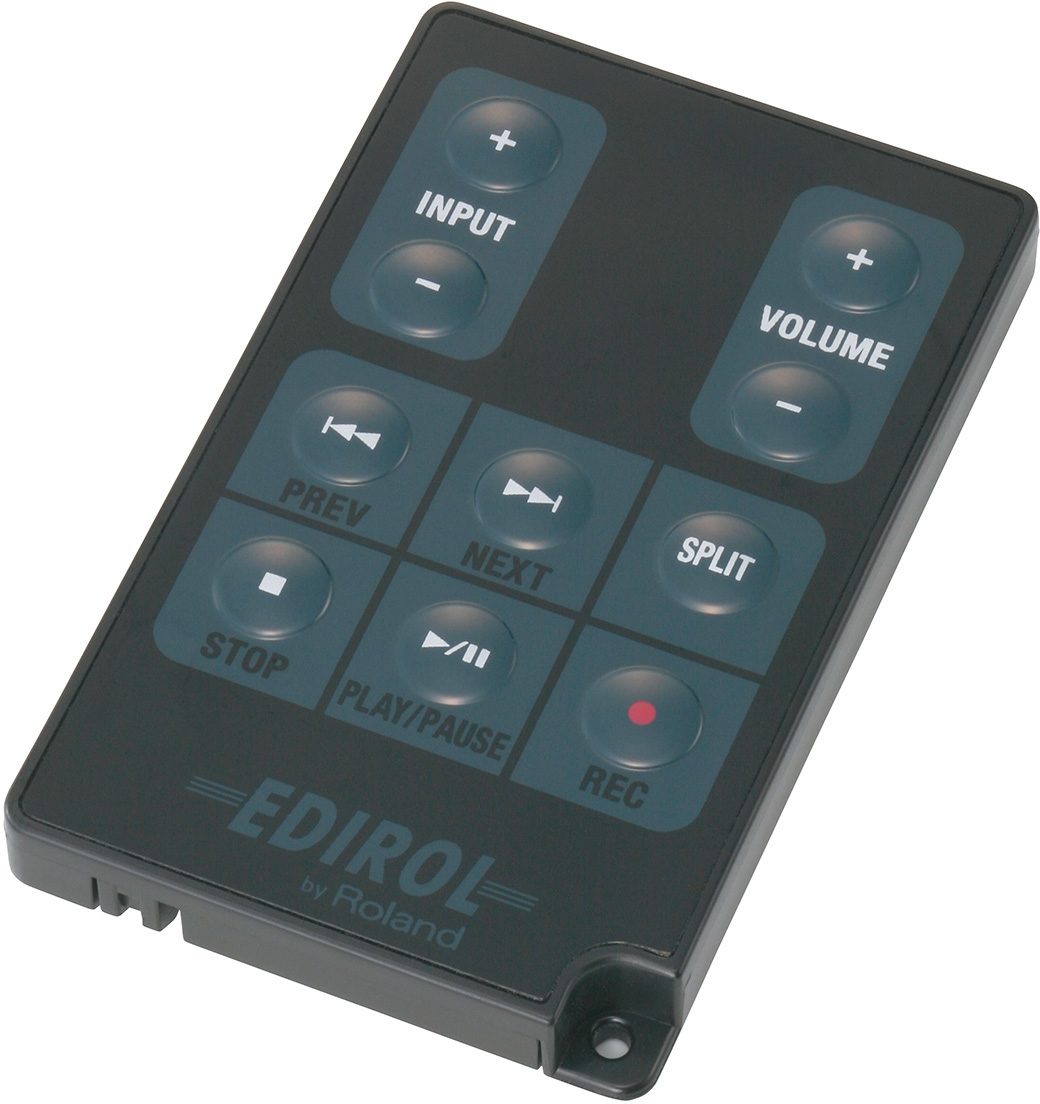

Wireless remote controller included
With the included wireless remote controller, transport functions such as recording start/playback start, fast forward, rewind, volume control, and input level control can be accessed from a distance away. This allows the R09HR to be placed in exactly the right position for recording, and allows for quick and easy touch-less operation.

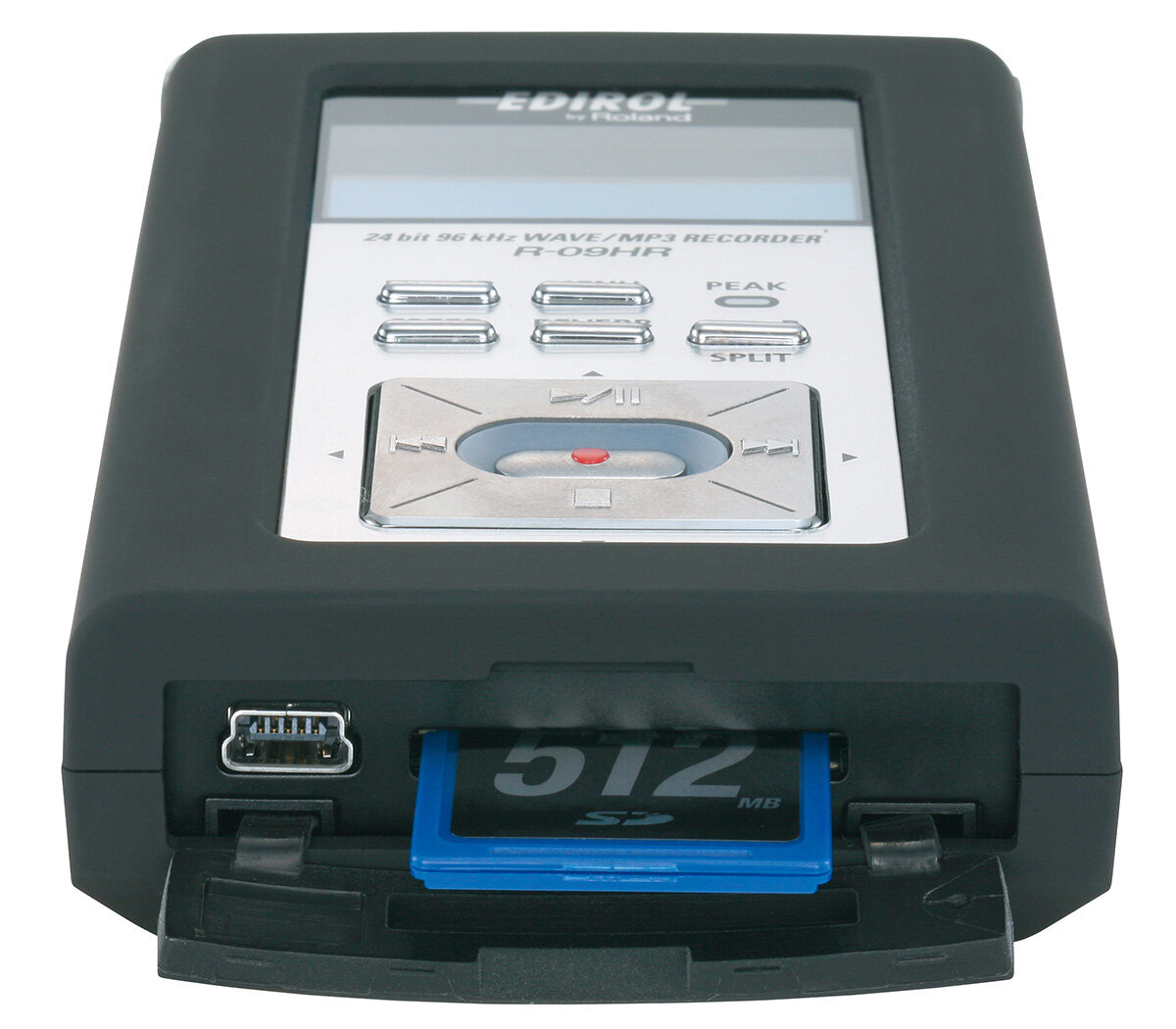

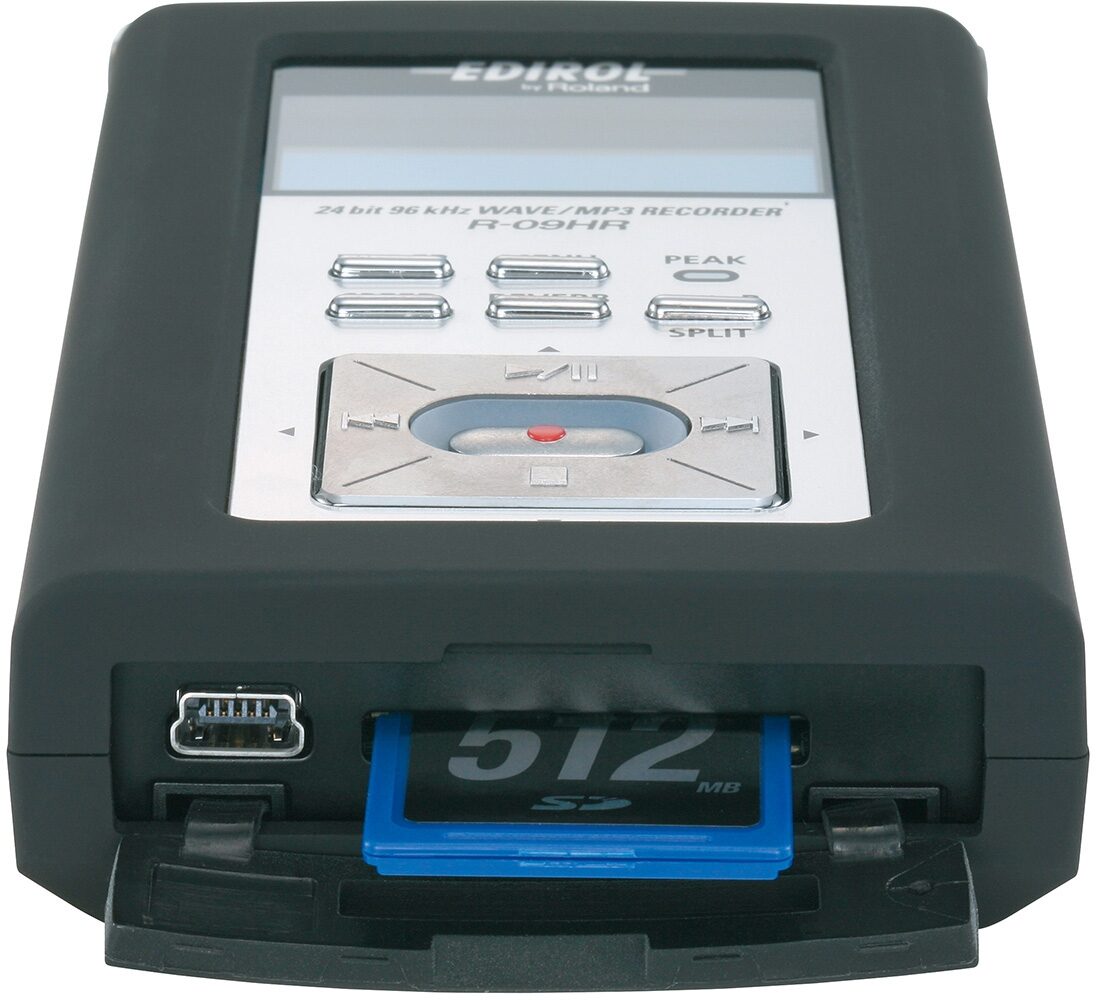

High-speed file transfer via USB 2.0 connection to computer
The R-09 can connect to the outside world via USB for importing/exporting audio files to a computer very quickly. The R09HR supports Hi-Speed USB (USB 2.0) mass storage so file transfers are very quick and convenient. The R09HR comes with Cakewalk’s “pyro Audio Creator LE” CD-ROM. This software is perfect for WAV/MP3 audio file editing; to trim cut, or fade audio sections, to burn audio collections to CD, publish a web page with sounds, to publish a blog with audio, to podcast an interview or performance, and so on. With “pyro” the R09HR package becomes truly a complete recording solution suite from recording to CD-burning.
Wide variety of optional accessories
Perfect for many recording applications from rehearsals, recitals, concerts, interviews, podcasts, research, photo journaling, law enforcement, to nature and field recording, and business meetings, the R09HR optional accessories are useful to pros and novices alike.
*Cakewalk “pyro Audio Creator LE” is compatible with Windows Vista and Windows XP.
Technical Info
Recorder Part
Tracks: 2 (stereo)
Signal Processing: AD/DA conversion: 24 bits, 44.1/48/88.2/96 kHz
Data Type:
Recording (stereo only)
- WAVE: 44.1/48/88.2/96 kHz, 16/24 bits
- MP3 (MPEG-1 Audio Layer 3): 44.1/48 kHz, 64/96/128/160/192/224/320 kbps
Playback
- WAVE: 32/44.1/48/88.2/96 kHz, 16/24 bits
- MP3 (MPEG-1 Audio Layer 3): 32/44.1/48 kHz, 32 to 320 kbps or VBR (Variable Bit Rate)
Memory Card: SD Memory Card (SDHC format compatible)
Recording Time*:
- WAV (24-bit/96 kHz): 27 mins/GB
- WAV (24-bit/88.2 kHz): 30 mins/GB
- WAV (24-bit/48 kHz): 54 mins/GB
- WAV (24-bit/44.1 kHz): 59 mins/GB
- WAV (16-bit/96 kHz): 40 mins/GB
- WAV (16-bit/88.2 kHz): 44 mins/GB
- WAV (16-bit/48 kHz): 81 mins/GB
- WAV (16-bit/44.1 kHz): 88 mins/GB
- MP3 (320 kbps): 392 mins/GB
- MP3 (128 kbps): 980 mins/GB

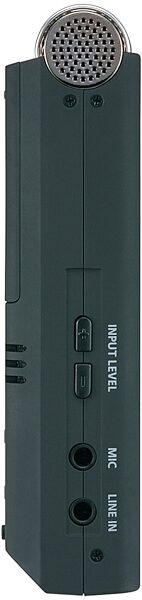

Input/Output

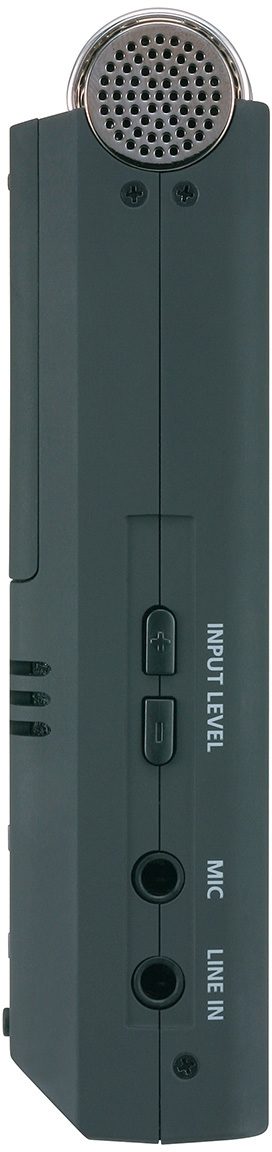

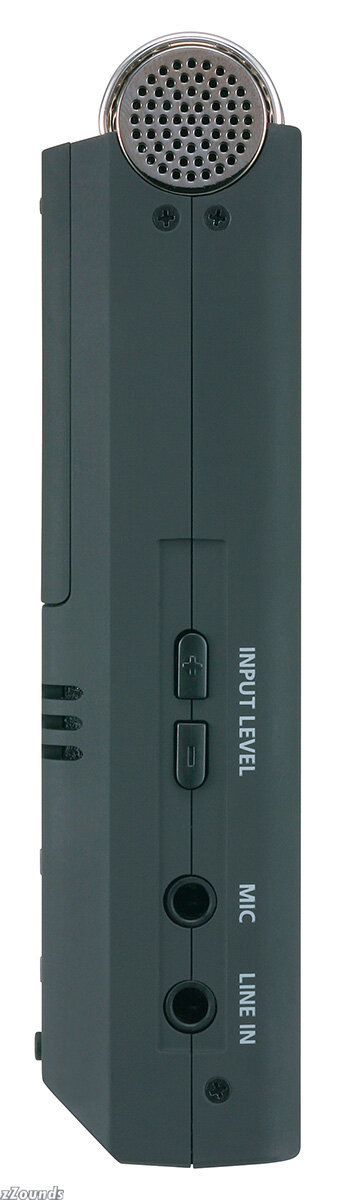

Audio Inputs:
- Internal Stereo Microphone
- Mic input (Stereo miniature phone type, plug-in powered mic)*
- Line input (Stereo miniature phone type)
Nominal Input Level: Variable
- Mic input: -33 dBu (Default input level)
- Line input: 2 dBu (Default input level)
Input Impedance:
- Mic input: 30 k ohms
- Line input: 15 k ohms
Output Level: 20 mW (In case 16 ohms load)
Recommended Load Impedance: 16 ohms or greater
Frequency Response: 20 Hz to 40 kHz
USB Interface: Mini-B type connector (support USB 2.0/1.1 mass storage device class)
Effects
Playback only. Excludes playback in 88.2 kHz or 96 kHz.
Reverb: 4 types (Hall1, Hall2, Room, Plate)
Speed change: 50 to 150 % of playback speed
Current Draw: 370 mA

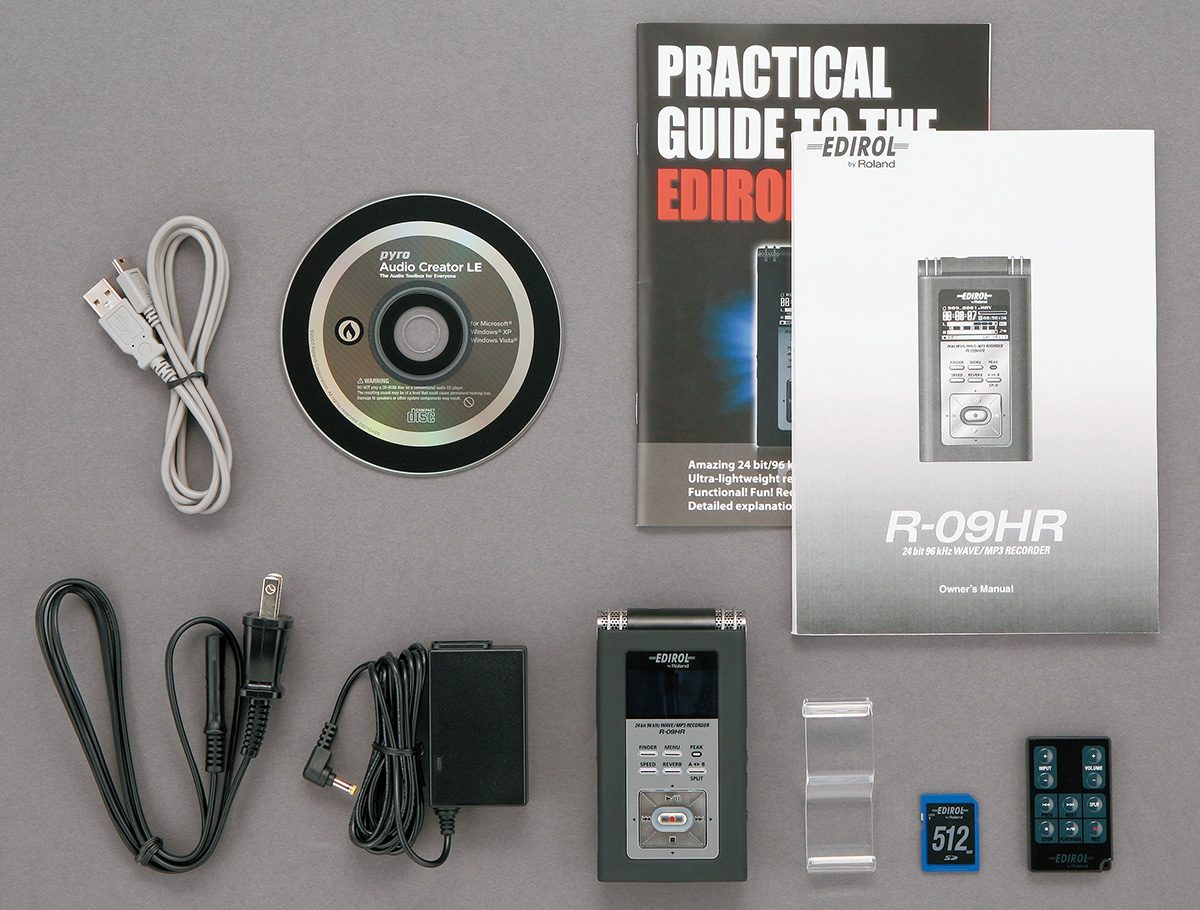

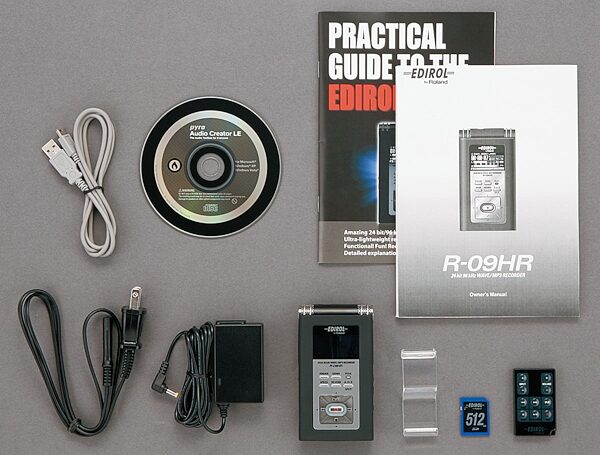

Accessories Included: Owner's Manual, AC Adaptor, Remote control, Stand, SD Memory Card (512 MB), USB cable (Mini-B type), CD-ROM (Pyro Audio Creator LE)
Size and Weight
Width:
- 62 mm
- 2-1/2 in.
Depth:
- 113 mm
- 4-1/2 in.
Height:
- 27 mm
- 1-1/16 in.
Weight: 0.2 kg; 0 lbs. 7 oz.
