This product is no longer available at zZounds.
We recommend this product instead:
Edirol PCR-300 32-Key USB/MIDI Keyboard Controller
-
- New from $269.00
- List: $299.00
- SAVE: 10%
- In Stock
Introducing the next generation of Edirol's popular MIDI keyboard controllers. In addition to providing more physical controls than previous models, the PCR-300 also offers new innovative and intuitive controls. This controller is solidly built, and optimized for both music production and live performance. Learn More...
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

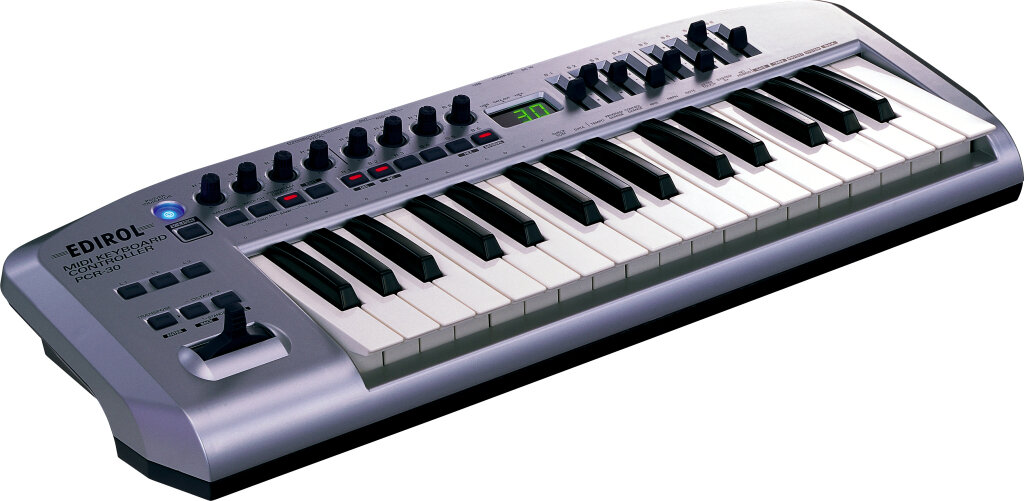

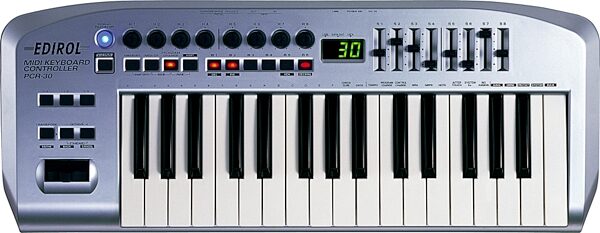

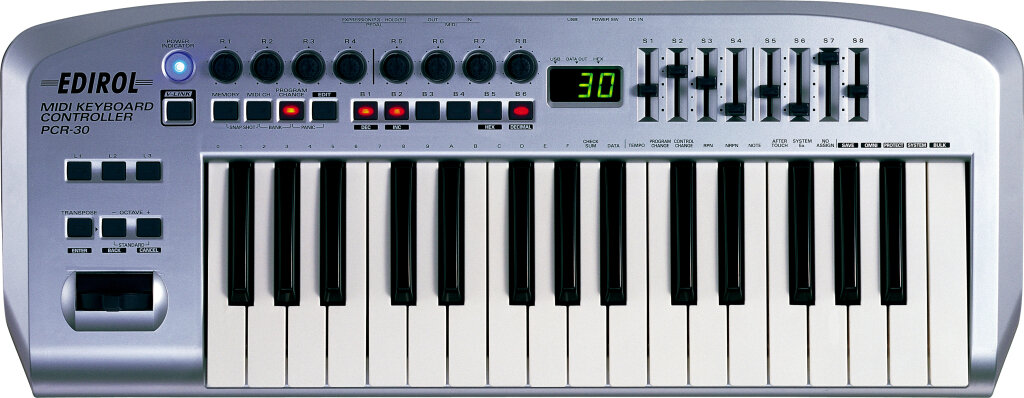

Edirol PCR30 32-Key USB MIDI Keyboard Controller
32 keys. 8 assignable rotary knobs. 8 assignable faders.
Loading...
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
About This Product!
Description
Docs
The Edirol PCR-30 keyboard - the most advanced 32-key MIDI keyboard controller available. Never before has there been a better compact keyboard for use with popular sequencers and software synthesizers. The PCR-30 takes MIDI control to a new level with unprecedented versatility.
Features:
32 full-sized, velocity sensitive keys
8 assignable rotary knobs (cut off, resonance, pan, tempo, etc.)
8 assignable faders (volume, EFX send, etc.)
9 assignable buttons (program change, track mute, start, stop, etc.)
1 sustain pedal connection
1 expression pedal connection
MIDI in & MIDI out
Pitch & Modulation controls (Newly redesigned to be linearly controlled for more accurate performance)
1 Preset Memory & 15 User Memory locations
USB Bus powered or AC adaptor
Template sheets for controls
The PCR-30 can control a number of parameters not accessible from other controller keyboards at this price point; such as RPN, NRPN, SysEx.
The PCR-30 is fully compatible with all the latest operating systems including WinXP and Mac OSX. It is the ideal keyboard for use with Arturia Storm, SONAR, Cubase, Reason, FruityLoops, and most other popular sequencers and software synthesizers. As such it comes equipped with templates for these and other programs.
It can also run from either the included power supply or draw power from the USB port for maximum portability.
The PCR-30 is also equipped with V-LINK that allows you to trigger and control video material in real-time via the DV-7PR (sold separately).
If you are looking for the same great features in a 49 key unit, check out the PCR-50.
Controller
Memory Button
MIDI Channel Button
Program Change Button
Edit Button
V-LINK Button
Octave Shift Button (+/-)
Transpose Button
Assignable Button (B1--6, L1--3)
Bender/Modulation Lever
Assignable Rotary Volume (R1--8)
Assignable Slider (S1--8)
Assignable Pedal (P1--2)
Display
7 segments, 3 characters (LED)
Power Indicator

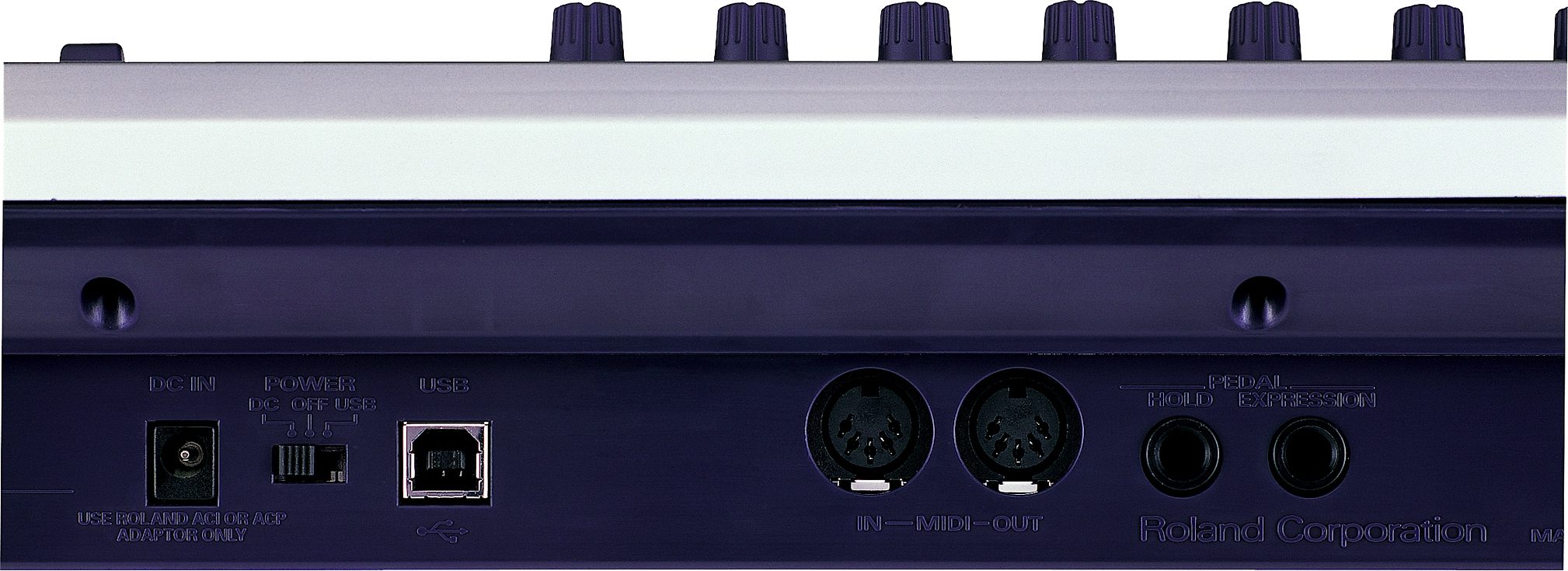

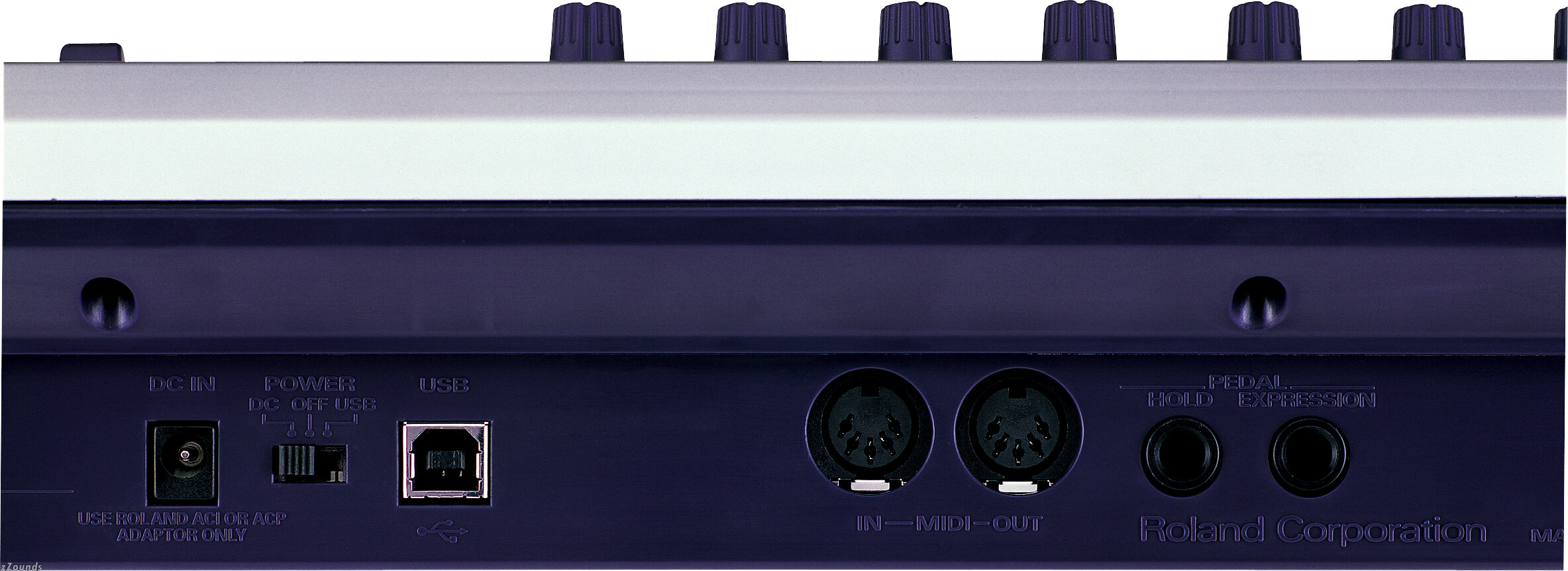

Connectors
Hold Pedal Jack
Expression Pedal Jack
MIDI Jacks (IN/OUT)
USB Jack
DC IN Jack
Rear Panel: Power Switch (USB BUS/OFF/DC IN)
Power Supply: DC 9 V (AC adapter) or USB Bus Powered
Current Draw: 300 mA (AC adapter), 300 mA (USB Bus Power)
Dimensions:
600 (W) x 232 (D) x 86.4 (H) mm
23-5/8 (W) x 9-3/16 (D) x 3-7/16 (H) in.
Weight: 2.4 kg / 5 lbs 5 oz (excluding AC adapter)
Accessories
AC Adaptor (ACP Series)
CD-ROM
USB Cable
Owner's Manual
Template Sheets (GM2/BLANK)
Options
Pedal Switch: DP-2/6
Expression Pedal: EV-5/7
System Requirements
Macintosh
Operating System: MacOS 8.5, 8.6, 9.x, and OS X
Computer: USB ready Apple Macintosh
CPU/clock: PowerPC G3/233 MHz or higher
Memory (RAM): 64 MB or more
OMS 2.3.3 or later. FreeMIDI 1.35 or later*
* For MacOS 8.5, 8.6, 9.x. Plug and play on MacOS X.
Windows
Operating System: Microsoft Windows Me/98/98SE/2000/XP
Computer: Windows compatible equipped with a USB* port
CPU/clock: Pentium Processor 200 MHz or higher
Memory (RAM): 64 MB or more
USB Chipset: Intel's USB chipset is recommended
* Must have a compatible USB host controller.
EDIROL designs its USB devices in accordance with USB specifications and has passed all compatibility tests, which are continuously held and organized by USB Implementers Forum (USB-IF).
Features:
32 full-sized, velocity sensitive keys
8 assignable rotary knobs (cut off, resonance, pan, tempo, etc.)
8 assignable faders (volume, EFX send, etc.)
9 assignable buttons (program change, track mute, start, stop, etc.)
1 sustain pedal connection
1 expression pedal connection
MIDI in & MIDI out
Pitch & Modulation controls (Newly redesigned to be linearly controlled for more accurate performance)
1 Preset Memory & 15 User Memory locations
USB Bus powered or AC adaptor
Template sheets for controls
The PCR-30 can control a number of parameters not accessible from other controller keyboards at this price point; such as RPN, NRPN, SysEx.
The PCR-30 is fully compatible with all the latest operating systems including WinXP and Mac OSX. It is the ideal keyboard for use with Arturia Storm, SONAR, Cubase, Reason, FruityLoops, and most other popular sequencers and software synthesizers. As such it comes equipped with templates for these and other programs.
It can also run from either the included power supply or draw power from the USB port for maximum portability.
The PCR-30 is also equipped with V-LINK that allows you to trigger and control video material in real-time via the DV-7PR (sold separately).
If you are looking for the same great features in a 49 key unit, check out the PCR-50.
Technical Info
Keyboard: 32 Velocity Sensitive KeysController
Memory Button
MIDI Channel Button
Program Change Button
Edit Button
V-LINK Button
Octave Shift Button (+/-)
Transpose Button
Assignable Button (B1--6, L1--3)
Bender/Modulation Lever
Assignable Rotary Volume (R1--8)
Assignable Slider (S1--8)
Assignable Pedal (P1--2)
Display
7 segments, 3 characters (LED)
Power Indicator
Connectors
Hold Pedal Jack
Expression Pedal Jack
MIDI Jacks (IN/OUT)
USB Jack
DC IN Jack
Rear Panel: Power Switch (USB BUS/OFF/DC IN)
Power Supply: DC 9 V (AC adapter) or USB Bus Powered
Current Draw: 300 mA (AC adapter), 300 mA (USB Bus Power)
Dimensions:
600 (W) x 232 (D) x 86.4 (H) mm
23-5/8 (W) x 9-3/16 (D) x 3-7/16 (H) in.
Weight: 2.4 kg / 5 lbs 5 oz (excluding AC adapter)
Accessories
AC Adaptor (ACP Series)
CD-ROM
USB Cable
Owner's Manual
Template Sheets (GM2/BLANK)
Options
Pedal Switch: DP-2/6
Expression Pedal: EV-5/7
System Requirements
Macintosh
Operating System: MacOS 8.5, 8.6, 9.x, and OS X
Computer: USB ready Apple Macintosh
CPU/clock: PowerPC G3/233 MHz or higher
Memory (RAM): 64 MB or more
OMS 2.3.3 or later. FreeMIDI 1.35 or later*
* For MacOS 8.5, 8.6, 9.x. Plug and play on MacOS X.
Windows
Operating System: Microsoft Windows Me/98/98SE/2000/XP
Computer: Windows compatible equipped with a USB* port
CPU/clock: Pentium Processor 200 MHz or higher
Memory (RAM): 64 MB or more
USB Chipset: Intel's USB chipset is recommended
* Must have a compatible USB host controller.
EDIROL designs its USB devices in accordance with USB specifications and has passed all compatibility tests, which are continuously held and organized by USB Implementers Forum (USB-IF).
What Our Customers Say About zZounds
"zZ has loads of items for price comparison - one stop shopping for my studio rack and hardware." - customer on October 30, 2009
Edirol PCR30 32-Key USB MIDI Keyboard Controller Reviews
10 out of 10
zZounds has verified that this customer bought this product from us.
"Just buy it."
Feature:
The manual for this puppy is HUGE because this is a full featured MIDI controller, endlessly configurable for whatever application you might need it for. Far beyond your usual DAW software, this could conceivably control any piece of MIDI gear ever made.
Quality:
Very sturdy -- far more sturdy than I anticipated. The build quality is very good. The sliders, knobs, keys, and mod-lever all feel very solid to me.
Value:
Compare it to other MIDI controllers capable of what the PCR-30 is capable of and you'll quickly see it's definitely one of the least expensive and full-featured in its class.
Desirability:
It's silver and has some nice curves. The keys feel nice and it feels good to slide the levers up and down.
Sound:
Not applicable.
Support:
Haven't anything go wrong with it. Edirol's website is very good and the PCR editor software (free) is a sign of their committment to supporting this product.
Overall:
I wouldn't trade this for any other MIDI interface/keyboard on the market. Roland/Edirol have been making keyboards for years and it shows in the build quality of this unit. If you have a larger 61- or 76- key keyboard as I do, this makes an excellent addition to your setup, something you can plop on the desk and have at hand when you really need it. If you are into computer music and don't have a keyboard, this will suit your needs (provided you don't want to play any Bach Tocattas on it... buy the 61-key version for that ;)
The manual for this puppy is HUGE because this is a full featured MIDI controller, endlessly configurable for whatever application you might need it for. Far beyond your usual DAW software, this could conceivably control any piece of MIDI gear ever made.
Quality:
Very sturdy -- far more sturdy than I anticipated. The build quality is very good. The sliders, knobs, keys, and mod-lever all feel very solid to me.
Value:
Compare it to other MIDI controllers capable of what the PCR-30 is capable of and you'll quickly see it's definitely one of the least expensive and full-featured in its class.
Desirability:
It's silver and has some nice curves. The keys feel nice and it feels good to slide the levers up and down.
Sound:
Not applicable.
Support:
Haven't anything go wrong with it. Edirol's website is very good and the PCR editor software (free) is a sign of their committment to supporting this product.
Overall:
I wouldn't trade this for any other MIDI interface/keyboard on the market. Roland/Edirol have been making keyboards for years and it shows in the build quality of this unit. If you have a larger 61- or 76- key keyboard as I do, this makes an excellent addition to your setup, something you can plop on the desk and have at hand when you really need it. If you are into computer music and don't have a keyboard, this will suit your needs (provided you don't want to play any Bach Tocattas on it... buy the 61-key version for that ;)
Submitted: 10/29/2003
Style of Music: Jazz, Electronica, R&B, Pop, Rock, Classical, New Age, whatever
10 out of 10
Edirol PCR-30 Controller Customer Review
Feature:
What an awesome piece of equipment. From note velocity to sliders with a good feel. Quality in this product. I'm AMAZED at the number of features in something for $120. If you hesitate buying this product your just out of your mind.
Quality:
The buttons, switches and feel is great. The case is run of the mill plastic which I wasnt impressed with but does the job. Display is sharp, color is good and overall im very impressed.
Value:
For the money I dont see how you could beat it.
Desirability:
I'm not hip to the silver color. Black would have been a better choice for me. Knobs, sliders, you name it. I use it for hooking into Buzz for controlling midi, mixing, etc. Works great.
Sound:
NA - It's just a controller, no sound.
Overall:
Aside from the smaller issues this get's a 10. You couldnt beat the quality, features and functionatily with a stick.
What an awesome piece of equipment. From note velocity to sliders with a good feel. Quality in this product. I'm AMAZED at the number of features in something for $120. If you hesitate buying this product your just out of your mind.
Quality:
The buttons, switches and feel is great. The case is run of the mill plastic which I wasnt impressed with but does the job. Display is sharp, color is good and overall im very impressed.
Value:
For the money I dont see how you could beat it.
Desirability:
I'm not hip to the silver color. Black would have been a better choice for me. Knobs, sliders, you name it. I use it for hooking into Buzz for controlling midi, mixing, etc. Works great.
Sound:
NA - It's just a controller, no sound.
Overall:
Aside from the smaller issues this get's a 10. You couldnt beat the quality, features and functionatily with a stick.
Submitted: 07/22/2005
