Echo AudioFire2 Compact FireWire Audio Interface

Pocket Sized FireWire Audio on the Go
AudioFire2 offers an extremely small FireWire audio solution. No product this small comes packed with as many features as the AudioFire2. Fully balanced input and output, separately addressable headphone output, S/PDIF I/O and MIDI I/O are all included in this 3.5 in. by 4.25 in. interface.

AudioFire2 is the perfect product for any musician on the go. Power is provided directly from the FireWire bus or from the supplied power source. MIDI and S/PDIF are available via a removable dongle for compact flexibility. With the AudioFire2 you can record 24-bit 96kHz audio with low latency monitoring on any Windows XP or Mac OS X computer (desktop or notebook) with a FireWire port.

Free Audio Software Included
Tracktion is a revolutionary, easy-to-use music production application that contains everything most people will ever need to professionally record and mix music on a Mac or PC - without all the hassles and limitations of other audio software. The AudioFire 2 comes bundled with Tracktion version 2.2.

Hardware Features*
FireWire (IEEE 1394a) interface with 8 ft. cable

Bus powered with 6-pin FireWire interface

External 12VDC power supply provided

2 balanced 1/4 in. analog inputs:
113dB (A-weighted) dynamic range
+4dBu / -10dBV nominal levels

2 balanced 1/4 in. analog outputs:
114dB (A-weighted) dynamic range
+4dBu / -10dBV nominal levels

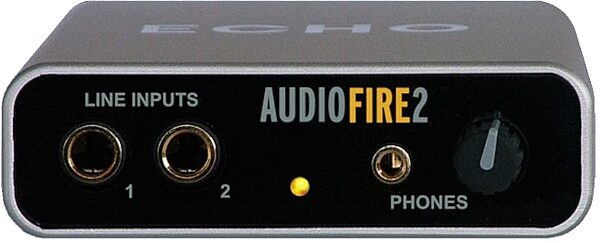

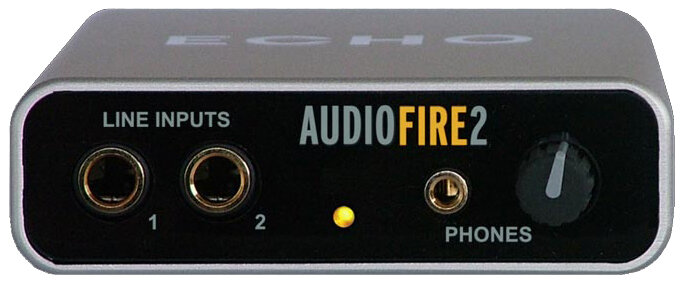

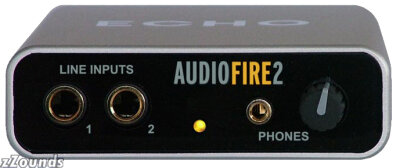

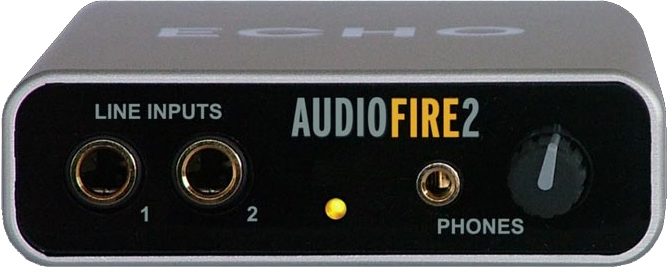

Stereo headphone output with volume knob

Headphone output is independent from line outputs (listen to cue mix separate from house mix)

S/PDIF I/O at 24-bit/96kHz

MIDI I/O

S/PDIF -- MIDI breakout cable included

Supports full duplex 4 channel in, 6 channel out operation at 24 bit, 96 kHz sample rate

Pocket sized (3.5 in. x 4.25 in. x 1 in.)

Heavy-duty aluminum case

Near zero latency hardware monitoring

Software Features:
Software console for monitoring, metering, and setting levels

Low-latency drivers support all major pro audio software:
Low Latency ASIO 2.0
WDM kernel streaming mode
GSIF 2.0 (Gigastudio 3 w/ low latency MIDI)
CoreAudio & CoreMIDI

*All specifications are preliminary and subject to change without notice.

Technical Info

Analog Input
2 Balanced TRS connectors

Accepts unbalanced signals

Frequency Response: 20Hz-20kHz, +/-0.1dB

Dynamic Range: 112dB A-weighted

THD+n: <0.002% A-weighted

Nominal Input Level: +4dBu or -10dBV (software configurable)

Analog Output
2 Balanced TRS connectors

Frequency Response: 10Hz-20kHz, +/-0.1dB

Dynamic Range: 114dB A-weighted

THD+n: <0.002% A-weighted

Nominal Output Level: +4dBu or -10dBV (software configurable)

General Converter Specs
128x Oversampling converters

24-bit data resolution maintained throughout signal path

Multiple standard sampling rates supported: 32k, 44.1k, 48k, 88.2k, 96k

S/PDIF Digital Input/Output
Up to 24-bit resolution

Coaxial connector

Consumer/Professional Switch

Sample rates from 32kHz - 96kHz supported

MIDI
MIDI input

MIDI output

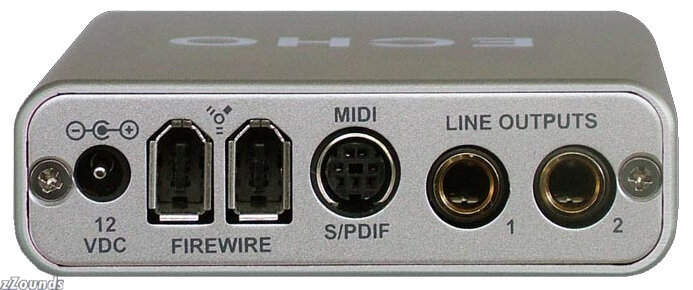

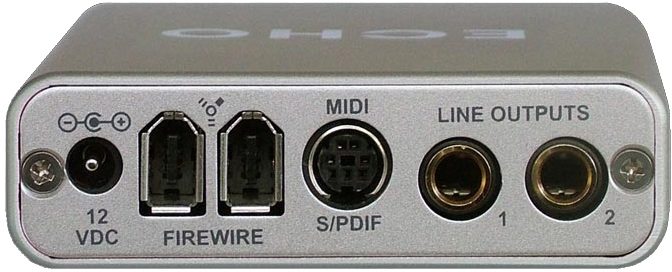

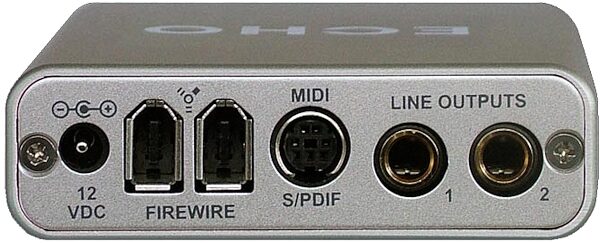

Removable MIDI and S/PDIF Cable
Custom MIDI and S/PDIF cable included

Cable can be removed for portability

Digital Sync
S/PDIF in/out

Headphone Output
High quality 1/8 in. headphone jack

Volume control on front panel

Separately addressable by audio software

General
Digital Mixing

Near zero latency hardware monitoring

Dimensions: 3 1/2 in.(w) x 4 3/4 in. (d) x 1 in. (h)

Host Interface: 1 1394a (FireWire) port

System Requirements
PC:
Windows XP-SP2 or Vista
256 MB RAM (512 MB recommended)

Mac:
Mac OS X (10.3.9 or later)
G4 or better processor
256 MB RAM (512 MB recommended)

All specifications are preliminary.

FireWire interface for fast transfer! Full-featured interfaces with balanced I/O, S/PDIF, and MIDI support. Records at 24-but/96 kHz. Independent headphone output for cue monitoring. Includes Tracktion software. 2 x 2 TRS 1/4 in. I/O.
