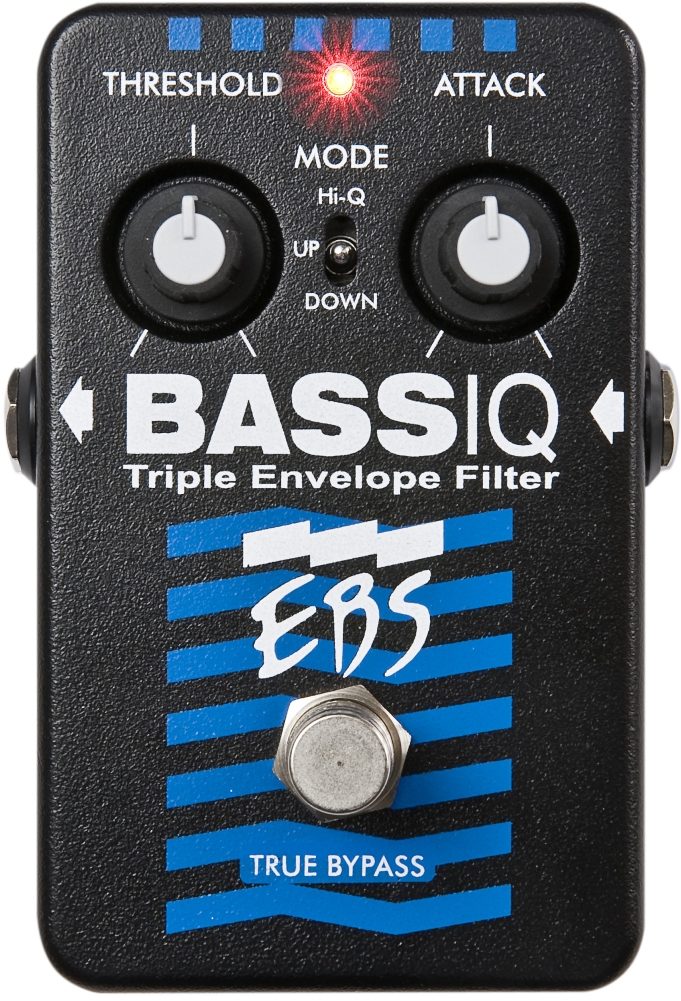

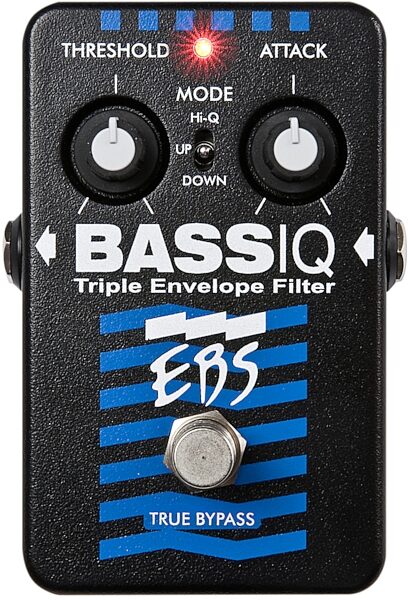

The EBS BassIQ is an analog envelope filter pedal that is triggered by the notes you play. The results are the funkiest and most responsive sounds in a stomp box.
Auto-Wah or Funkadelic Sounds
The pedal achieves sounds ranging from the classic auto-wah to your own unique space-bass or "Funkadelic" sound. It features controls for threshold and attack, and runs in three different modes, Hi-Q, Up and Down. The 2008 edition uses true bypass technique.
Improvements with the new edition
- 3 dB higher headroom
- Higher sensitivity - easier to dial-in
- New analog circuitry with higher dynamics and lower noise.
- Mechanical True Bypass switching
Technical Info
Specifications
Nominal Input Level: - 8 dBv
Input Impedance: 700 kohms
Bypass Bandwidth: +0 / -3 dB - 20 - 20k Hz
Filter Range: 60 - 8k Hz
Filter Q: min / max - 3 / 10
Filter Mode: Down / Up / Up-HiQ
Threshold: -50 - +6 dBv
Attack Time (80%): 50 ms - 2 s
Dimensions (L x W x H): 2.8 x 4.5 x 1.4 in. (70 x 115 x 35 mm)
Weight: 480g (1.07 lb.)
Bypass: True Bypass
Power Requirements: 9 V DC Regulated, 18 mA max
