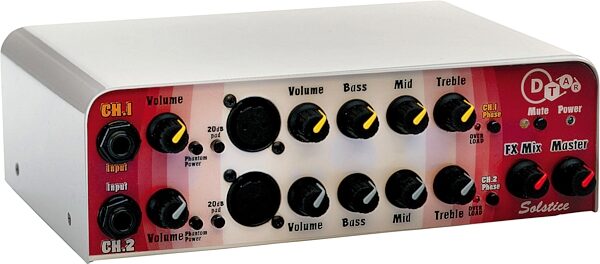

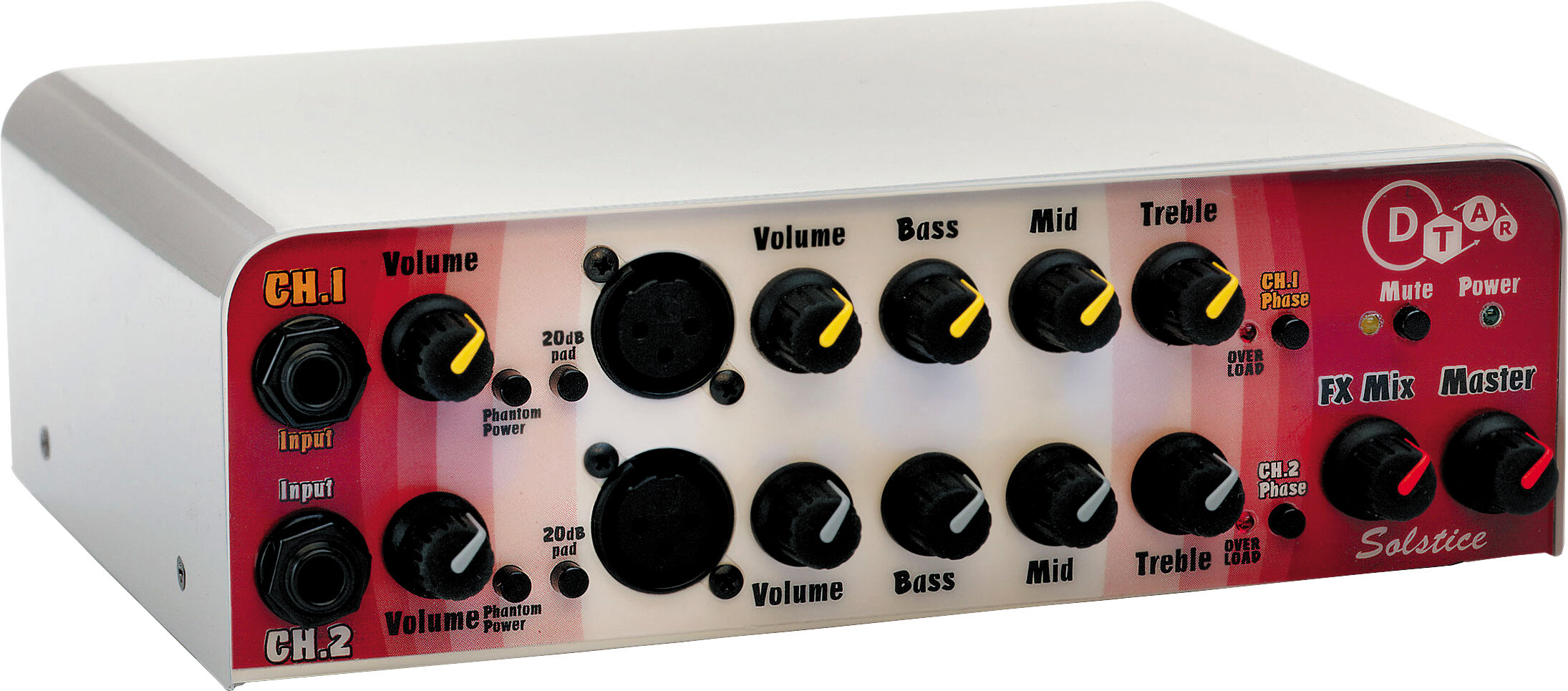

DTAR Solstice Acoustic Guitar Preamp

Solstice is a high quality two channel preamp mixer that blends virtually any type of sound source. The low-noise hybrid circuitry and internally adjustable gain from 0 to 24db make it suitable for both live and studio use. Solstice is the perfect solution for musicians looking to live-mix up to four sources such as piezo pickups, magnetic pickups, standard mics, and high output condenser mics.

Features
1/4 in. and XLR inputs on each channel: Allows either a microphone or pickup input on either channel

Balanced XLR mic input with true gain control for optimum headroom and lowest noise: Very low noise and high common mode rejection ratio. Utilizes discrete hybrid circuitry as in high end mixing consoles

Full 3 way level / clip indicator: Helps set optimum gain for best headroom and signal to noise ratio

Phase reverse switch: Helps control acoustic feedback

Channel effects loop with send and return jacks: Can be used as independent signal output or as insertion point for external signal

Mute switch: Allows complete shut off of rig

Tuner output (unaffected by mute switch): Allows quiet tuning

Stereo input jack: Allows access to both channels with one stereo cable

External wall mount power supply: Allows AC operation

High quality components: Extremely low noise and distortion, audiophile quality sound

Mic stand adapter available as an option: Useful for on-stage applications that use a microphone stand. Allows the performer to have full access to the front panel while facing the audience

Technical Info

Input
Two channel preamp

+15 volt phantom power

Two Ultra-High impedance 10 Meg Ohm stereo 1/4 in. input jacks

Two XLR input jacks with 40dB of gain and switchable 20dB pad

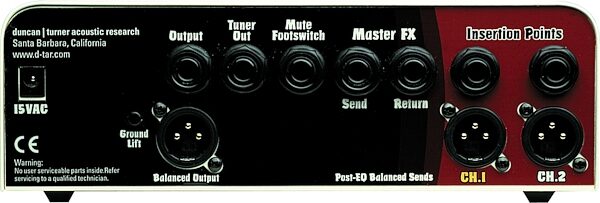

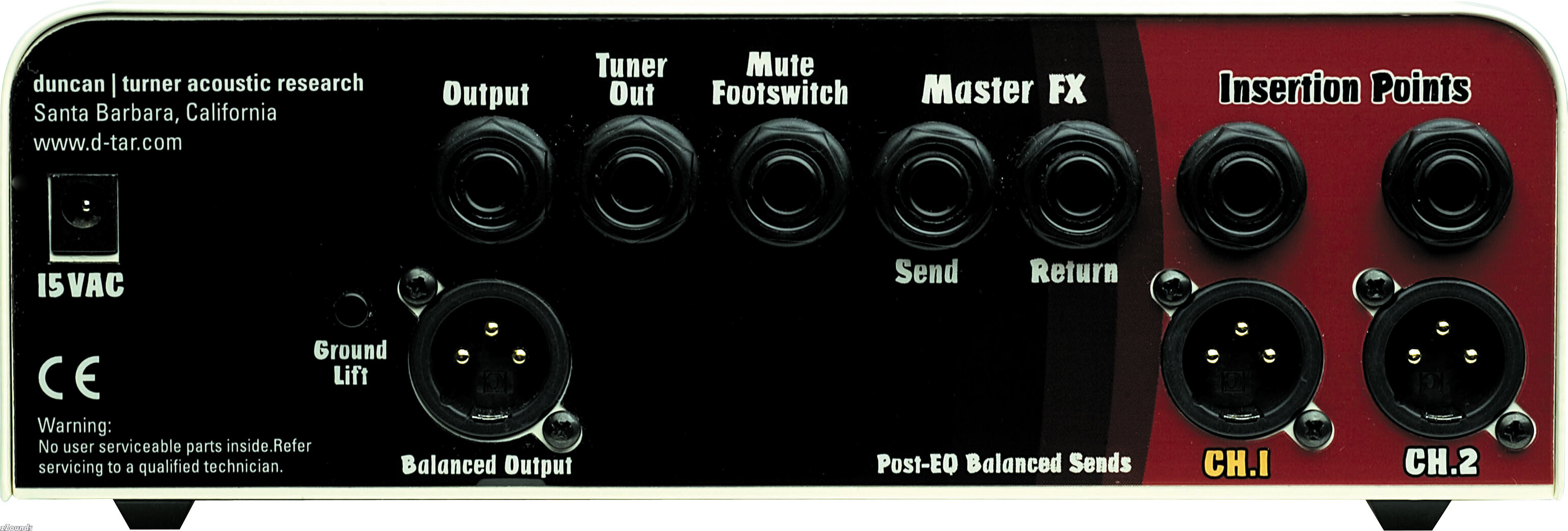

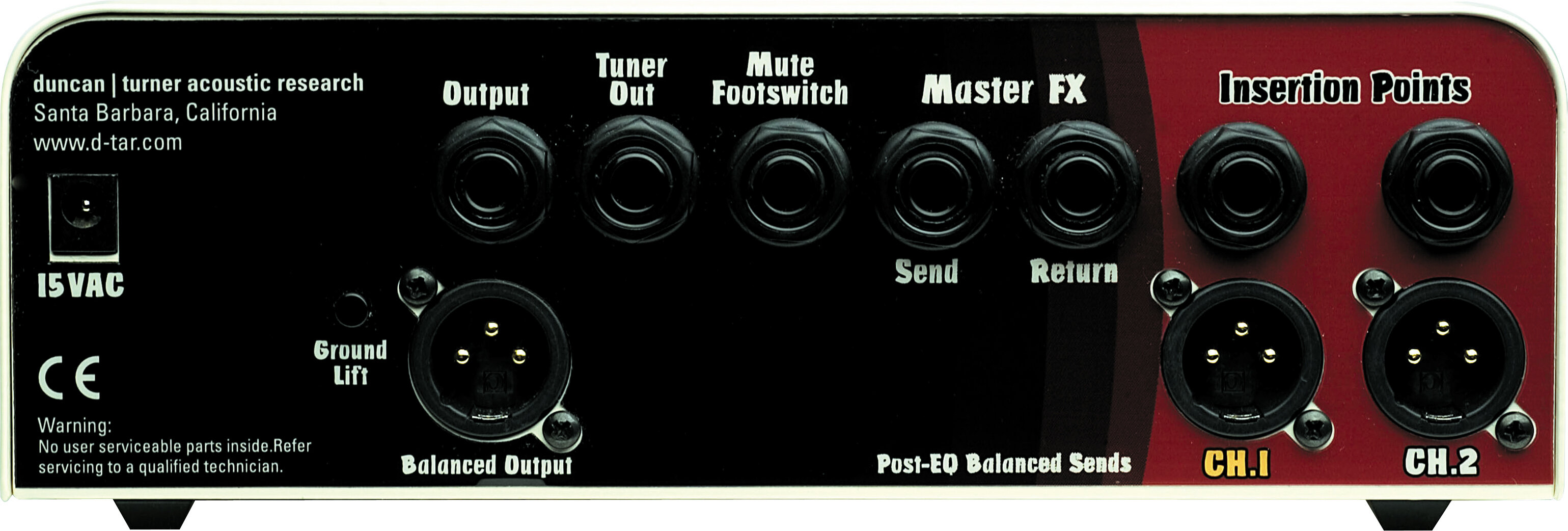

Output
Main XLR output

Two post EQ balanced XLR outputs

Single-ended buffered output with very low output impedance

Master Effects signal output (line level)

Two 1/4 in. stereo insertion points

Tuner / auxiliary output

Dimensions: 8.5 in. wide x 6.5 in. deep x 2.7 in. high

Weight: 2.9 lbs.

Single-ended input gain: 30 dB (adjustable)

Single-ended input noise (referred to input): >110 dBV

Single-ended input THD (@ 2Vo, tone controls flat): < .01%

Single-ended input frequency response (+/- 3 dB): 20 Hz - 80 KHz

Single-ended input maximum input level: 1 Vrms

Single-ended input maximum output level: 7.2 Vrms

Single-ended input input impedance: 10 Meg Ohms

Single-ended input slew rate: 13 V/uS

Mic input gain: 50 dB (20dB pad available)

Mic input noise (referred to input): >125 dBV

Mic input THD (@ 2Vo, tone controls flat): < .01%

Mic input frequency response (+/- 3 dB): 20 Hz - 80 KHz

Mic input maximum input level: 75mV 700Mv w/20 dB pad

Mic input maximum output level: 7.2 Vrms

Mic input input impedance: 8 kilohms (differential)

Mic input slew rate: 13 V/uS

EQ Frequencies
Bass - 155Hz / .61Q

Midrange - 796Hz / .56Q

Treble - 10KHz / .37Q
