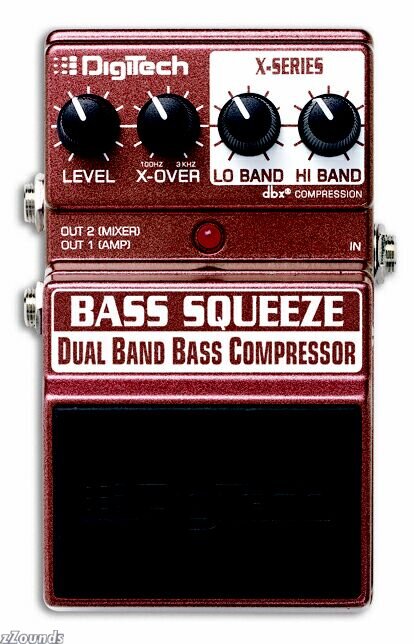

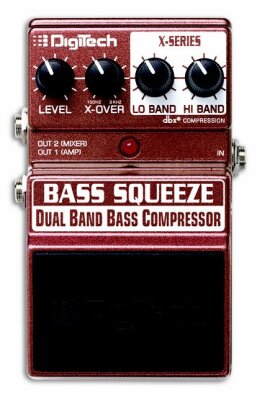

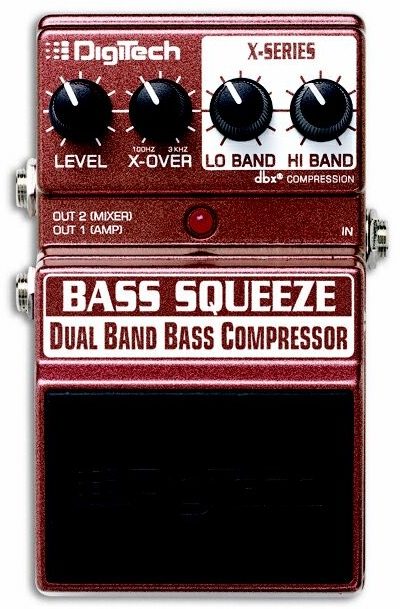

DigiTech Bass Squeeze X-Series Dual Compressor Pedal

The Bass Squeeze is the result of collaboration between DigiTech and dbx to create the world's finest bass compression pedal. Utilizing award- winning dbx OverEasy technology, the Bass Squeeze delivers dual-band compression, creating the best bass compressor found in any stomp box.

Features

Level - controls the overall compression level

Crossover - selects the frequency at which the signal crosses over from the low band to the high band control. The frequency range runs from 100Hz to 3kHz

Low Band - adjusts the amount of low frequency compression plus the output level

Dual Outputs. The Amp output is for connecting directly to a bass amplifier. The Mixer output, with CIT bass cabinet emulation technology, is for connecting directly to a mixing board or headphone preamp.

Technical Info

Controls: Level, X-Over, Lo Band, Hi Band, On/Off Pedal
Jacks: Input, Out 1 (Amp), Out 2 (Mixer)
Input Impedance: 1 MOhms
Output Impedance: 100 Ohms
Power Supply: 9V Alkaline Dry Battery
Power Consumption: 4.8Watts (w/optional PS200R power supply)
Battery Life: Approximately 4 hours (with continuous usage)
Dimensions: 4-15/16 in. (L) x 3-1/8 in. (W) x 2-1/8 in. (H)
Weight: 1.38 lbs.
Optional Power Supply: PS200R
