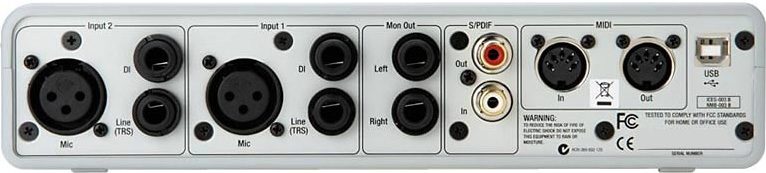

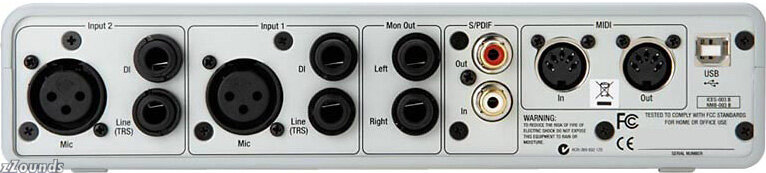

Analog Inputs -- 2Separate source selection and gain control per channel
Mic: XLR with 48V phantom power
Mic preamp: >120 db EIN @ > 40 dB gain
Line: 1/4 in.
DI: 1/4 in.
Maximum Input: 8.7 V RMS (balanced), or +21 dBu
Analog Line Outputs -- 2Maximum Output: +4 dBV into 1 kohm
Unbalanced output connectors
Headphone OutputSeparate volume control, 1/4 in. output
> 6 mW into 50 ohm
Digital I/OS/PDIF I/O (24-bit)
RCA jacks
Misc.24-bit clean to/from the computer
USB type B socket (v. 1.1); cable included (does not support passive USB hubs)

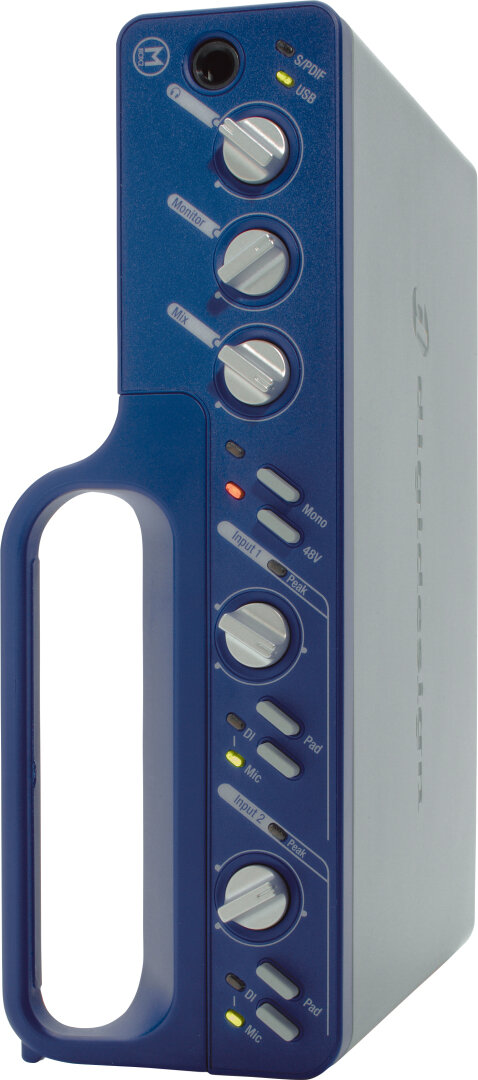

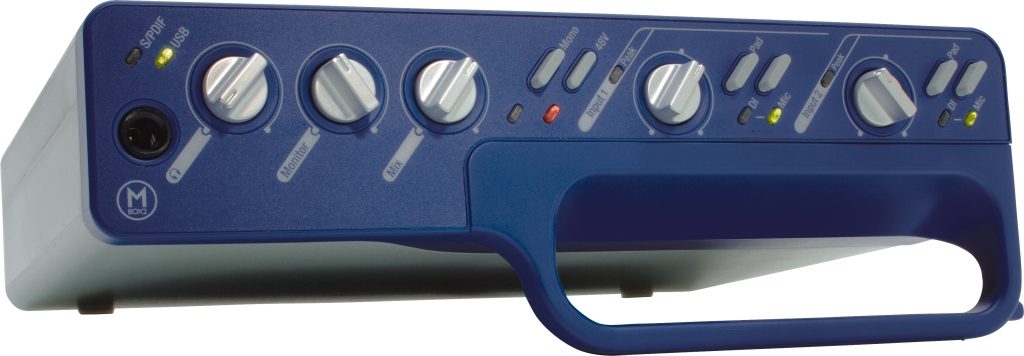

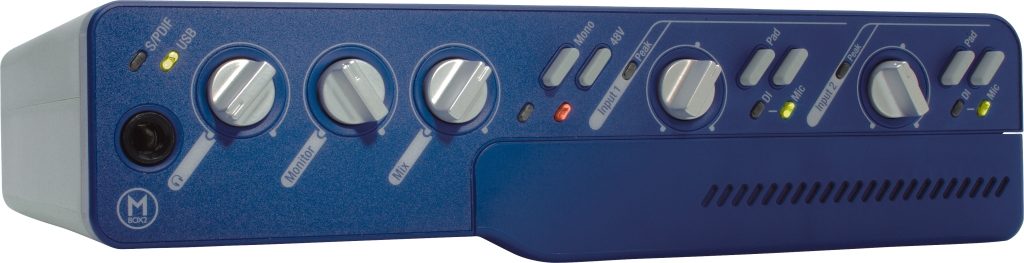

Dimensions -- measured with Mbox 2 in horizontal (handle-down) configurationHeight, box: 14.9cm; with handle: 17.7cm; with handle cover: 15.6cm
Width: 22.4cm
Depth: 18.4cm (includes knobs)
Weight: 1.23 kg.
A/DSample Rate: 44.1, 48 kHz
Dynamic Range: 106 dB (A-weighted), 103 dB (unweighted)1,2
THD+N (line input): 0.003% (-90.4 dB) @ 1 kHz1,3
THD+N @ 40 dB gain (mic input): 0.006% (-84 dB) @ 1 kHz1
Mic EIN (unweighted): -120 dB @ 40 dB gain, 150 ohm source
Frequency Response: +0/-0.5 dB, 20 Hz - 20 kHz3
Maximum Input: +21 dBu
Input Impedance (pad off): Mic=3.5 kOhm; Line=10 kOhm; DI= >1 MOhm.
D/ASample Rate: 44.1, 48 kHz
Dynamic Range: 106 dB (A-weighted), 103 dB (unweighted)1,4
THD+N: 0.003% (-90.4 dB); -1 dBFS @ 1 kHz1,3
Frequency Response: +/-0.5 dB, 20 Hz -- 20 kHz3
1 Measurement made using balanced connectors
2 ADC measured -60 dBFS method with minimum gain setting
3 Measured relative to level at 1 kHz
4 Measured with digital input at -60 dBFS @ 1 kHz
System RequirementsDigidesign-qualified Windows Vista- (32-bit Business or Ultimate), Windows XP- or Mac OS X 10.5-based computer
Minimum 1 GB of RAM
DVD-ROM or equivalent optical drive for software installation
Available USB port for Mbox 2 system (USB hubs not supported)
- New
- Shipping Weight: 5.4 lbs
-
Shipping Dimensions:
12 x
10 x
5 in
- New, with Factory Bundle
- Shipping Weight: 5.6 lbs
-
Shipping Dimensions:
12 x
10 x
5 in
