dbx DriveRack 260 EQ and Speaker Control Processor

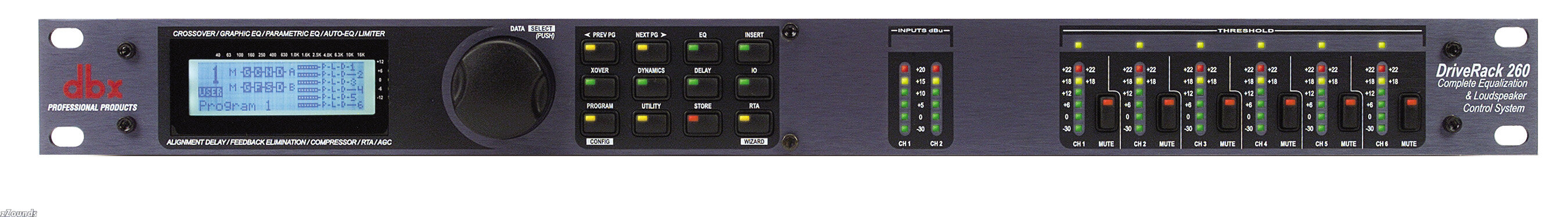

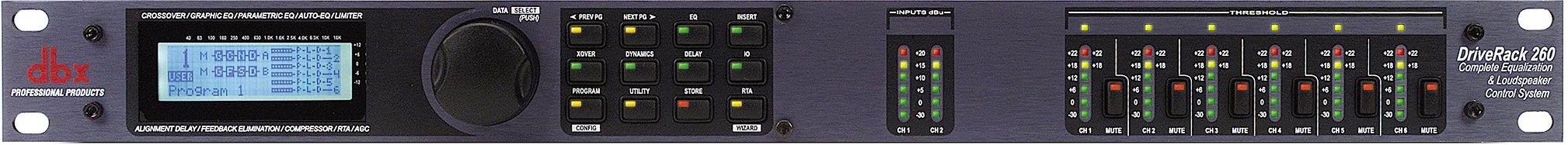

dbx DriveRack 260
There is a reason that Tour Sound Professionals and discriminating Audio Contractors choose dbx DriveRack products for their high-end tours and installs. The DriveRack products provide the tools that ensure that the system sounds its very best. With the introduction of the new 260, the heritage of unrivaled system/loudspeaker control continues.

The 260 capitalizes on the road tested and contractor approved nature of the other products in the DriveRack line. The 260 provides full bandpass and crossover configurations as well as independent output processing and a full time RTA for live sound applications. Contractors will appreciate its control inputs for wall-panel logic control and the patent-pending Advanced Feedback Suppression (AFS).

The DriveRack 260 continues the legacy of DriveRack series, which has been created by the company that has been redefining the standard of signal processing for more than 30 years. The DriveRack 260 was designed with the purpose and vision of providing state-of-the-art signal processing, while utilizing a simple and intuitive user interface. This goal has been achieved by offering two independent channels of processing power with a linkable 28-Band Graphic Equalizer, industry-standard dbx stereo compressor module, feedback eliminator and the 120A Subharmonic Synthesizer on the input, with a six channel output system that includes parametric EQs, PeakStopPlus(TM) limiters (to provide protection against speaker blowouts) and alignment delay. These features combined with the Wizard setup system and complete DriveWare GUI control represent a methodical design that is guaranteed to deliver optimal, all-inclusive processing in a completely scalable system.

Features

Feedback Elimination

2.7 Seconds of Alignment and Zone Delay

RS-232 PC GUI control

Classic dbx Compression and Limiting

Graphic and Parametric EQ

Auto-EQ Function

Full Bandpass, Crossover, and Routing Configurations

Auto Gain Control

Pink Noise Generator and fulltime RTA

Setup Wizard with JBL speaker and Crown Power Amplifier Tunings

Security Lockout

Wall Panel Control Inputs

Technical Info

Analog Inputs

Number of Inputs: (2) Line inputs. (1) RTA Mic input
Connectors: (2) Female XLR line inputs. XLR RTA Mic input
Type: Electronically balanced/RF filtered
Impedance: >40 k ohm
Max Input line level: +34dBu with input jumpers in +30 position
CMRR: >45 dB
RTA Mic Phantom Voltage: +15 VDC
RTA Mic EIN: <-110 dBu, 22 Hz - 22 kHz, 150 ohm

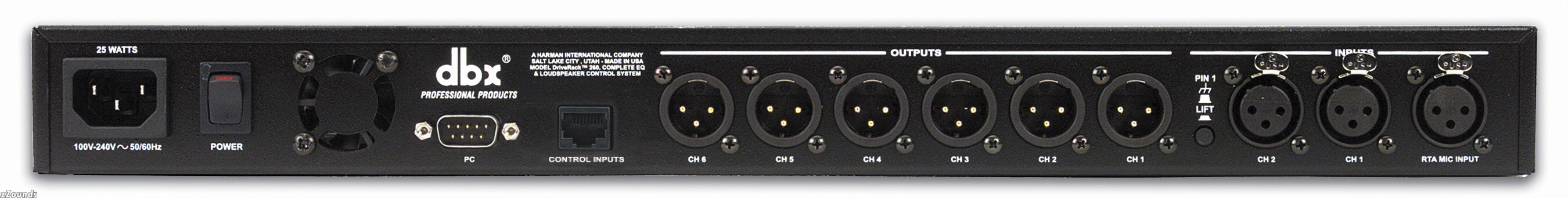

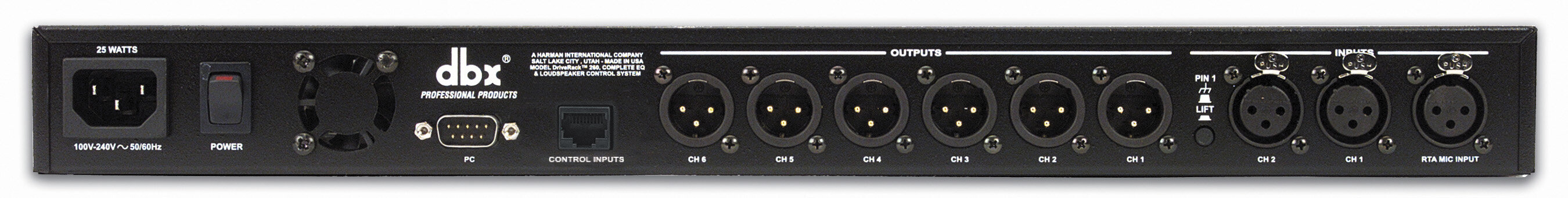

Analog Outputs

Number of Outputs: 6
Connectors: Male XLR
Type: Electronically balanced, RF filter
Impedance: 120 ohms
Max Output Level: +22dBu

A/D Performance

Type: dbx Type IV conversion system
Dynamic Range line: >114 dB A-weighted, >112 dB unweighted
Type IV dynamic range: >119 dB, A-weighted, 22kHz BW, >117 dB, A-weighted, 22kHz BW
Sample Rate: 48 kHz

D/A Performance

Dynamic Range: 112 dB A-unweighted, 110 dB unweighted

System Performance

Dynamic Range: 110 dB unweighted, >107 dB weighted
THD + N: 0.002% typical at +4 dBu, 1 kHz, 0 dB input gain
Frequency Response: 20 Hz - 20 kHz, +/-0.5 dB
Interchannel Crosstalk: >110 dB, 120 dB typical
Crosstalk input to output: >100 dB

Serious PA tuning in a single rack space! Featuring a full-time RTA, feedback elimination, graphic and parametric EQ, dbx compression and limiting, a subharmonic synthesizer, and 2.7 seconds of delay for alignment. RTA mic input and 2 line inputs; 6 XLR outputs.
