dbx 234S Crossover (Stereo 2- or 3-Way, Mono 4-Way)
Make your speakers sound better than ever with the dbx 234S crossover. Equipped with Linkwitz-Riley 24dB per octave filters and output phase inversion.
$289.00
- No Credit Check6 x$48.17
- No Credit Check4 x$72.25
dbx 234 Stereo 2/3-Way, Mono 4-Way Crossover
No longer available at zZounds
TRS balanced ins and outs, summed subwoofer output, 40Hz high pass filter on both channels, individual level controls and phase reverse switch on each output. Also features 24dB/octave Linkwitz-Riley filters.
Overview
Let's take a look at the construction features of the dbx 234. At first glance you'll notice the units are great looking, and as you turn the controls something else becomes apparent; these units are extremely well built. The controls exude great precision, and the feel is a solid "click." Also, when you open the box, you won't find the external power supply that accompanies most processors in this price range. That's because dbx knows how difficult external power supplies can be to work with and even though it costs a little more we put the high quality power supply right in the unit. All the inputs and outputs are TRS differentially balanced 1/4 in. jacks that are bolted down to the chassis. This "nutting down" of the jacks insures that even if someone steps on a cable plugged into the unit, it's not going to tear up the circuit board inside. All dbx crossovers feature Linkwitz-Riley 24 dB per octave filters, the professional standard, but then again, what did you expect?

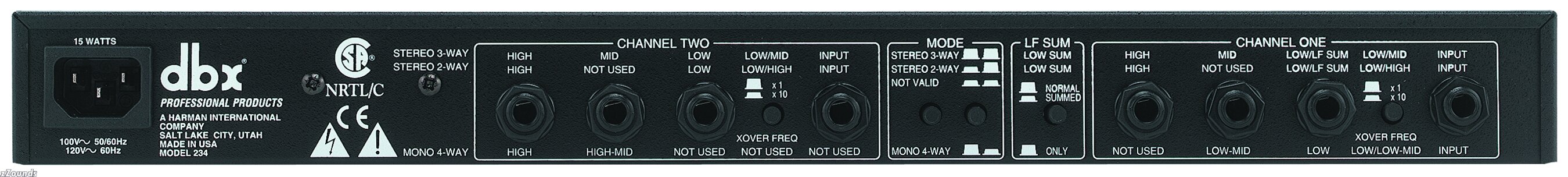

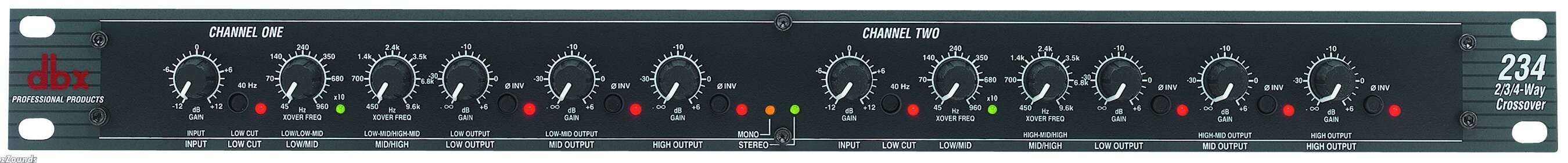

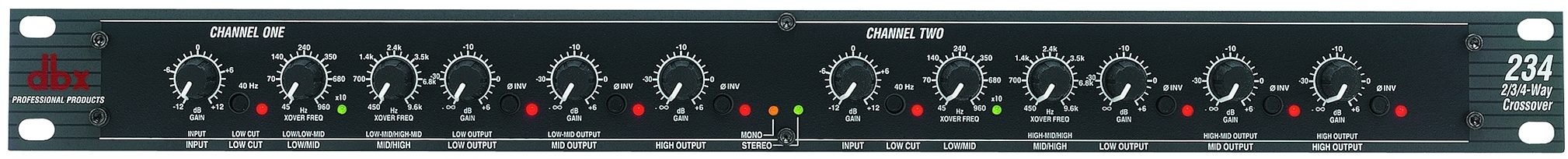

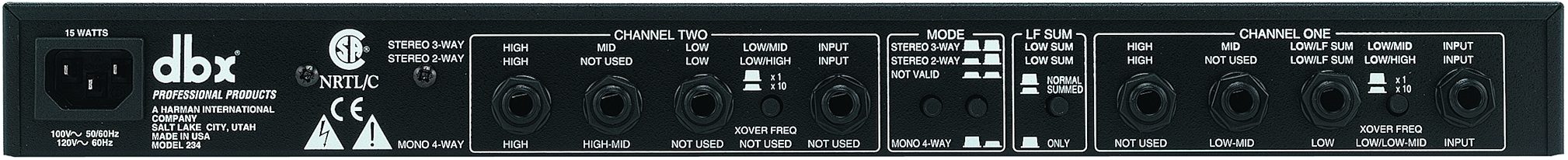

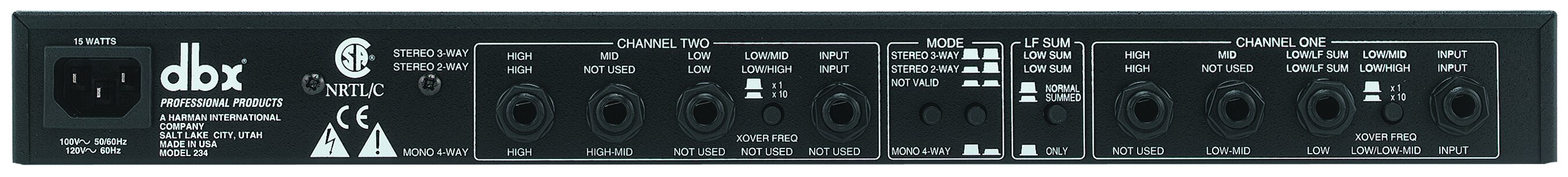

Via 2 switches on the back panel you first select whether you're operating your system in stereo 2-way, 3-way or mono 4-way. Another back panel switch also selects whether or not you want to mono sum the LF (subwoofer) out. (Most systems that use a subwoofer are mono subbed to take advantage of amplifier power and because low frequencies are non-directional.) Back panel switches allow you to select the range of the crossover frequencies individually for both channels. The crossover frequency controls have… read more a green LED that indicates the X10 switch on the back panel is activated (we wouldn't make you check the switch position on the back every time you wonder where it's set). All these switches are on the back panel because it could be disastrous if you were to change them mid-program. On the front panel you'll notice there are LEDs that indicate whether the unit is in mono or stereo mode. Each channel has an input gain control for proper level setting. There's a recessed 40 Hz low cut (HPF) on each channel to remove unwanted low frequencies. Both the low and high outputs on each channel have a gain control ranging from - to +6 dB, to allow muting of individual outputs and for level matching. Also, these outputs each have phase reverse switches that'll help get you out of a bind without having to reconfigure your system. These phase reverse switches may be internally reconfigured as mute switches.
You'll get great performance, all the features you'd expect from a professional product, and the knowledge that you're buying a processor from the people that have been producing the world's finest processors for over 20 years. The technology that made dbx famous brings you a dbx crossover which has been tested to the highest professional standards at a price that's just too low to admit!
TRS differentially balanced ins and outs
Mode switches for mono 4-way or stereo 2-way/3-way operation
Low frequency summed (subwoofer) output
x10 range switch on both channels
40 Hz high pass (low cut) filter both channels
Phase reverse switch on all outputs
Individual level controls on all band outputs
24 dB per octave Linkwitz-Riley filters (the professional standard)
Stereo/Mono status LEDs indicate the selected mode
dbx 2 year parts and labor as standard
CSA NRTL/C approved
CE compliant read less
Via 2 switches on the back panel you first select whether you're operating your system in stereo 2-way, 3-way or mono 4-way. Another back panel switch also selects whether or not you want to mono sum the LF (subwoofer) out. (Most systems that use a subwoofer are mono subbed to take advantage of amplifier power and because low frequencies are non-directional.) Back panel switches allow you to select the range of the crossover frequencies individually for both channels. The crossover frequency controls have… read more a green LED that indicates the X10 switch on the back panel is activated (we wouldn't make you check the switch position on the back every time you wonder where it's set). All these switches are on the back panel because it could be disastrous if you were to change them mid-program. On the front panel you'll notice there are LEDs that indicate whether the unit is in mono or stereo mode. Each channel has an input gain control for proper level setting. There's a recessed 40 Hz low cut (HPF) on each channel to remove unwanted low frequencies. Both the low and high outputs on each channel have a gain control ranging from - to +6 dB, to allow muting of individual outputs and for level matching. Also, these outputs each have phase reverse switches that'll help get you out of a bind without having to reconfigure your system. These phase reverse switches may be internally reconfigured as mute switches.
You'll get great performance, all the features you'd expect from a professional product, and the knowledge that you're buying a processor from the people that have been producing the world's finest processors for over 20 years. The technology that made dbx famous brings you a dbx crossover which has been tested to the highest professional standards at a price that's just too low to admit!
TRS differentially balanced ins and outs
Mode switches for mono 4-way or stereo 2-way/3-way operation
Low frequency summed (subwoofer) output
x10 range switch on both channels
40 Hz high pass (low cut) filter both channels
Phase reverse switch on all outputs
Individual level controls on all band outputs
24 dB per octave Linkwitz-Riley filters (the professional standard)
Stereo/Mono status LEDs indicate the selected mode
dbx 2 year parts and labor as standard
CSA NRTL/C approved
CE compliant read less
Specs
Input
Connectors: 1/4" TRS
Type: Electronically balanced/unbalanced, RF filtered
Impedance: Balanced > 50 k, unbalanced > 25 k
Max Input Level: > +21 dBu balanced or unbalanced
CMRR: > 40 dB, typically > 55 dB at 1 kHz
Output
Connectors: 1/4" TRS
Type: Impedance-balanced/unbalanced, RF filtered
Impedance: Balanced 200 , unbalanced 100
Max Output Level: > +21 dBu balanced/unbalanced into 2 k or greater
Performance
Bandwidth: 20 Hz to 20 kHz, +0/-0.5 dB
Frequency Response: < 3 Hz to > 90 kHz, +0/-3 dB
Signal-to-Noise: Ref: +4 dBu, 22 kHz measurement bandwidth
Stereo Mode: Mono Mode:
Low Output: > 94 dB > 94 dB
Low-Mid Output: > 94 dB
Mid Output: > 93 dB
High-Mid Output: > 92 dB
High Output: > 92 dB > 92 dB
Dynamic Range: > 114 dB, unweighted, any output
THD+Noise: < 0.004% at +4 dBu, 1 kHz
< 0.04% at +20 dBu, 1 kHz
Interchannel Crosstalk: < -80 dB, 20 Hz to 20 kHz
Crossover Frequencies
Stereo Mode:
Low/Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
Mid/High: 450 Hz to 9.6 kHz
Mono Mode:
Low/Low-Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
Low-Mid/High-Mid: 450 Hz to 9.6 kHz
High-Mid/High: 450 Hz o 9.6 kHz
Filter Type: Linkwitz-Riley, 24 dB/octave, state-variable
Function Switches
Front Panel:
Low Cut: Activates 40 Hz Butterworth, 12 dB/octave high-pass filter, one switch per channel.
Phase Invert: Inverts the phase at the output, one switch per output.
Rear Panel:
x1/x10: Multiplies the low-mid (mono: low/low-mid) crossover frequency range of the front-panel markings by a factor of 1 or 10, one switch per channel.
Mode: Selects stereo 2-way, 3-way or mono 4-way operation and disables all LEDs for controls that are non-functional in the mono mode.
LF Sum: Selects normal (stereo) or mono-summed low frequency operation and disables Ch 2's low output phase invert LED to indicate that this output is not operational in the LF sum mode.
Indicators
Stereo Operation: Green LED
Mono Operation: Yellow LED
Connectors: 1/4" TRS
Type: Electronically balanced/unbalanced, RF filtered
Impedance: Balanced > 50 k, unbalanced > 25 k
Max Input Level: > +21 dBu balanced or unbalanced
CMRR: > 40 dB, typically > 55 dB at 1 kHz
Output
Connectors: 1/4" TRS
Type: Impedance-balanced/unbalanced, RF filtered
Impedance: Balanced 200 , unbalanced 100
Max Output Level: > +21 dBu balanced/unbalanced into 2 k or greater
Performance
Bandwidth: 20 Hz to 20 kHz, +0/-0.5 dB
Frequency Response: < 3 Hz to > 90 kHz, +0/-3 dB
Signal-to-Noise: Ref: +4 dBu, 22 kHz measurement bandwidth
Stereo Mode: Mono Mode:
Low Output: > 94 dB > 94 dB
Low-Mid Output: > 94 dB
Mid Output: > 93 dB
High-Mid Output: > 92 dB
High Output: > 92 dB > 92 dB
Dynamic Range: > 114 dB, unweighted, any output
THD+Noise: < 0.004% at +4 dBu, 1 kHz
< 0.04% at +20 dBu, 1 kHz
Interchannel Crosstalk: < -80 dB, 20 Hz to 20 kHz
Crossover Frequencies
Stereo Mode:
Low/Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
Mid/High: 450 Hz to 9.6 kHz
Mono Mode:
Low/Low-Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
Low-Mid/High-Mid: 450 Hz to 9.6 kHz
High-Mid/High: 450 Hz o 9.6 kHz
Filter Type: Linkwitz-Riley, 24 dB/octave, state-variable
Function Switches
Front Panel:
Low Cut: Activates 40 Hz Butterworth, 12 dB/octave high-pass filter, one switch per channel.
Phase Invert: Inverts the phase at the output, one switch per output.
Rear Panel:
x1/x10: Multiplies the low-mid (mono: low/low-mid) crossover frequency range of the front-panel markings by a factor of 1 or 10, one switch per channel.
Mode: Selects stereo 2-way, 3-way or mono 4-way operation and disables all LEDs for controls that are non-functional in the mono mode.
LF Sum: Selects normal (stereo) or mono-summed low frequency operation and disables Ch 2's low output phase invert LED to indicate that this output is not operational in the LF sum mode.
Indicators
Stereo Operation: Green LED
Mono Operation: Yellow LED
