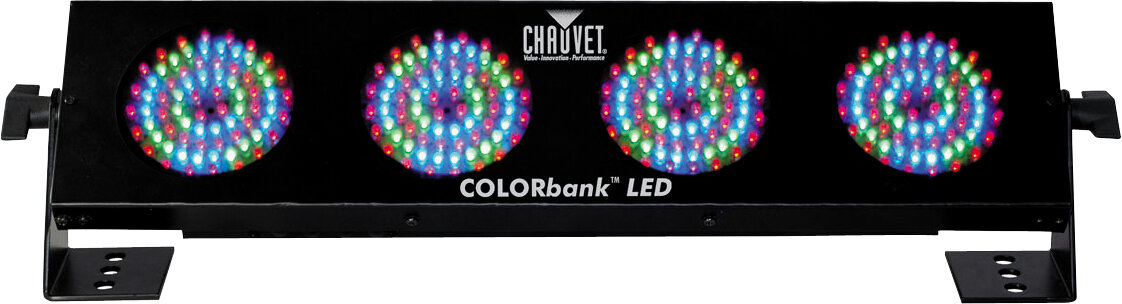

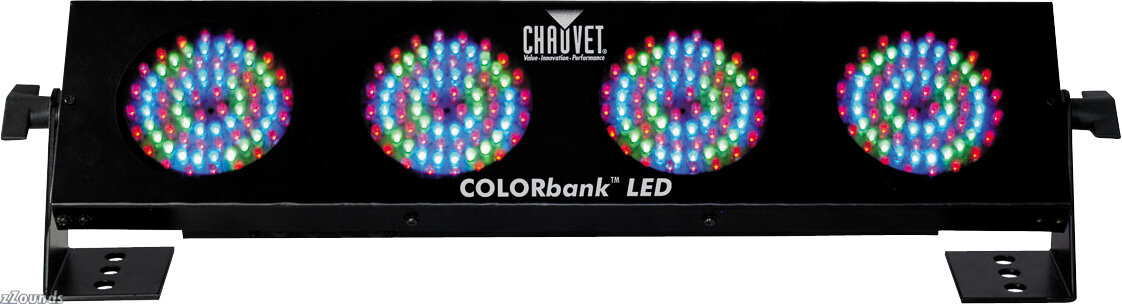

Chauvet Colorbank LED 4 Light Bank with DMX
No longer available at zZounds
zZounds Gear Experts Say...
2 to 4 channel DMX-512 LED wash light.
Overview
The Chauvet COLORbank LED 4 is fitted with a total of 304 long life diodes housed in four pods and offers full RGB mixing capability. It is also DMX-512 programmable and produces a concentrated, richly colored flood, making it ideal for runway lighting effects. The LEDs offer the advantages of low power consumption and heat emission. Multiple units can be daisy-chained for runway lighting over a long distance. You can trigger built in color change programs as well as activate chase and fade functions through a long row of connected units via DMX and in master/slave mode. All functions, including RGB mixing, can be performed in stand-alone.
Features
2 to 4 channel DMX-512 LED wash light
Operating Modes:
-- 2 channel mode: Auto run, Run speed
-- 2 channel mode: Color fade, Run speed
-- 3 channel mode: Presets, Run speed, Flash speed
-- 4 channel mode: RGB mix control
304 LEDs total in 4 sections, 76 LEDs per segment
Red (40), green (18) and blue (18) per segment
RGB color mixing
Built in color change programs
Master-Slave mode with additional output for daisy chain setup
Color-changing runway effect program
Includes bracket that links 2 fixtures together as a single unit
Low power consumption
Programmable via any universal DMX-512 controller
Features
2 to 4 channel DMX-512 LED wash light
Operating Modes:
-- 2 channel mode: Auto run, Run speed
-- 2 channel mode: Color fade, Run speed
-- 3 channel mode: Presets, Run speed, Flash speed
-- 4 channel mode: RGB mix control
304 LEDs total in 4 sections, 76 LEDs per segment
Red (40), green (18) and blue (18) per segment
RGB color mixing
Built in color change programs
Master-Slave mode with additional output for daisy chain setup
Color-changing runway effect program
Includes bracket that links 2 fixtures together as a single unit
Low power consumption
Programmable via any universal DMX-512 controller
Specs
Beam angle: 38* x 30*
Field angle: 63* x 53*
Lux: 599 @ 1m
Light source: 304 (160 red, 72 green, 72 blue) LEDs 100,000hrs, 76 per bank
Power and current: 120v, 60Hz: 24W, 0.2A operating, 0.3A inrush
AC Power: Autoswitching 90V - 240V 50/60Hz
Weight: 6.5 lbs (3 kgs)
Size: 22.5 x 5.8 x 3.8in, 572 x 146 x 97 mm
Field angle: 63* x 53*
Lux: 599 @ 1m
Light source: 304 (160 red, 72 green, 72 blue) LEDs 100,000hrs, 76 per bank
Power and current: 120v, 60Hz: 24W, 0.2A operating, 0.3A inrush
AC Power: Autoswitching 90V - 240V 50/60Hz
Weight: 6.5 lbs (3 kgs)
Size: 22.5 x 5.8 x 3.8in, 572 x 146 x 97 mm
No longer available at zZounds
In most cases, a product is unavailable because it has been discontinued by the manufacturer
