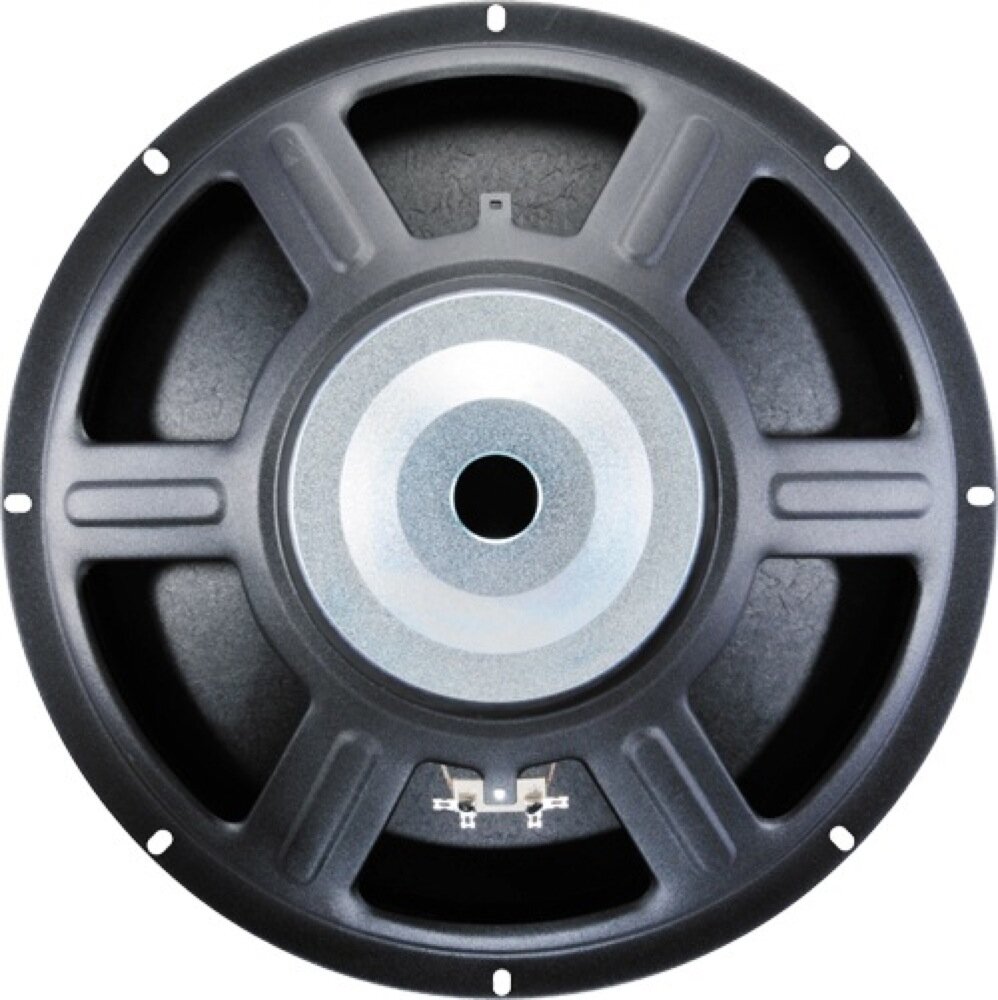

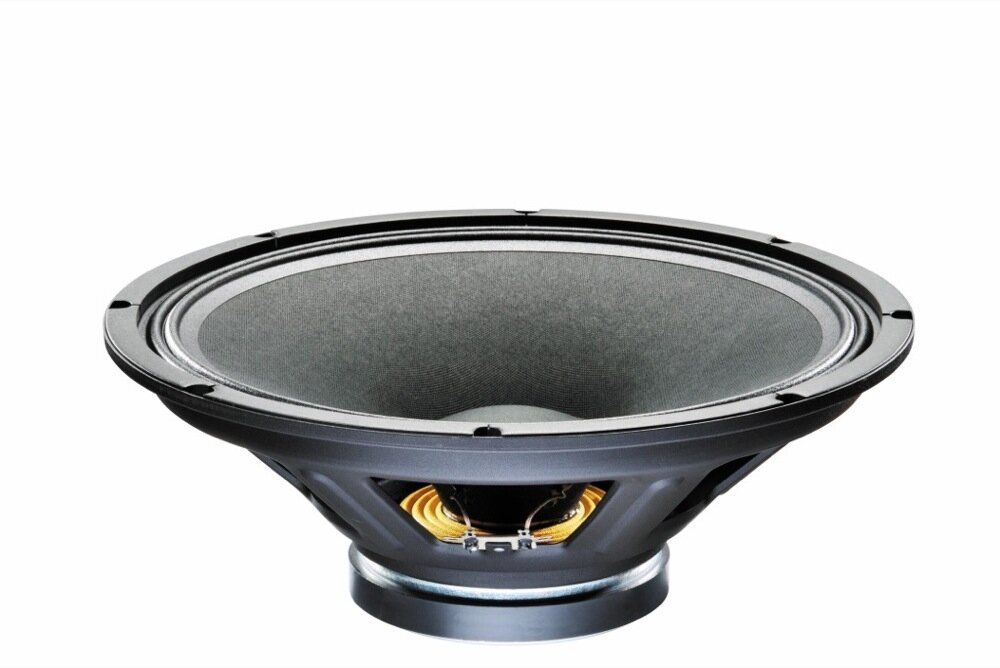

Celestion TF1525 Bass Speaker (600 Watts, 15")
No longer available at zZounds
Upgrade your 2-way or 3-way PA boxes with this 15" speaker driver from Celestion. Its Kevlar cone with sealed surround is designed to reduce distortion.
Overview
The Celestion TF1525 replacement speaker provides top notch features including Kevlar-loaded cone with sealed surround for extremely low distortion. This reliable speaker is the perfect choice for two and three way PA cabs and will outperform anything you have in yours right now.
- 2.5 inch high temperature copper voice coil wound on polyimide for increased reliability
- Ideal for 2-way and 3-way systems
- Kevlar-loaded cone with sealed surround and damping for reduced distortion
- Rigid chassis design for maximum energy transfer
- Vented magnet assembly for enhanced cooling
Features:
- 15 inch bass and mid-range driver providing 98dB sensitivity and 250Wrms power handling- 2.5 inch high temperature copper voice coil wound on polyimide for increased reliability
- Ideal for 2-way and 3-way systems
- Kevlar-loaded cone with sealed surround and damping for reduced distortion
- Rigid chassis design for maximum energy transfer
- Vented magnet assembly for enhanced cooling
Specs
General:
- Nominal diameter: 381mm/15in
- Power rating: 250Wrms
- Nominal impedance: 8 ohms
- Sensitivity: 98dB
- Frequency range: 40-3000Hz
- Voice coil diameter: 64mm/2.5in
- Chassis type: Pressed steel
- Magnet type: Ferrite
- Magnet weight: 1.2kg/42oz
- Coil material: Round copper
- Former material: Polyimide
- Cone material: Kevlar loaded paper
- Surround material: Cloth-sealed
- Suspension: Single
- Xmax: 2.5mm/0.1in
- Gap depth: 8mm/0.31in
- Voice coil winding width: 13mm/0.51in
Mounting Information:
- Diameter: 385mm/15.16in
- Overall depth: 153mm/6.02in
- Cut-out diameter: 351mm/13.82in
- Mounting slot dimensions: 9.2mm x 6.2mm/0.36in x 0.24in
- Number of mounting slots: 8
- Mounting PCD range: 369mm/14.56in
- Weight: 5.2kg/11.5lb
- Nominal diameter: 381mm/15in
- Power rating: 250Wrms
- Nominal impedance: 8 ohms
- Sensitivity: 98dB
- Frequency range: 40-3000Hz
- Voice coil diameter: 64mm/2.5in
- Chassis type: Pressed steel
- Magnet type: Ferrite
- Magnet weight: 1.2kg/42oz
- Coil material: Round copper
- Former material: Polyimide
- Cone material: Kevlar loaded paper
- Surround material: Cloth-sealed
- Suspension: Single
- Xmax: 2.5mm/0.1in
- Gap depth: 8mm/0.31in
- Voice coil winding width: 13mm/0.51in
Mounting Information:
- Diameter: 385mm/15.16in
- Overall depth: 153mm/6.02in
- Cut-out diameter: 351mm/13.82in
- Mounting slot dimensions: 9.2mm x 6.2mm/0.36in x 0.24in
- Number of mounting slots: 8
- Mounting PCD range: 369mm/14.56in
- Weight: 5.2kg/11.5lb
