Celestion TF1225 Bass-Mid Speaker (500 Watts, 12")

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

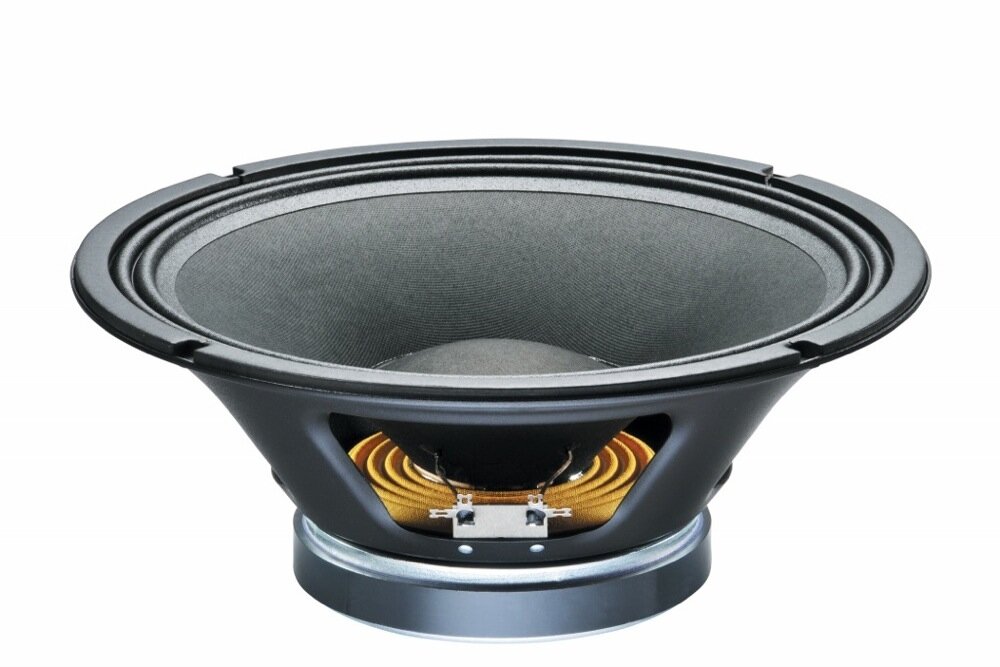

Celestion TF1225 Bass-Mid Speaker (500 Watts, 12"), Main
Celestion TF1225 Bass-Mid Speaker (500 Watts, 12"), Main
Need a 12" replacement speaker with high power handling? Ideal for 2-way or 3-way PA cabinets, the TF1225 delivers 250 watts RMS and weighs only 9 pounds.

The Celestion TF1225 replacement speaker is perfect for those looking for high performance and fantastic audio quality in a lightweight package. This great speaker weighs only 9lbs and provides 250 watts RMS, the perfect size for most two and three way PA speaker cabs.

Features:

- 12 inch Bass and mid-range driver providing 97dB sensitivity and 250 Watts RMS power handling
- 2.5 inch high temperature copper voice coil wound on polyimide for increased reliability
- Optimized ferrite magnet design reduces weight
- Double roll surround for greater excursion control
- For use in 2-way or compact 3-way systems

General:
- Nominal diameter: 305mm/12in
- Power rating: 250Wrms
- Nominal impedance: 8 ohms
- Sensitivity: 97dB
- Frequency range: 50-4000Hz
- Voice coil diameter: 64mm/2.5in
- Chassis type: Pressed steel
- Magnet type: Ferrite
- Magnet weight: 1.2kg/42oz
- Coil material: Round copper
- Former material: Polyimide
- Cone material: Kevlar loaded paper
- Surround material: Cloth-sealed
- Suspension: Single
- Xmax: 2.5mm/0.1in
- Gap depth: 8mm/0.31in
- Voice coil winding width: 13mm/0.51in

Mounting Information:
- Diameter: 309mm/12.17in
- Overall depth: 130mm/5.12in
- Cut-out diameter: 283mm/11.14in
- Mounting slot dimensions: 7.9/0.31
- Number of mounting slots: 4
- Mounting PCD range: 297mm/11.69in
- Weight: 4.1kg/9.0lb

For support or warranty questions, please contact the manufacturer:
Phone: 800-996-8637
Web: https://celestion.com/about-us/contact-us/

Be the first to rate and review this product.

No longer available at zZounds

In most cases, a product is unavailable because it has been discontinued by the manufacturer
