Celestion TF1218 Bass-Mid Speaker (200 Watts, 12")

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

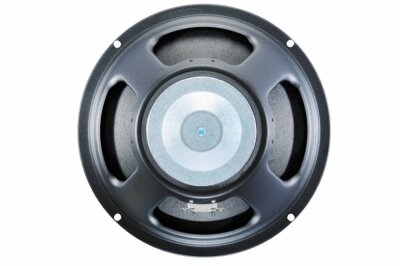

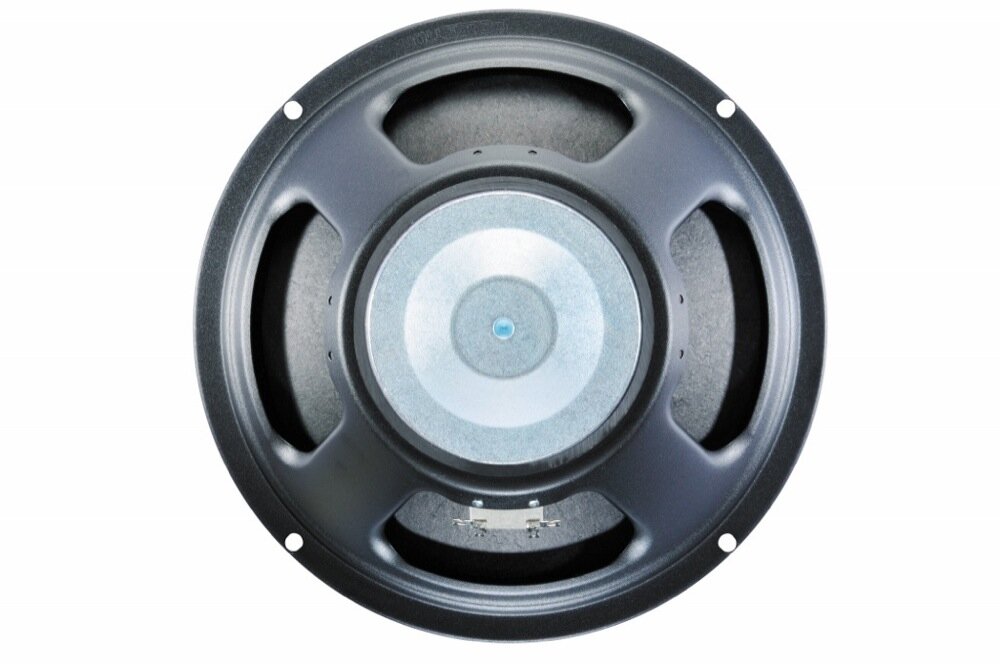

open zoom image for Celestion TF1218 Bass-Mid Speaker (200 Watts, 12"), Main

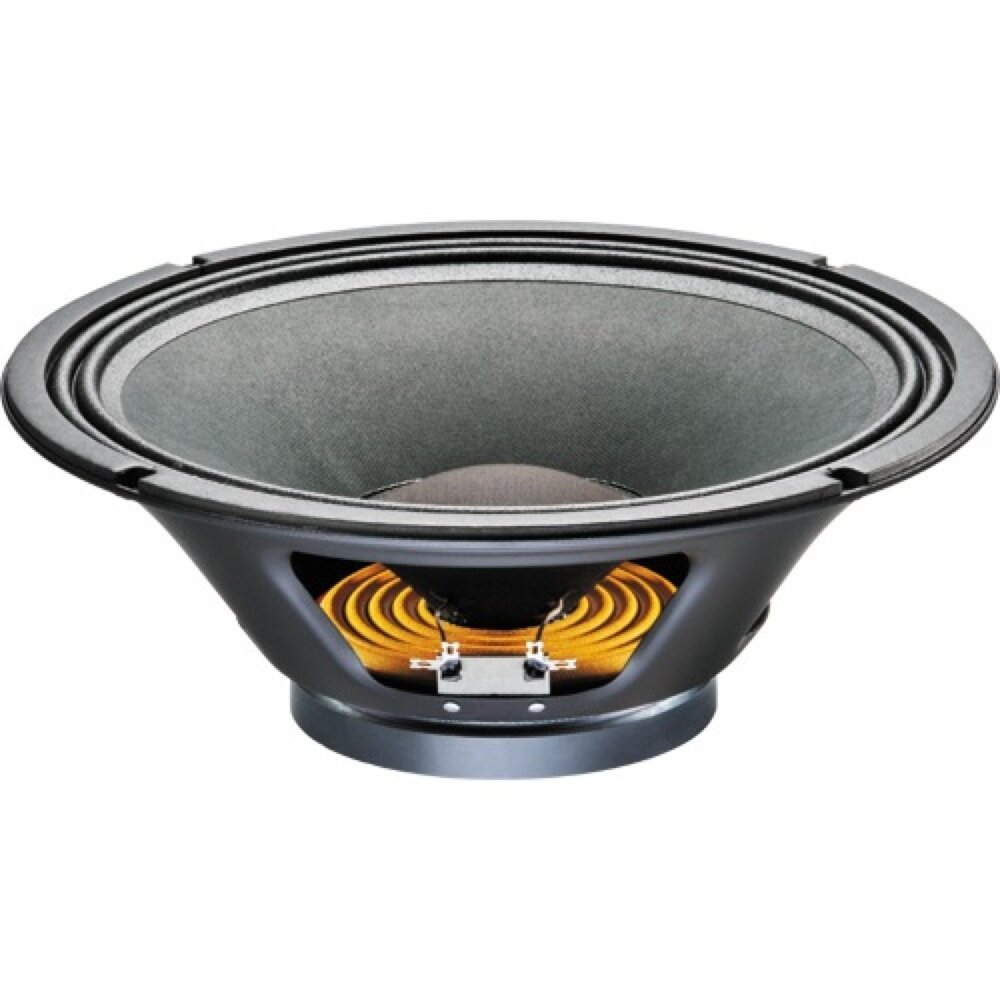

open zoom image for Celestion TF1218 Bass-Mid Speaker (200 Watts, 12"), Side
Celestion TF1218 Bass-Mid Speaker (200 Watts, 12"), Main Celestion TF1218 Bass-Mid Speaker (200 Watts, 12"), Side
zZounds Gear Experts Say...
Upgrade the low-mid drivers in your 2-way PA cabs with Celestion TF1218s. This 12" replacement speaker handles up to 100 watts RMS and 200 watts peak power.

The Celestion TF1218 replacement speaker is the perfect choice if you want to replace or upgrade the driver in your 2-way PA cab. The TF1218 speaker is designed to provide maximum audio quality extremely low distortion. Plus, with Celestion you know you can trust it night after night!

Features:

- 12 inch Bass and mid-range driver offering a superior price/performance ratio
- Provides 97dB sensitivity and 100 Watts RMS power handling
- 1.75 inch High temperature copper voice coil wound on polyimide for increased reliability
- Kevlar-loaded cone with sealed surround and damping for reduced distortion
- Suitable for use in 2-way systems

General:
- Nominal diameter: 305mm/12in
- Power rating: 100Wrms
- Nominal impedance: 8 ohms
- Sensitivity: 97dB
- Frequency range: 60-4500Hz
- Voice coil diameter: 45mm/1.75in
- Chassis type: Pressed steel
- Magnet type: Ferrite
- Magnet weight: 0.88kg/31oz
- Coil material: Round copper
- Former material: Polyimide
- Cone material: Kevlar loaded paper
- Surround material: Cloth-sealed
- Suspension: Single
- Xmax: 2mm/0.08in
- Gap Depth: 6mm/0.24in
- Voice coil winding width: 10mm/0.39in

Mounting Information:
- Diameter: 309mm/12.17in
- Overall depth: 125mm/4.92in
- Cut-out diameter: 283mm/11.14in
- Mounting slot dimensions: 7.9mm/0.31in
- Number of mounting slots: 4
- Mounting PCD range: 297mm/11.69in
- Weight: 2.7kg/6.0lb

For support or warranty questions, please contact the manufacturer:
Phone: +44 (0)1473 835300
Web: https://celestion.com/about-us/contact-us/
