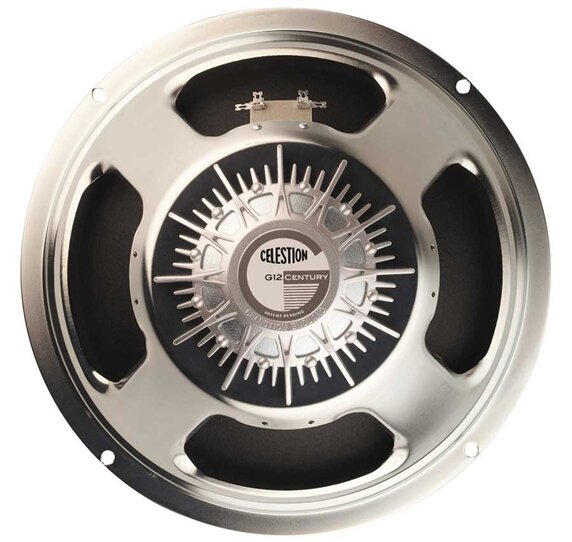

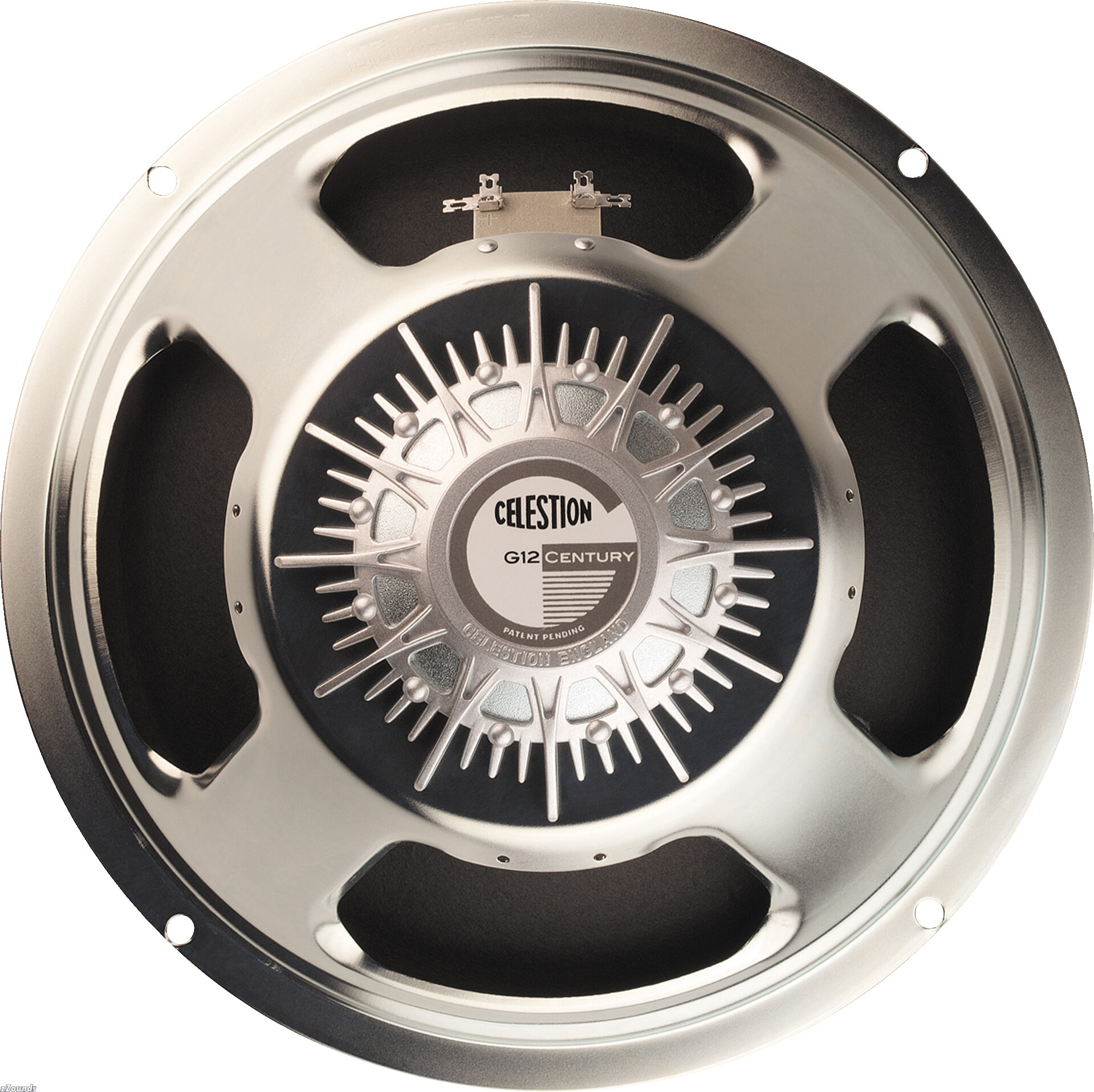

Celestion G12 Century Guitar Speaker (80 Watts, 12 in.)

Certain items must be exchanged directly through the manufacturer if they are found to be defective. This includes tubes, strings, pickups, raw frame speakers, drum heads, drumsticks, cymbals, cowbells, and harmonicas. These items can only be returned to us if they are unopened. details

About This Product!

Description

Docs

Celestion's history goes back to the birth of the electric guitar. But today, as ever, Celestion remains at the forefront of guitar loudspeaker innovation. Right at the start of the new Century, they pioneered the use of a revolutionary Neodymium magnet structure to create the G12 Century -- the loudest Celestion guitar speaker of all time!

Cramming huge amounts of flux into the voice coil gap, the G12 Century is staggeringly efficient and responsive, while at the same time exhibiting a musical character radically different to that of ceramic-based models.

A satisfyingly tight bottom end combines with detailed mids and a crisp top end to deliver stunning definition over a wide frequency range. For speed and articulation, no other speaker comes close.

Visually striking, the die-cast aluminium heatsink minimises thermal compression and at less than half the weight of a conventional ceramic magnet speaker, the G12 Century still takes unbelievable punishment before it distorts.

Technical Info

General Specifications
Nominal Diameter: 12 in., 305mm

Power Rating: 80 watts

Nominal Impedance: 8 ohms or 16 ohms

Sensitivity: 102dB

Chassis Type: Pressed Steel

Voice Coil Diameter: 1.75 in., 44.5mm

Voice Coil Material: Round copper

Magnet Type: Neo

Frequency Range: 80-5000Hz

Resonance Frequency, Fs: 85Hz

DC resistance, Re: 7 ohms or 11.8 ohms

Mounting Information
Diameter: 12.2 in.\ in., 309mm

Overall Depth: 4.9 in., 124mm

Magnet Structure Diameter: 5.5 in., 140mm

Cut-Out Diameter: 11.1 in., 283mm

Mounting Slot Dimensions: 0.31 in., 7.9mm diameter

Number of Mounting Slots: 4

Mounting slot PCD: 11.7 in., 297mm

Unit Weight: 4.4lb, 2.0kg
