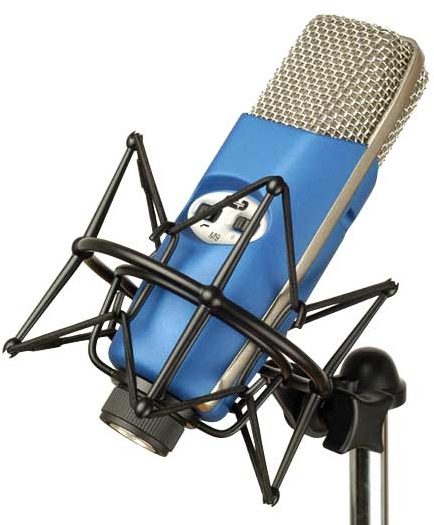

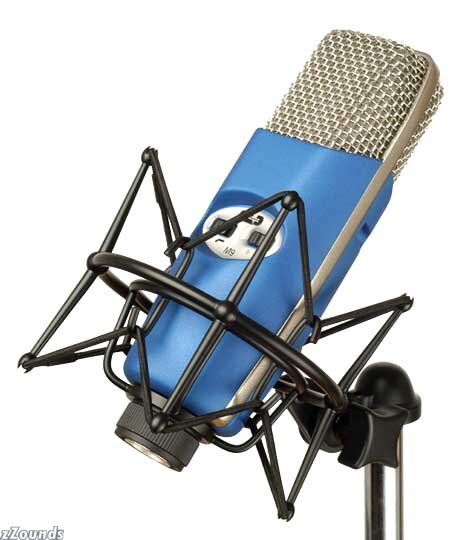

CAD M9 Tube Microphone with Case and Shock Mount

The M9 is a cardioid single tube externally biased condenser microphone that features servo-valve technology. It's a natural bridge between the valve technology developed for CAD's VX2 microphone and the servo op-amp technology developed for their M-Series mics. The M9's head amp is a 12AX7 tube in a circuit optimized for super wide dynamic range and low noise. The output stage (balanced high speed dual op-amp) allows for long cables without affecting microphone performance.

Included Accessories

30 ft. professional quality 7 conductor cable with gold plated XLR male and female connectors

MV200 Analog Power Supply

Line Cord

Rugged carrying case

Suspension Shock Mount

Technical Info

Type: Side address, true condenser

Capsule: 1.1 in. inside diameter, gold sputtered

Frequency Response:
- Capsule: 10Hz - 20 kHz.
- Head Amplifier: 4Hz - 200KHz

Polar Pattern: Cardioid

Impedance: Low (200 ohms nominal)

Dynamic Range:
- 118.5 dB (Noise floor to max SPL @ less than 0.2% THD)
- 120 dB (Noise floor to max SPL @ less than 5.0% THD)

Equivalent Noise Level: 15 dB Equivalent SPL, A-weighted

Maximum Output Level: +8 dBV (@ 140 dB SPL, less than 5.0% THD)

Maximum SPL:
- 154.5 dB SPL (0dB pad)
- 156 dB SPL (-16dB pad)

Switches:
- Hi-Pass: (3dB @ 100Hz)
- Pad: 0dB & -16dB (Non-Capacitive)

Capsule Capacitance: 68 pF

Powering:
- Included MV200 analog power supply
- Connector: 7 pin XLR, on microphone and power supply
3 pin XLR, audio out from power supply

Cable: Professional quality 7 conductor, 30 ft. long, gold plated connectors

Finish: Blue housing, satin nickel plated screen assembly with black accents
