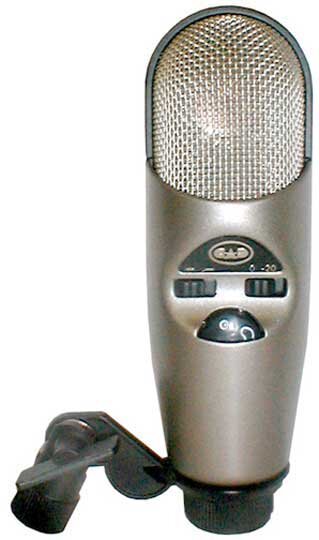

CAD M179 Dual Diaphragm Multi-Pattern Condenser Microphone
Similar to the M177 except with an adjustable Polar Pattern, the M179 features a dual-sided, externally-biased capsule with a gold sputtered 1.1 in. diaphragm. The M179 has a high-speed, low-noise operational amplifier, coupled with a new discrete high-efficiency power supply circuit. This results in incredibly low noise, low distortion and fast transient response. The M179 will even work with 24-volt phantom power supplies! The M179 also features a non-capacitive 20 dB pad switch and an 80 Hz high-pass filter.
Technical Info
Specifications
Type: Side Address, External bias condenser

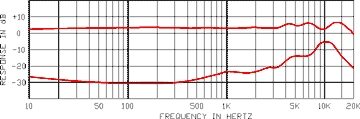

Frequency Response: 10 Hz - 20 kHz
Polar Pattern: Variable
Impedance: Low (200 ohms nominal)
Output Level At 1 kHz: Open Circuit
Voltage: -56 dB (0 dB = 1 volt per microbar). 15.9 mV/Pascal
Dynamic Range: 133 dB
Equivalent Noise Level: 11 dB Equivalent SPL, A-weighted
Maximum SPL: 143 dB SPL (With pad on)
Total Harmonic Distortion: Less than 0.15%
Powering: Minimum Requirements are 24, 48 Volt Phantom Power capable of delivering at least 8 mA
Connector: Three pin male XLR type
Finish: Titanium Grey with Nickel Plated front & rear screen
Dimensions: 2.25 in. (57.2 mm) Dia., x 7.00 in. (177.8 mm) Height
Net Weight: 17.8 oz. (506 grams)
This mic features an adjustable polar pattern and a dual-sided, externally-biased capsule with a gold-sputtered 1.1" diaphragm. It also has a high-speed, low-noise operational amplifier and a discrete high-efficiency power supply circuit.
