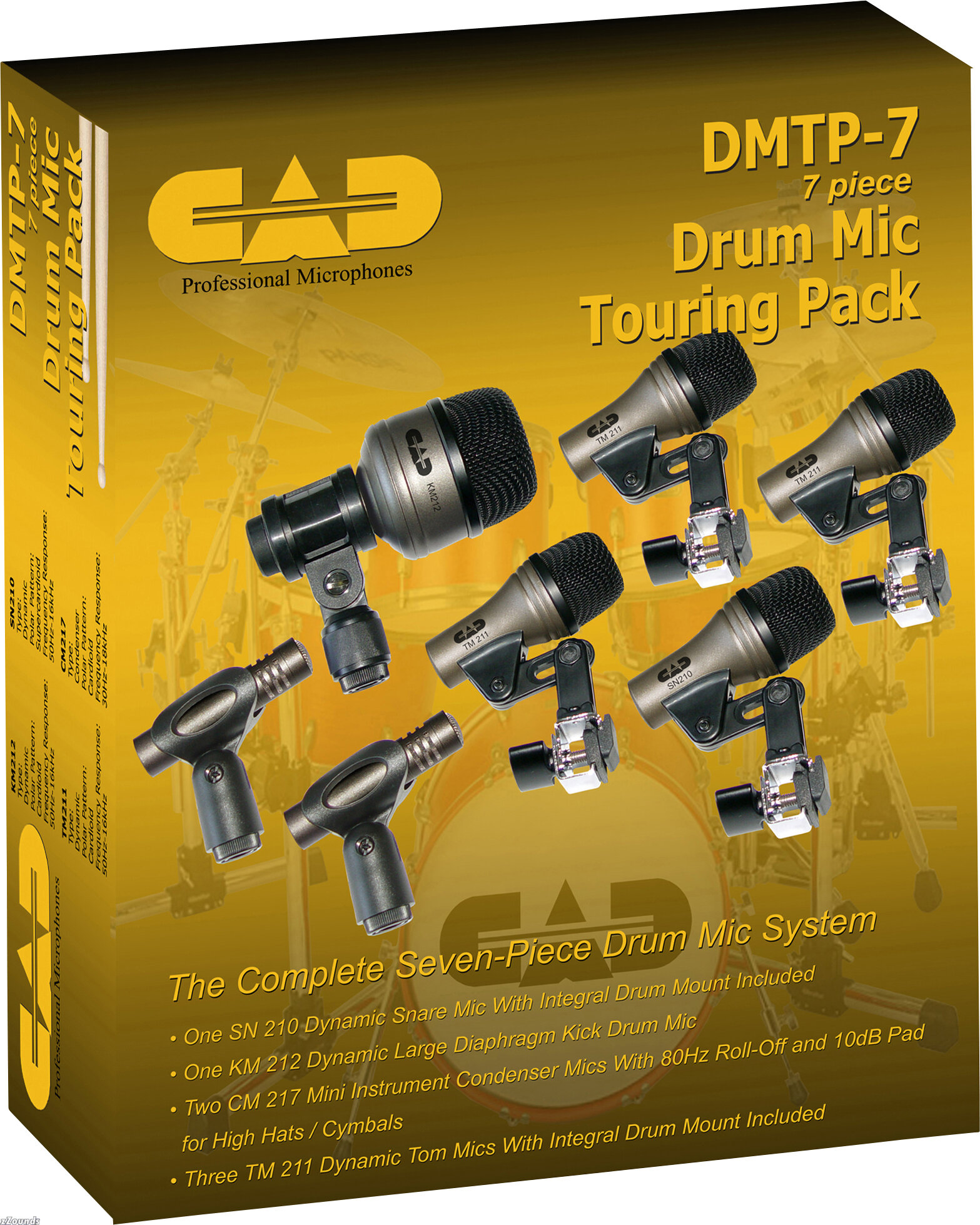

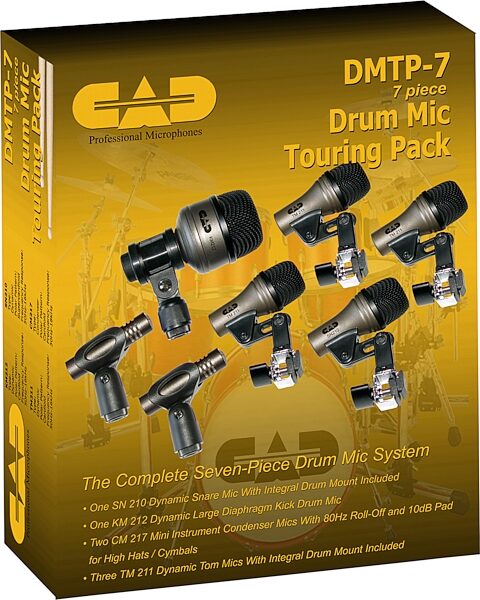

CAD DMTP7 7-Piece Drum Microphone Touring Package

Seven-piece drum mic touring pack.

Contains three TM211s, two CM217s, one SN210, and one KM212 in protective travel case.

TM211
Cardioid dynamic microphone designed for toms. The built in rim clip eases setup and adjustment. Sold only in DMTP packs.

Applications: Brass, Guitar Cabinets, Bass Cabinets, Snare Drum, Rack/Floor Toms.

CM217
Cardioid condenser microphone Designed for drum overheads. Features include hi-pass filter and attenuator. Mic clip included. Sold only in DMTP packs.

Applications: Acoustic Instrument, Strings, Cymbals/Overheads, Hi-hat.

SN210
Supercardioid dynamic microphone designed for snare drums. The built in rim clip eases setup and adjustment. Sold only in DMTP packs.

Applications: Brass, Guitar Cabinets, Bass Cabinets, Snare Drum.

KM212
Cardioid dynamic microphone dialed in at the factory for the thump and crack of your kick drum. Try it on the bass rig too. The included mic clip provides additional isolation. Sold only in DMTP packs.

Applications: Bass Cabinets, Kick Drum, Rack/Floor Toms.

Technical Info

TM211 Specifications
Operating Principle: Moving coil dynamic

Polar Pattern: Cardioid

Frequency Response: 90Hz to 13KHz

Sensitivity: -53dBV (2.2mV) @ 1 Pa

Impedance: 560 ohms

CM217 Specifications
Operating Principle: Condenser

Polar Pattern: Cardioid

Frequency Response: 40Hz to 13KHz

Sensitivity: -41dBV (8.9mV) @ 1 Pa

Impedance: 230 ohms

Hi-pass Filter: 200Hz, 6dB/oct

Attenuator: 10dB

Power Requirements: P12, P24, P48, 11mA(P48)

SN210 Specifications
Operating Principle: Moving coil dynamic

Polar Pattern: Supercardioid

Frequency Response: 90Hz to 14KHz

Sensitivity: -56dBV (1.6mV) @ 1 Pa

Impedance: 300 ohms

KM212 Specifications
Operating Principle: Moving coil dynamic

Polar Pattern: Cardioid

Frequency Response: 50Hz to 16KHz

Sensitivity: -66dBV (0.5mV) @ 1 Pa

Impedance: 60 ohms

Complete drum mic kit! Includes three TM211 tom mics, two CM217 overhead condensers, one SN210 snare mic, and one KM212 kick mic in a protective travel case.
