- Capacity: SD/SDHC Card: 1 G to 32 GB
- Data Types: eBand Songs (Recording/Playback) WAV (Quantization bit rate: 16 bits, Playback only) MP3 (Bit rate: 64 K to 320 Kbps, Playback only)
- External Memory: USB Flash Memory (sold separately)
- AD Conversion: 24 bits + AF method
- DA Conversion: 24 bits
- Sampling Frequency: 44.1 kHz
- Effect Types: AMP COMP/LIMITER OD/DS NOISE SUPPRESSOR EQ MODULATION (PHASER, FLANGER, CHORUS, TREMOLO, ROTARY, UNI-V, PAN) DELAY REVERB WAH
- Recording Time (eBand Songs): Hours per GB: 4 hours 32 GB: 130 hours * The above-listed recording times are approximate. Times may be slightly shorter depending on the number of songs that were created.
- Recording Time (WAV/16 bits/Stereo): Hours per GB: 1.5 hours 32 GB: 50 hours * The above-listed recording times are approximate. Times may be slightly shorter depending on the number of songs that were created.
- Recording Time (MP3/128 Kbps/Stereo): Hours per GB: 17 hours 32 GB: 550 hours * The above-listed recording times are approximate. Times may be slightly shorter depending on the number of songs that were created.
- Nominal Input Level: INPUT 1/2 GUITAR/MIC (INPUT GAIN = GUITAR): -10 dBu INPUT 1/2 GUITAR/MIC (INPUT GAIN = MIC): -32 dBu INPUT 2 AUX: -20 dBu
- Input Impedance: INPUT 1/2 GUITAR/MIC jacks: 1 M ohm INPUT 2 AUX jack: 47 k ohms
- Nominal Output Level: LINE OUT jacks: -10 dBu
- Output Impedance: LINE OUT jacks: 1 k ohm

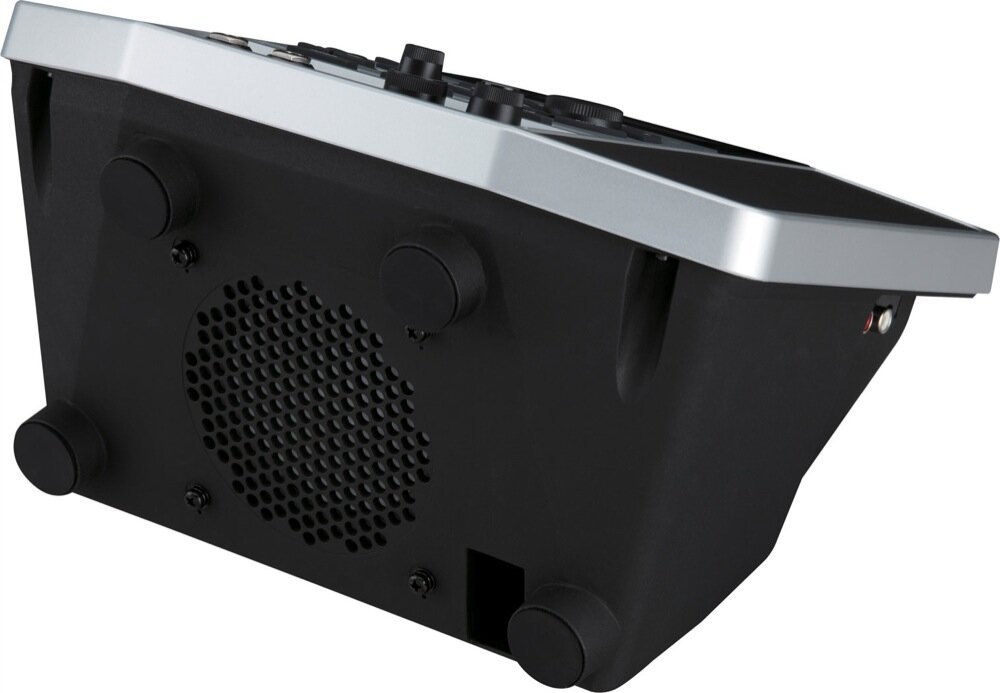

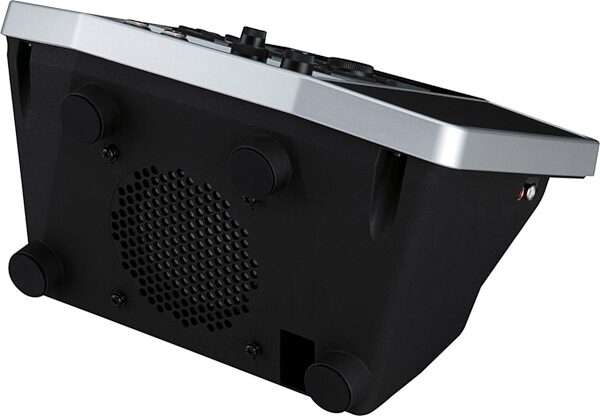

- Internal Speakers: 2.1 channels (2-channel Stereo and Woofer)
- Rated Power Output: 12 W (Stereo Speaker 3.5 W x 2 + Woofer 5 W)

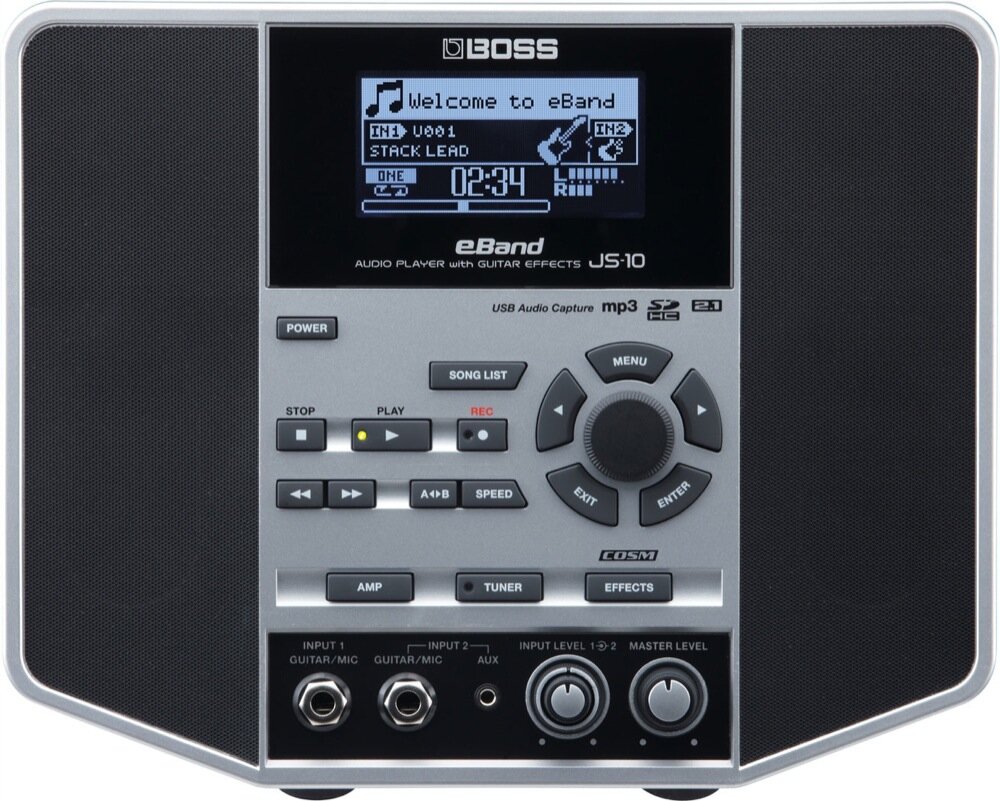

- Display: Graphic LCD 132 x 64 dots (with backlit)
- USB: Audio Mass Storage Class

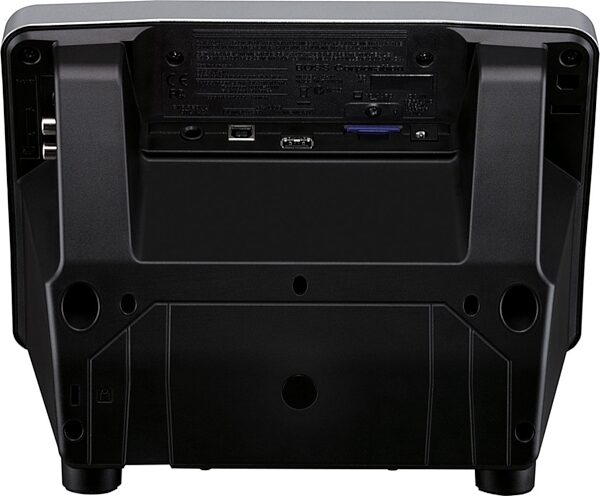

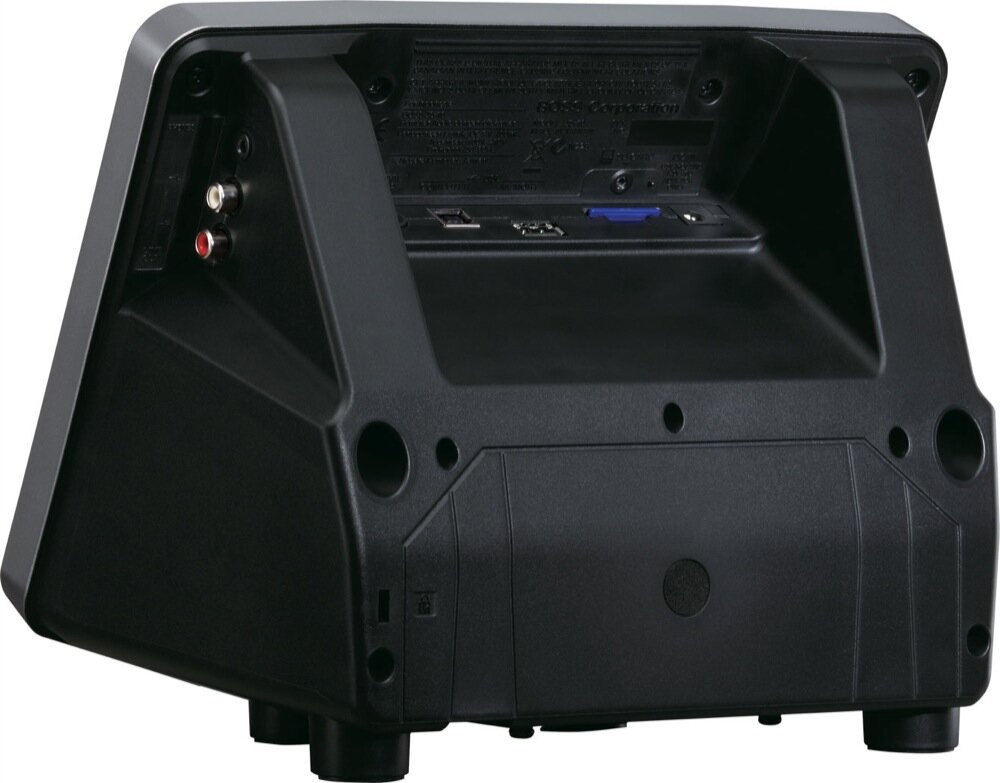

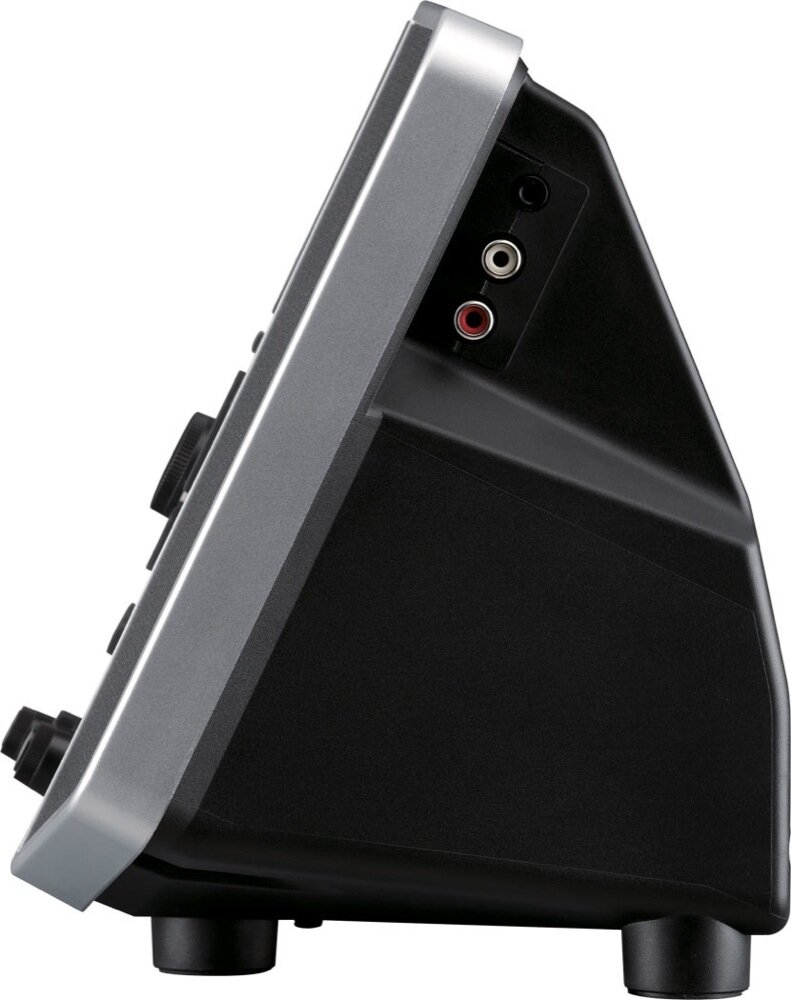

- Connectors: INPUT 1 GUITAR/MIC jack (1/4-inch phone type) INPUT 2 GUITAR/MIC jack (1/4-inch phone type) INPUT 2 AUX jack (Stereo miniature phone type) PHONES jack (Stereo miniature phone type) LINE OUT jacks (RCA phono type) EXP PEDAL/CTL 1, 2 jack (1/4-inch TRS phone type) USB MEMORY port (USB A) USB COMPUTER port (USB B) DC IN jack
- Current Draw: 700 mA
- Accessories Included: AC adaptor SD card USB cable Owner's Manual
- Options (sold separately): Footswitch (BOSS FS-5U) Dual Footswitch (BOSS FS-6) Expression Pedal (Roland EV-5, BOSS FV-500L, BOSS FV-500H) USB Flash Memory * Use USB Flash Memory sold by Roland. We cannot guarantee operation if other products are used.
- Width: 264 mm: 10-7/16 inches
- Depth: 169 mm: 6-11/16 inches
- Height: 209 mm: 8-1/4 inches
- Weight: 1.8 kg: 3 lbs. 16 oz.
- Weight: excluding AC adaptor
* 0 dBu = 0.775 Vrms * AF (Adaptive Focus) method Adaptive Focus is a unique Roland/BOSS technology that allows the signal noise (S/N) ratios of AD converter to be vastly improved.
