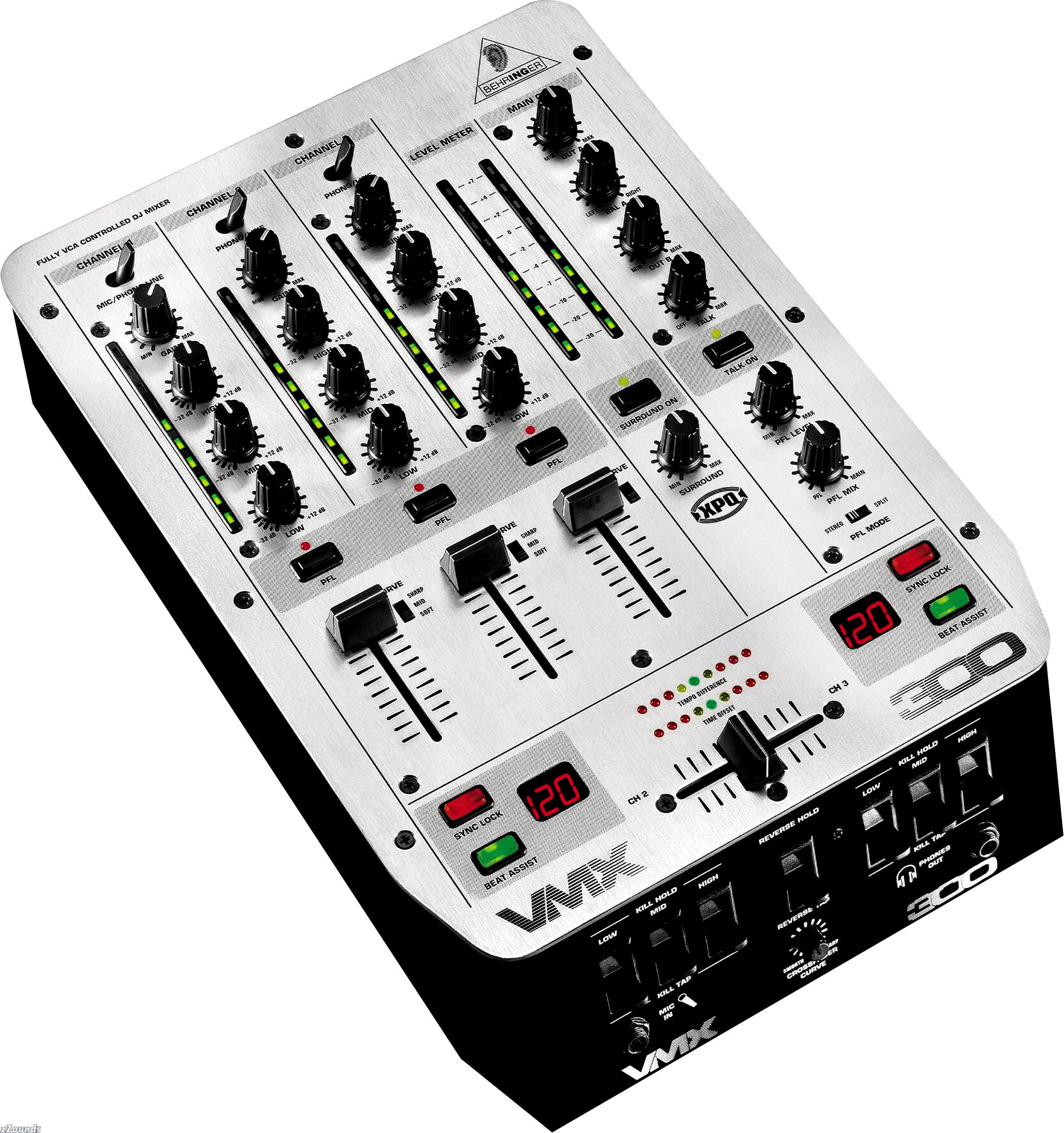

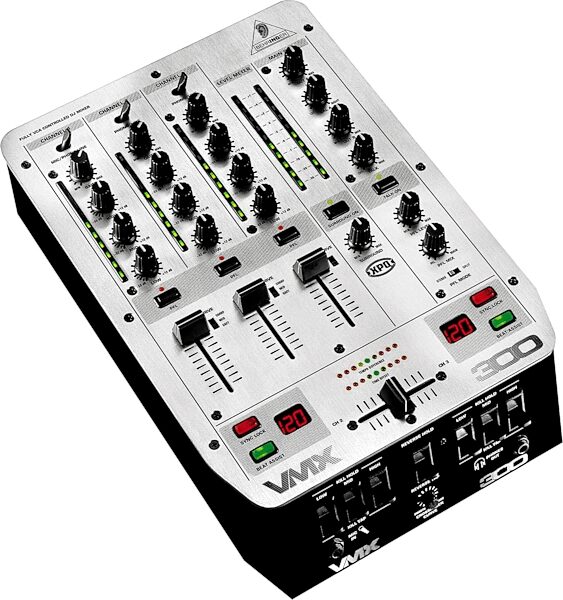

Behringer's top-of-the-line VMX gives you 3 dual-input channels for connection of up to 6 stereo sources. Channel 1 features a built-in ULN mic preamp and an auto-talkover function for your mic; channels 2 and 3 are laid out for phono and line-level signals. Each channel sports a gain control, an extremely musical 3-band EQ with an amazing 32 dB of maximum attenuation, a PFL button with status LED, and an Ultraglide fader with a curve control switch, allowing you to choose between soft, mid, and sharp fader curves.
The VMX300's master section provides 2 separately controllable main out sections, talkover controls, and a flexible PFL section that allows you to mix and split your PFL signal as required. A dual 10-segment LED level meter displays main or PFL levels; below that, you'll find the controls for Behringer's knockout QRS surround circuitry. Add a reversible Ultraglide crossfader with freely adjustable curve and our beat counter with Tempo Difference and Time Offset displays plus Sync Lock and Beat Assist functions, and you've got one hell of a master section. But the best is yet to come: the front-panel 3-way kill switches with tap-and-hold action open the door to the most creative mixes you've ever spun. Like all of the VMX Series DJ mixers, the VMX300 is entirely based on Behringer's renowned ULN (Ultra Low-Noise) circuitry to ensure professional audio quality at all times. And our state-of-the-art VCA level engine is assurance that the Ultraglide faders and crossfader will operate with maximum precision and outlive most other faders on the DJ market.
Features
3 dual-input stereo channels, one switchable to mic level with auto-talkover function
Gain, 3-band kill EQ (-32 dB), and dedicated level meter per channel
Awesome QRS 3D stereo surround effect
Intelligent dual auto BPM counter with time and beat sync display

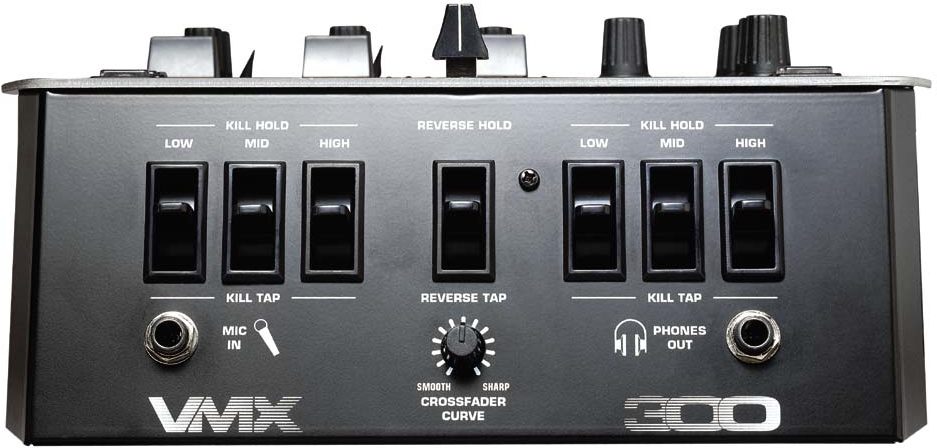

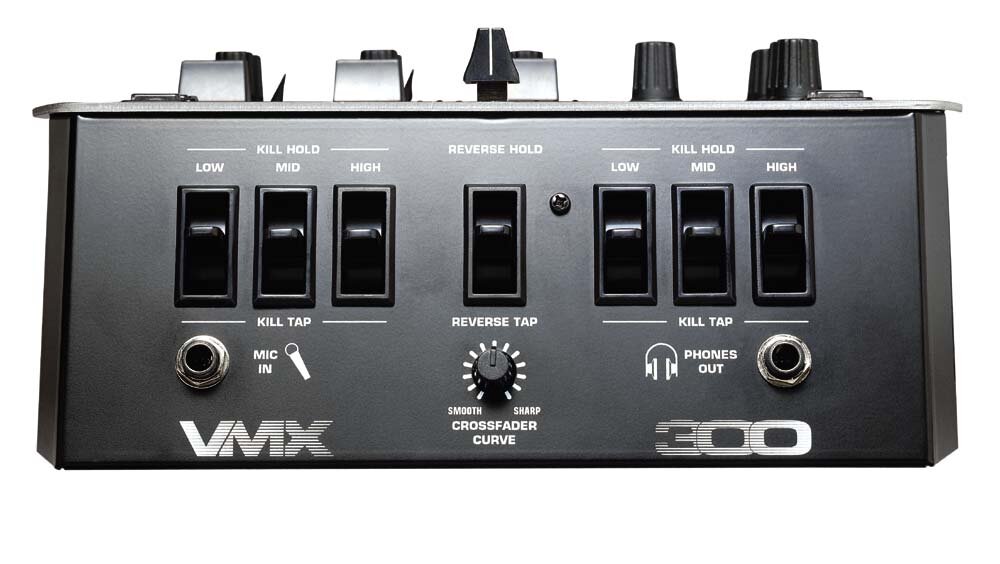

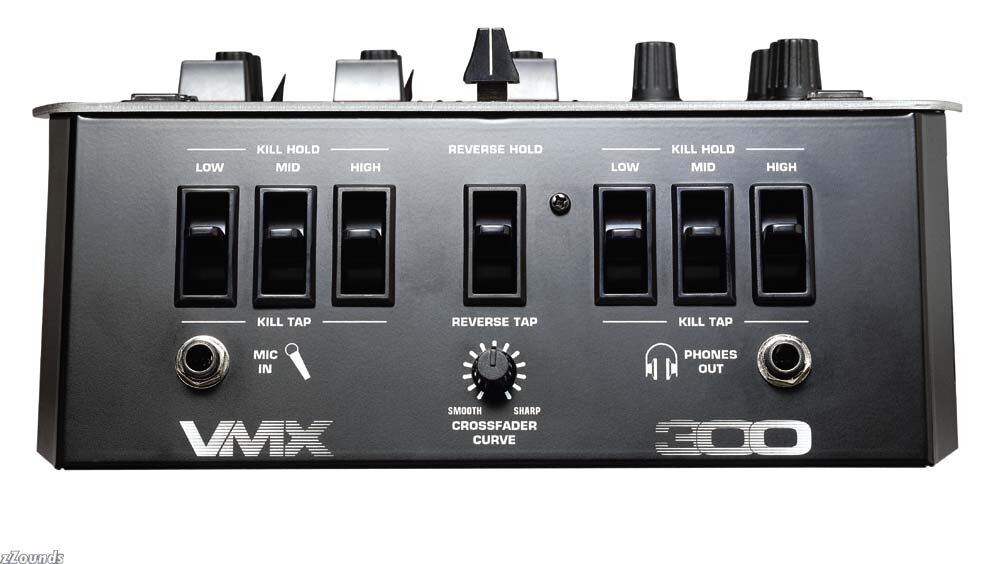

Front-panel 3-way kill switches with revolutionary keyboard-like tap and hold action
Super-smooth Ultraglide faders with up to 500,000 life cycles and full VCA control
Reverse switch for crossfader
Dedicated curve control for all faders
PFL function with PFL/Output balance control and split option
Technical Info
Mic Input: 46dB gain, servo balanced
Phono Inputs 1 and 2: 40 dB gain @ 1kHz, unbalanced
Line Inputs 1 and 2: 0dB gain, unbalanced
Return: 0dB gain, unbalanced
Main Out: Max. +21dBu @ +10 dBu (Line In)
Booth Out: Max. +13dBu
Tape Out: Typically 0 dBu
Send: Typically 0dB
Headphone Out: Typically 125mW @ 1% THD
EQ: +/-8dBu
Stereo Low: +12dB/-32dB @ 50 Hz
Stereo Mid: +12dB/-32dB @ 1.2 kHz
Stereo High: +12dB/-32dB @ 10 kHz
Kill Low: -54dB @ 50Hz
Kill Mid: -44dB @ 1 kHz
Kill High: -26dB @ 10 kHz
Signal to Noise Ratio: >85dB (Line)
Crosstalk: >77dB (Line)
Distortion (THD): <0.05%
Frequency Response: 20Hz-20kHz
Input Gain Adjustment: -20dB-+9dB
AC Voltage: 120V .60Hz fuse T 160mA H
Dimensions: 3-ü x 9-ü x 13-1/10 in. (88 x 241 x 332mm), approximately
Weight: 3.5 kg (7 lbs., 4 oz.), approximately
