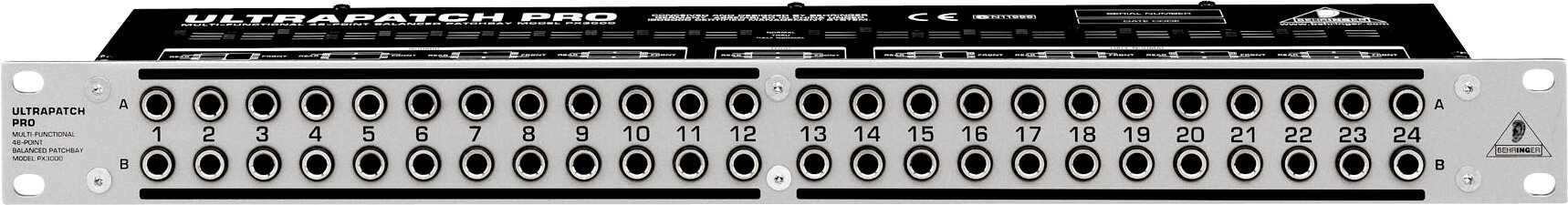

Behringer Ultrapatch Pro PX3000 48-Point Balanced Patchbay

Eliminate cable clutter with this fully balanced 48-point 1/4" TRS patchbay. Each channel has a switch for 3 selectable modes: Normal, Thru and Half Normal. (27) Read 4 reviews for this product | Rate and review this product
Ships to: Can ship to United States Can ship to Puerto Rico Can ship to APO/FPO
close [x]
zZounds.com 800-ZZOUNDS (800-996-8637)
List: $119.99
Savings: $40.00 (33%)
$79.99
Play as you Pay on
orders $249.00+ details
Coming SoonOrder Today!
FAST FREE SHIPPING
$$$$ Seen it for less? Request Lower Price
Questions? Call a gear expert now! (800-996-8637)
PAYMENT PLANS ON ORDERS $249.00+
PLAY AS YOU PAY

A 48-Point Patchbay Guaranteed to De-Clutter Your Stage or Studio

Are you still crawling under your desk to hook up your gear? With the aid of the Behringer Ultrapatch Pro PX3000 patchbay, you'll only have to do that the first time you set up your instruments and interfaces. This 48-point balanced patchbay keeps all your cable connections tidy and neat, helping you to simplify workflow and eliminate cable clutter.

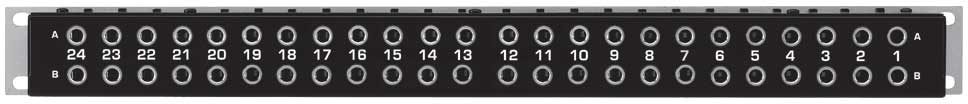

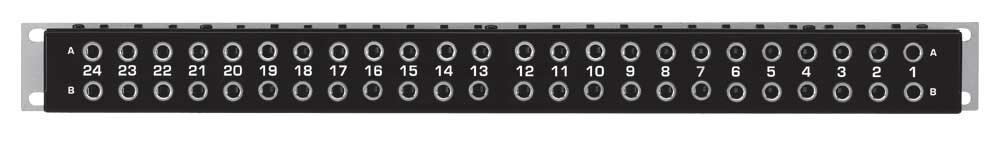

When it's time to connect one thing to another, all you have to do is insert a plug into 1/4-inch jacks on the patchbay, and select from one of three modes: Normal, Thru, or Half Normal. You won't have to crane your neck to see the rear of a unit, or get behind a rack to connect an Out to an In. This three-mode balanced patchbay helps you turn your attention away from the gear itself and to the more important thing: making music. Not just for studios, the Ultrapatch Pro PX3000 will serve you well on stage, so that tearing down your setup doesn't become a tangled chore.

Multifunctional 3-Mode System

All 48 1/4-inch TRS connectors on the Ultrapatch Pro PX3000 are fully balanced, and three modes are available for routing your gear: Normal, Thru, and Half Normal. Normal mode interconnects the two rear jacks of one channel, and inserting a plug into one of the front jacks interrupts the connection of the rear jacks. Thru mode interconnects each rear jack with its corresponding front jack. And Half Normal mode interconnects the two rear jacks of one channel; inserting a plug into the lower front jack interrupts the connection of the rear jacks. Once you understand how the modes work, using the patch system is fairly straightforward.

The modes are selectable per channel via switches located on the top-side of the patchbay. Hint: When you rack the Ultrapatch Pro PX3000, you will want to leave some space above it, for easier access to the mode switches.

Reroute Your Wires Without Disturbing Your Studio

If you're used to working in studios where the first rule is "Don't mess with the wires!" then you understand the need for a good patchbay that will keep audio cables organized in a manner that makes sense to you. In case you can't remember which connection represents which unit, you can place a thin strip of painter's tape above or below the numbered connectors and write the names of your gear on the tape as a reminder.

Features:

- Professional rackmountable patchbay eliminates cable clutter in the studio and on stage
- 48 high-quality balanced 1/4-inch TRS connectors
- 3 Modes selectable per channel via top-side switches
- Normal mode interconnects the two rear jacks of one channel; inserting a plug into one of the front jacks interrupts the connection of the rear jacks
- Thru mode interconnects each rear jack with its corresponding front jack
- Half Normal mode interconnects the two rear jacks of one channel; inserting a plug into the lower front jack interrupts the connection of the rear jacks
- Ruggedly constructed with quality components
- Backed by Behringer's 3-year warranty

zZounds is an authorized dealer of Behringer products.
Connectors: 1/4 in. TRS balanced
Dimensions (H x W x D): approx. 1 3/4 in. x 19 in. x 3 2/3 in.
Weight: approx. 4 lbs.
Dimensions and Weight in Packaging
Shipping Weight: 5 lbs
Shipping Dimensions: 21 x 6 x 3 in
If you have additional warranty questions, please contact the manufacturer at 702-800-8290

Product Description

Do you dread dismantling your stage after a gig because of all that cable mess? Have you ever tripped over an unsightly cable cluttering up the already tight space? Behringer's Ultrapatch Pro PX3000 is just what you need. The PX3000 returns your attention where it should, to making music, by providing a solution to cable mess and clutter.

This 3-mode multi-functional 48-point balanced patchbay with fully balanced, high-quality 1/4 in. TRS connectors will be a welcome addition to every studio.

Its three modes function as follows:

-- 'Normal' interconnects the two rear jacks of one channel; Inserting a plug into one of the front jacks interrupts the connection of the rear jacks.

-- 'Thru' interconnects each rear jack with its corresponding front jack.

-- 'Half Normal' interconnects the two rear jacks of one channel; inserting a plug into the lower front jack interrupts the connection of the rear jacks.
Customer Reviews
4.5 out of 5 (27 ratings) Rate and Review This Product
zZounds has verified that this customer bought this product from us. "I Don't Got To Show You No Stinkin' Patches..."
Overall: Performs flawlessly with no noise and no signal degradation. Built like a tank and feels solid and weighty. Great price for what you get (check out other patch bays and you'll see). I added another rack to my project studio and needed another bay (this is my second px3000) to handle the new routings. The switches beat the heck out of having to take apart and change card positions to do straight thru or half and full normalling, and they too (the switches) feel solid and dependable. Don't waste your money on patch bays by higher profile "name" brands; get one or two of these instead.
