When effects are an integral part of your rig, their power adapters and patch cables can often be the most vulnerable part, and the most likely to sabotage your set if they're not pampered. Rather than tossing your pedals, power adapters and all other cabling into a duffel bag after a gig, keep them safe--and ready to rock at a moment's notice--with the PB600.
It's All About Connections

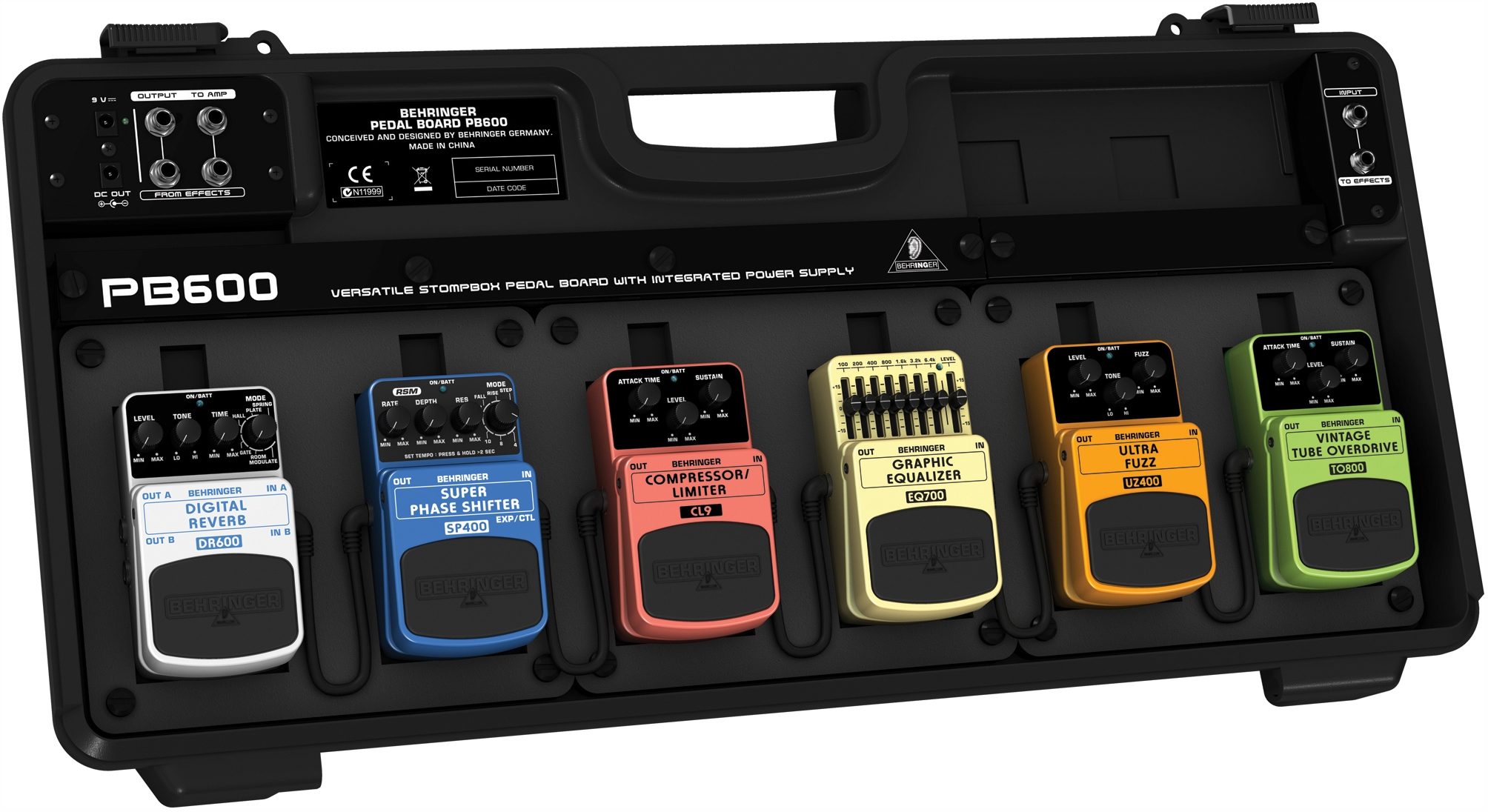

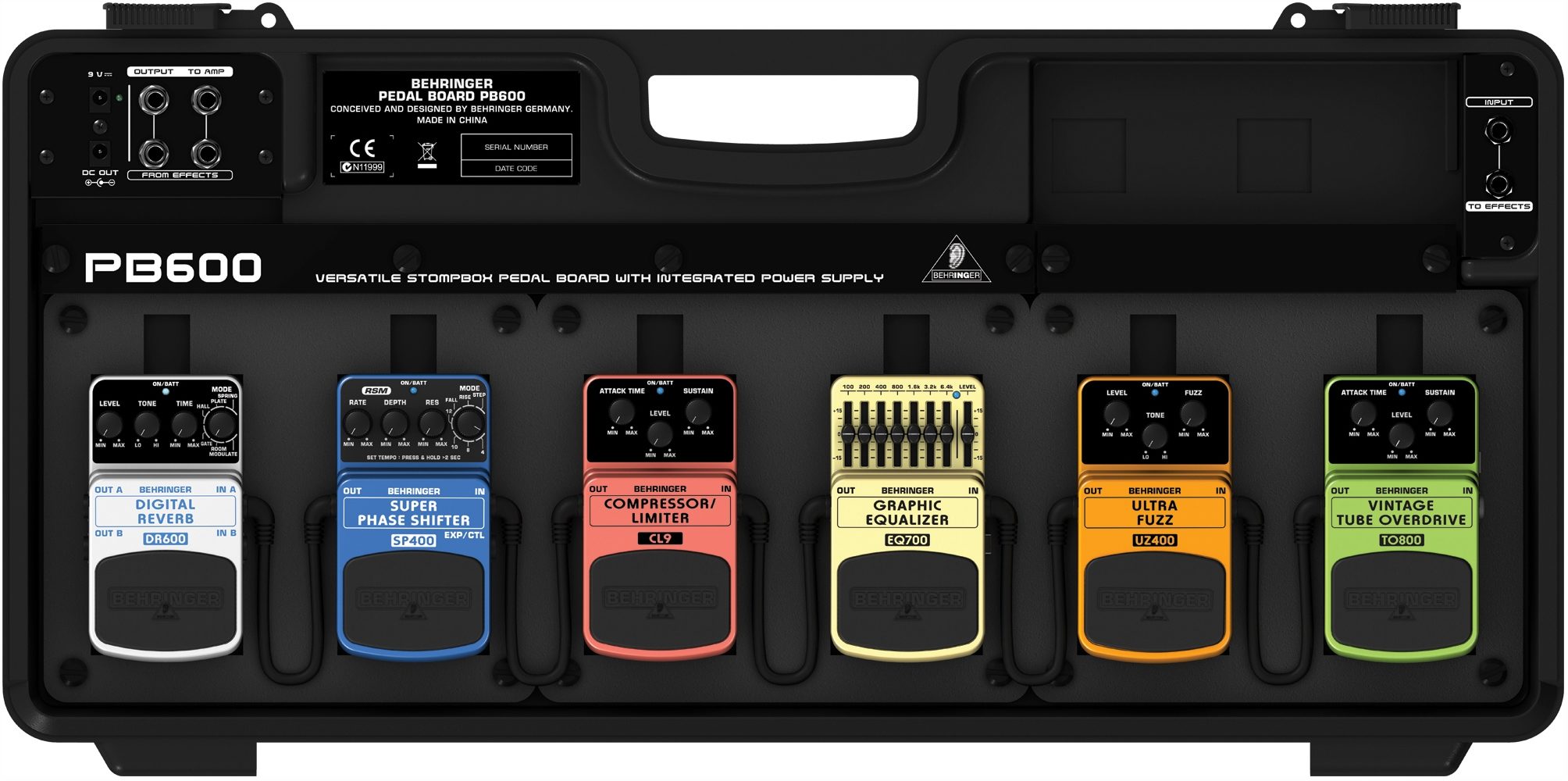

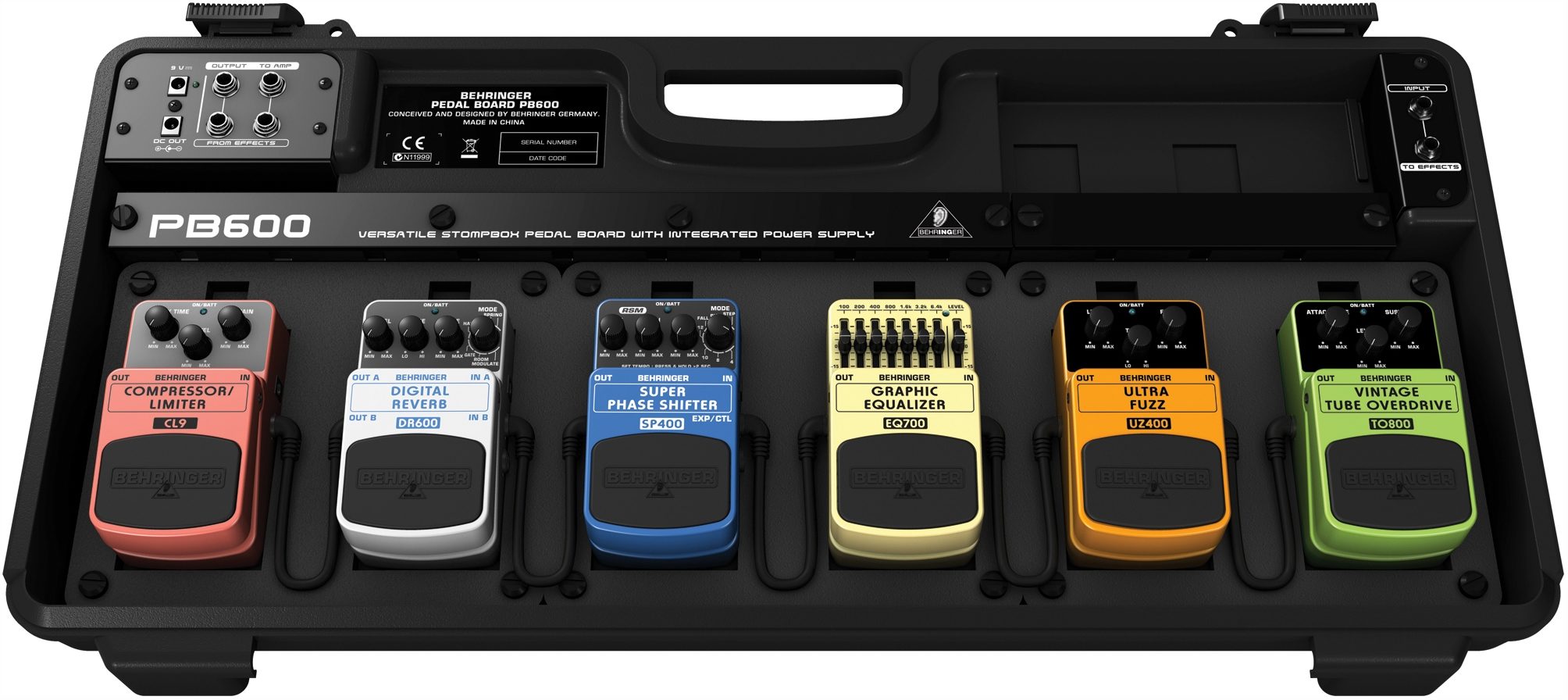

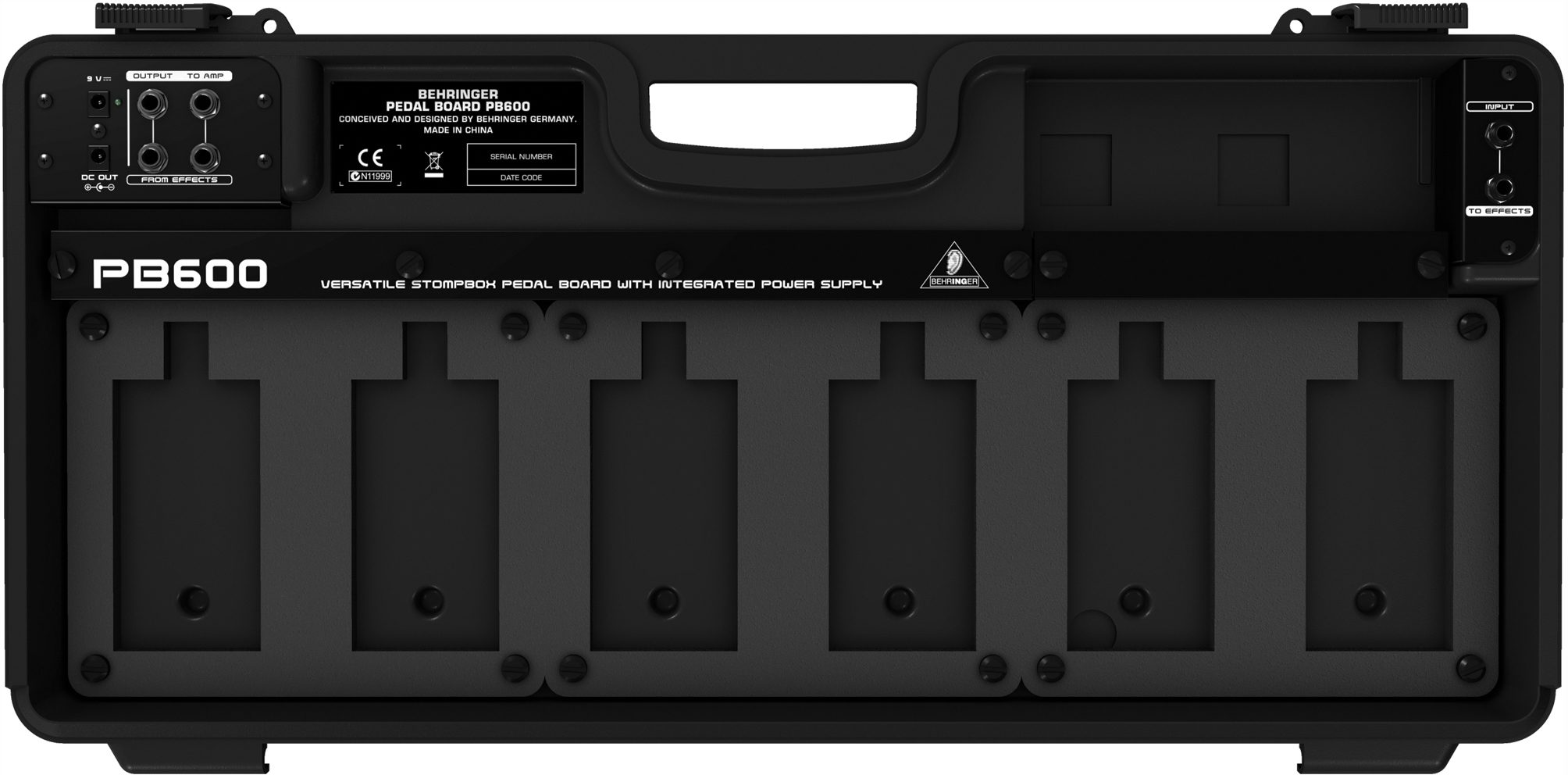

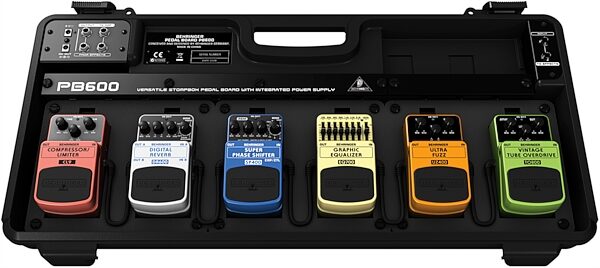

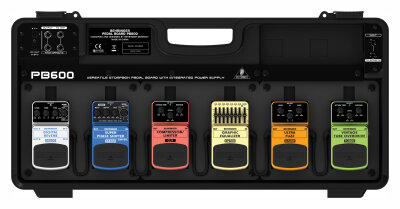

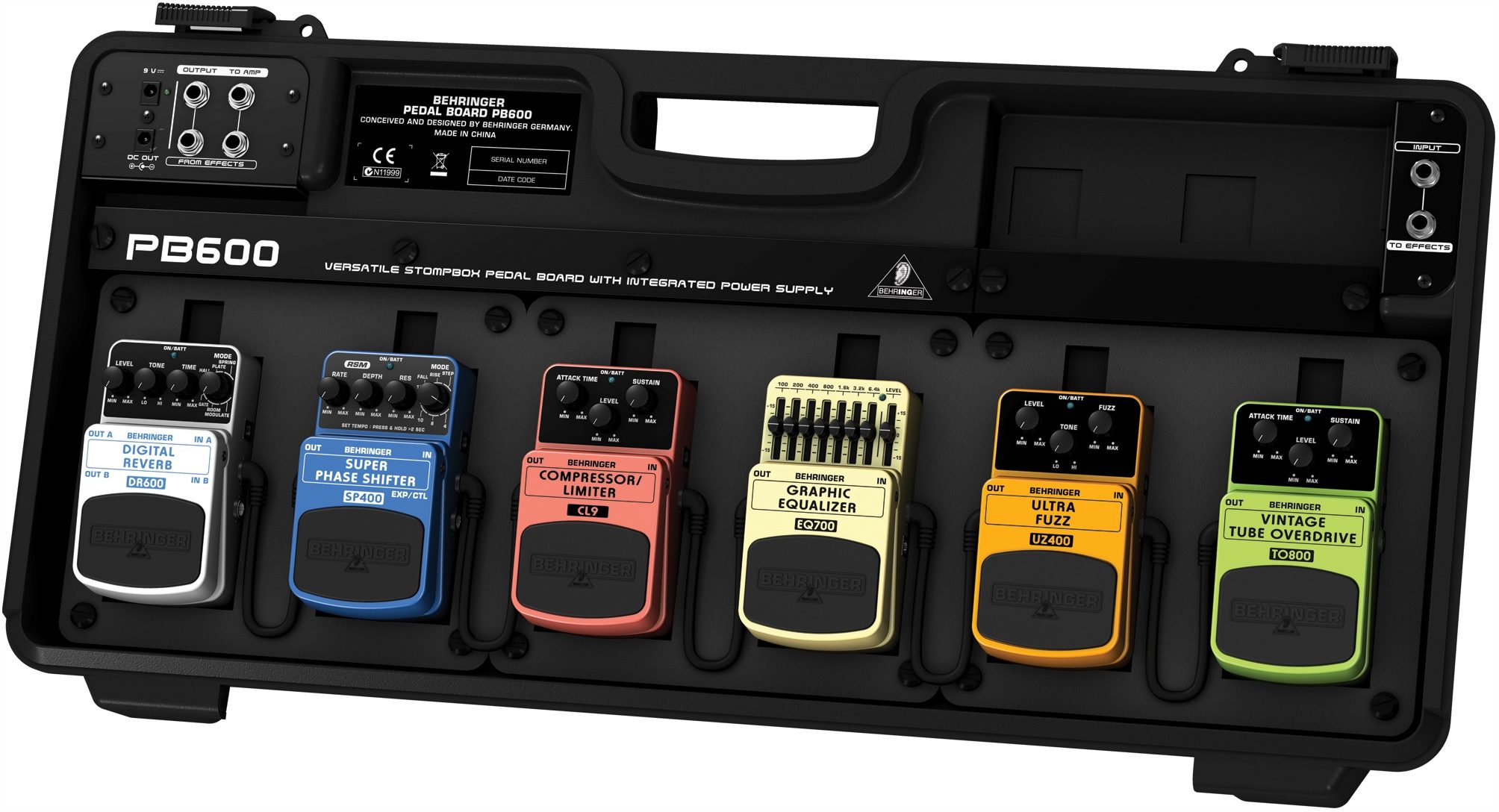

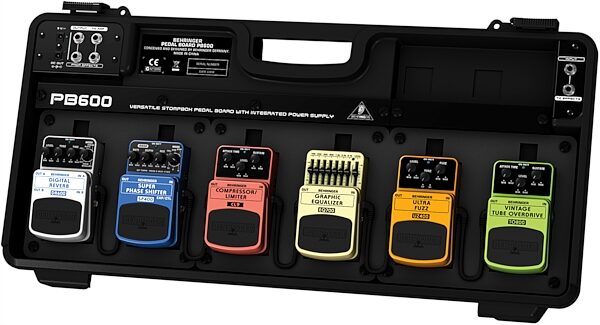

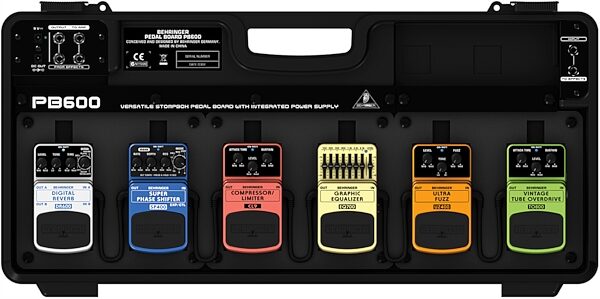

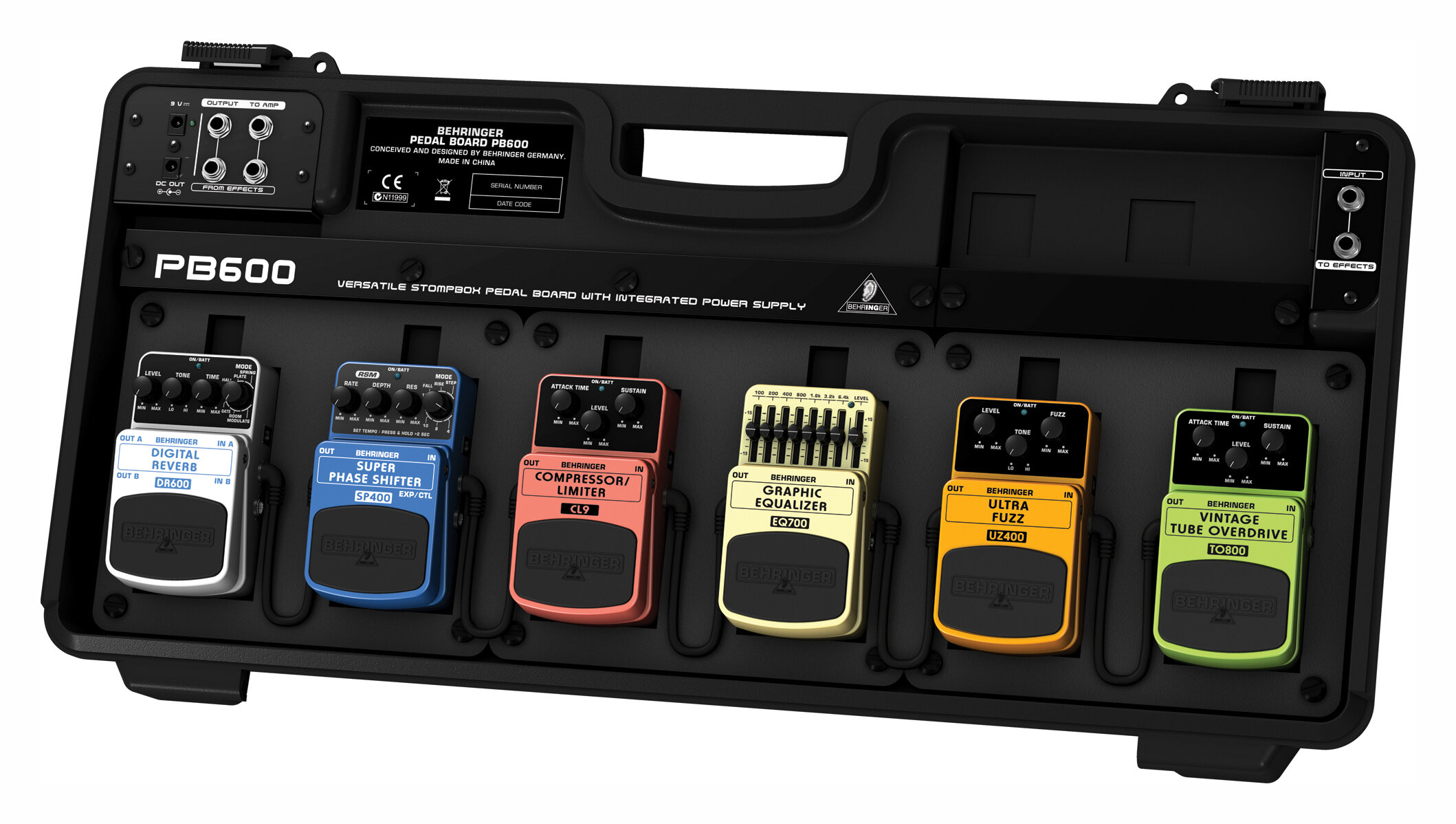

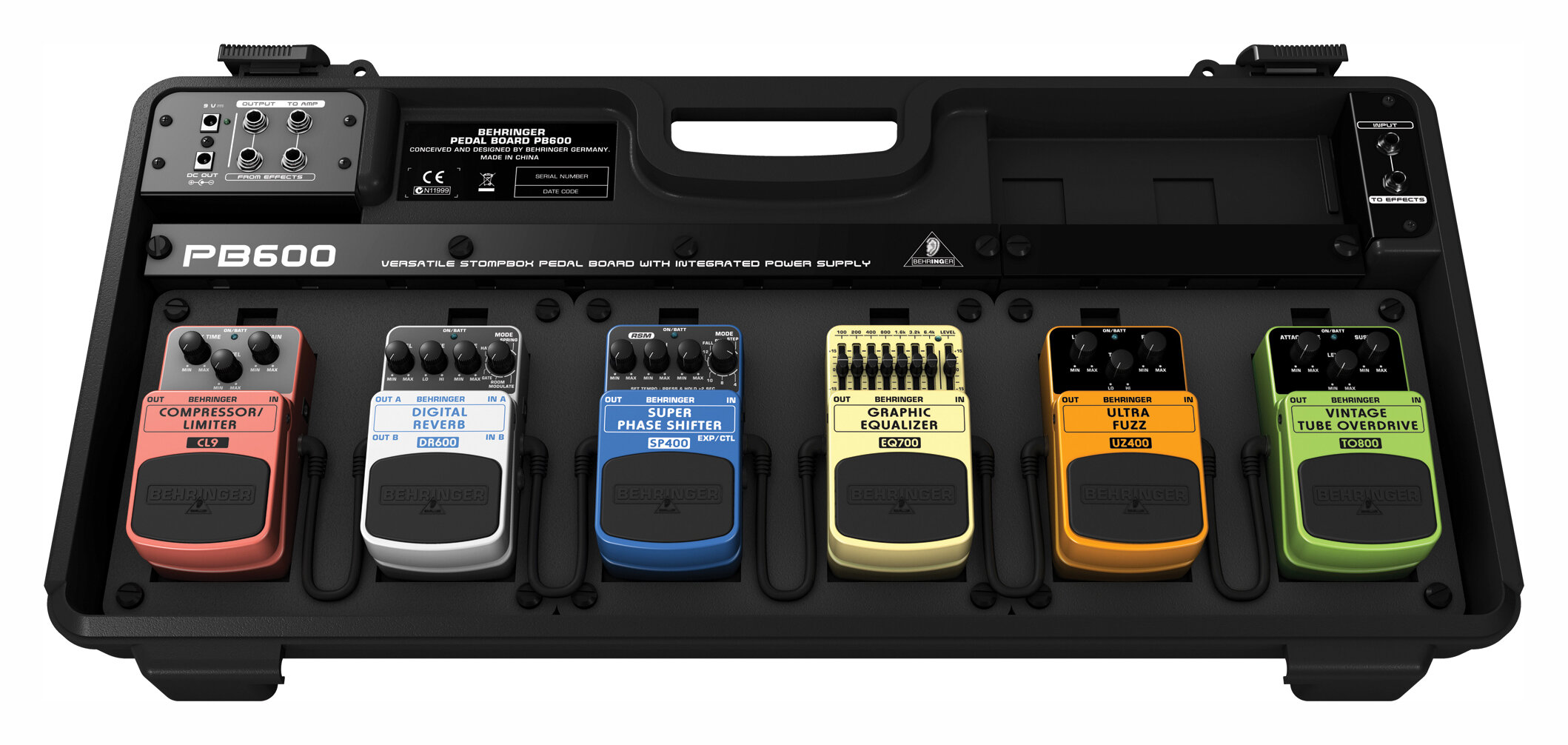

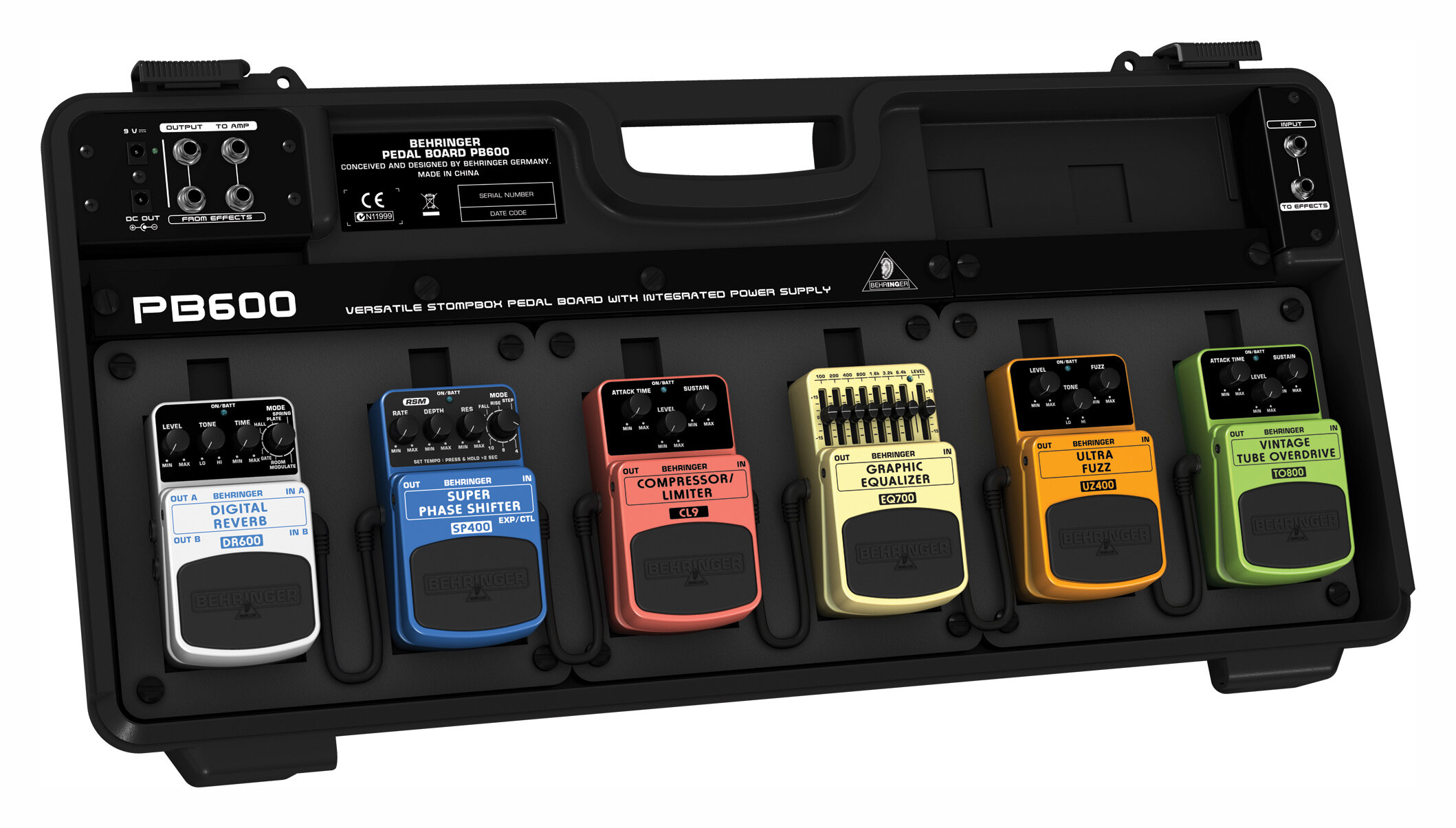

This awesome pedal board makes hooking up six 2.5 x 4.5 inch pedals as easy as hooking up just one (of course, if you're using pedals that aren't 2.5 x 4.5 inch, the snug foam padding can be cut to accommodate pedals of varying shapes). The PB600 includes 1/4-inch patch cables, so you can leave your pedals connected to one another, ready to pass signal even when you're transporting them. It also comes with 1 x 6 daisy chain cabling so that when you plug in the 1.7 A power adapter, all your pedals receive power. Meanwhile, all cabling remains safe and free of strain. Failure is almost guaranteed when you're dealing with a rat's nest of loose cabling, but with the PB600, your effects chain is always safe and organized.

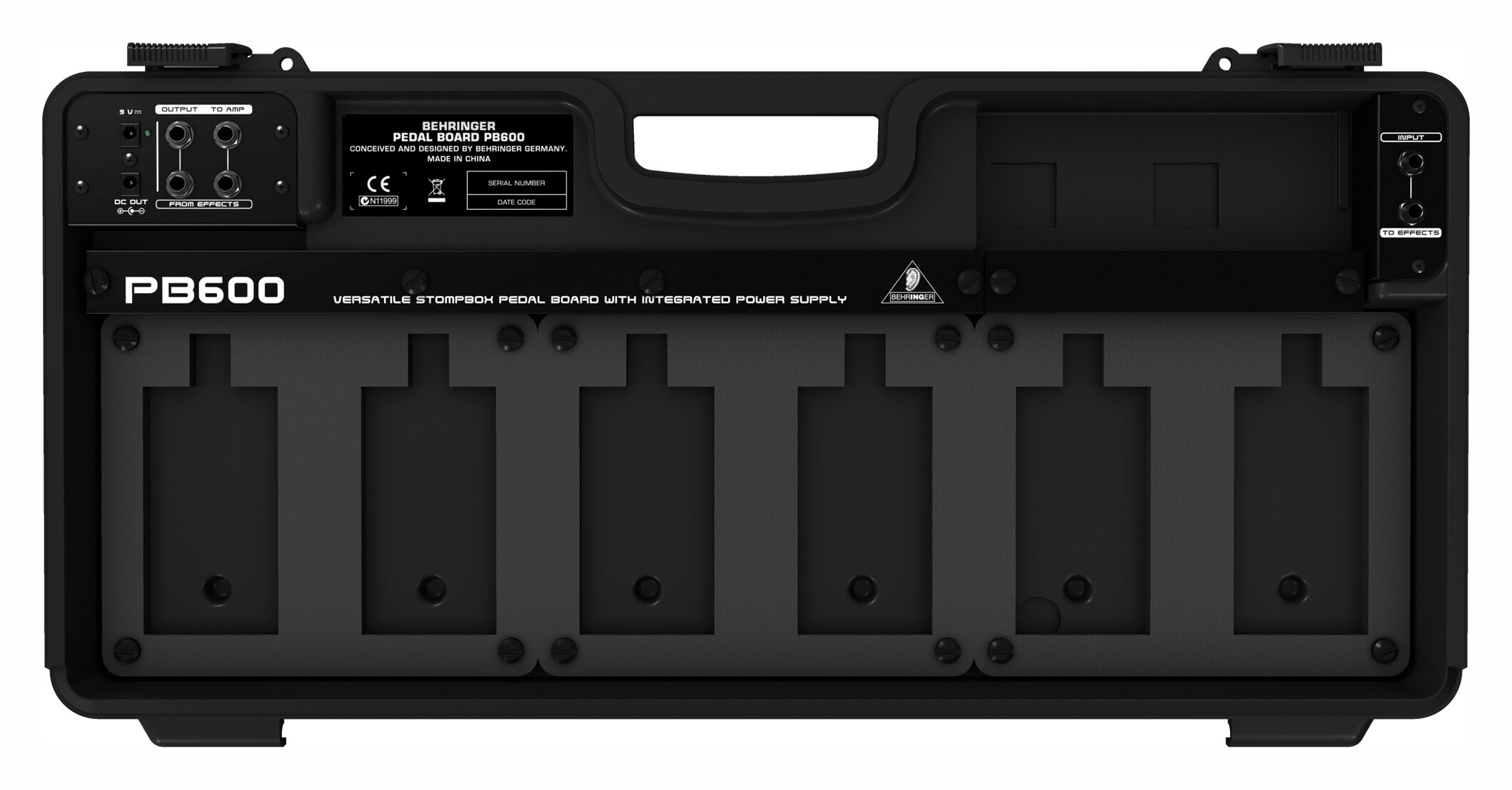

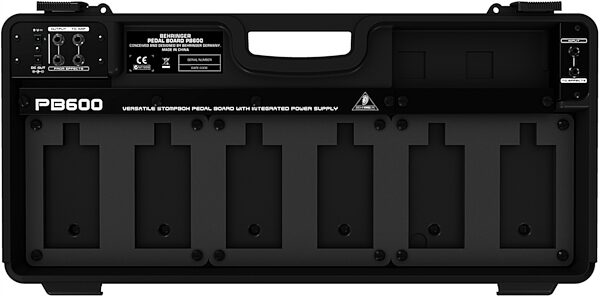

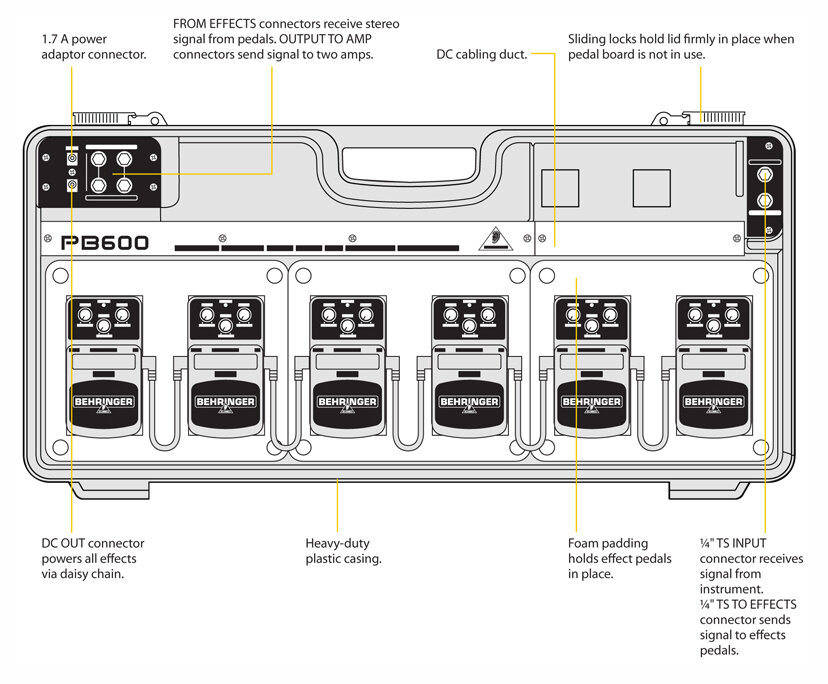

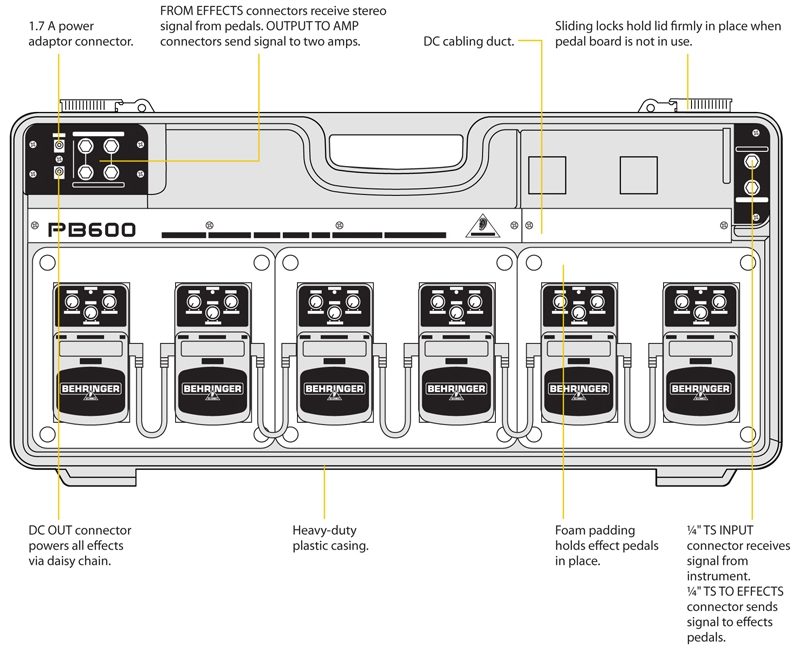

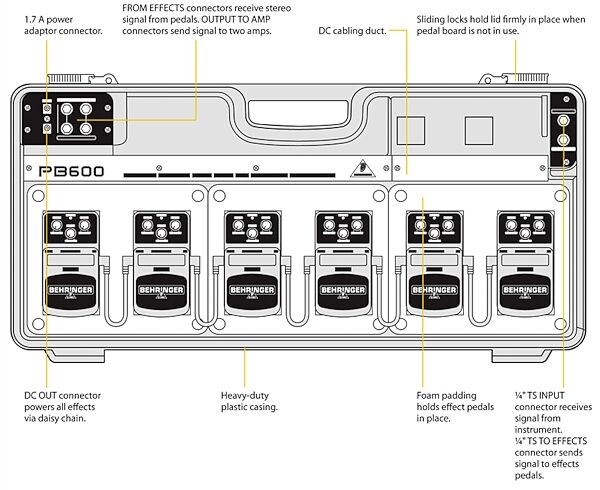

Connect your guitar, bass or keyboard to the single 1/4-inch input in the upper right corner of the board. A pair of 1/4-inch From Effects jacks in the upper left corner allow you to connect stereo effects, and two 1/4-inch Output to Amp jacks send a left and right stereo signal to up to two amps.

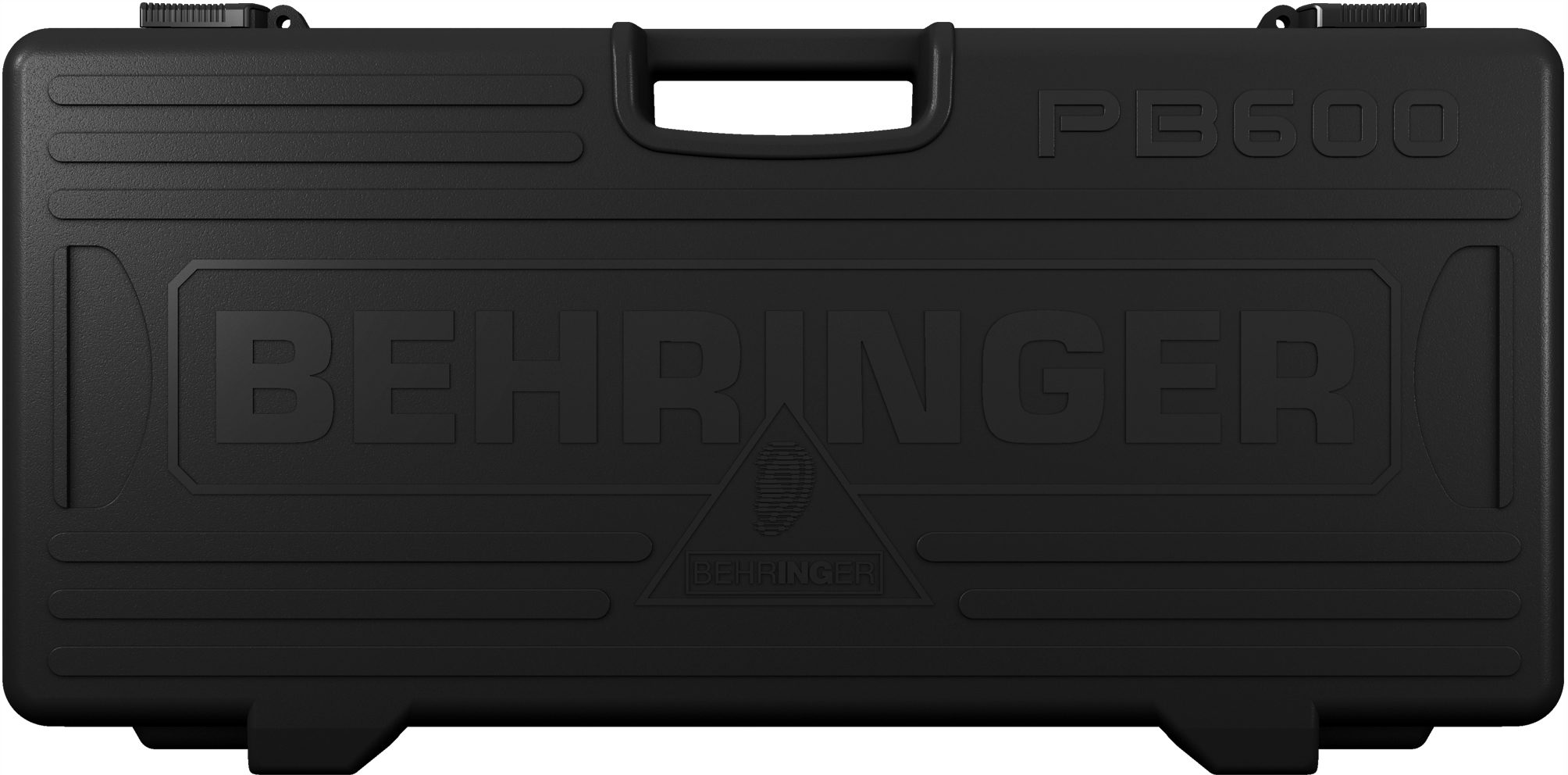

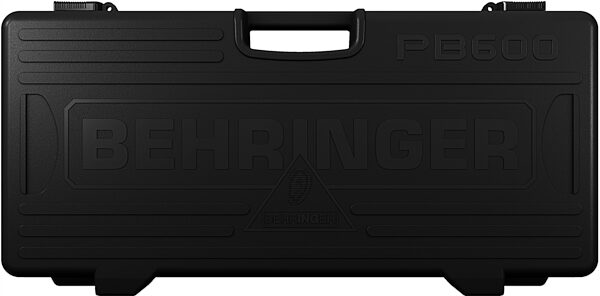

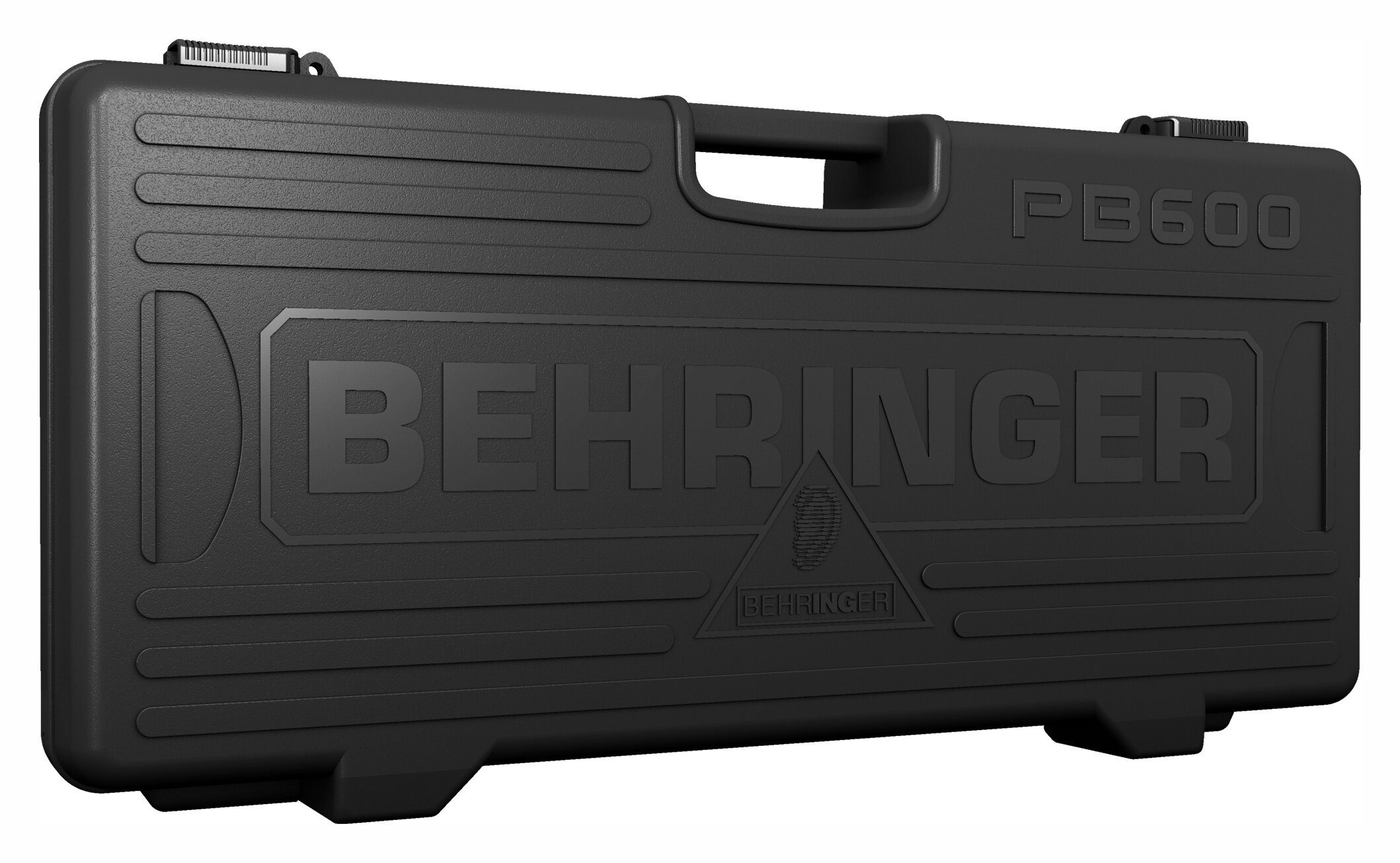

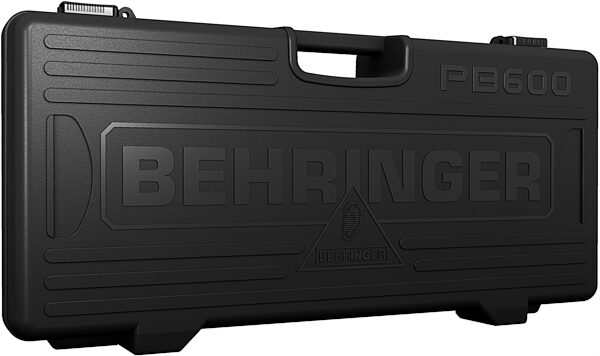

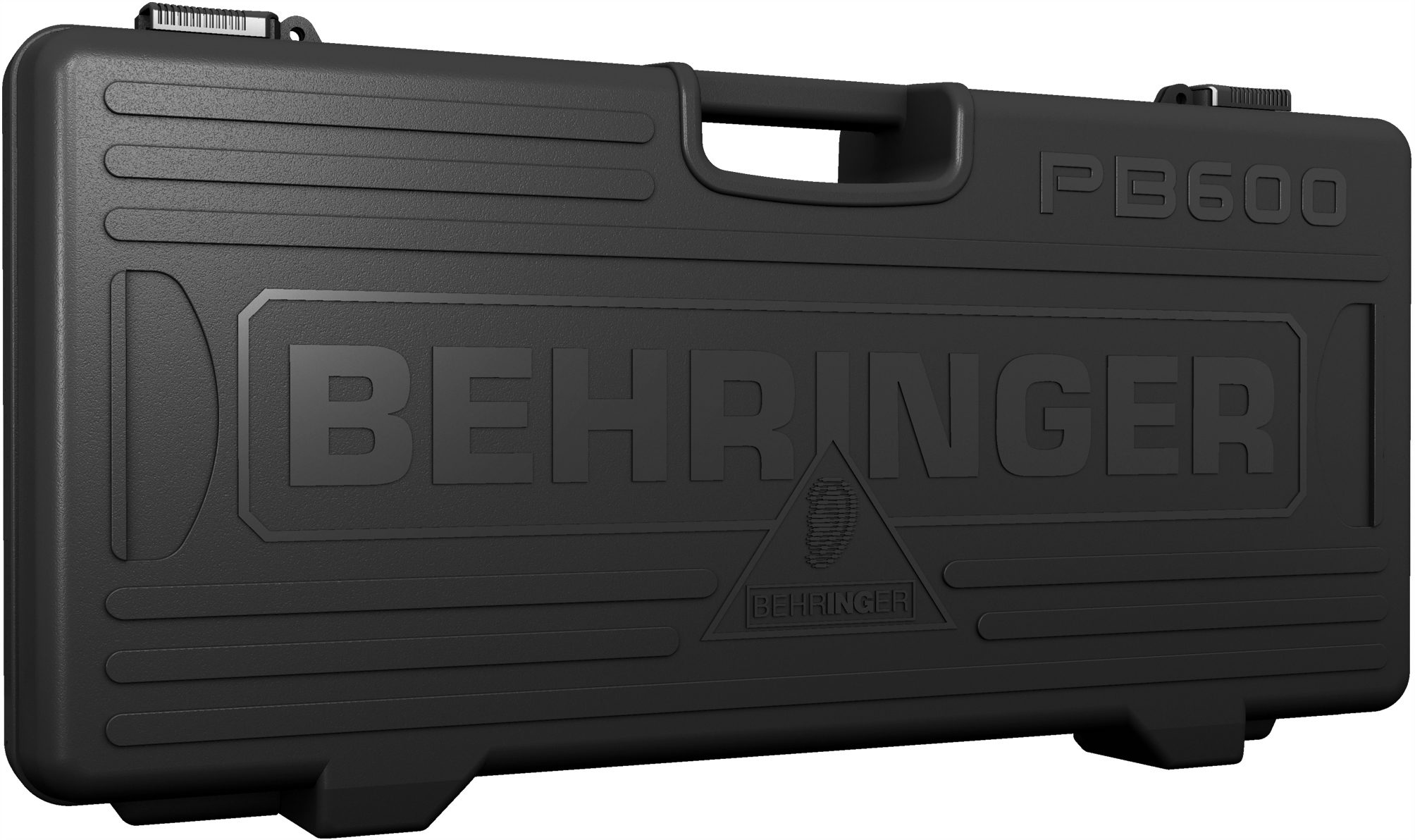

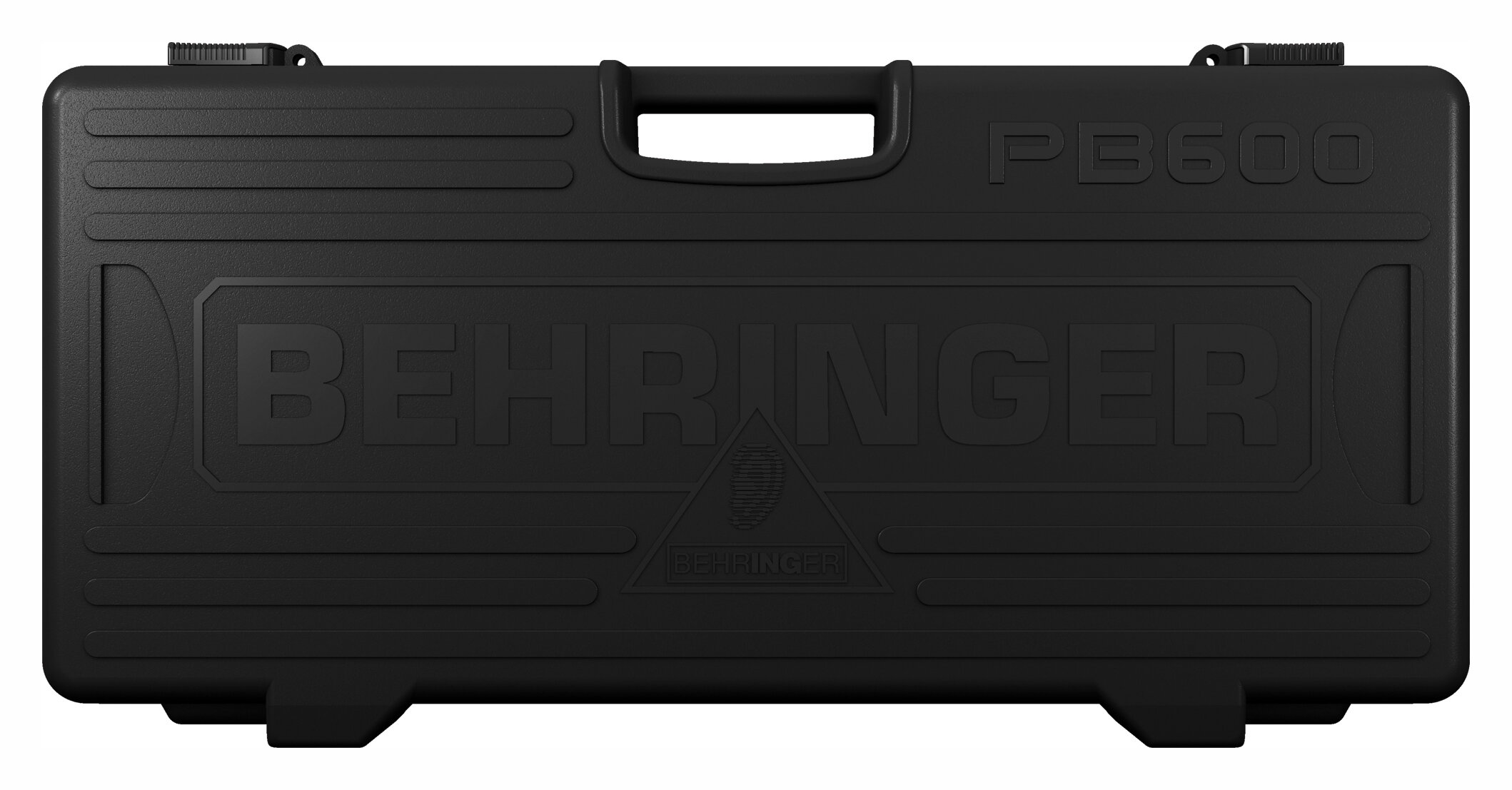

When it's time to load out, just unplug the power supply, disconnect your guitar and amp, put the lid back on the PB600 and slide the locking latches back into place. The heavy impact plastic casing will protect your pedals from the very worst dings, scrapes and scratches the road throws your way.
- Ultra-compact and lightweight pedal board for transporting up to 6 effects pedals, including patch cables
- Generous 1.7 A power adapter included for powering more than 12 devices* -- includes 1 x 6 daisy-chain cabling
- Ultra-rigid plastic design withstands even heavy impact
- High-quality components and exceptionally rugged construction ensure long life
- Conceived and designed by Behringer Germany
zZounds is an authorized dealer of
Connectors: 1/4" TS, Unbalanced
Power Supply: 9V, 1.7A switching adapter (included)
USA/Canada 120V~, 60Hz GPE182-090170-1 (HSB-UL)
Power Connector: 2mm DC jack, center negative (with daisy-chain cable included)
Power Consumption: 2mA
Dimensions (HxWxD): 329mm(13")x663.6mm(26 1/8")x115mm (4 1/2")
Weight: approx. 3.8kg (8.4 lbs) including PSU & daisy chain
- Dimensions and Weight in Packaging
- Shipping Weight: 11 lbs
