2 x 700 Watts Power Amplifier
The EP1500 is an extremely musical power amp that can take a whole night's worth of abuse without missing a beat -- even at 2 ohms! The Europower EP1500 is a dependable workhorse that will never let you down.
You get enough real-world Watts to get you through the roughest gigs: 2 x 700 Watts into 2 ohms, or 1,400 watts into 4 ohms bridged mono operation. Experience has probably taught you that there is nothing worse than when your amp runs out of breath. With Europower, you've got your back covered all the way.
From the deepest bass all the way up to the most subtle highs, you will be amazed at the clarity and richness of sound. This kind of multi-faceted performance was previously possible only with amps costing hundreds more.
The Europower EP1500 meets the needs of professional musicians, for both installed applications or on the road. No corners were cut in the design process. You can rest assured that these are tough, reliable amps built to last and last. After all, you have come to expect nothing less from Behringer.
Each Europower has a massive power supply with a low-noise toroidal transformer and lots of headroom, so your music sounds great -- even when you push the amp to the limit -- and it stays that way! Add an extremely effective cooling system and you have an amp that is guaranteed to be trouble-free.
Further underscoring a serious commitment to excellence, Behringer uses only high-quality, high-speed Fairchild(R) and Toshiba(R) transistors that are second to none. As with all Behringer products, the Europower Series is manufactured in accordance with the ISO9000 certified management and manufacturing system, resulting in a high-quality product that will survive years of the toughest use.
Features:
2 x 700 watts in 2-ohm/1400 watts in 4-ohm bridged operation
2-channel, parallel or bridged mono operating modes for flexible application
Independent limiters for each channel offer dependable protection against distortion
Precise signal and clip LED indicators to monitor performance
Selectable low-frequency filters (30 Hz or 50 Hz) remove distracting infra-sound frequencies
Professional Speakon(R) and 'touch-proof' binding post loudspeaker outputs enable secure operation
Balanced XLR and 1/4 in. TRS inputs
Connection option for extra amps in parallel operation
Ultra-reliable Toshiba(R)/Fairchild(R) high-power transistors
High-quality components and exceptionally rugged construction for long life and durability
High-current Toroid(R) toroidal transformer for absolute reliability and lowest noise emission
'Back-to-front' ventilation system including air filter with automatically adjusting fan speed for smooth operation
Independent DC and thermal overload protection on each channel automatically protects amplifier and speakers
Manufactured under ISO9000 certified management system
Technical Info
Output Power: 20 Hz-20kHz @ 0.1% THD, both channels driven:
- 8 ohms: 260 w
- 4 ohms: 400 w
- 2 ohms: 700 w (1 kHz @ 0.1% THD, both channels driven
Bridged Mono: 1 kHz, 0.1% THD
- 8 ohms: 900 w
- 4 ohms: 1400 w
Distortion: <0.01%
Frequency Response: 20 Hz – 20 kHz, +0/-1dB
Damping Factor: >300 @ 8 ohms
Noise (unweighted, 20Hz to 20kHz): -100 dB
Voltage Gain: 40 x (32 dB)
Input Sensitivity, V RMS (@ 8 ohms): 1.15 V (+3.4 dBu)
Input Impedance: 10k ohms (unbalanced), 20k ohms (balanced)
Controls:
- Front: Power switch, gain control (channels 1 and 2)
- Rear: DIP switches (10x)
Indicators:
- Power: green LED
- Clip: red LED, 1 per channel
- Signal: yellow LED, 1 per channel

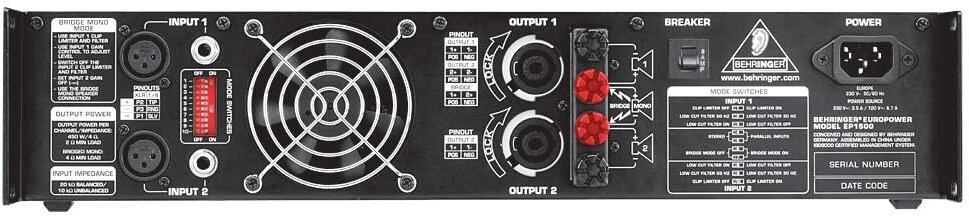

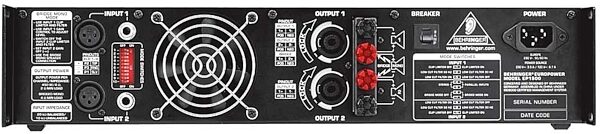

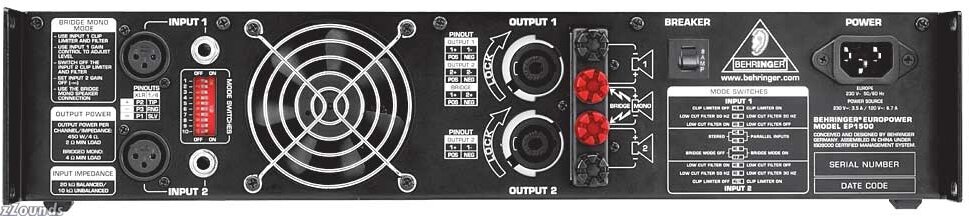

Connectors:
- Inputs: Balanced XLR and ¼ inch TRS
- Outputs: Touch-Proof binding posts and Neutrik Speakon
Cooling: Continuously variable speed fan, back-to-front air flow
Amplifier Protection: Full short circuit, open circuit, thermal and HF protection
Load Protection: Turn-on/off muting, AC coupling
Output Circuit Types: Class AB complementary linear output
Power Supply: USA/Canada 120 V. 60 Hz
Mains connector: Standard IEC receptacle
Dimensions (HxWxD): approx. 3.5 x 19 x 15.8 inches
Weight: 40.13 lbs.
