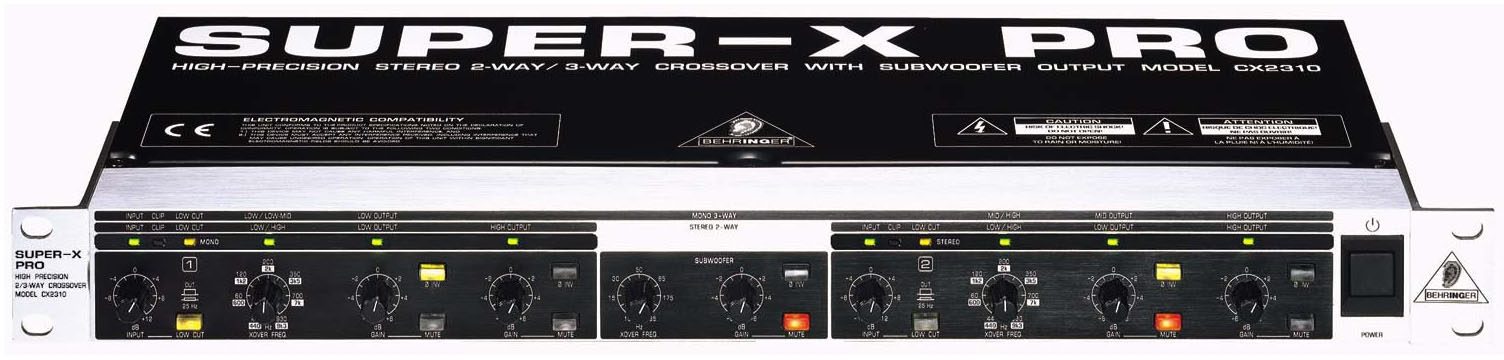

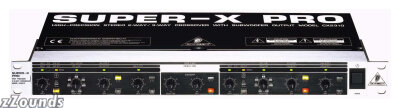

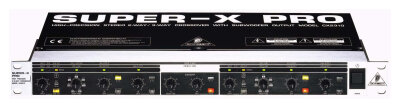

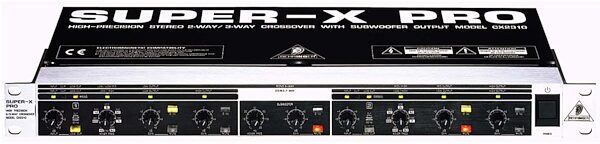

Behringer CX2310 Super X 2-Way Stereo/3-Way Mono Frequency Crossover with Subwoofer Out
2-Way Stereo/3-Way Mono Frequency Crossover with Subwoofer Out.
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
Description
Docs
From Our Catalog
Like the CX3400, the CX2310 offers absolute precision, state-of-the-art circuitry, professional components, ultra low-noise op amps, fully balanced in and outputs, and intuitive operation. In addition to full-fledged 2-way stereo/3-way mono operation, the CX2310 features a separately adjustable subwoofer output, giving you an extra low-frequency band.
Features
24 dB/octave, state-variable Linkwitz-Riley filters for precise frequency separation
Absolutely flat summed amplitude response, zero phase difference
Individual output level and mute per band
Phase reverse switch per output
Switchable 25 Hz subsonic filter on each input for low-frequency driver protection
"Sum" function provides low-level mono output for subwoofer operation
Shielded toroidal mains transformer for minimal noise interference
Type: Electronically servo-bal;anced, HF Filtered
Impedance: Balanced >50 kOhm, unbalanced > 25k Ohm
Max. Input Level: +22 dBu typical, balanced or unbalanced
CMRR: >40 dB, typical >55 dB @ 1 kHz
Outputs Connectors: XLR
Type: Electronically servo-bal;anced, HF Filtered
Impedance: Balanced >60 Ohm, unbalanced > 30 Ohm
Max. Output Level: +20 dBm balanced/unbalanced
Performance Bandwidth: 20 Hz to 20 kHz, +0/-0.5 dB
Frequency Response: <5 Hz to >60 kHz, +0/-3 dB
S/N Ratio (Ref.: +4 dBu, 20 Hz to 20 kHz, unweighted): 91 - 95 dB
Crossover Filter Type: Linkwitz-Riley, 24 dB per octave, state-variable
Mono Mode Frequencies: Low/High: 44 to 930 Hz (x10=440Hz to 9.3 kHz)
Low/Med: 44 to 930 Hz (x10=440Hz to 9.3 kHz)
Mid/High: 440Hz to 9.3 kHz
Stereo Mode Frequencies: Low/High to: 44 to 930 Hz (x10=440Hz to 9.3 kHz)
Dimensions: 1-3/4 x 19 x 8-1/2 in. (44.5 x 482.6 x 217mm)
Weight: Approx 6.6 lbs. (3 kg)
Behringer is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or illustrated.
Features
24 dB/octave, state-variable Linkwitz-Riley filters for precise frequency separation
Absolutely flat summed amplitude response, zero phase difference
Individual output level and mute per band
Phase reverse switch per output
Switchable 25 Hz subsonic filter on each input for low-frequency driver protection
"Sum" function provides low-level mono output for subwoofer operation
Shielded toroidal mains transformer for minimal noise interference
Technical Info
Inputs Connectors: XLRType: Electronically servo-bal;anced, HF Filtered
Impedance: Balanced >50 kOhm, unbalanced > 25k Ohm
Max. Input Level: +22 dBu typical, balanced or unbalanced
CMRR: >40 dB, typical >55 dB @ 1 kHz
Outputs Connectors: XLR
Type: Electronically servo-bal;anced, HF Filtered
Impedance: Balanced >60 Ohm, unbalanced > 30 Ohm
Max. Output Level: +20 dBm balanced/unbalanced
Performance Bandwidth: 20 Hz to 20 kHz, +0/-0.5 dB
Frequency Response: <5 Hz to >60 kHz, +0/-3 dB
S/N Ratio (Ref.: +4 dBu, 20 Hz to 20 kHz, unweighted): 91 - 95 dB
Crossover Filter Type: Linkwitz-Riley, 24 dB per octave, state-variable
Mono Mode Frequencies: Low/High: 44 to 930 Hz (x10=440Hz to 9.3 kHz)
Low/Med: 44 to 930 Hz (x10=440Hz to 9.3 kHz)
Mid/High: 440Hz to 9.3 kHz
Stereo Mode Frequencies: Low/High to: 44 to 930 Hz (x10=440Hz to 9.3 kHz)
Dimensions: 1-3/4 x 19 x 8-1/2 in. (44.5 x 482.6 x 217mm)
Weight: Approx 6.6 lbs. (3 kg)
Behringer is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or illustrated.
Two-way stereo/3-way mono crossover with a full feature set! Its 24dB/octave filters yield a flat summed amplitude response. Each band has an individual output control with phase reverse, and there's also an adjustable subwoofer output.
What Our Customers Say About zZounds
"zZounds has been a great supplier for years!" - customer on November 16, 2009
Call
800.ZZOUNDS (996.8637)
and mention priority code: 7W8WM81
Item: BEHCX2310
Behringer CX2310 Super X 2-Way Stereo/3-Way Mono Frequency Crossover with Subwoofer Out Reviews
10 out of 10
zZounds has verified that this customer bought this product from us.
""No brainer" Cross-over"
Feature:
With the options of all XLR in's and out's it great. The simple fact that it can be used as a stereo for my mains (Hi pass L/R) and the subwoofer out to the sub amp makes this very easy to use a cost effective way to protect my main speakers.
Quality:
I like the Behringer shiney finish,,pots turn fine,,,easy click/view positions for all knobs. Seems plenty sturdy enough for me as I take great care with all my equipment by keeping them racked. Certainly road worthy. There are better units out there with more bells and whistles but not at this price.
Value:
Dollar for dollar you won't get a better unit for the money. Just because you spend more doesn't always mean you get more.
Desirability:
It works great for what I need. Simple easy to use features made for the working musician. This is a must for anyone who uses mains and subs. Protects the mains and puts the frequency response where it works the best for your speakers. I use mine as a Hi-pass stereo set up and cut the mains off at 100hz and let the subs do the rest with the built in subout/crossover from my board.
Sound:
It's quiet and doesn't color or edit the sound at all that I can hear. Good gain and unity control and I like the gain control for the subwoofer output too.
Ease of Use:
With the LED's telling you what mode you're in and the simple (almost idiot-proof) connectivity it a no-brainer. Easy to adjust on the fly to suit your room needs at the best price I've ever seen.
Support:
Since I've never (and I mean never) had to call for support on any of my Behringer gear (SL2442FX-pro/Xenyx1622FX-pro/Xenyx802/B2-Pro/CX2310/XR4400)I'd say it's the best when you DON'T have to call for help.
Overall:
Overall a great unit,,protects your speaker investment everytime you use it. Thanks again Behringer.
With the options of all XLR in's and out's it great. The simple fact that it can be used as a stereo for my mains (Hi pass L/R) and the subwoofer out to the sub amp makes this very easy to use a cost effective way to protect my main speakers.
Quality:
I like the Behringer shiney finish,,pots turn fine,,,easy click/view positions for all knobs. Seems plenty sturdy enough for me as I take great care with all my equipment by keeping them racked. Certainly road worthy. There are better units out there with more bells and whistles but not at this price.
Value:
Dollar for dollar you won't get a better unit for the money. Just because you spend more doesn't always mean you get more.
Desirability:
It works great for what I need. Simple easy to use features made for the working musician. This is a must for anyone who uses mains and subs. Protects the mains and puts the frequency response where it works the best for your speakers. I use mine as a Hi-pass stereo set up and cut the mains off at 100hz and let the subs do the rest with the built in subout/crossover from my board.
Sound:
It's quiet and doesn't color or edit the sound at all that I can hear. Good gain and unity control and I like the gain control for the subwoofer output too.
Ease of Use:
With the LED's telling you what mode you're in and the simple (almost idiot-proof) connectivity it a no-brainer. Easy to adjust on the fly to suit your room needs at the best price I've ever seen.
Support:
Since I've never (and I mean never) had to call for support on any of my Behringer gear (SL2442FX-pro/Xenyx1622FX-pro/Xenyx802/B2-Pro/CX2310/XR4400)I'd say it's the best when you DON'T have to call for help.
Overall:
Overall a great unit,,protects your speaker investment everytime you use it. Thanks again Behringer.
Submitted: 07/08/2009
Style of Music: Rock/Alternative
8 out of 10
Behringer CX2310 SuperX Customer Review
Feature:
I use the 1500 & the 2500amp by behringer with this and the MX32A board with some tower speakers and it sounds great, subs of course 18 in" by nady and floor moniters. Trust me it gets the job done.
Quality:
Great "
Value:
How can you go wrong for the price.
Desirability:
It looks great in my SKB rack.
Sound:
I get the deep bass I'm looking for.
Support:
No I tried to contact every body, and no response.
Overall:
I plan on having it for a while. "Thanks"
I use the 1500 & the 2500amp by behringer with this and the MX32A board with some tower speakers and it sounds great, subs of course 18 in" by nady and floor moniters. Trust me it gets the job done.
Quality:
Great "
Value:
How can you go wrong for the price.
Desirability:
It looks great in my SKB rack.
Sound:
I get the deep bass I'm looking for.
Support:
No I tried to contact every body, and no response.
Overall:
I plan on having it for a while. "Thanks"
Submitted: 01/12/2005
Style of Music: Jazz, R&B, Blues
