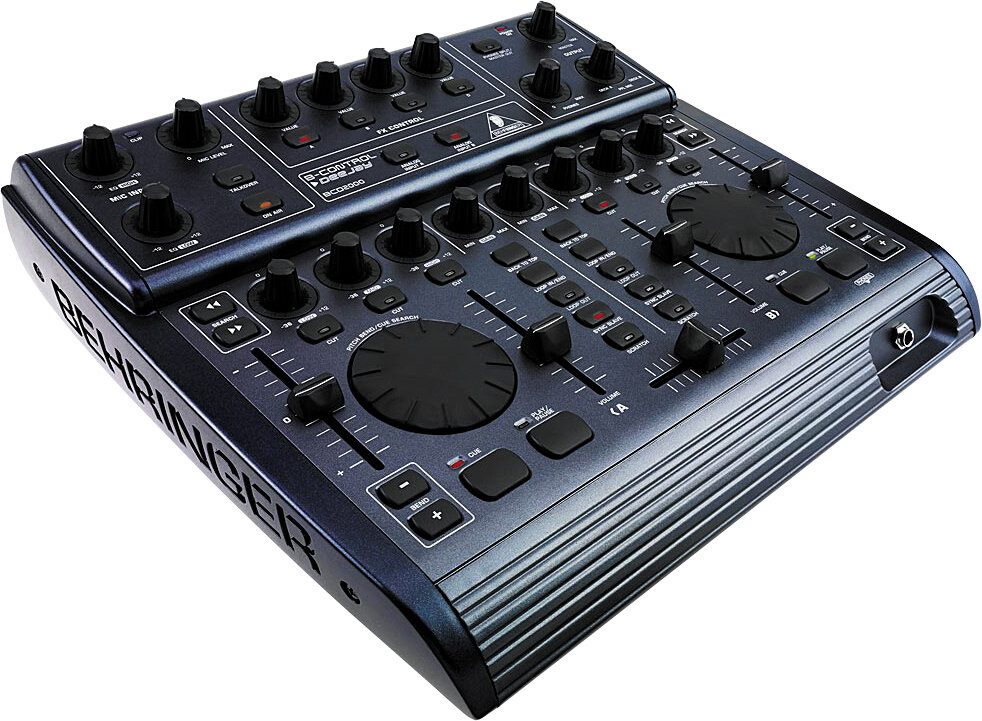

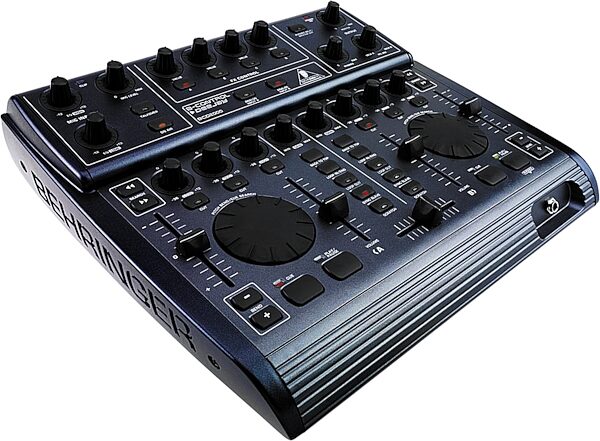

The B-Control DeeJay BCD2000 will play, mix and scratch any WAV and MP3 files as well as other audio formats. Connect up to two DJ turntables, a CD player or a hand-held media player and use the BCD2000 as the foundation for your mixing setup. Get ready to mix and scratch even your favorite vinyl with MP3.
The BCD2000 features a full-speed USB 4-channel audio interface plus high-resolution 24-bit A/D and D/A converters. It perfectly complements the included Behringer B-DJ software or most other DJ software. And don't let the cutesy looks fool you: this is an integrated, full-fledged audio mixer with a premium quality mic preamp, 3-band kill EQ per channel, ultra-precise faders, super-smooth crossfader and talkover function. The BCD2000 is packed with 2 state-of-the-art phono preamplifiers, one of which is switchable to a CD player. Its sophisticated headphone section includes PFL Mix, Split options and direct listening to master output mix. Play, Pause, Cue, Loop and Pitch Bend functions are regulated via dedicated controls for intuitive Djing, and 4 user-assignable controls and buttons are available for an integrated FX section. Take advantage of the enormous processing power of modern PCs and mix, scratch and manipulate digital music in real time -- regardless of the format!
Features
Play, mix and scratch any MP3 and WAV files just like vinyl records with ultra-low latency
Full-speed USB 4-channel audio interface plus high-resolution 24-bit A/D and D/A converters

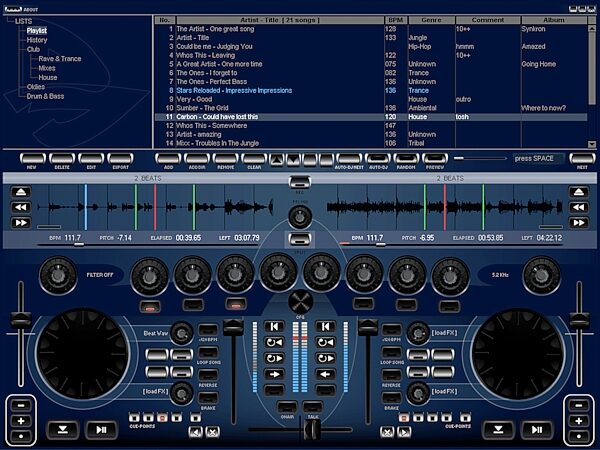

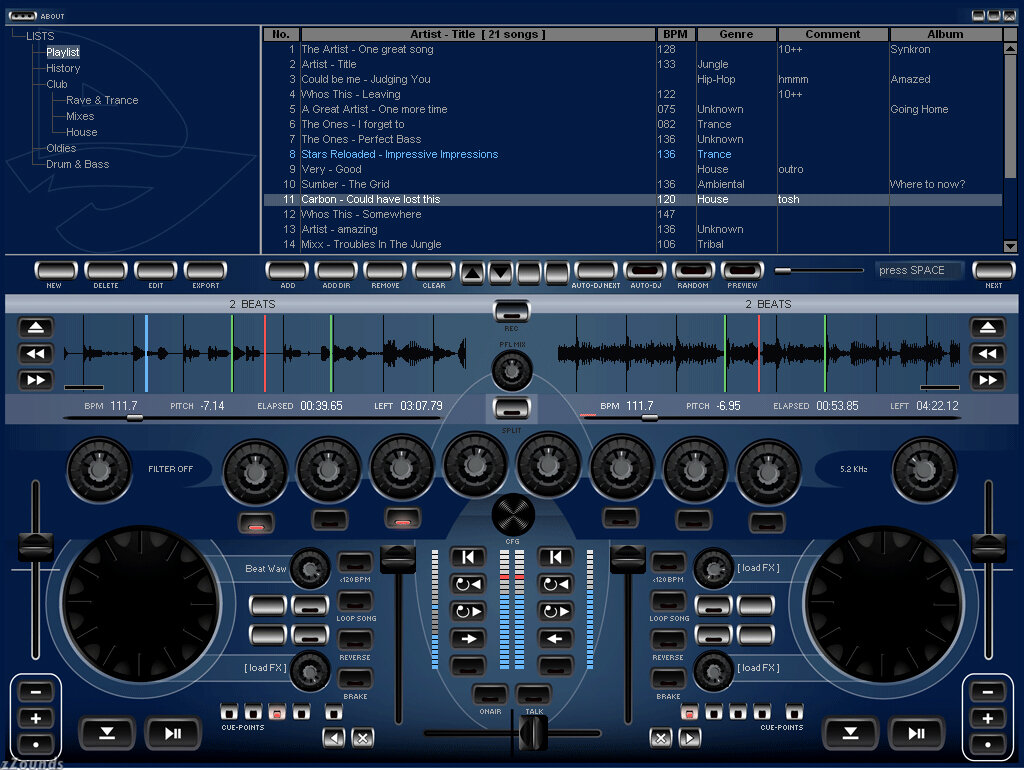

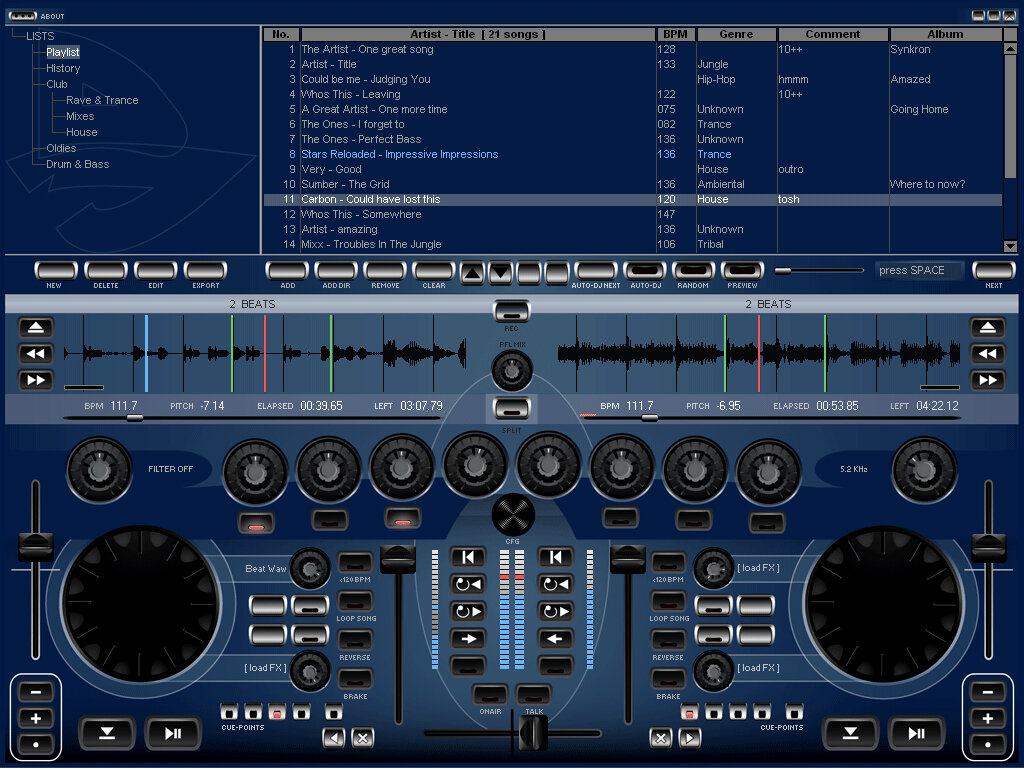

Perfectly complements the included Behringer B-DJ software or any other DJ software
2 scratch wheels support creative DJing such as scratching, pitch bending and cue searching

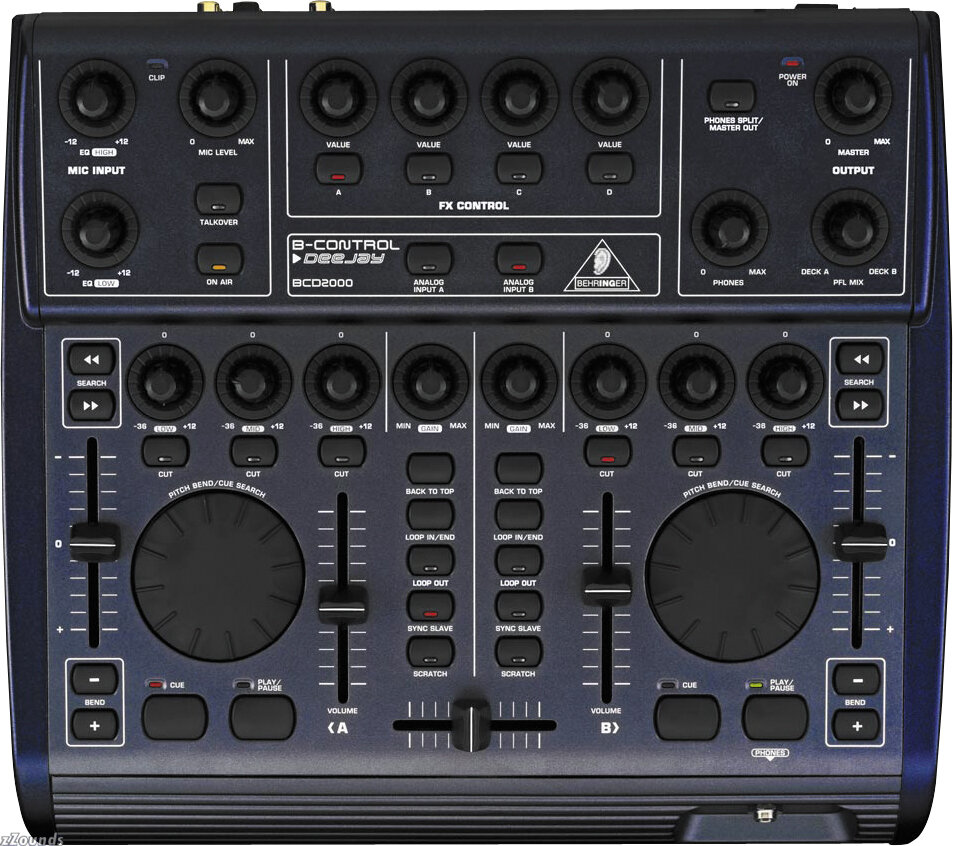

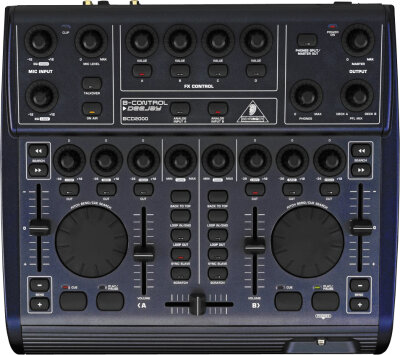

Full-fledged DJ mixer control panel with premium quality mic preamp, 3-band kill EQ per channel, ultraprecise faders, super-smooth crossfader and talkover function
2 state-of-the-art phono preamplifiers -- one switchable to CD player
Sophisticated headphone section includes PFL Mix, Split options and direct listening to master output mix
Play, Pause, Cue, Loop and Pitch Bend functions via dedicated controls for intuitive DJing
4 user-assignable controls and buttons available for integrated FX section
Innovative Cue logic with multiple storable cue points per song
High-quality components and exceptionally rugged construction ensure long life
Conceived and designed by Behringer Germany
Technical Info
Audio Inputs
Microphone input
Type: XLR balanced
Gain range: -oo - +50 dB
Frequency response: 10 Hz - 29 kHz (-3 dB)
Impedance: approx. 2 kilohms (balanced)
Max. input level: -25 dBu @ 35 dB gain (mic level center position)
Signal-to-noise ratio: 110 dB (A-weighted)
Distortion (THD+N): 0.01 % (A-weighted)
CMRR: typ. -40 dB
Equalizer EQ low: �12 dB @ 40 Hz
Equalizer EQ high: �12 dB @ 12 kHz
Line inputs
Phono in: 40 dB gain
Line in: 0 dB gain
Impedance: approx. 47 kilohms
Max. input level: +12 dBu

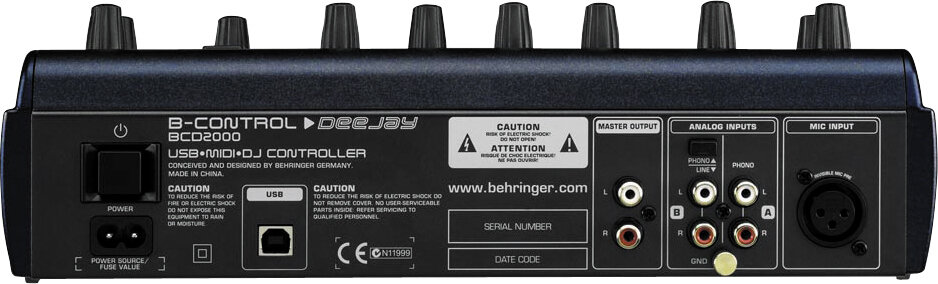

Audio Outputs
Master Out
Type: RCA
Impedance: 120 ohms
Signal-to-noise ratio: 101 dB
Crosstalk: <80 dB @ 1 kHz
Max. output level: +18 dBu
Phones Out
Type: 1/4 in. TRS connector
Max. output level: +4.7 dBu (+18.2 dBm) @ 30 ohms loading
Digital Processing
Converter: 24 Bit
Sample rate: 44.1 kHz
Signal-to-noise ratio:
-- A/D: 100 dB
-- D/A: 100 dB
USB Interface
Type: Full-Speed 12 MBit/s
System Specifications
Signal-to-noise ratio: >80 dB
Crosstalk: <80 dB
Distortion (THD): 0.01%
Frequency response: 15 Hz - 21 kHz, +0/-3 dB
Power Supply
Voltage: 100 - 240 V~, 50/60 Hz
Power consumption: max. 7 W
Fuse: T 1 A H 250 V
Mains connection: Standard IEC receptacle
Dimensions/Weight
Dimensions (W x H x D): 13 in. x 3.9 in. x 11.8 in. (330 mm x 100 mm x 300 mm)
Weight: approx. 4.41 lbs (2.0 kg)
