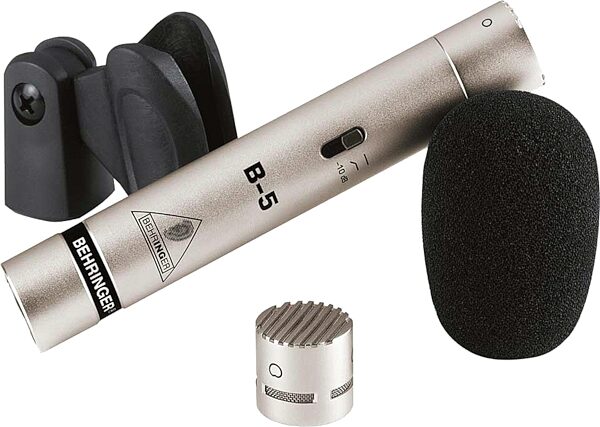

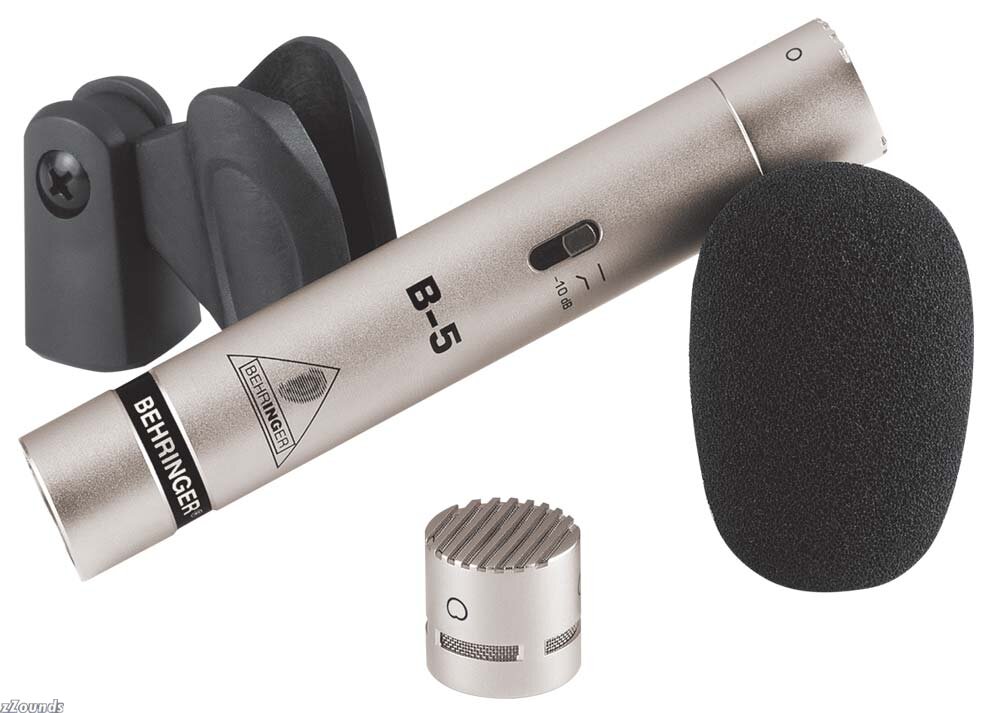

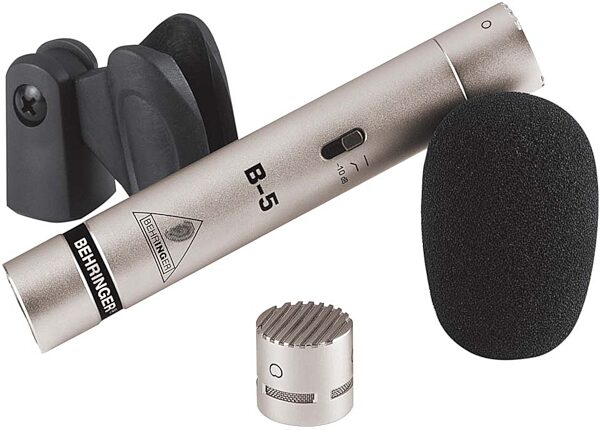

The B-5 is a professional gold-sputtered diaphragm condenser microphone featuring 2 interchangeable capsules for different pickup patterns (cardioid and omnidirectional). It is perfect for acoustic instruments, vocals and overhead miking. Its ultra low-noise transformerless FET input eliminates low-frequency distortion. Its -10dB attenuator can be used with high volume signal sources, while the low-cut filter eliminates floor rumble. The B5 includes a rugged hard case, stand adapter and windscreen. Frequency response: 20Hz-20kHz, requires 48V phantom power.
Features:
Professional true condenser microphone for studio and live applications
2 interchangeable capsules with cardioid and omnidirectional pickup patterns
Low-mass gold-sputtered diaphragm for ultimate sound reproduction
Perfect for acoustic instruments, voice and overhead, etc.
Ultra low-noise transformerless FET input eliminates low-frequency distortion
Smooth, super0-wide frequency response and incredible musicality
Switchable low-frequency roll-off and -10dB input attenuation
Gold-plated 3-pin XLR output connector
Rugged construction with satin nickel-plated brass body
Custom microphone stand adapter, windscreen and transport case included
Technical Info
Transducer Type: True Condenser, 18mm
Operating Principle:
- Cardioid: Pressure Gradient:
- Omnidirectional: Pressure gradient
Polar Pattern:
- 1 x Cardioid
- 1 x Omnidirectional, exchangeable
Connection: Gold-plated balanced XLR connector
Open Circuit Sensitivity (at 1kHz):
- Cardioid: -38dBV (0 dBV=1 V/Pa), 12.6 mV/Pa
- Omnidirectional: -40dBV (0 dBV=1 V/Pa), 10 mV/Pa
Frequency Response: 20Hz - 20kHz
Level Attenuation: -10dB (switchable)
Low-Cut Filter: 6dB/octave at 150Hz (switchable)
Maximum SPL (1% THD @ 1kHz):
- 140dB (0dB)
- 150dB (-10dB)
Equivalent SPL (IEC 651):
- Cardioid: 16dB-A Omnidirectional: 18dB-A
Signal-to-Noise Ratio:
- Cardioid: 78dB A-weighted
- Omnidirectional: 76dB A-weighted
Nominal Impedance: 70 Ohms
Load Impedance: >1 kOhm
Supply Voltage: +48V
Supply Current: 3 mA
Dimensions:
- Shaft Diameter: 20mm
- Length: 120mm
Weight: Approx 0.09 kg (0.21 lbs.)
