B52 Matrix 1000V2 Active Sound System

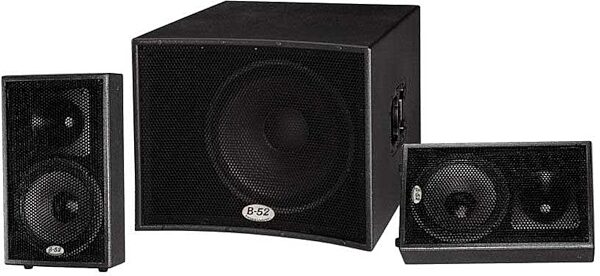

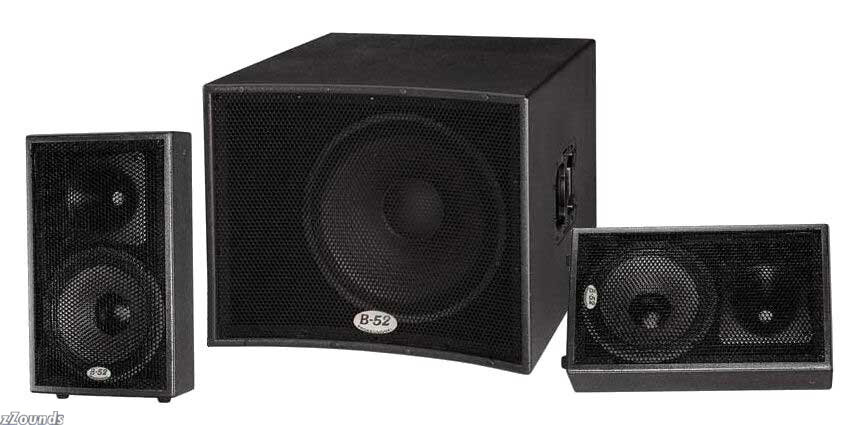

The MATRIX-1000 V2 is a complete sound reinforcement solution comprising of two 10” two-way satellites, a dedicated 15-inch subwoofer and a built-in three-channel 700-watt power amplifier. The three-channel amplifier features three distinct volume controls, electronic crossover with equalization and a VCA compressor. The circuitry is designed and fine-tuned to integrate all components for the best possible sound. There is no need to finesse settings on a crossover or compressor to make your system sound great. Simply roll the system into place on its heavy duty casters, plug in the AC, connect the two speaker cables, run two XLR cables to your mixer and you’re ready to go!

V2 Upgrades: The Best Gets Better
- A new high-performance compression driver for a smoother frequency response and lower distortion throughout the upper midrange frequencies.

- A new elliptical wave guide with more uniform dispersion.

- The addition of a voltage controlled amplifier (VCA) on all three amplifier channels to minimize the effects of amplifier clipping. This lowers the maximum distortion produced at VERY high drive levels and offers additional
protection for the speaker components.

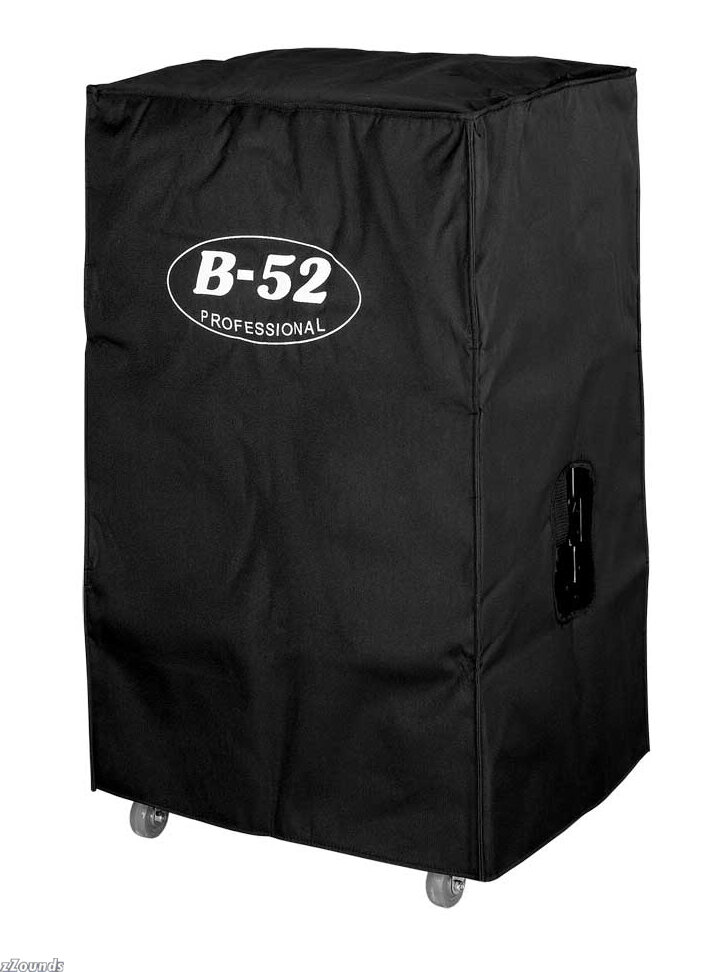

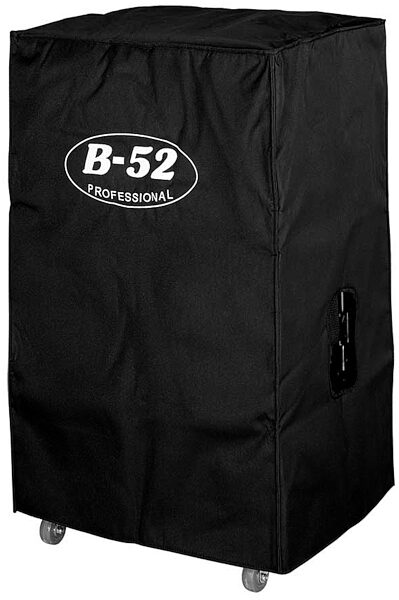

- More durable FREE dust cover.

- Improved B-52 handles.

Stack, Rock and Roll

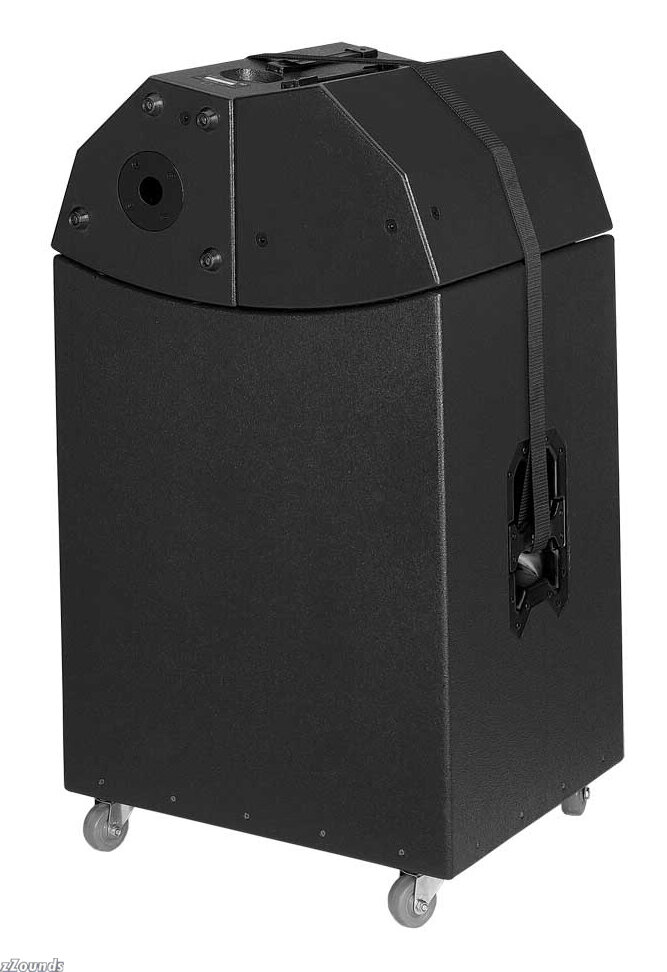

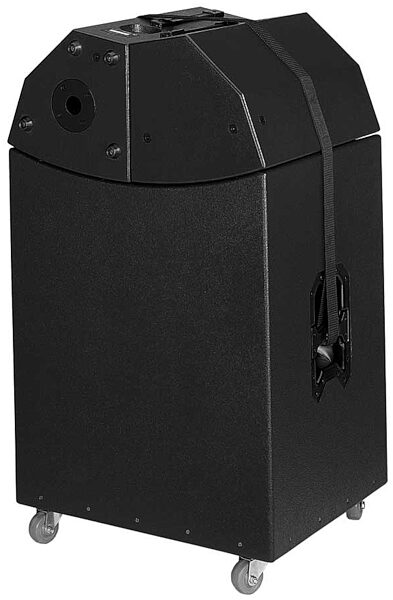

To transport the MATRIX-1000 V2, simply set the subwoofer on its casters and place the satellite speakers on to the subwoofer's front panel, facing down. Fasten the satellites with the included locking strap using the handles on either side of the subwoofer cabinet. Place the included cover over the entire system and you're ready to move the MATRIX-1000 V2 with ease.

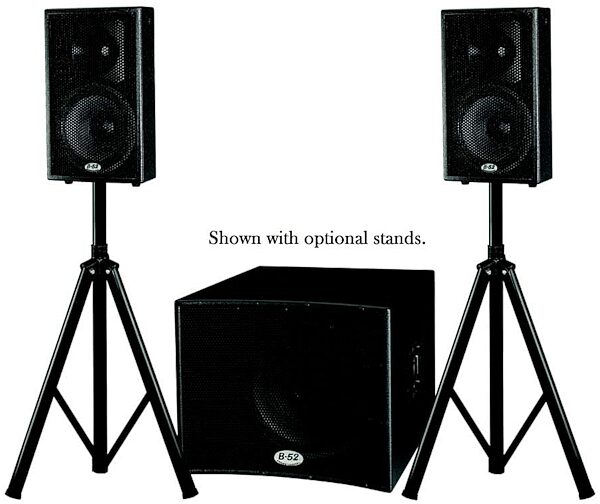

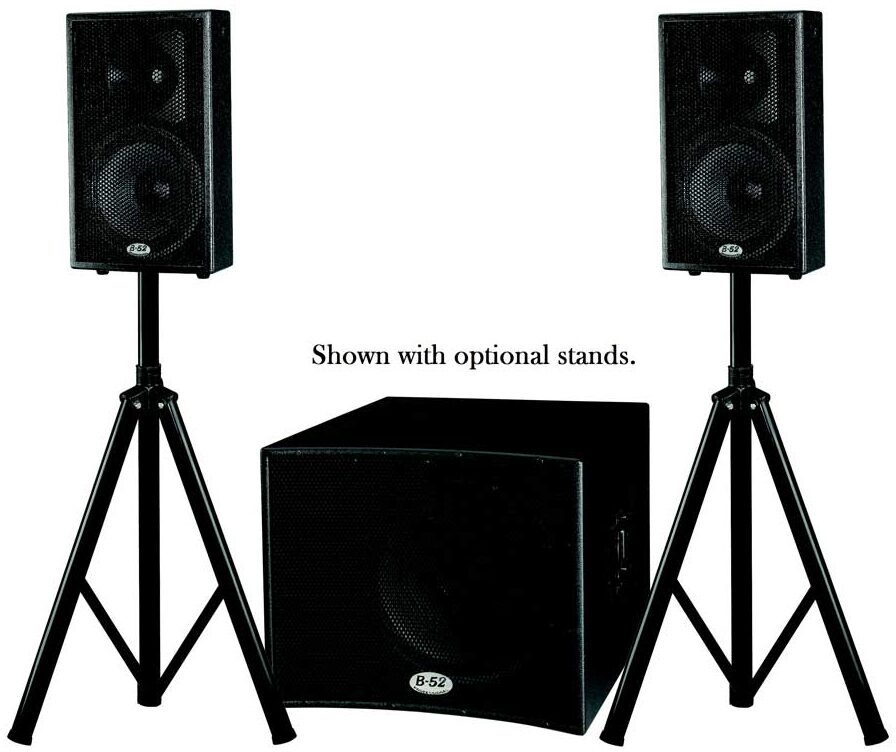

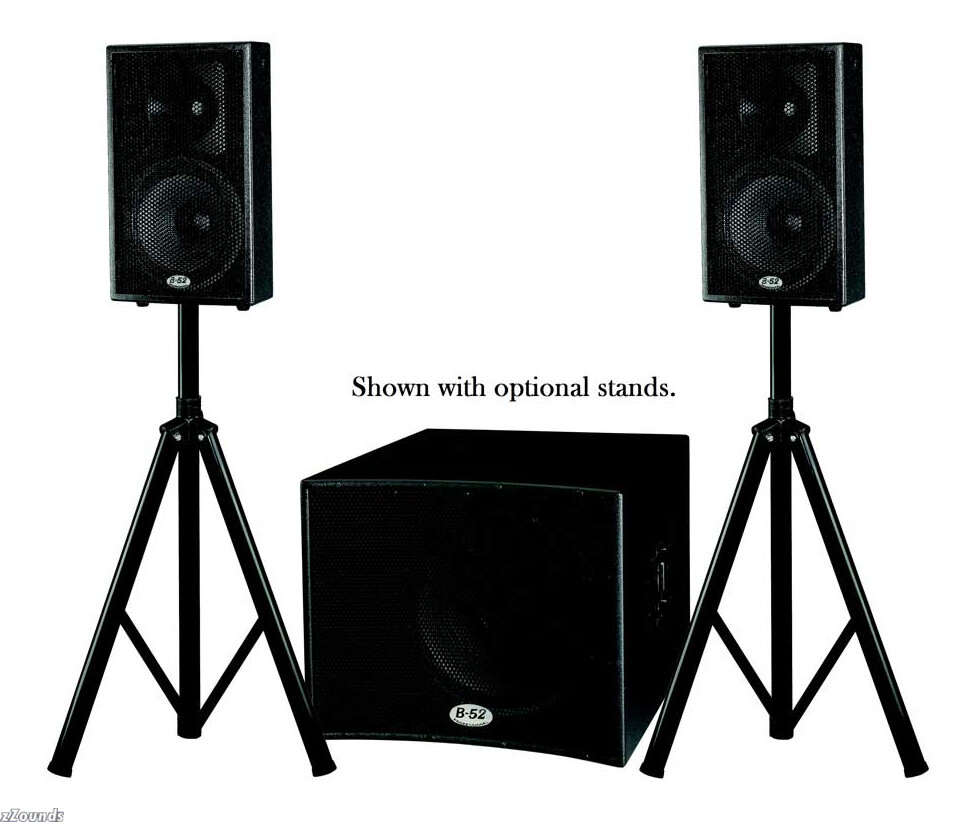

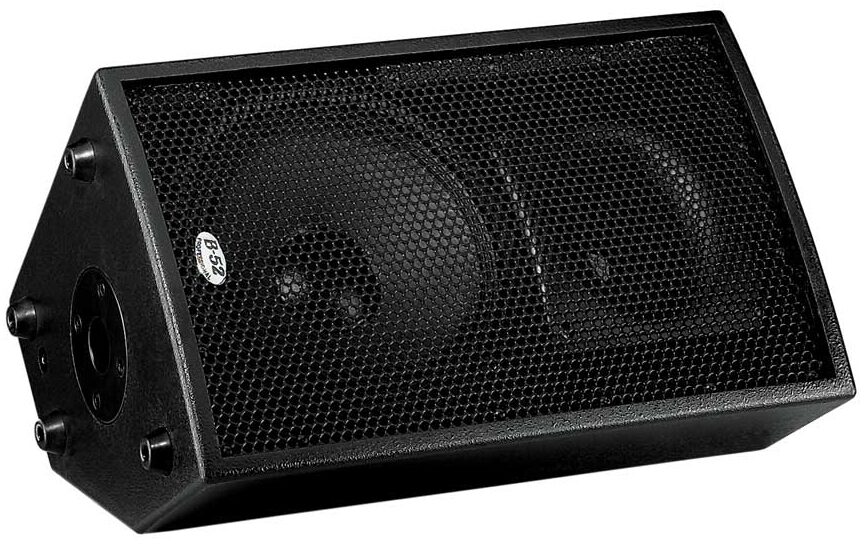

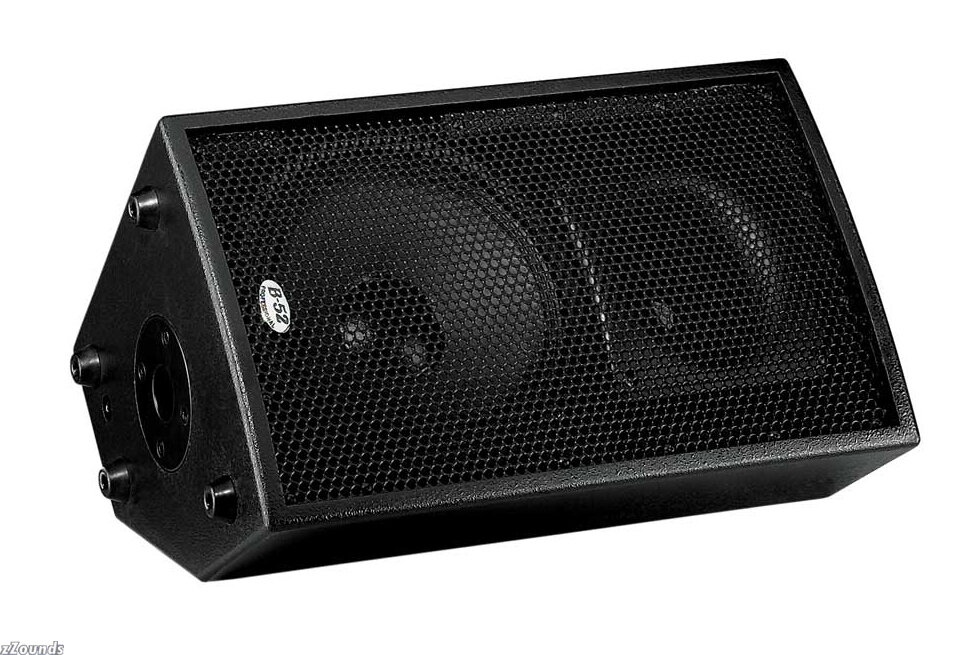

10 in. Two-Way Satellites Pole Mountable, Flyable Or Angled For Use As Stage Monitors

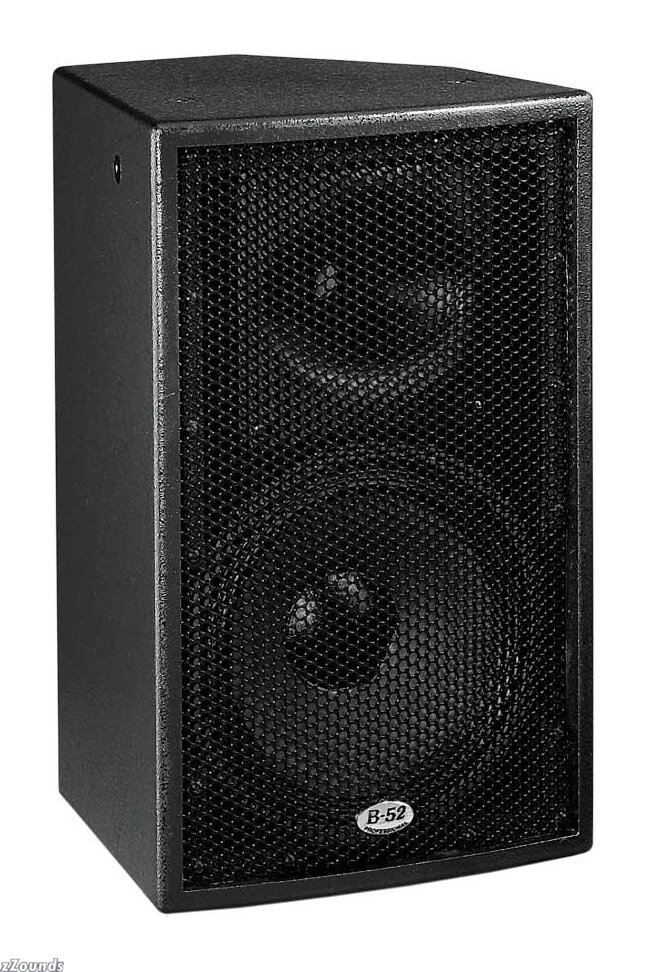

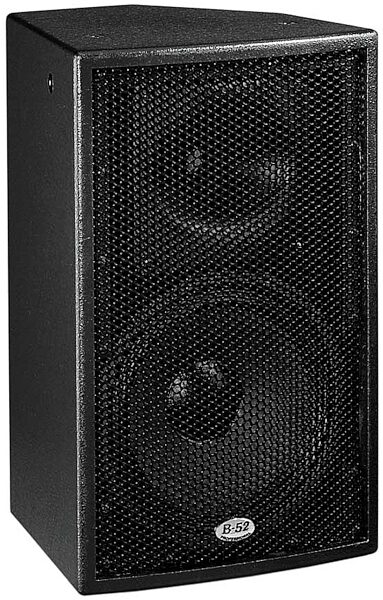

The MATRIX-1000 V2 satellites are loaded with a custom designed 10-inch speaker and 1-inch titanium diaphragm compression driver. The "horn" is a 900 by 600 elliptical waveguide that can be rotated 900 to optimize the dispersion pattern to best suit your particular application. These versatile speakers are pole-mountable and can sit as stage monitors. They also include 3/8-inch - 16tpi flying hardware for small venue permanent installations. The rounded front of the satellite speaker is a perfect fit for the convex face of the subwoofer, allowing a mobile entertainer to stack, roll and transport the entire MATRIX-1000 V2 in and out of a venue in record time.

Built-in 700-watt three-channel amplifier

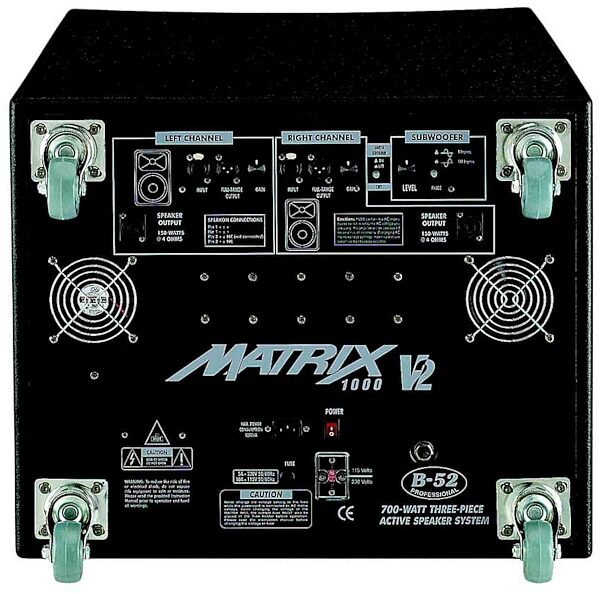

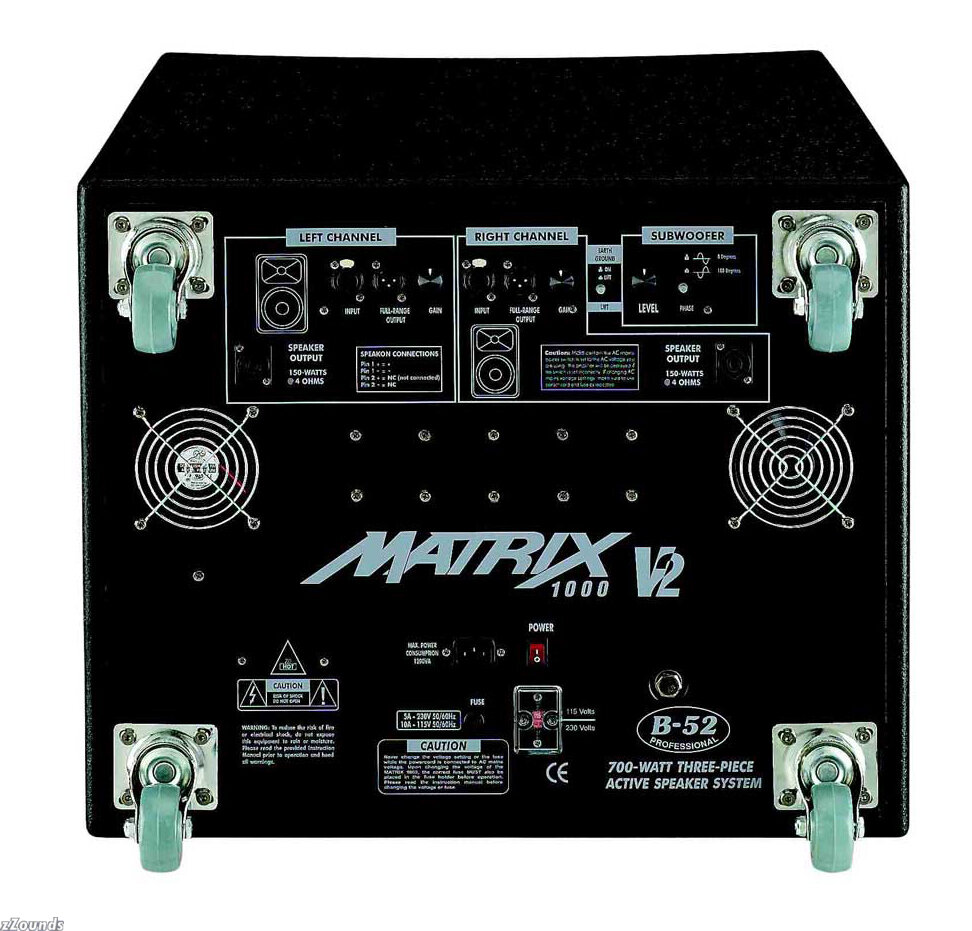

The 15" subwoofer enclosure has two separate compartments. The front chamber serves as the cabinet for the custom B-52 15" subwoofer. The rear chamber houses all of the MATRIX-1000 V2's electronic circuitry. This includes a 400-watt amplifier for the subwoofer, 2 x 150-watt amplifiers for the satellites, electronic crossover, VCA compressor, electronic equalization, pre-amp and power supply.

Technical Info

Amplifier
Subwoofer Amp Output: 400 Watts

Satellite Amp Output: 2 x 150 Watts

Line in: XLR Female

Parallel out: XLR Male

Input Impedance: 48 k Ohms

Speaker Out: Speakon-style Connector

Crossover Frequency: 120 Hz; 24 dB/Octave

10 inch Two-Way Speaker
Speaker Input: Speakon-style connector (pin 1+ = +, pin 1- = -)

LF/MF Woofer: 10 inch Custom-built Transducer

HF Driver: 1 inch Titanium Diaphragm on Elliptical Wave Guide

HF Dispersion: 90 x 60 degrees (upright)

Nominal Impedance: 8 Ohms

Active Freq. Response: 120-19K Hz +/- 3dB

Crossover Frequency (passive): 2.5k Hz; 12 dB/Octave

SPL (1w/1m): 101 dB (half space)

Max SPL: 124 dB

Dimensions (HxWxD): 19 x 12 x 11 in.

Weight: 30 lbs

Subwoofer
Speaker: 15 inch Custom-built Subwoofer

Nominal Impedance: 8 Ohms

Sub. Freq. Response: 40 Hz-120 Hz +/- 3dB

SPL (1w/1m): 102 dB (half space)

Max SPL: 127 dB

Dimensions (HxWxD): 28 x 19 x 23 in.

Weight: 120 lbs

Complete System
Dimensions (HxWxD): 39 x 19 x 23 in.

Weight: 180 lbs
