Product Description
With a capsule diameter not much bigger than the head of a pin, Audio-Technica's smallest-ever lavalier microphone virtually disappears in props or clothing to create highest-quality audio for broadcast and theater sound reinforcement.
The Audio-Technica BP896 MicroPoint omnidirectional lavalier delivers extremely intelligible natural audio and handles high sound pressure levels with ease. Its subminiature omni element is enclosed in a durable housing designed to minimize noise from handling, clothing and wind. Flip a switch to eliminate low-frequency hum without affecting intelligibility.
Features
- Offered in wired & wireless models, the BP896 comes generously equipped with an extensive accessory kit--mic holders, windscreens, element covers & more.
- Inconspicuous, lightweight capsule
- Extremely intelligible natural audio
- Handles high sound pressure levels with ease
- Rugged built for long-lasting performance
- High-pass UniSteep(r) filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
- Requires 11V to 52V DC phantom power
- Includes generous accessory kit & protective case
- RoHS compliant--free from all substances specified in the EU directive on hazardous substances
Connection Types
BP896CW / BP896CW-TH:
locking 4-pin connector for A-T UniPak(r) wireless systems
BP896CLM3 / BP896CLM3-TH:
locking 3.5 mm connector for Sennheiser wireless systems
BP896CT4 / BP896CT4-TH:
TA4F-type connector for Shure wireless systems
Available in black and beige, wired and wireless models:

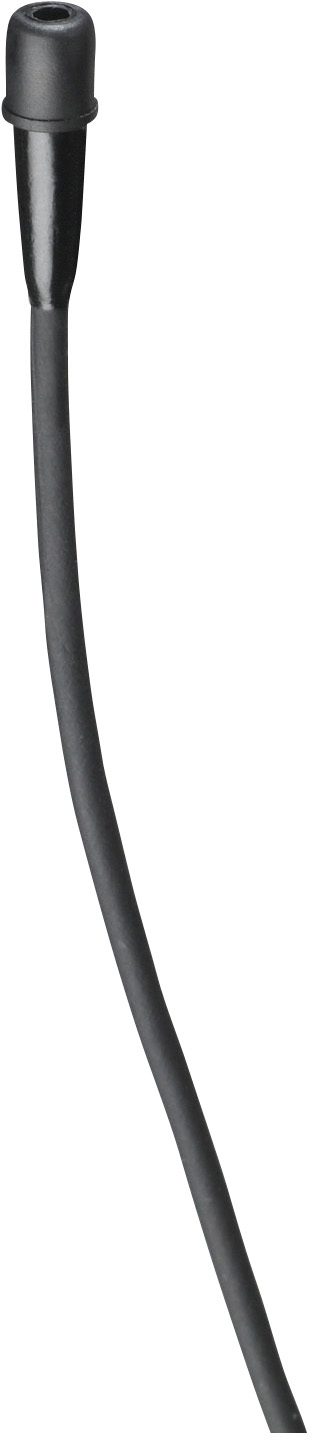

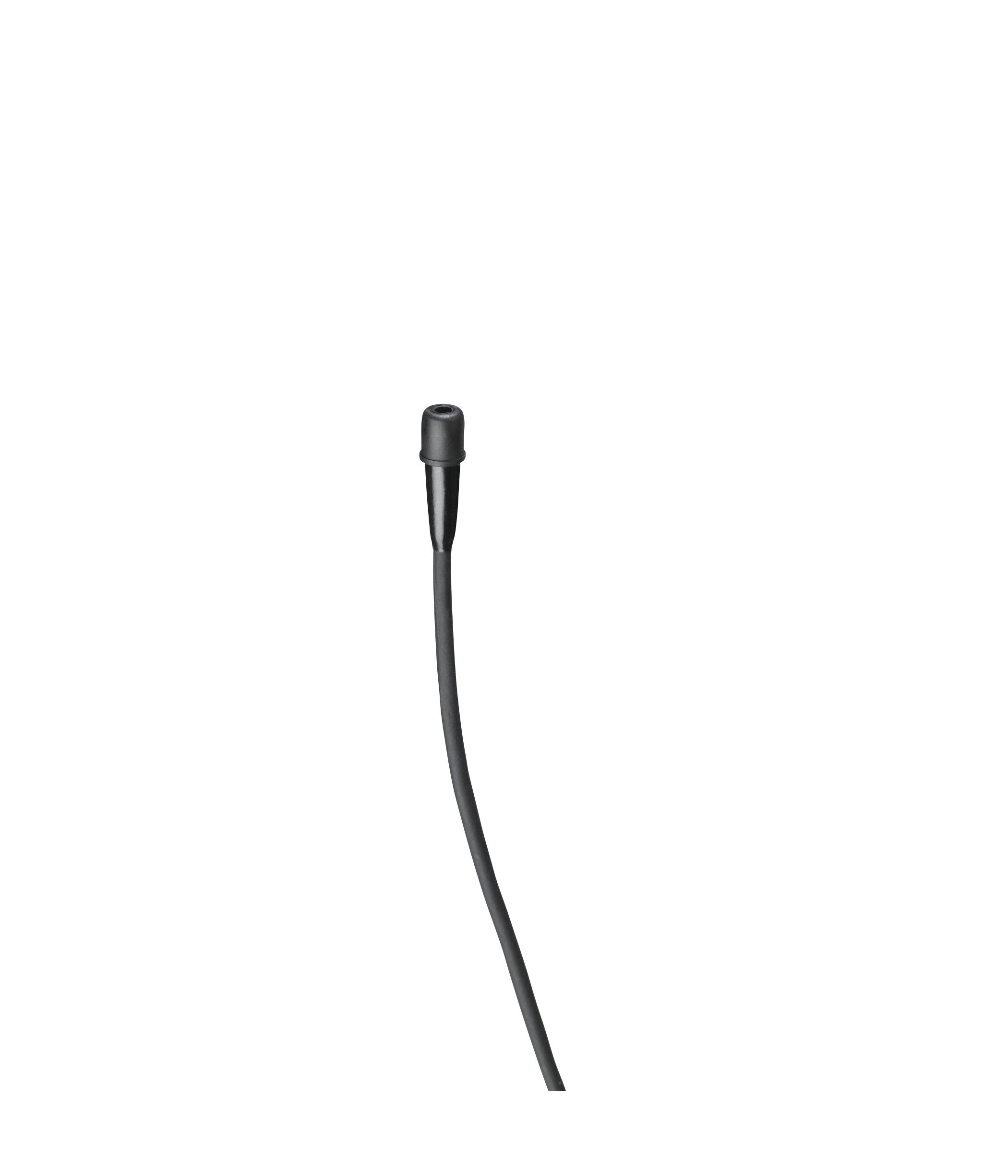

- BP896 - includes AT8539 power module

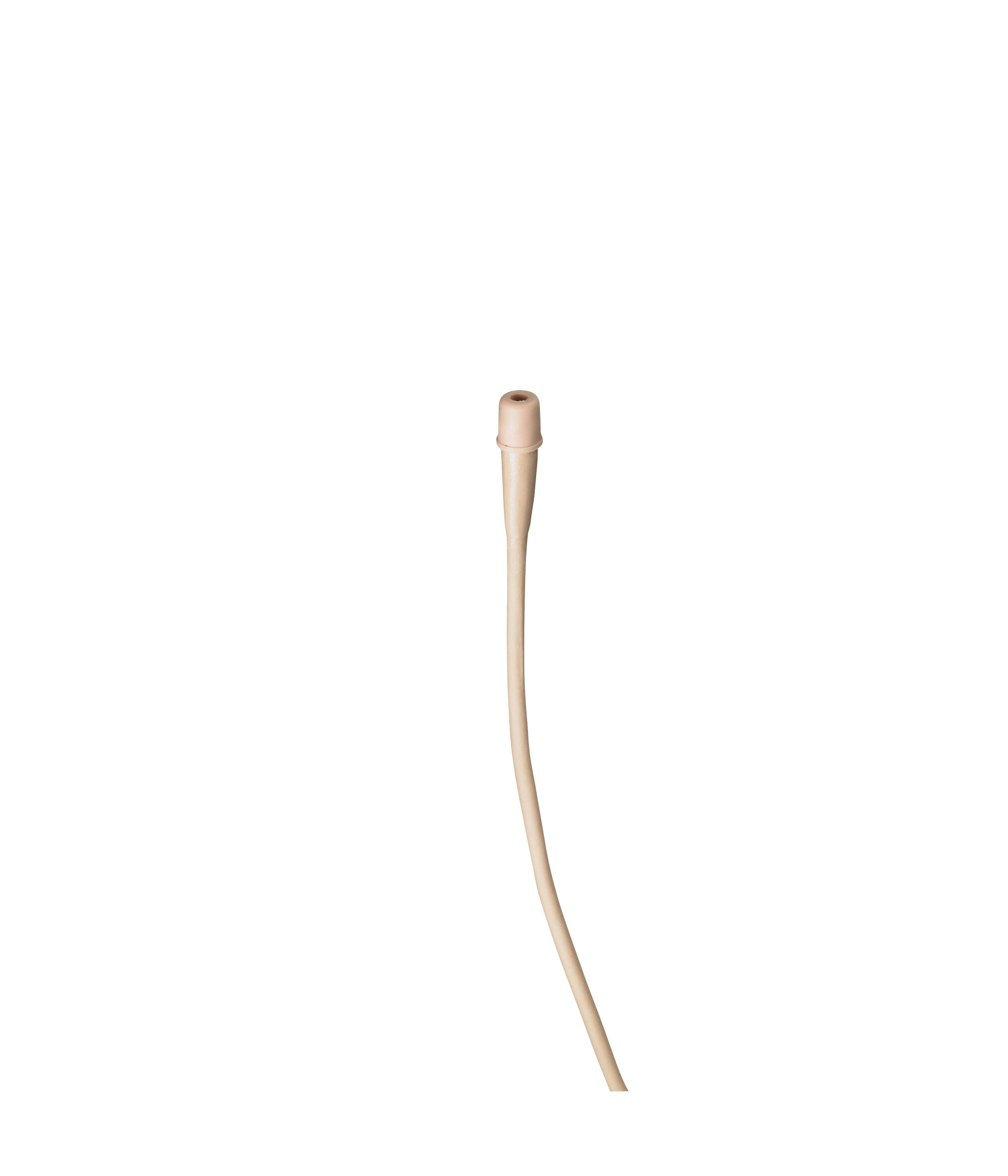

- BP896-TH - same as BP896, but in "theater" color (beige)
- BP896c - less power module; 1.4 m (55") cable, unterminated
- BP896c-TH - same as BP896c, but in "theater" color (beige)
- BP896cW - less power module; 1.4 m (55") cable terminated with locking 4-pin connector for A-T UniPak wireless systems
- BP896cW-TH - same as BP896cW, but in "theater" color (beige)
- BP896cL4 - less power module; 1.4 m (55") cable terminated for Sennheiser wireless systems using Lemo connector
- BP896cL4-TH - same as BP896cL4, but in "theater" color (beige)
- BP896cLM3 - less power module; 1.4 m (55") cable terminated for Sennheiser wireless systems using locking 3.5 mm connector
- BP896cLM3-TH - same as BP896cLM3, but in "theater" color (beige)
- BP896cT4 - less power module; 1.4 m (55") cable terminated with TA4F-type connector for Shure wireless systems
- BP896cT4-TH - same as BP896cT4, but in "theater" color (beige)
- BP896cT5 - less power module; 1.4 m (55") cable terminated with TA5F-type connector for Lectrosonics wireless systems
- BP896cT5-TH - same as BP896cT5, but in "theater" color (beige)
zZounds is an authorized dealer of
Audio-Technica products.
Element: Fixed-Charge Back Plate, Permanently Polarized Condenser
Polar Pattern: Omnidirectional
Frequency Response: 20-20,000 Hz
Low Frequency Roll-Off: 80 Hz, 18 Db/Octave (Wired Only)
Open Circuit Sensitivity: -49 Db (3.5 Mv) Re 1v At 1 Pa
Impedance: 250 Ohms (Wired Only)
Maximum Input Sound Level: 135 Db Spl, 1 Khz At 3% T.H.D.
Dynamic Range (Typical): 104 Db, 1 Khz At Max Spl (Wired Only)
Signal-To-Noise Ratio: 63 Db, 1 Khz At 1 Pa
Phantom Power Requirements: 11-52v Dc, 2 Ma Typical (Wired Only)
Switch: Flat, Roll-Off (Wired Only)
Current Consumption: 0.1 Ma Typical At 5v (Wireless Only)
Voltage Range: 2.5-11v
(Wireless Only)
Weight (Microphone): 0.14 G (0.005 Oz)
Weight (Power Module): 85 G (3.0 Oz)
(Wired Only)
Dimensions (Microphone): 10.8 Mm (0.43") Long, 2.6 Mm (0.10") Diameter
Dimensions (Power Module): 97.6 Mm (3.84") Long, 18.9 Mm (0.74") Diameter
(Wired Only)
Output Connector (Power Module): Integral 3-Pin Xlrm-Type
Cable: 1.4 M (55") Long (Permanently Attached To Microphone), 1.6 Mm (0.06") Diameter, 2-Conductor Shielded Cable With Locking 4-Pin Connector (Wired Only)

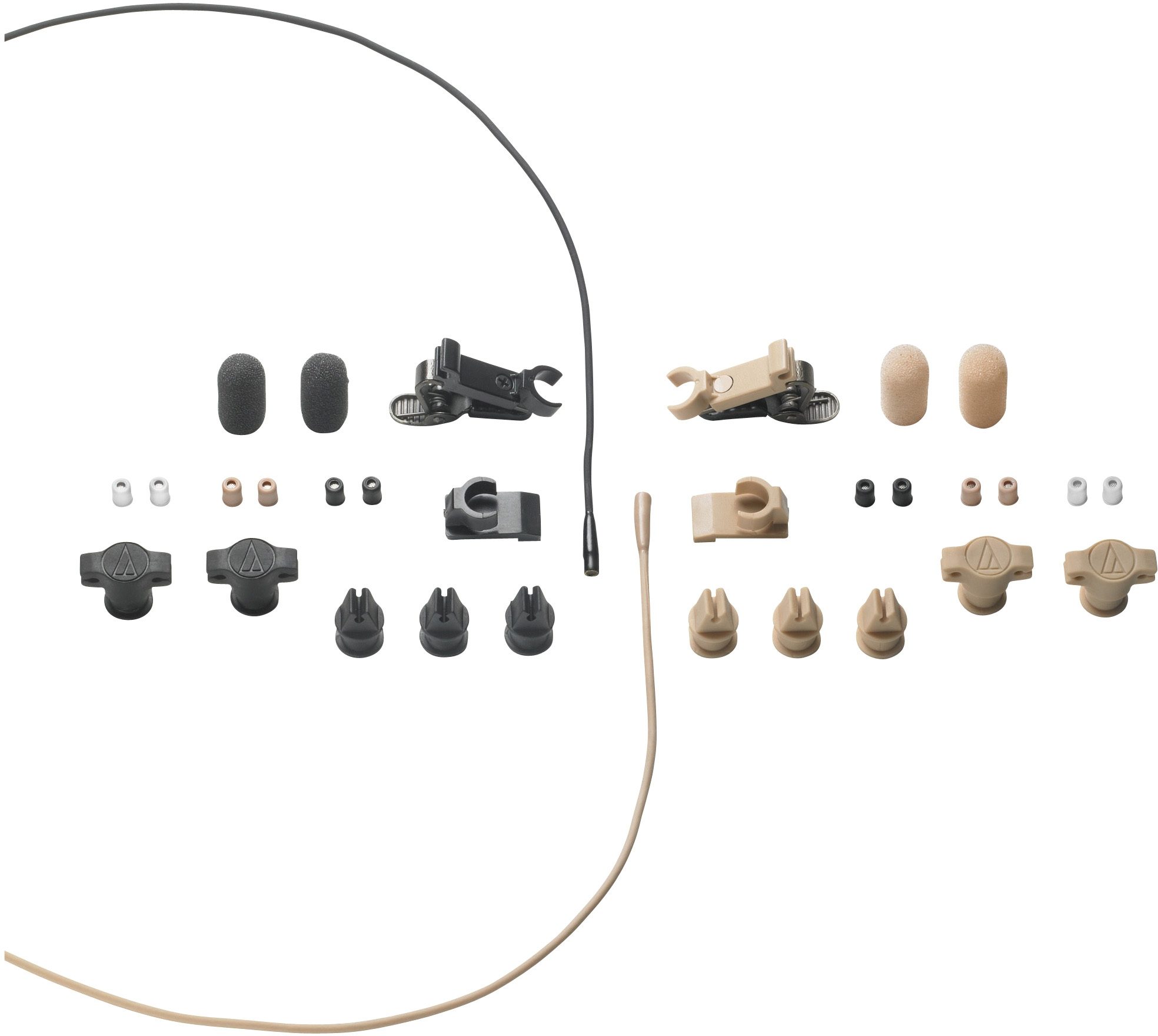

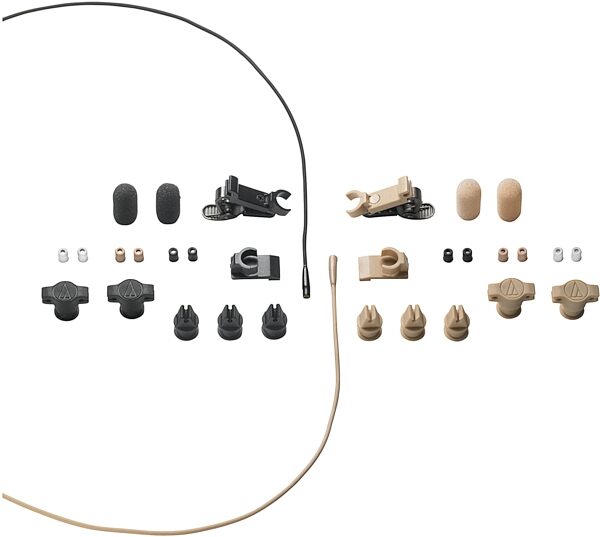

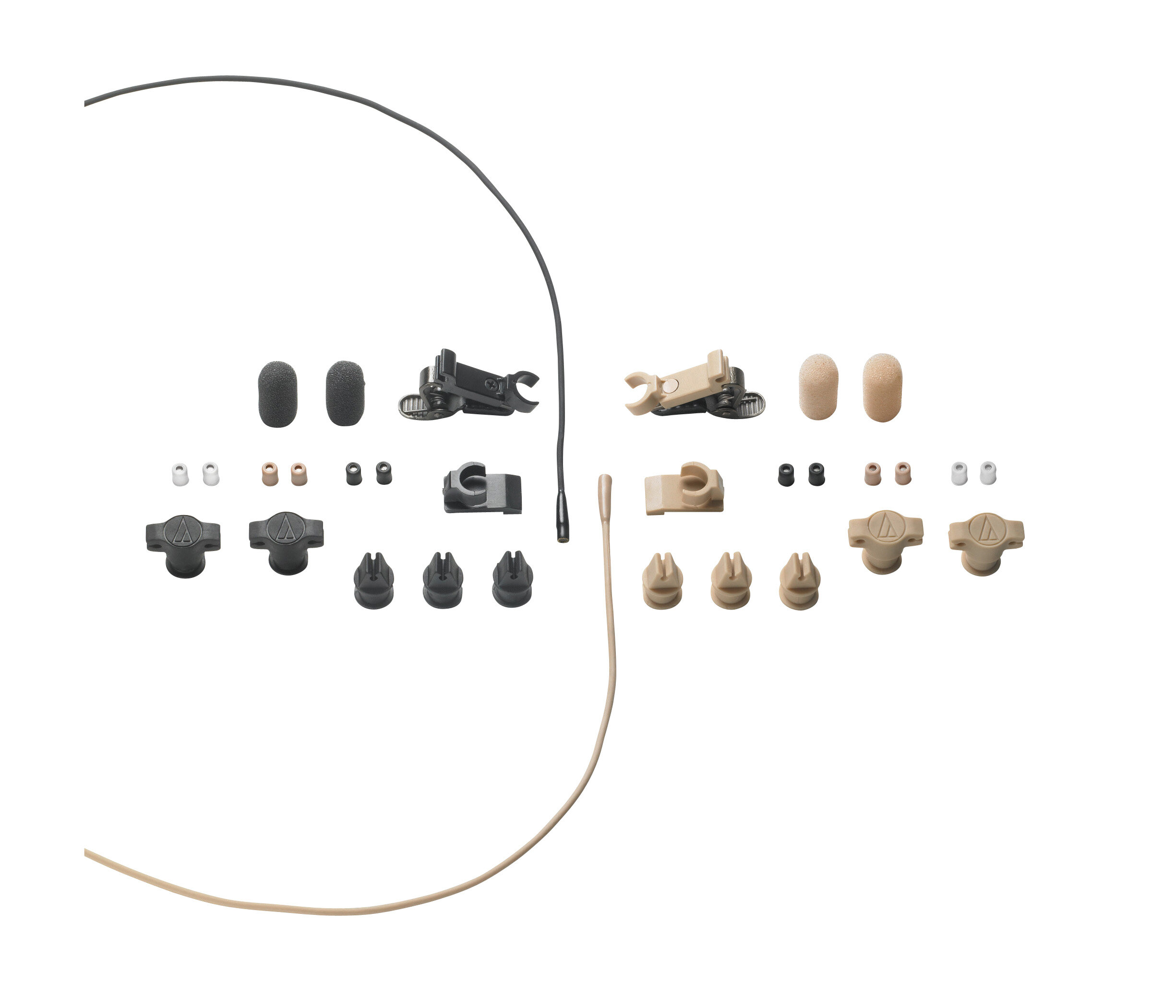

Accessories Furnished: Bp896: At8539 Power Module (Wired Only); Two At8157 Windscreens; Six Element Covers (2 White, 2 Beige, 2 Black); Viper Clip Base; Clothing Clip Base; 3 Black Single Mic Holders; 2 Black Double Mic Holders; Belt Clip (Wired Only); Carrying Case
Bp896-Th: At8539 Power Module (Wired Only); Two At8157-Th Windscreens; Six Element Covers (2 White, 2 Beige, 2 Black); Viper Clip Base; Clothing Clip Base; 3 Beige Single Mic Holders; 2 Beige Double Mic Holders; Belt Clip (Wired Only); Carrying Case
Audio-Technica Case Style: M39
- Dimensions and Weight in Packaging
- Beige, BP896CW-TH
- Shipping Weight: 1 lbs
-
Shipping Dimensions:
5 x
7 x
1 in
- Black, BP896CW
- Shipping Weight: 1 lbs
-
Shipping Dimensions:
5 x
7 x
1 in
- Beige, BP896CLM3-TH
- Shipping Weight: 1 lbs
-
Shipping Dimensions:
5 x
7 x
1 in
- Beige, BP896CT4-TH
- Shipping Weight: 1 lbs
-
Shipping Dimensions:
5 x
7 x
1 in
- Black, BP896CLM3
- Shipping Weight: 1 lbs
-
Shipping Dimensions:
5 x
7 x
1 in
- Black, BP896CT4
- Shipping Weight: 1 lbs
-
Shipping Dimensions:
5 x
7 x
1 in
